| Model NO. | HE200-7200-F | Phase | Single |
|---|---|---|---|
| Output Power | >1000W | Certification | CE, ROHS, ISO9001, FCC |
| Type | DC/AC Inverters | Power Source | Solar Power |
| Circuit Topologies | Half-Bridge Type | Wave Nature | Sine Wave Inverter |
| Product Name | Solar Inverter | Max Solar Charging Current | 120A |
| Nominal Output Voltage | 220/230/240VAC | Power Factor | >0.99 |
| Max Conversion Efficiency | 0.98 | Full Load | 6500W |
| MPPT Voltage Range | 60~450V | Dimension H*W*D(mm) | 395*320*120 |
| Operating Temp | -10°C ~ 50°C | Humidity | 5% to 95% Non-Condensing |

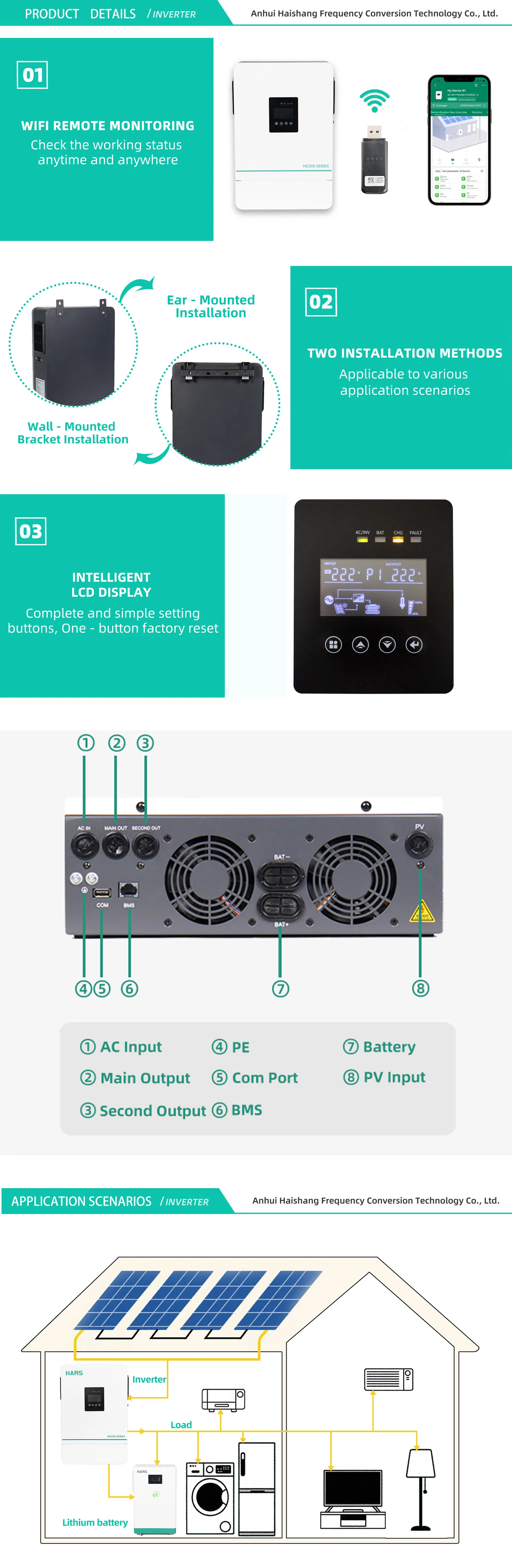

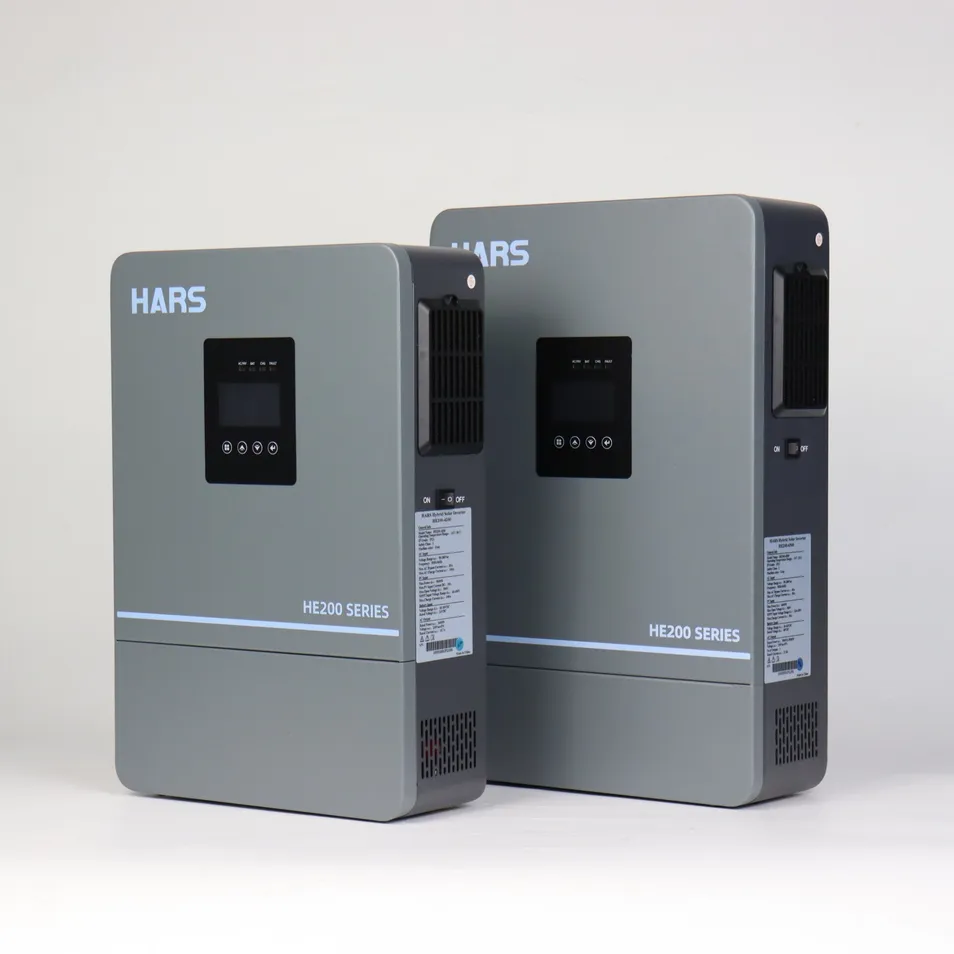

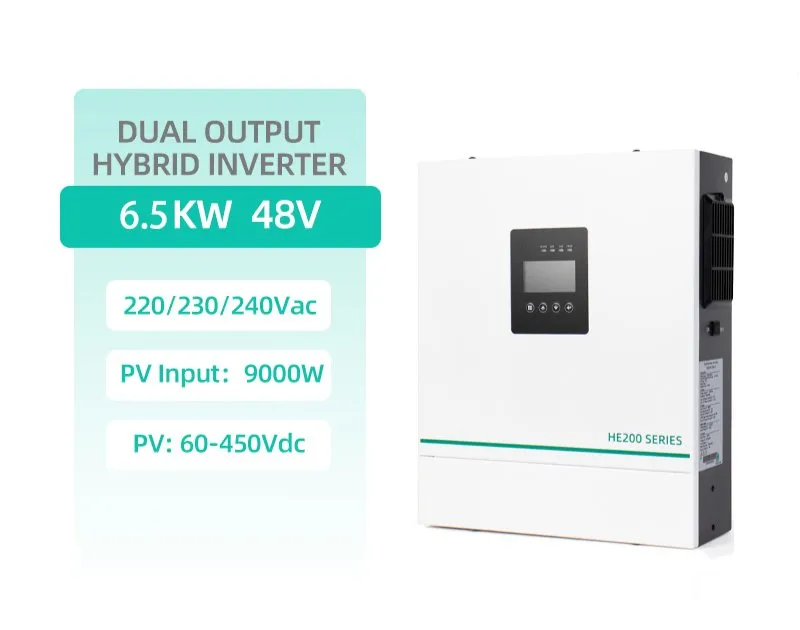

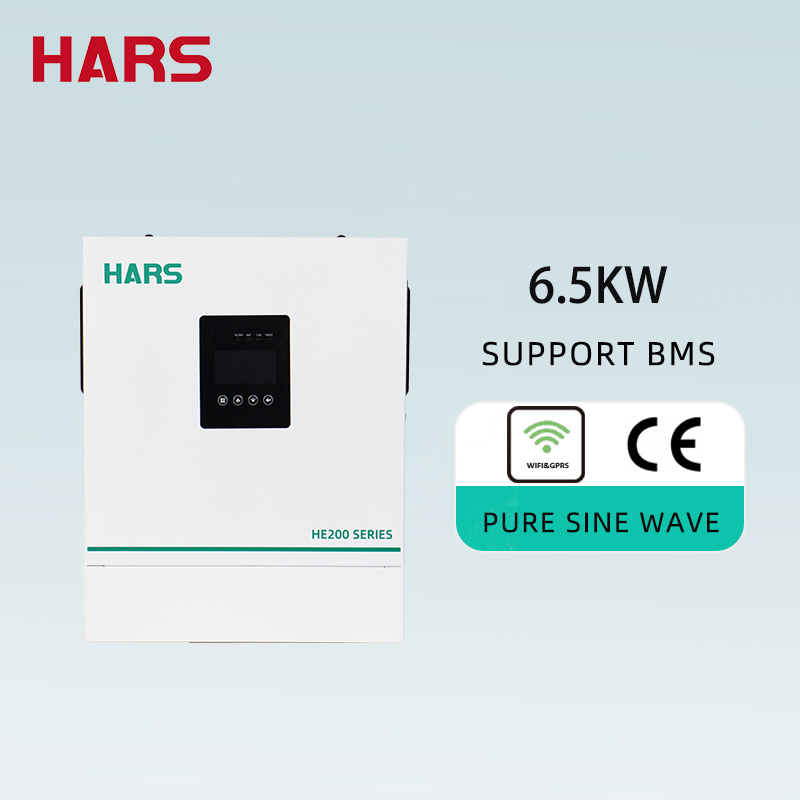

The HE200 is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. It adopts a portable size and supports uninterruptible power supply switching. Key features include adjustable battery charging voltage and current, multiple power input/output priority settings, and configurable AC voltage and frequency. It is designed for diverse power grid environments and supports online data monitoring via a mobile application.
| Rated Output Power | 6500W |
|---|---|
| Rated Output Voltage | 230Vac±5% (Single Phase) |
| Rated Output Current | 27A |
| Rated Output Frequency | 50/60Hz |
| Output Waveform | Pure Sine Wave |
| Battery Type | Lead acid/Gel/Lithium battery |
|---|---|
| Rated Battery Voltage | 48V |
| Max PV Charging Power | 9000W |
| Max PV Charging Current | 120A |
| MPPT Number | 1 |
| Max PV Input Voltage | 500Vdc |
| MPPT Range | 60~450V |
