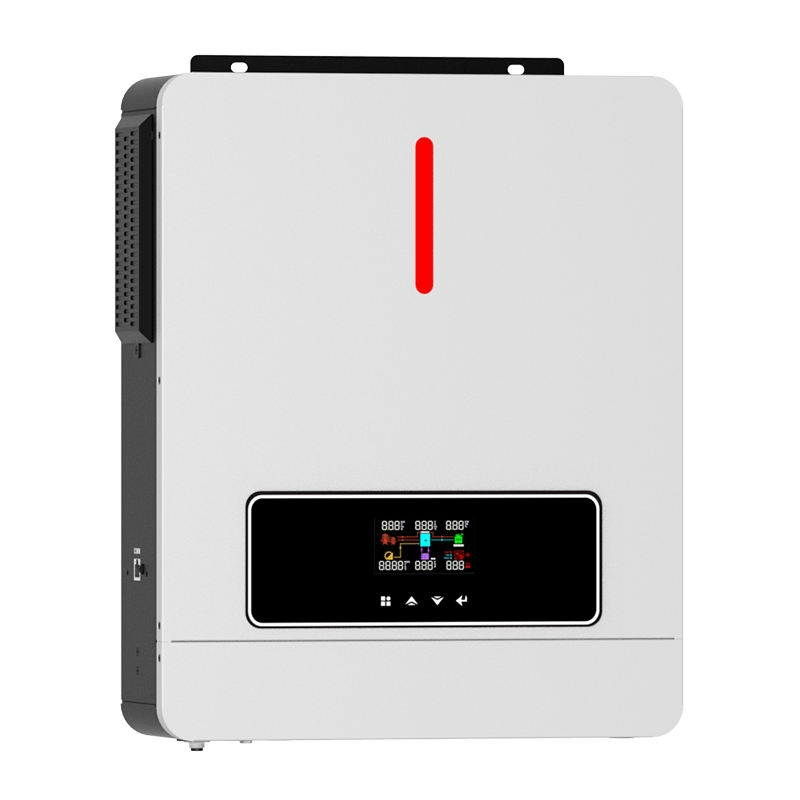

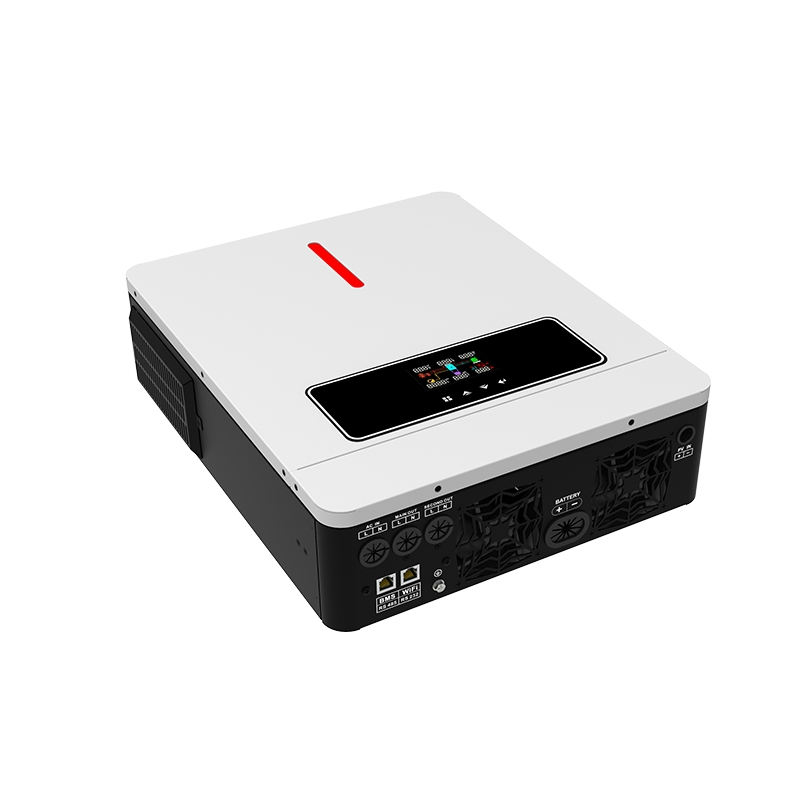

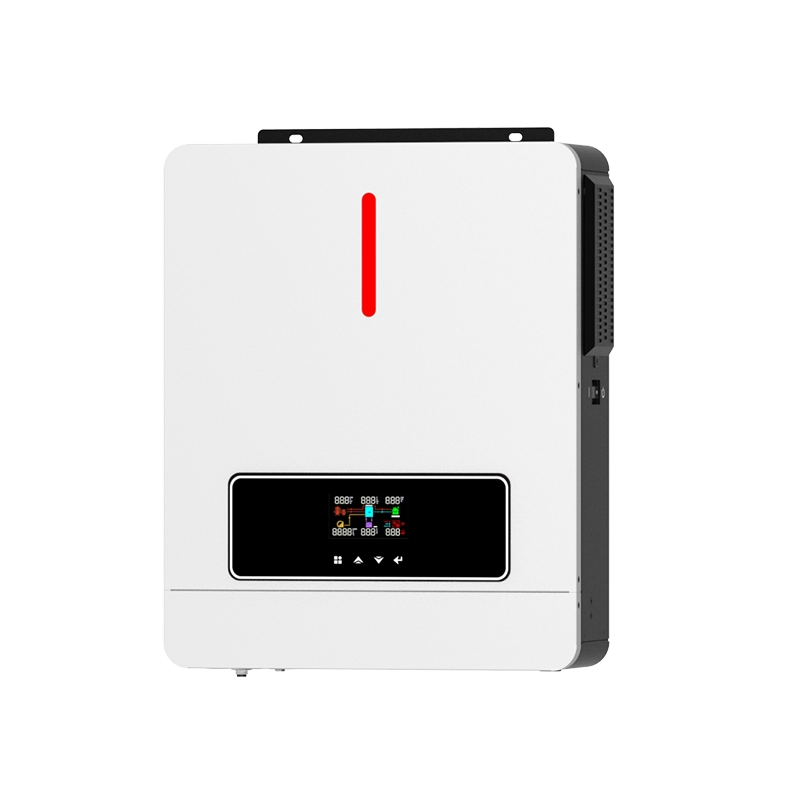

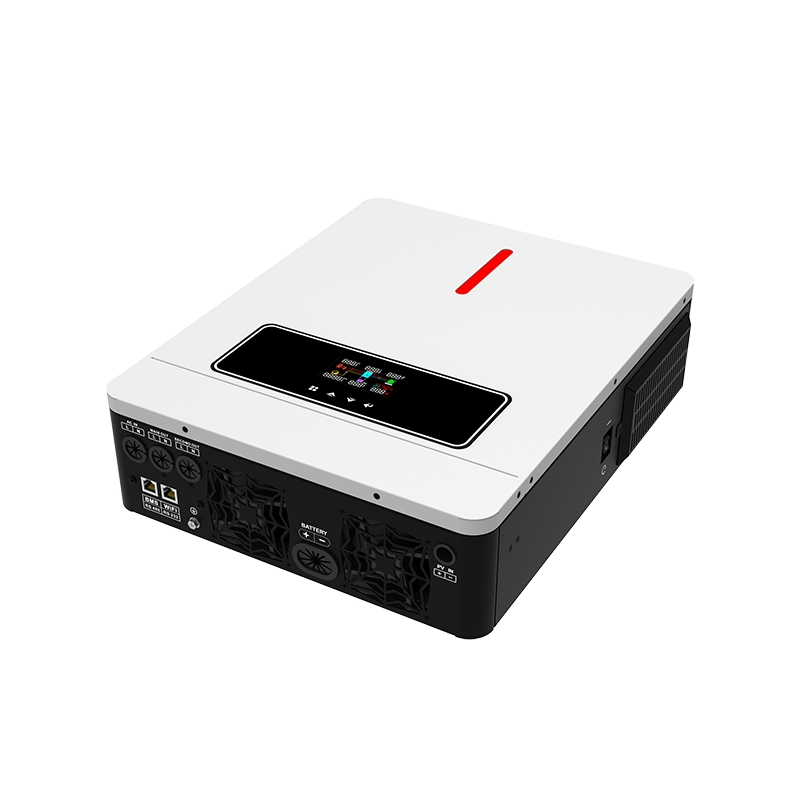

Pure Sine Wave on/off Grid Hybrid Solar Inverter 4200W 24VDC 220VAC 50Hz/60Hz with Inbuild 120A MPPT Controller
Pure Sine Wave on/off Grid Hybrid Solar Inverter 4200W 24VDC 220VAC 50Hz/60Hz with Inbuild 120A MPPT Controller
Pure Sine Wave on/off Grid Hybrid Solar Inverter 4200W 24VDC 220VAC 50Hz/60Hz with Inbuild 120A MPPT Controller
Pure Sine Wave on/off Grid Hybrid Solar Inverter 4200W 24VDC 220VAC 50Hz/60Hz with Inbuild 120A MPPT Controller
Pure Sine Wave on/off Grid Hybrid Solar Inverter 4200W 24VDC 220VAC 50Hz/60Hz with Inbuild 120A MPPT Controller
1 / 5
Pure Sine Wave on/off Grid Hybrid Solar Inverter 4200W 24VDC 220VAC 50Hz/60Hz with Inbuild 120A MPPT Controller
Pure Sine Wave on/off Grid Hybrid Solar Inverter 4200W 24VDC 220VAC 50Hz/60Hz with Inbuild 120A MPPT Controller
Pure Sine Wave on/off Grid Hybrid Solar Inverter 4200W 24VDC 220VAC 50Hz/60Hz with Inbuild 120A MPPT Controller
Pure Sine Wave on/off Grid Hybrid Solar Inverter 4200W 24VDC 220VAC 50Hz/60Hz with Inbuild 120A MPPT Controller
Pure Sine Wave on/off Grid Hybrid Solar Inverter 4200W 24VDC 220VAC 50Hz/60Hz with Inbuild 120A MPPT Controller

Pure Sine Wave on/off Grid Hybrid Solar Inverter 4200W 24VDC 220VAC 50Hz/60Hz with Inbuild 120A MPPT Controller

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
ECO II -4.2KW
Source Flow
Active Inverter
Phase
Single Phase
Output Power
>1000W (Rated 4200W)
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topology
Full-Bridge Type
Waveform
Pure Sine Wave
Inverter Efficiency
98%
Battery Voltage
12VDC/24VDC/48VDC
Protection
IP20

Product Description

Pure Sine Wave On/Off Grid Hybrid Solar Inverter: A multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations.

Dual OutputHigh efficiency power distribution for various loads.
MPPT TechnologyBuilt-in 120A MPPT Solar charge controller.
Smart ConnectivityWIFI & GPRS available for IOS and Android monitoring.
Battery FlexInverter can run without battery; includes auto-activation for Lithium.
Hybrid Solar Inverter Display

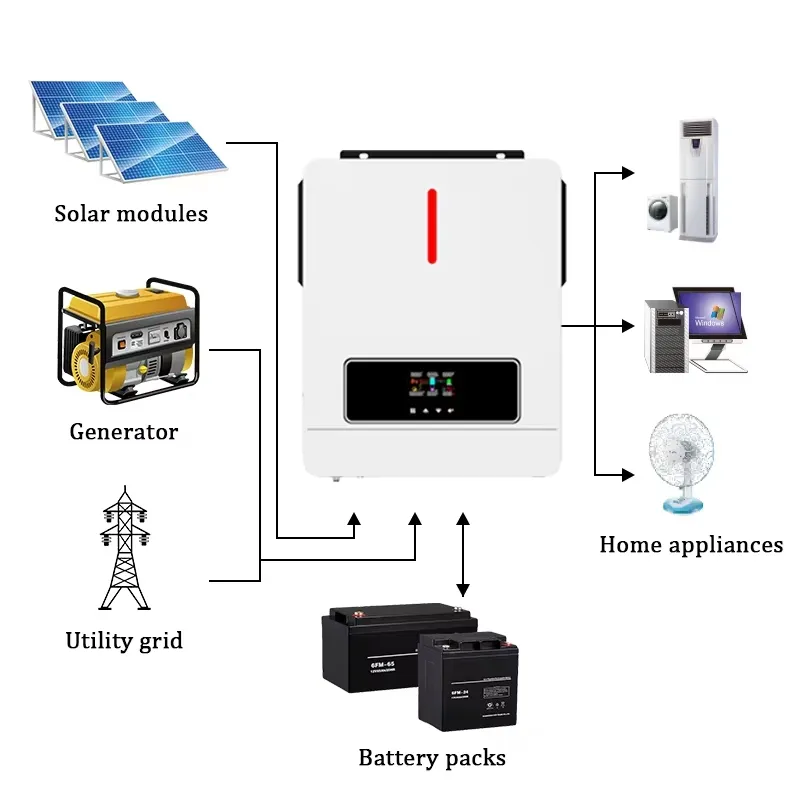

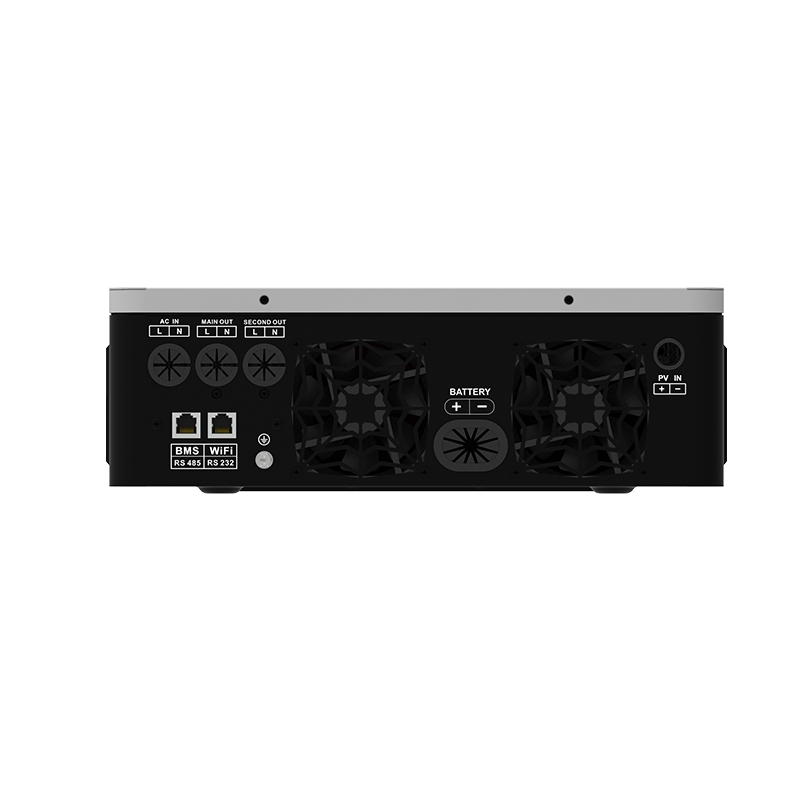

Inverter Technical View

Technical Parameters

MODEL 3.6KW PLUS 4.2KW PLUS 6.2KW PLUS
Phase 1-phase
Max PV Input Power 6200W 6200W 6500W
Rated Output Power 3600W/3600VA 4200W/4200VA 6200W/6200VA
Max Solar Charging Current 120A 140A 120A
PV Input Voltage Range 60 ~ 500VDC

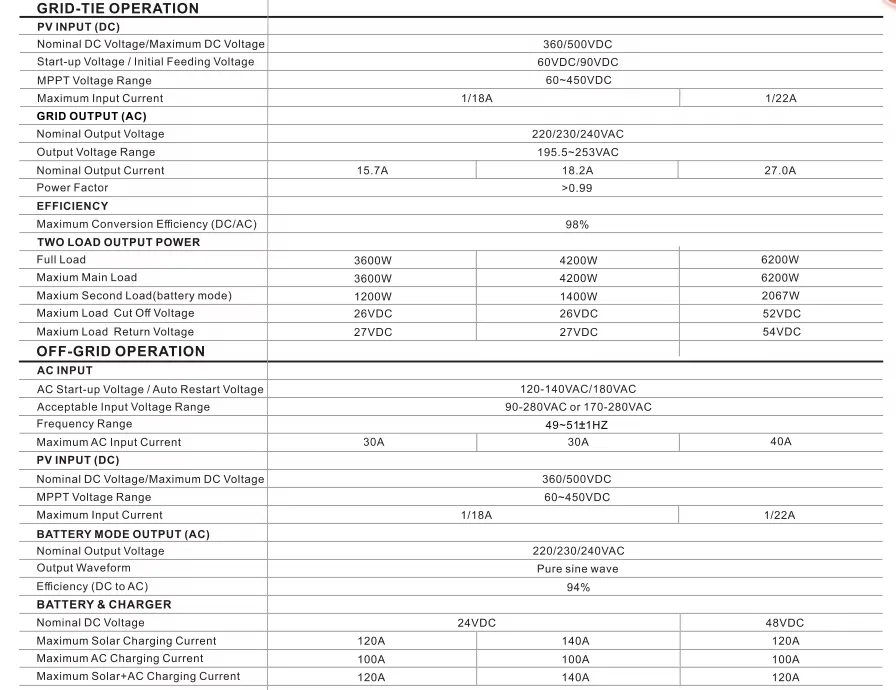

Solar Inverter Internal Components

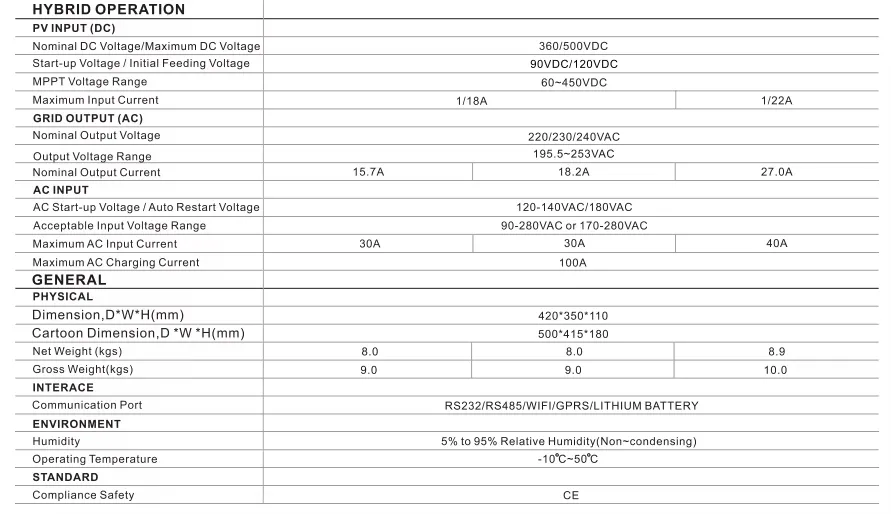

Application Scenario

Main Product Range

Product Series Overview

Frequently Asked Questions

What are the core advantages of these energy storage systems?
Our systems utilize high-performance lithium batteries and advanced BMS, featuring high energy density, long cycle life (≥6000 cycles), and intelligent grid connection to optimize electricity costs.
Can this inverter work without a battery?
Yes, this hybrid inverter is designed to operate even without a battery, allowing power to be supplied directly from PV arrays or the grid, which is ideal for reducing initial investment costs.
Is the system compatible with existing solar panels?
Absolutely. The inverter features a wide PV input voltage range (60-500VDC) and a built-in 120A MPPT controller, making it compatible with most standard solar panel configurations.
How can I monitor the system performance?
The system supports WIFI and GPRS communication. Users can monitor real-time data and system status through dedicated apps available for both iOS and Android devices.
What kind of protection does the inverter offer?
It includes an IP20 protection rating and a built-in anti-dust kit, making it suitable for harsh environments while ensuring long-term hardware reliability.
Does the system comply with international grid standards?
Yes, the products meet major international standards including IEC, CE, and RoHS, ensuring safe and smooth integration with local utility grids.
