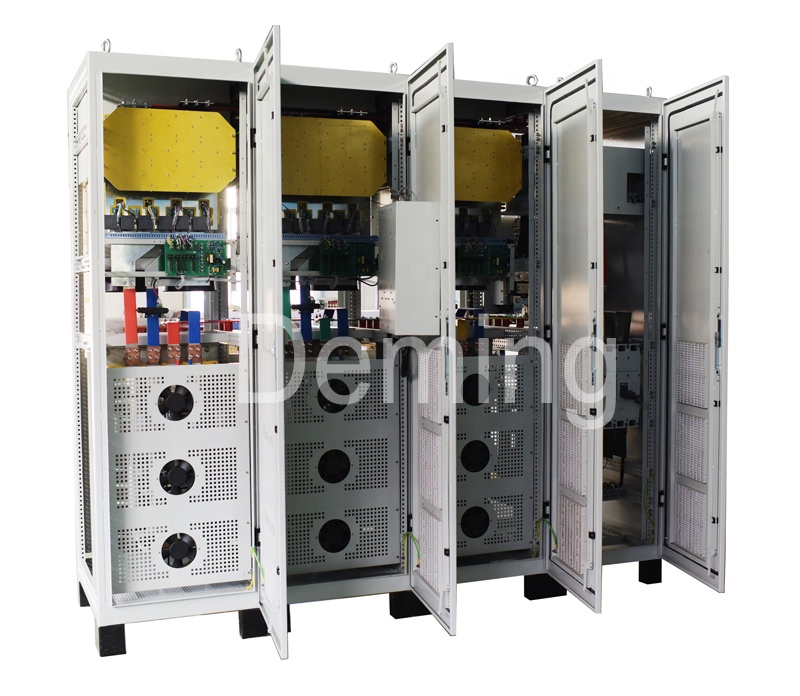

High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
1 / 5
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use
High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use

High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use

Customization: Available
Nature of Source Flow: Active Inverter
Certification: ISO9001, CE
Send Inquiry

Product Description

Basic Specifications

Model NO.
NB576-1000KSZ
Output Power
1000kw
Grid Type
off-Grid Inverter
Output Type
Triple
Circuit Topologies
Full-Bridge Type
Wave String
Sine Wave Inverter
AC Wiring
3 Phase 3 Wire / 3 Phase 4 Wire
Output Voltage
AC220V - AC690V
Battery Type
LiFePO4 Lithium
Capacity
100/Month

Packaging & Logistics

Package Size
560.00cm * 430.00cm * 320.00cm
Gross Weight
60.000kg
Package Type
Wooden Box

Product Features & Functionality

Pure Sine Wave Inverter DC AC 1000KVA (380Vac/400Vac/415Vac):

  • Using high-quality IGBT from Mitsubishi or Infineon as power components.
  • Equipped with American ATEMEL microprocessor for precise figure control.
  • Advanced protection and automated warning functions.
  • Compact circuit design with Maximum Efficiency ≥94%.
  • Wide input voltage range compatibility.
  • Equipped with RS232/485 and multi-communication interfaces.
  • Big-screen English LCD/LED display with a user-friendly interface.
  • Built-in Isolation Transformers for inductive loads like water pumps and motors.

System Application Diagrams

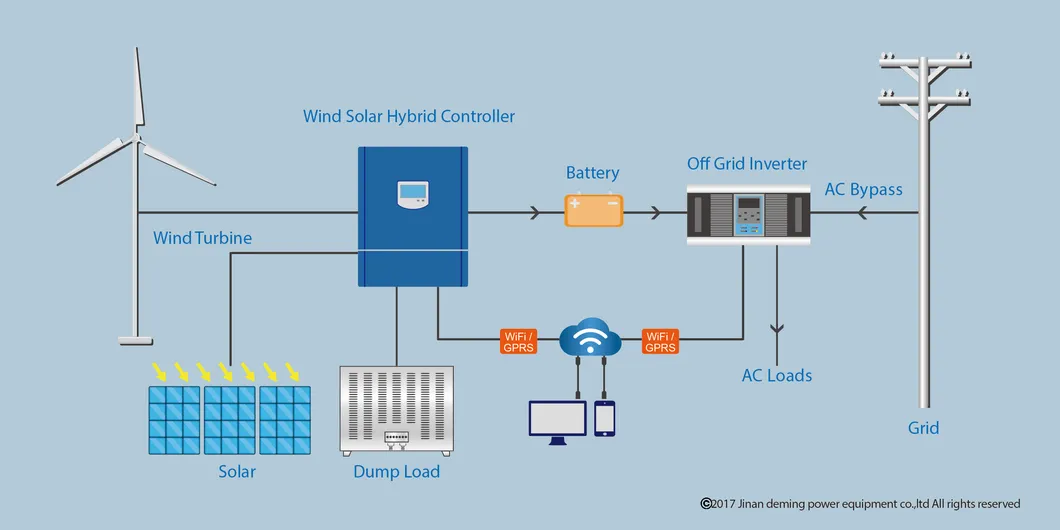

Off grid solar wind hybrid system:

Off grid solar wind hybrid system

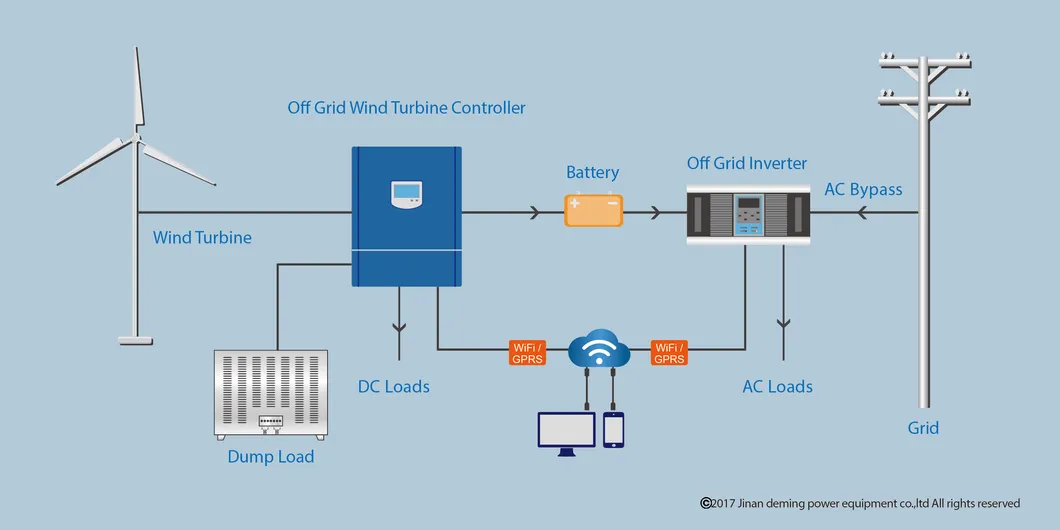

Off grid wind power system:

Off grid wind power system

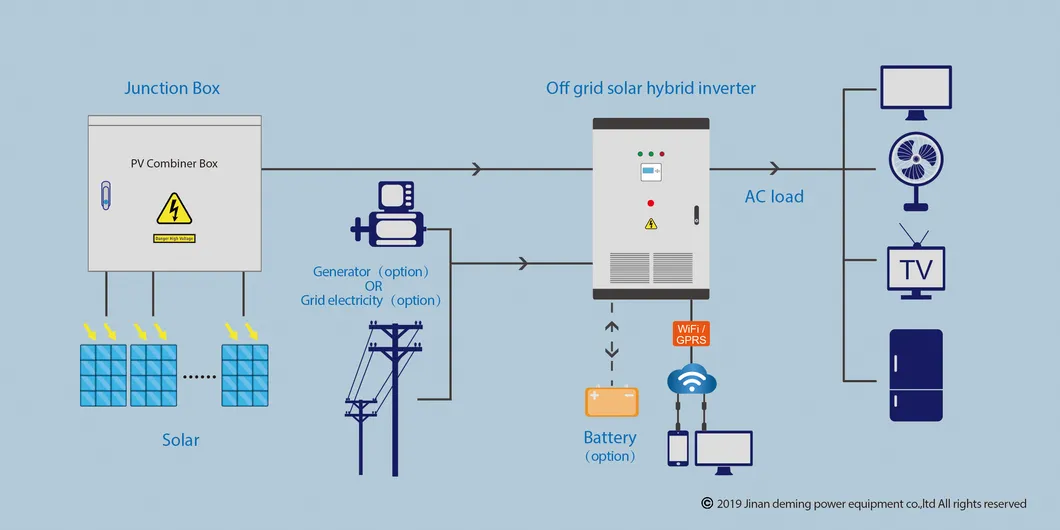

Off grid solar power system:

Off grid solar power system

Technical Parameters

Parameter Item Details (NB576-1000KSZ)
DC Input Rated Voltage 576 VDC
Rated Current 1929 A
Voltage Range 480-744 VDC
AC Output Rated Capacity 1000KVA / 800KW
Voltage & Freq 220V/380V/400V AC, 50/60Hz
Performance Efficiency 90% (Inverter) / ≥94% (Max)
Waveform THD ≤3% (Linear load)
Environment Ambient Temp -10ºC ~ +50ºC
Functions Protection Reverse, Under-voltage, Overload, Short circuit, Thermal

Product Presentation

Efficiency Data
Inverter Structure

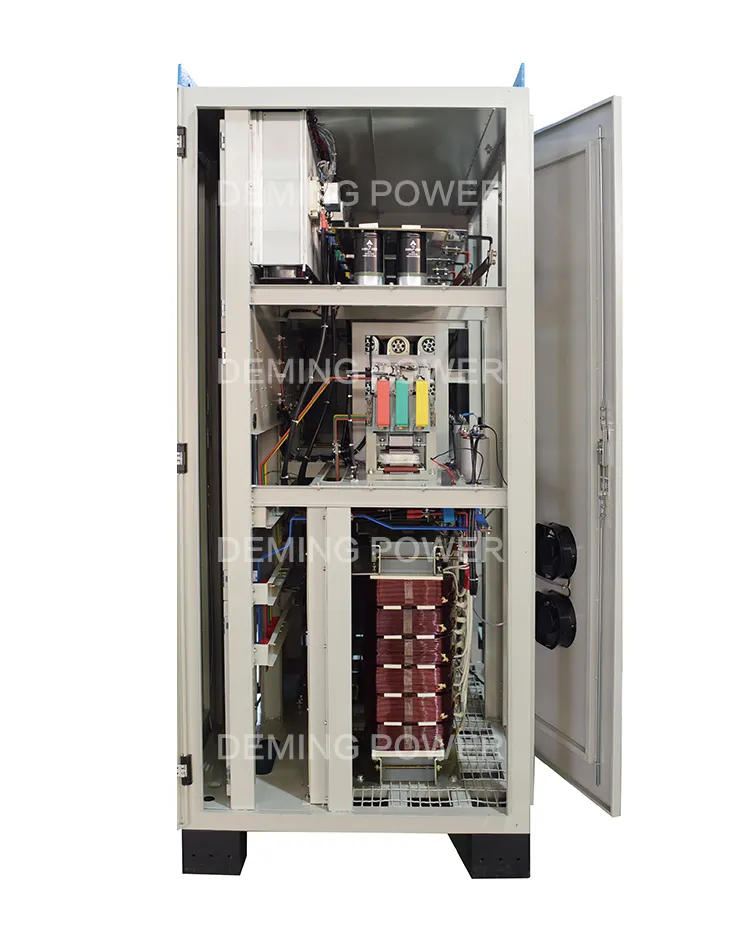

Main Unit View

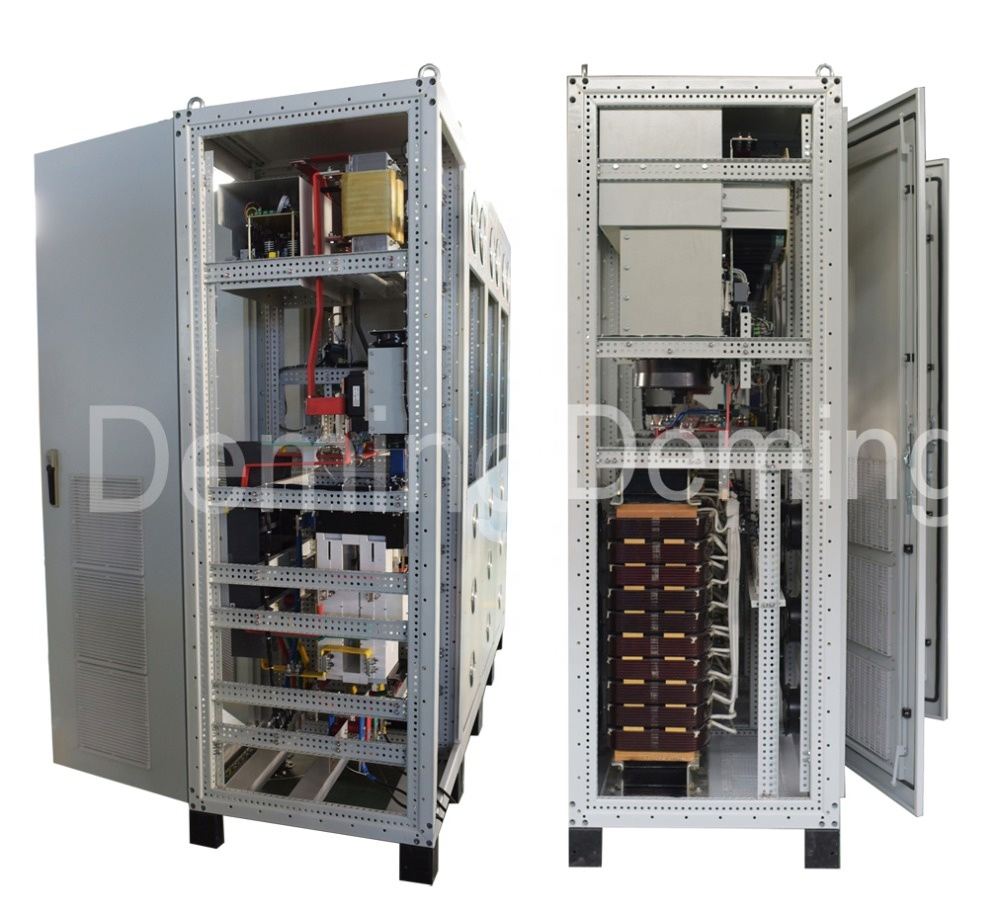

Internal Components
Rear Panel
Dimensions

Frequently Asked Questions

1. What is the core power component used in this 1000KVA inverter?
The inverter utilizes high-performance IGBT modules from world-renowned brands such as Mitsubishi or Infineon to ensure stability and high efficiency.
2. Can this inverter handle heavy inductive loads like water pumps?
Yes, it features built-in Isolation Transformers specifically designed to handle and supply power to inductive loads, including water pumps and motors.
3. What is the maximum conversion efficiency of the system?
The system is designed with a compact circuit frame that allows for a maximum efficiency of ≥94%.
4. Does the unit support remote monitoring?
Yes, it supports RS232 and RS485 communication protocols, allowing for multiple interface selections to integrate with your monitoring systems.
5. What safety protections are built into the inverter?
The inverter includes comprehensive protection features such as input reverse protection, input under-voltage protection, output overload and short circuit protection, and thermal protection.
6. Is it compatible with lithium battery systems?
Yes, this model is fully compatible with LiFePO4 Lithium battery systems with a rated DC input voltage range (e.g., 576V nominal).
