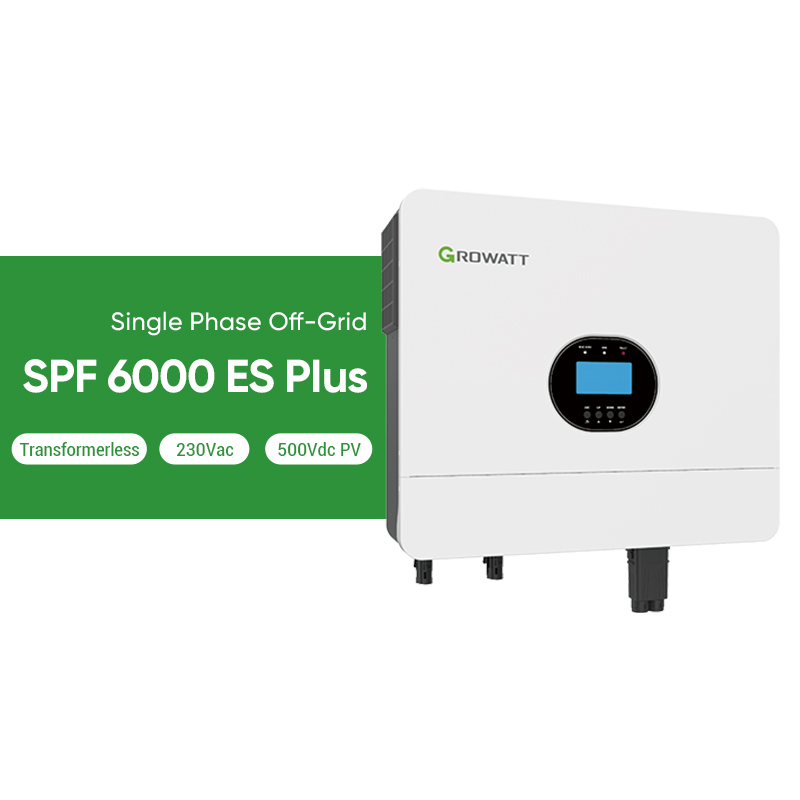

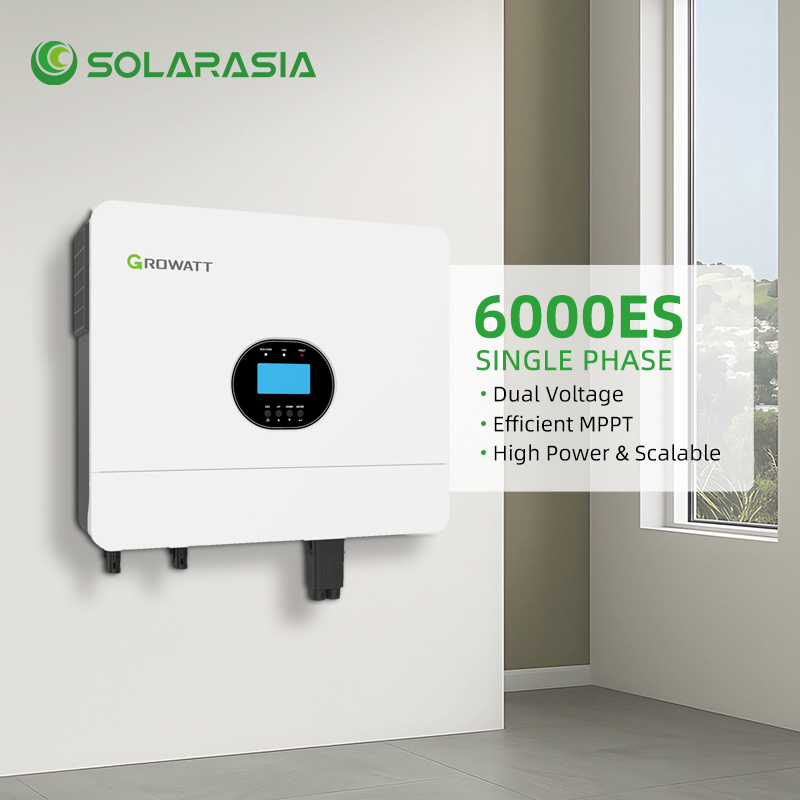

Growatt off Grid Solar String Inverter SPF 6000 Es Plus 6kw Single Phase Dual MPPT Pure Sine Wave Solar Power Inverters
Growatt off Grid Solar String Inverter SPF 6000 Es Plus 6kw Single Phase Dual MPPT Pure Sine Wave Solar Power Inverters
Growatt off Grid Solar String Inverter SPF 6000 Es Plus 6kw Single Phase Dual MPPT Pure Sine Wave Solar Power Inverters
Growatt off Grid Solar String Inverter SPF 6000 Es Plus 6kw Single Phase Dual MPPT Pure Sine Wave Solar Power Inverters
Growatt off Grid Solar String Inverter SPF 6000 Es Plus 6kw Single Phase Dual MPPT Pure Sine Wave Solar Power Inverters
1 / 5
Growatt off Grid Solar String Inverter SPF 6000 Es Plus 6kw Single Phase Dual MPPT Pure Sine Wave Solar Power Inverters
Growatt off Grid Solar String Inverter SPF 6000 Es Plus 6kw Single Phase Dual MPPT Pure Sine Wave Solar Power Inverters
Growatt off Grid Solar String Inverter SPF 6000 Es Plus 6kw Single Phase Dual MPPT Pure Sine Wave Solar Power Inverters
Growatt off Grid Solar String Inverter SPF 6000 Es Plus 6kw Single Phase Dual MPPT Pure Sine Wave Solar Power Inverters
Growatt off Grid Solar String Inverter SPF 6000 Es Plus 6kw Single Phase Dual MPPT Pure Sine Wave Solar Power Inverters

Growatt off Grid Solar String Inverter SPF 6000 Es Plus 6kw Single Phase Dual MPPT Pure Sine Wave Solar Power Inverters

Customization: Available
After-sales Service: Yes
Warranty: 2 Years
Send Inquiry

Product Description

Product Overview

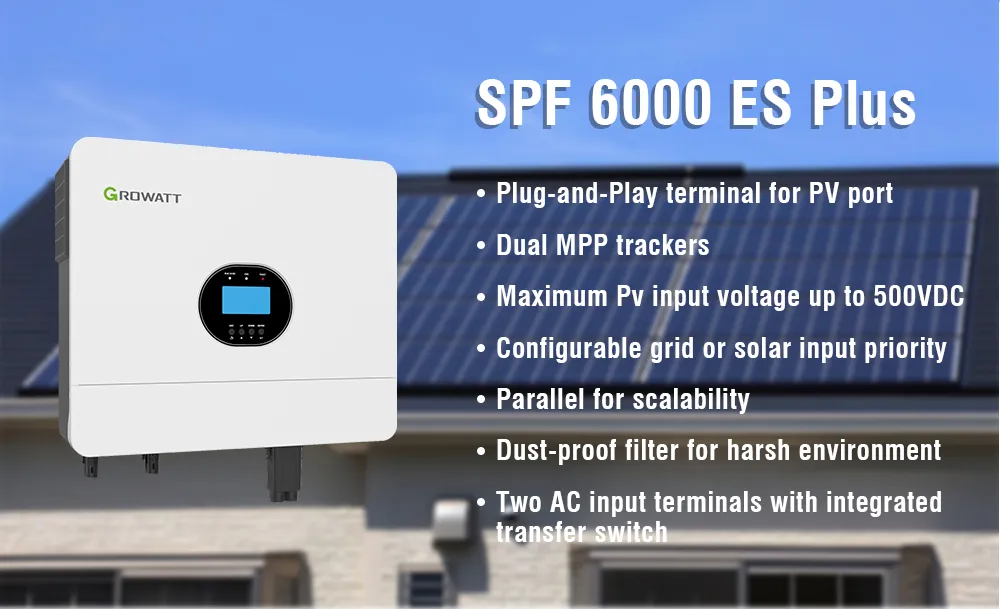

Solar Inverter Overview
Model
SPF 6000 ES Plus
Rated Power
6000VA / 6000W
Battery Voltage
48VDC
Efficiency
93%
Phase
Single Phase
Output Wave
Pure Sine Wave
Controller
Dual MPPT
Certification
CE
Key Features
✓6000W Pure Sine Wave: Stable 230VAC output with strong surge capacity.
✓Dual MPPT Trackers: Supports up to 8000W PV array for maximum harvesting.
✓Plug-and-Play Terminals: Tool-free PV connection for fast installation.
✓Smart Load Control: Dual AC outputs for independent power management.
✓Battery Flexibility: Compatible with Lithium and Lead-acid batteries.
✓Dust-proof Filter: Built-in protection for reliable operation in harsh environments.
Specifications
Parameters Details
Output Voltage230VAC ±5%
Output Frequency50 / 60 Hz
Max PV Input Voltage500VDC
AC Charger Current80A
Priority ModeConfigurable grid or solar priority
Protection RatingIP20
Operating Temperature0°C – 55°C
Dimension (W/H/D)460 / 395 / 132 mm
Net Weight13.5 kg
Working Principle

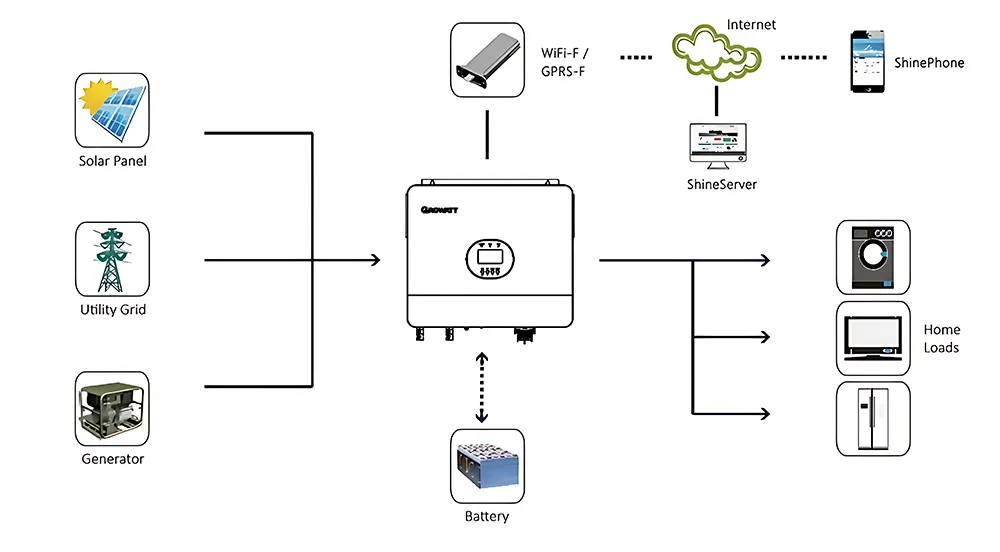

Working Principle Diagram
Packing & Delivery

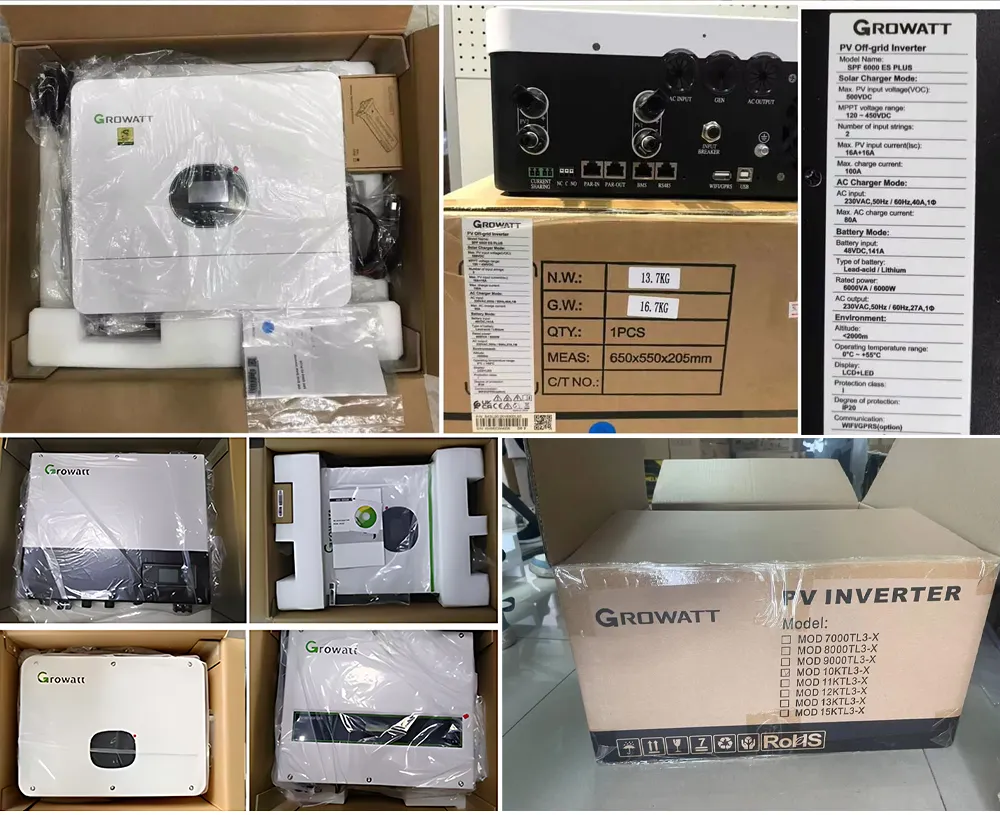

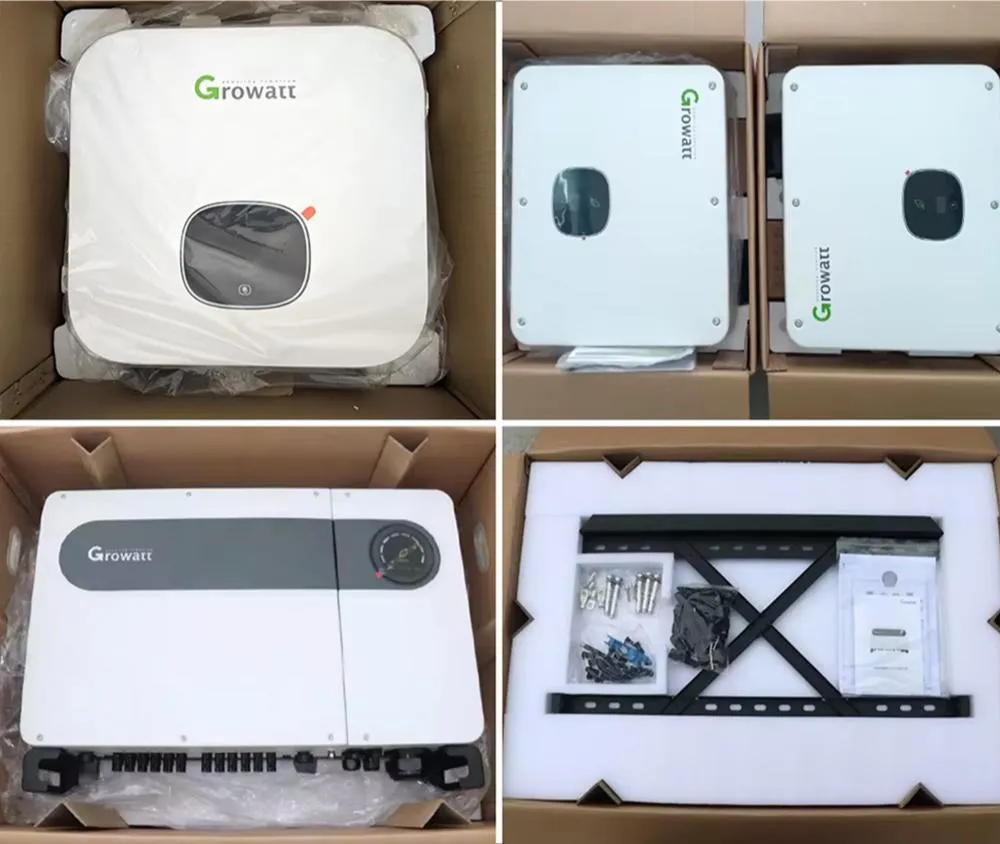

Package Details 1 Package Details 2
Package Size
46.00cm * 40.00cm * 15.00cm
Package Gross Weight
15.000kg
Transport Package
Carton
Quality Assurance
Authorization Certificate

Established in 2016, we are a preeminent energy technology enterprise specializing in solar panels, solar inverters, lithium batteries, and complete solar systems. Our products are distributed in over 100 countries, meeting ISO, TUV, and CE standards. We utilize state-of-the-art production technology to ensure both quality and reliable supply for sustainable energy development.

Video Cover

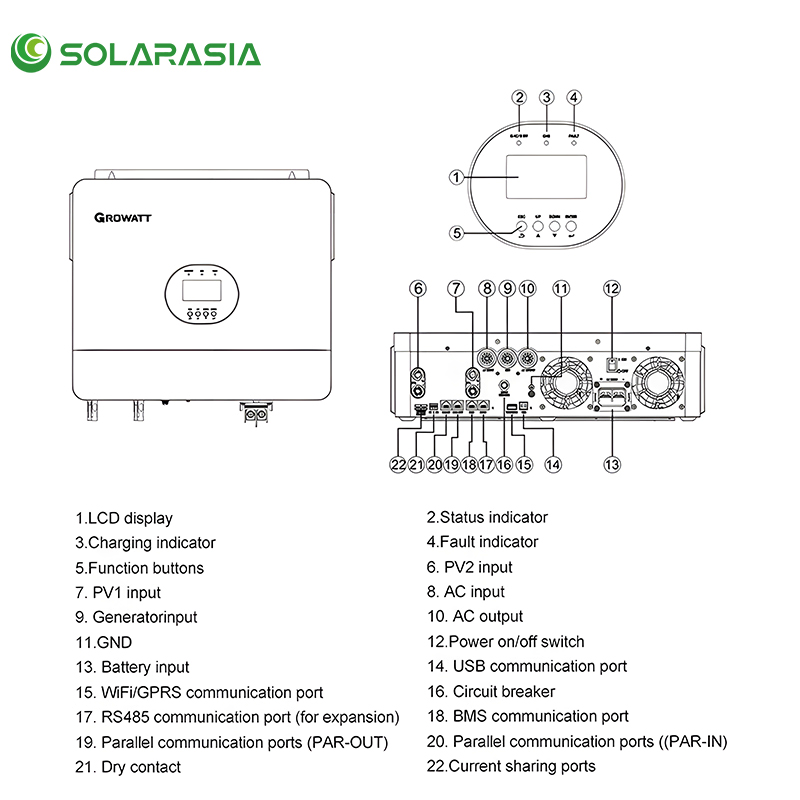

Product Internal Structure
Frequently Asked Questions
● Q1: What is the rated power and output voltage of SPF 6000 ES Plus?
A1: It is 6000VA/6000W pure sine wave output, with 230VAC ±5% at 50/60Hz frequency.
● Q2: What is the maximum PV input voltage and PV array power?
A2: Max PV input voltage is 500VDC, and the maximum PV array power is up to 8000W.
● Q3: Does it support lithium and lead-acid batteries?
A3: Yes, it is compatible with both lithium-ion and lead-acid batteries, and the built-in AC charger supports up to 80A charging current.
● Q4: What are the key features for harsh environments?
A4: It features a built-in dust-proof filter for reliable operation in dusty or harsh conditions, with an IP20 protection rating.
● Q5: Can I set solar or grid priority?
A5: Yes, you can configure grid or solar input priority flexibly. It also includes two independent AC outputs to support smart load functions.
● Q6: What is the peak efficiency and temperature range?
A6: The peak conversion efficiency reaches 93%, and the unit operates stably in temperatures ranging from 0°C to 55°C.
