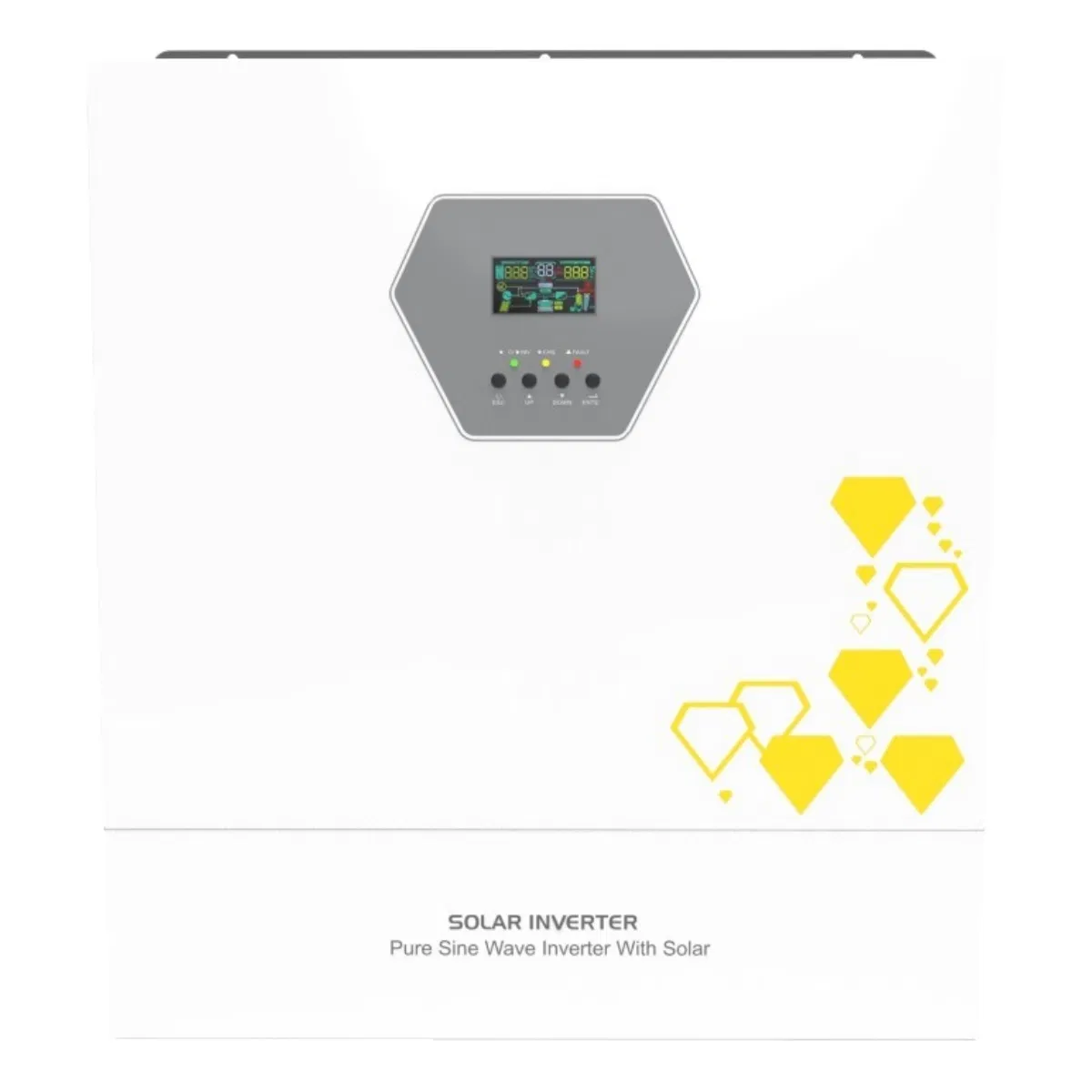

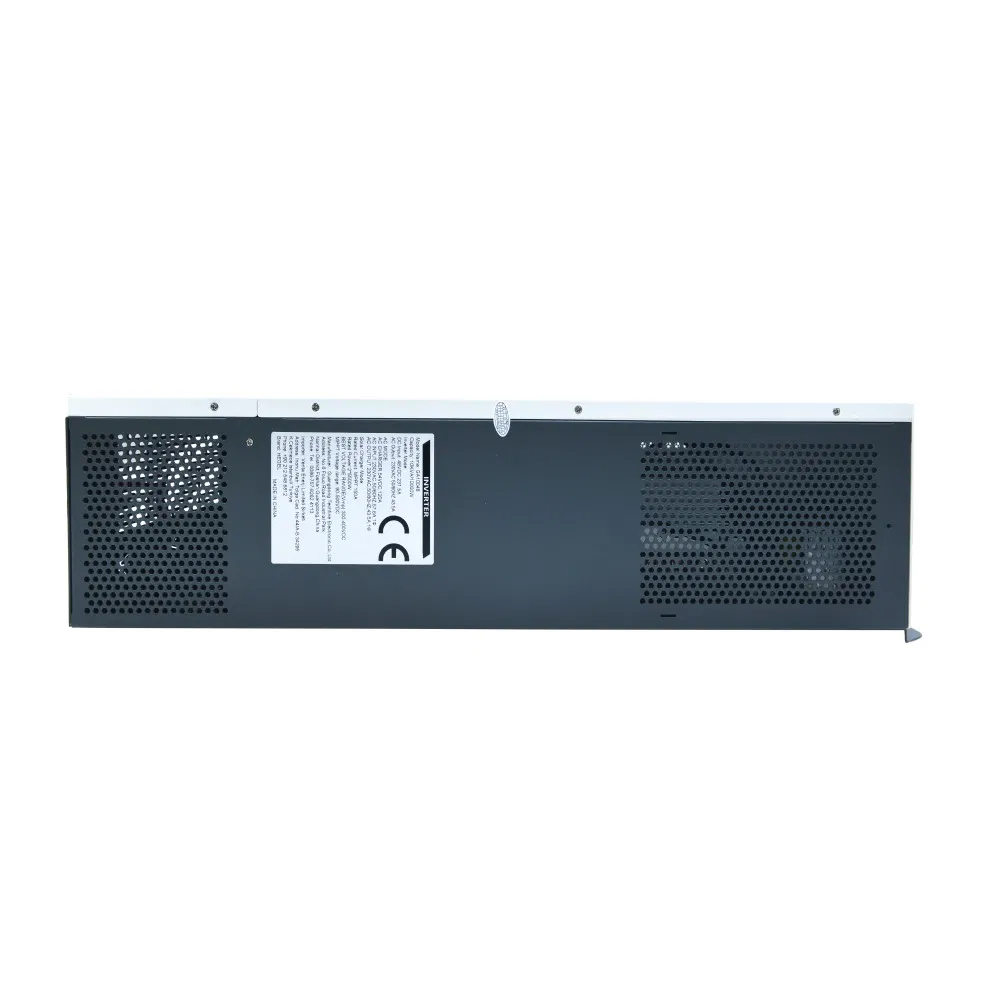

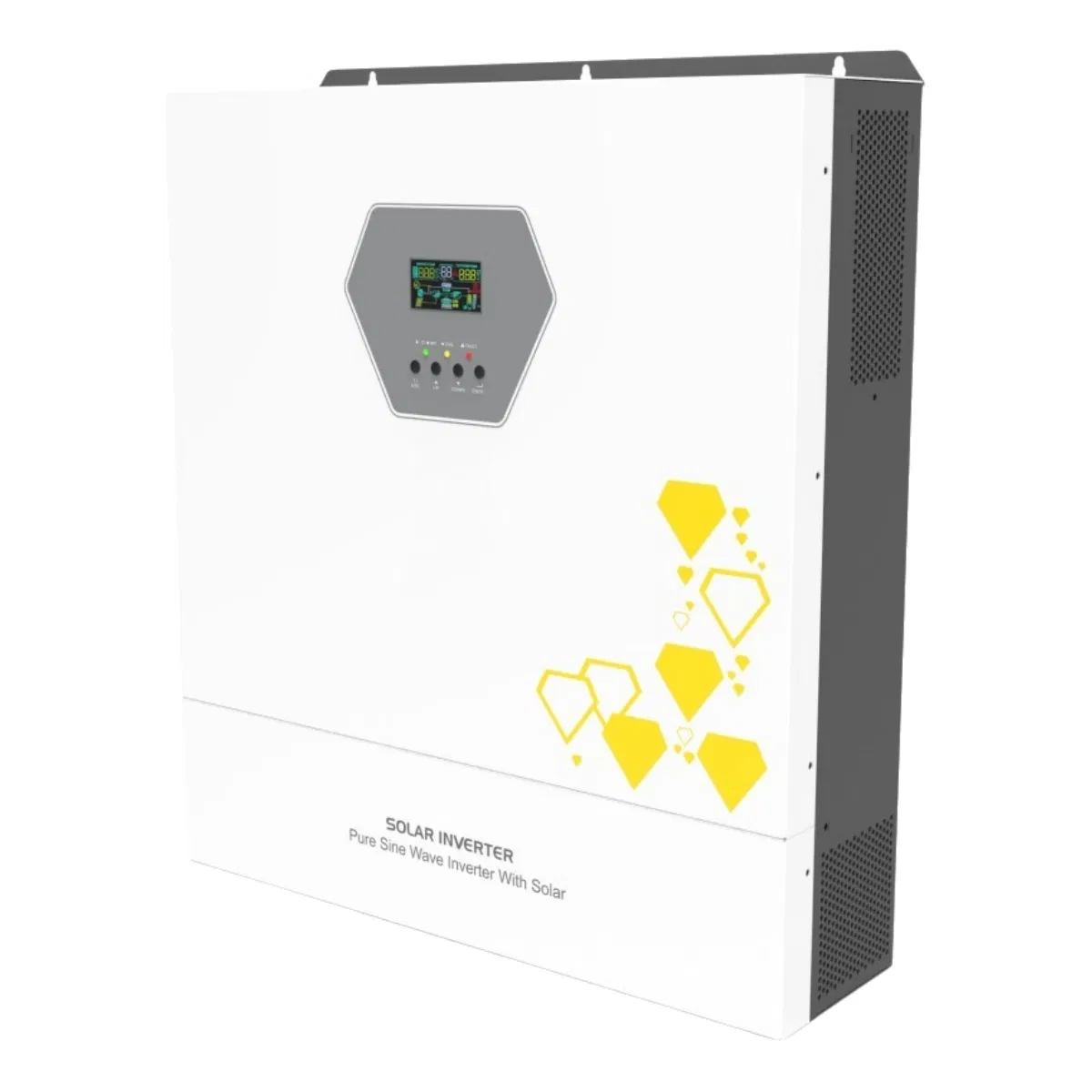

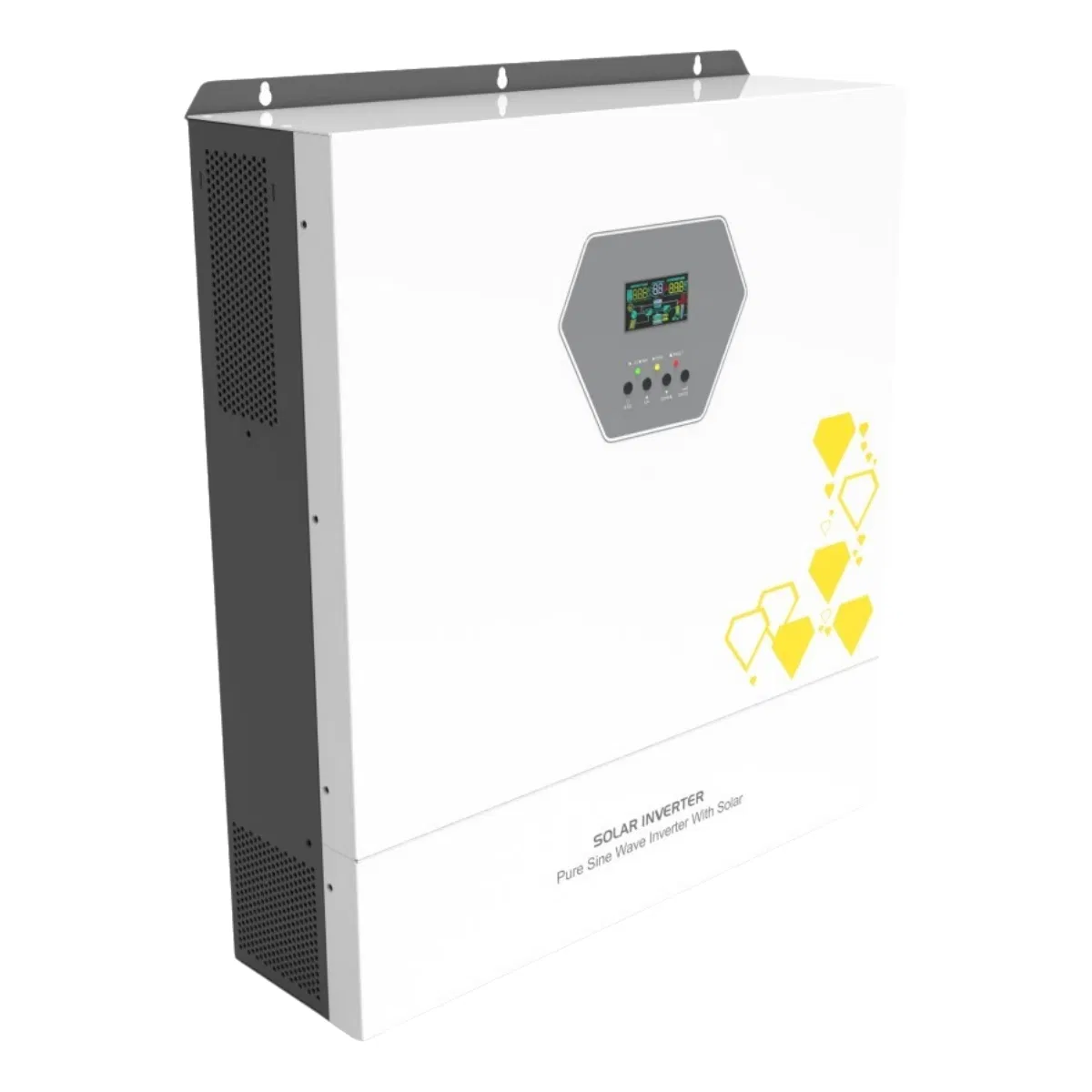

3kw High Efficiency off Grid Hybrid Solar Inverter Gd Series Normal Pure Sine Wave Inverter

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview & Basic Info
Model NO.:GD Series Normal
Source Flow:Active Inverter
Phase:Single
Output Power:>1000W
Certification:CE
Type:DC/AC Inverters
Power Source:Solar Power
Wave String:Pure Sine Wave
AC Input:220/230/240VAC
Frequency:50-60Hz (Adaptive)
Package Size:57.00cm * 50.00cm * 14.80cm
Gross Weight:10.000kg
Product Description

3KW High Efficiency Off Grid Hybrid Solar Inverter GD Series

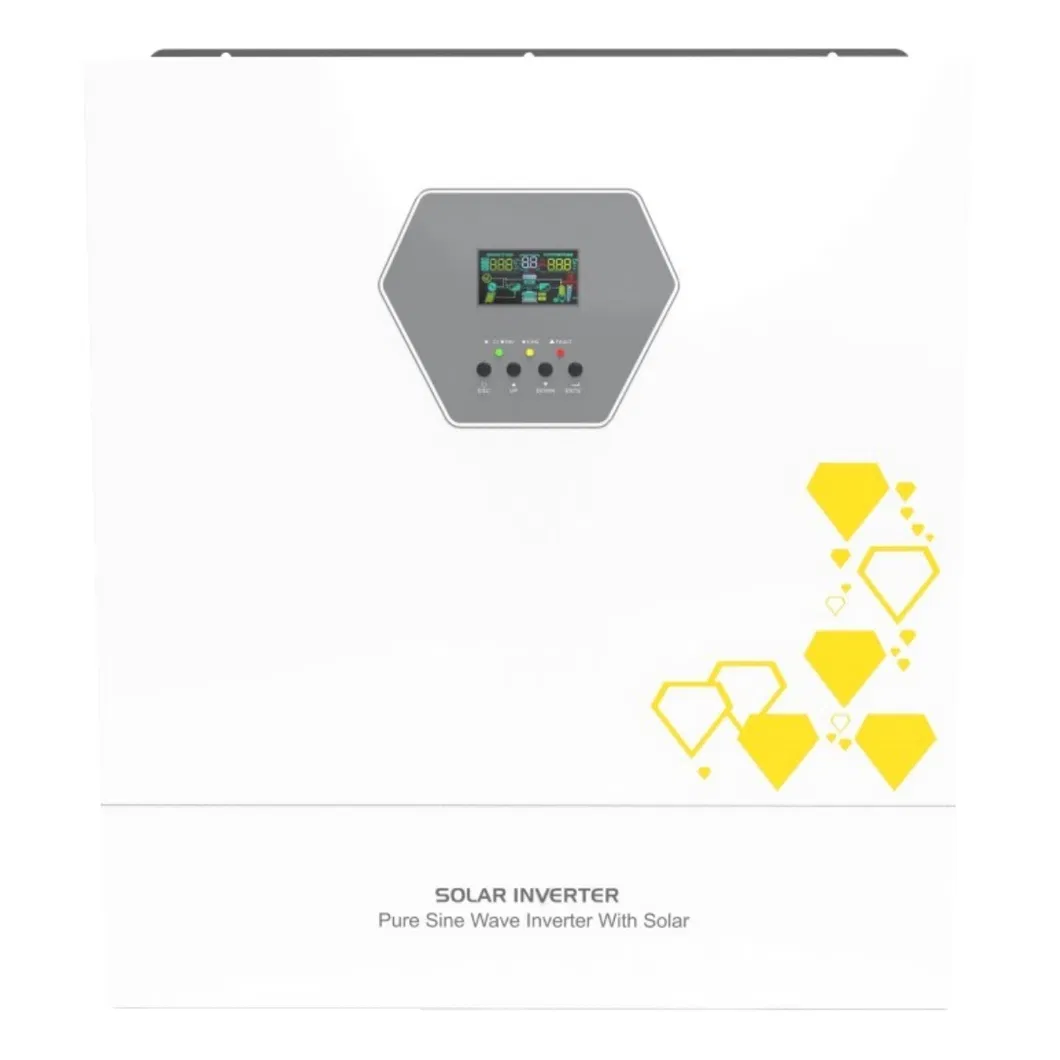

Hybrid Solar Inverter

Product Key Features

  • Lithium battery self-starting, better match lithium battery charging.
  • Intelligent power supply mode: intelligent distribution of solar panels/mains/battery power ratio.
  • Intelligently adjustable mains/PV charging voltage to match various battery requirements.
  • Convenient for installation and transportation.
  • Battery reverse connection protection with fuse switch for safer installation.
  • PF1.0 high efficiency inverter: low loss energy saving and cost saving.
  • Support work without battery to reduce system costs.
  • External WIFI connection for real-time data monitoring.
  • High precision output voltage (±5%) to protect appliances.
  • Integrated BMS function for lithium battery management.
Technical Parameters
Model GD3024JMH GD3624JMH GD5548JMH GD6248JMH GD11048JMH
Input AC Input 220/230/240VAC
Frequency 50-60Hz (Adaptive)
Output Rated Power 3000W 3600W 5500W 6200W 11000W
Output Voltage 220/230/240VAC±5%
Waveform Pure Sine Wave
Peak Power 6000W 7200W 10000W 12400W 22000W
Battery Rated Voltage 24VDC 48VDC
Max Charge Current 100A 100A 100A 120A 150A
Physical Size (L*W*H) 495*312*146mm 570*500*148mm
Detailed Photos
Detail 1
Detail 2

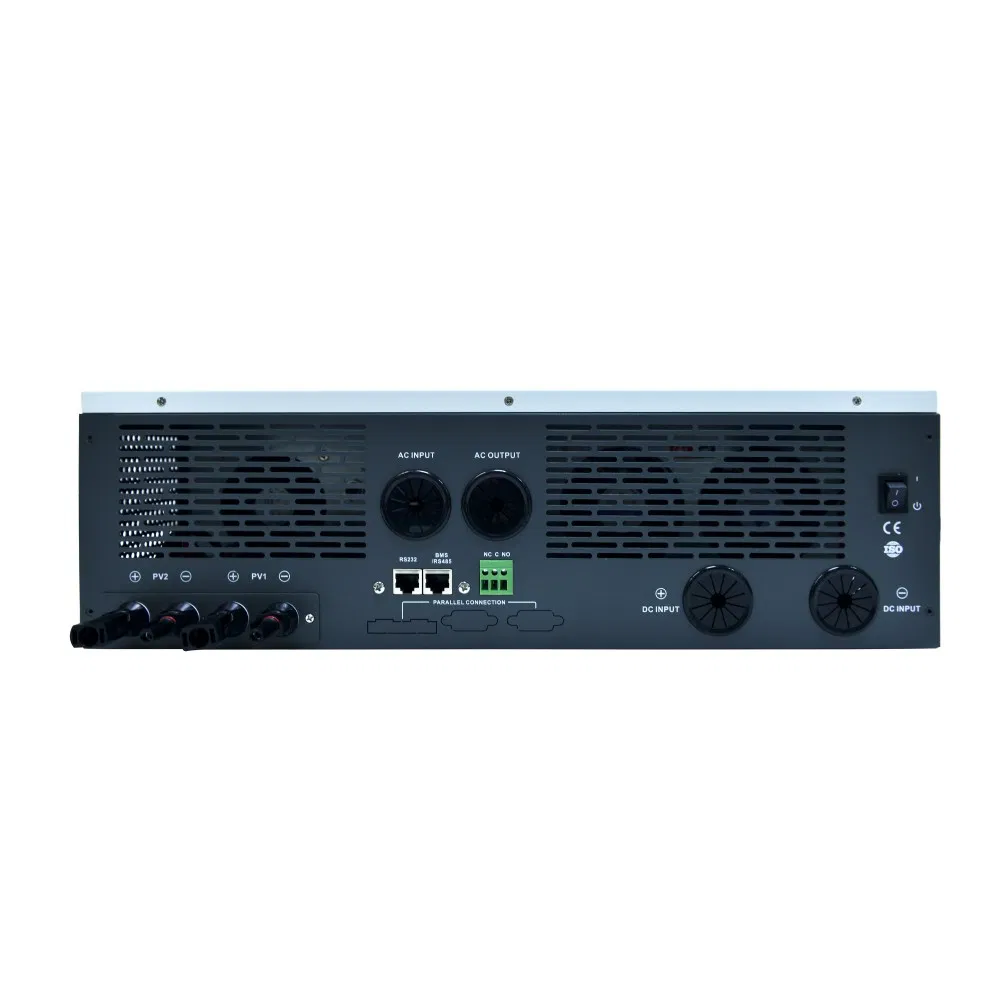

Detail 3
Detail 4
Company Profile
Production Facility

Established as a comprehensive integration of industry and trade, our company specializes in the design, development, and production of high-quality power systems and connectors. We provide matched products and excellent services for various industries, including electricity, communications, machinery, construction, and renewable energy.

Quality is at the core of our operations. We have established a rigorous quality system according to international standards, covering product design, manufacturing, and service. All supply chains have obtained necessary certifications to ensure the highest reliability. Our products conform to EU CE standards and environmental protections, serving global markets across Southeast Asia, Europe, and the Americas.

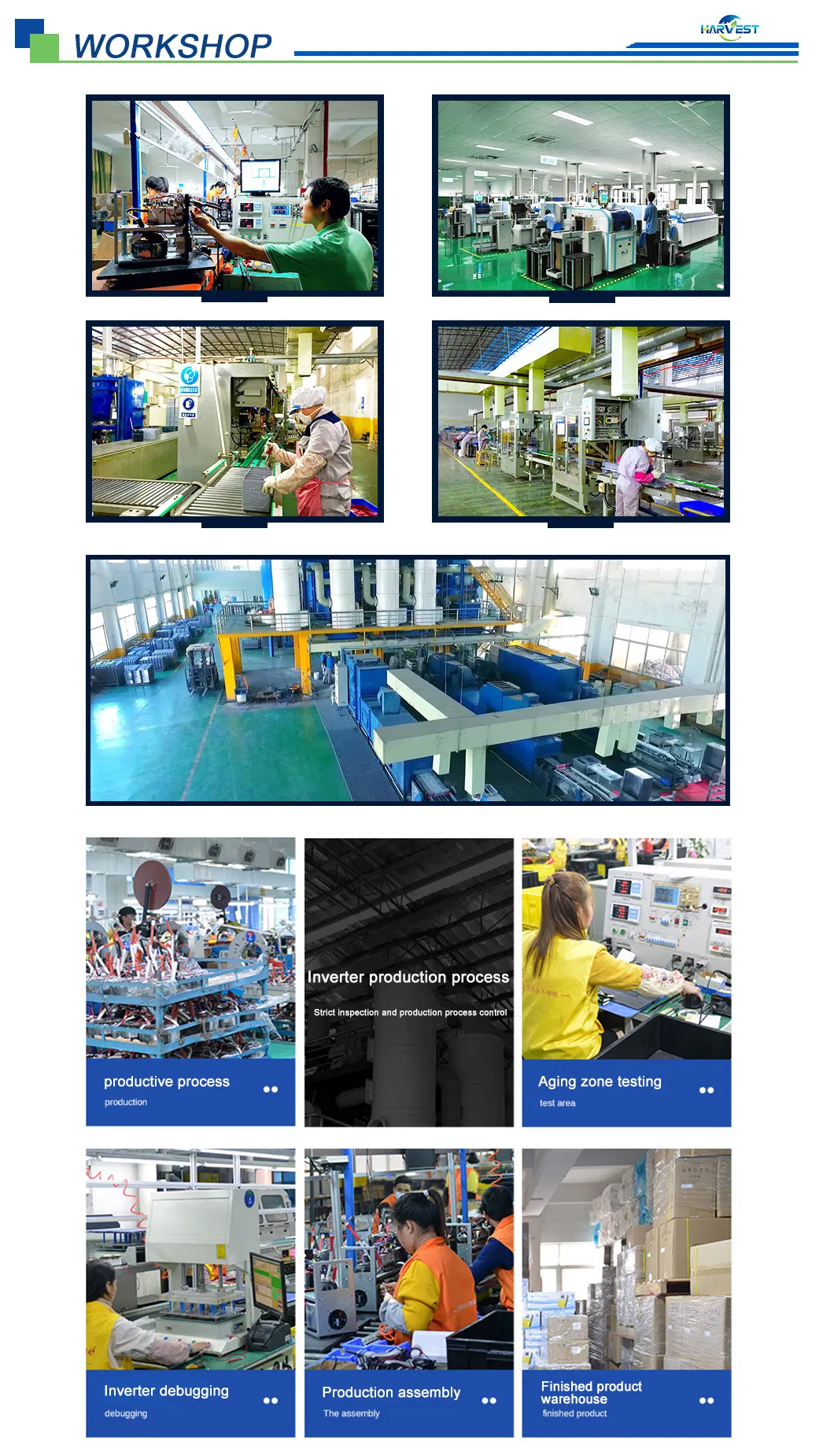

Facility 1
Facility 2
Certificates
Team
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company? A1: We are a professional manufacturer focusing on the development and production of the electrical industry for more than 10 years.
Q2: Is customized service (OEM/ODM) available? A2: Yes, we provide both OEM and ODM services to meet specific customer requirements.
Q3: How do you ensure product quality? A3: Our professional QC team checks the quality during production and performs a final quality test before shipment. Inspection reports are provided with every order.
Q4: Can I request a sample before placing a bulk order? A4: Yes, sample purchases are available for testing and evaluation.
Q5: What is the typical response time for quotations? A5: We typically respond to purchase requirements within one hour during working hours.
Q6: Does this inverter support work without a battery? A6: Yes, the GD series is designed to support system operation even without a battery to help reduce initial installation costs.
