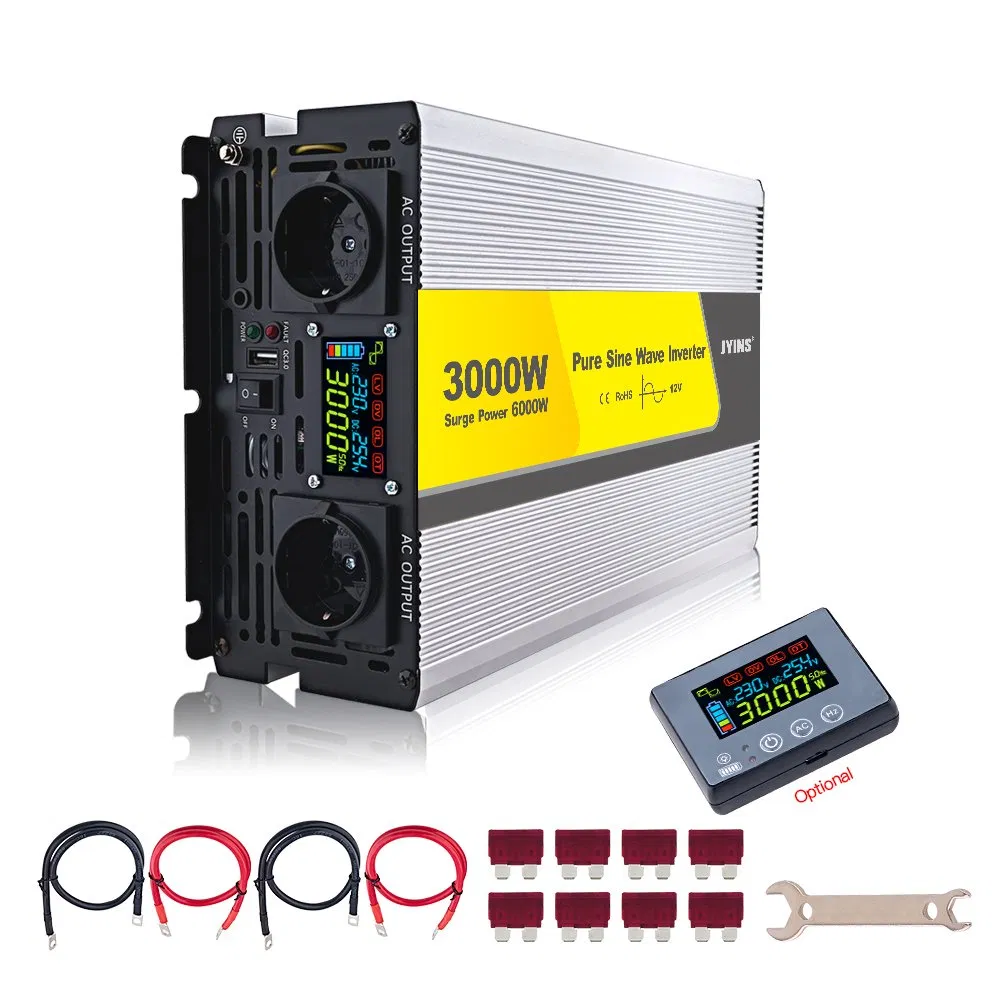

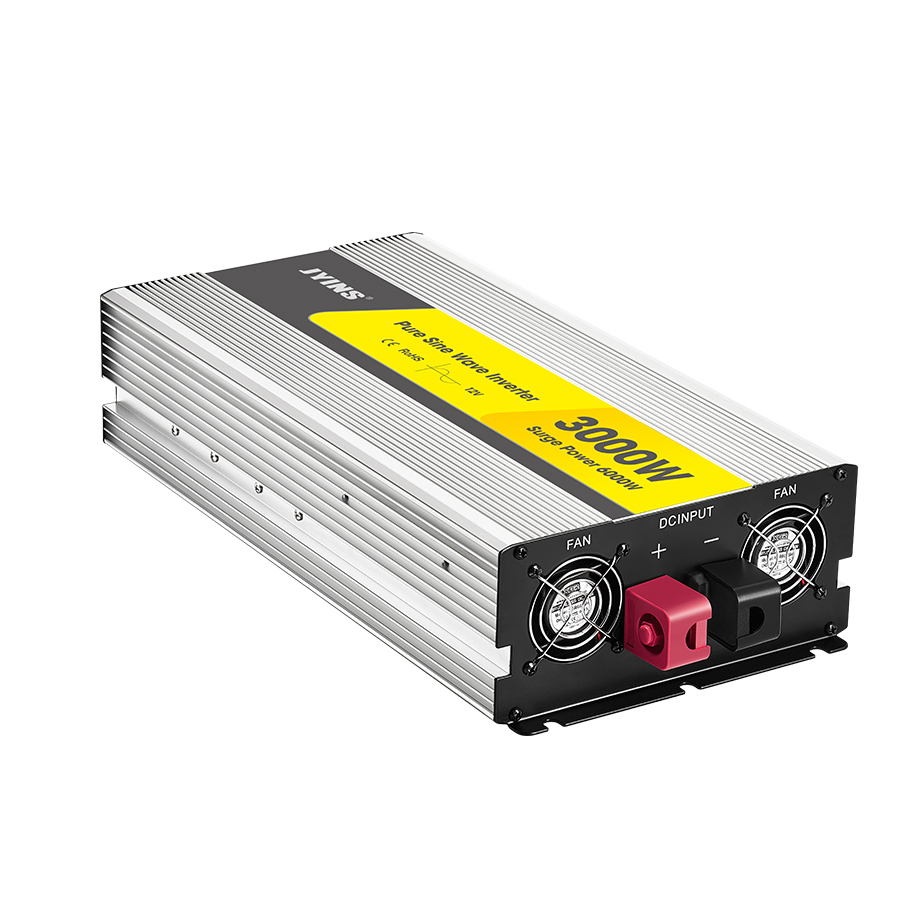

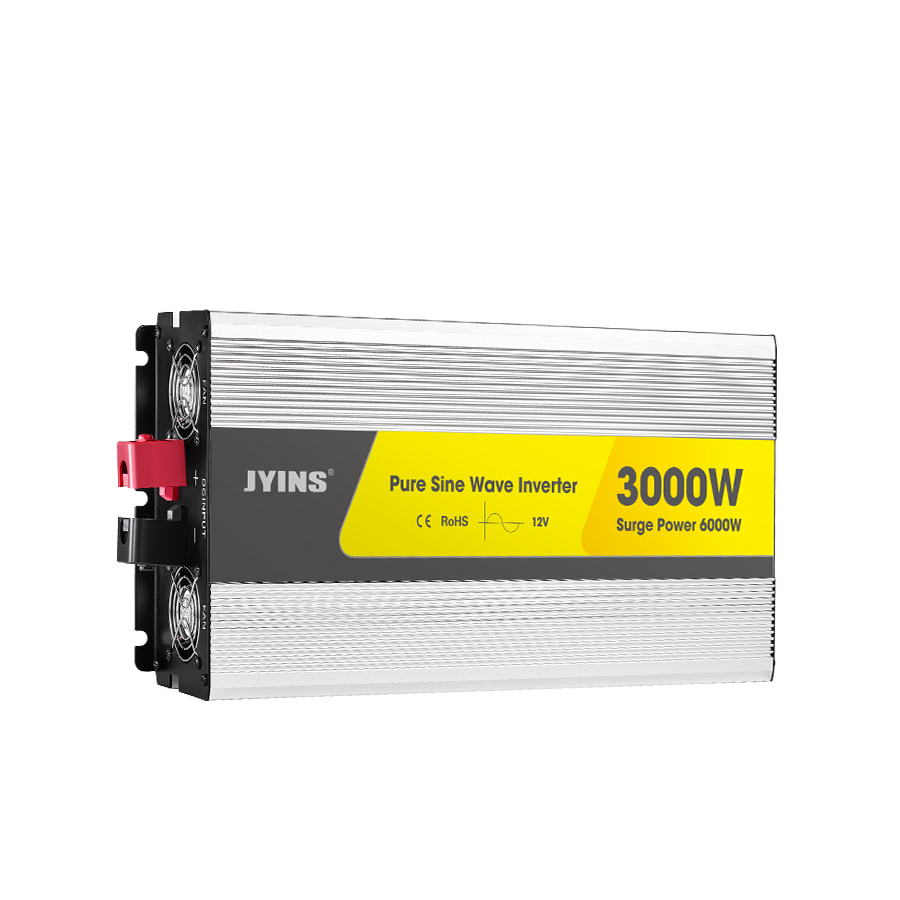

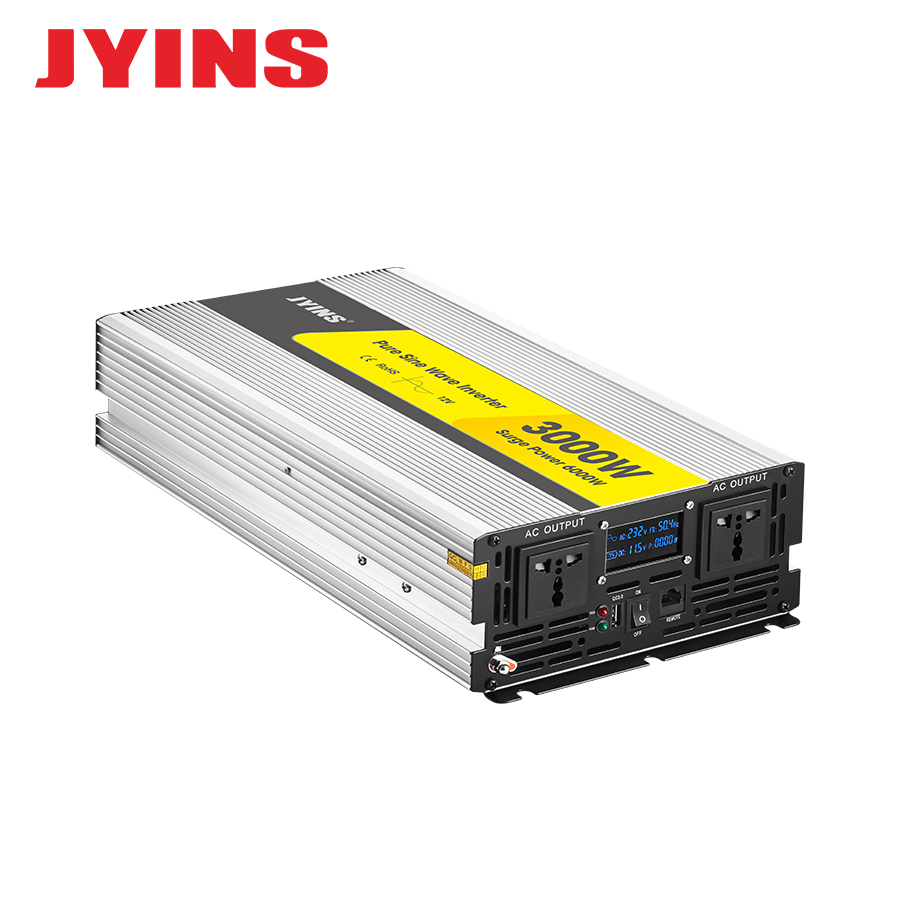

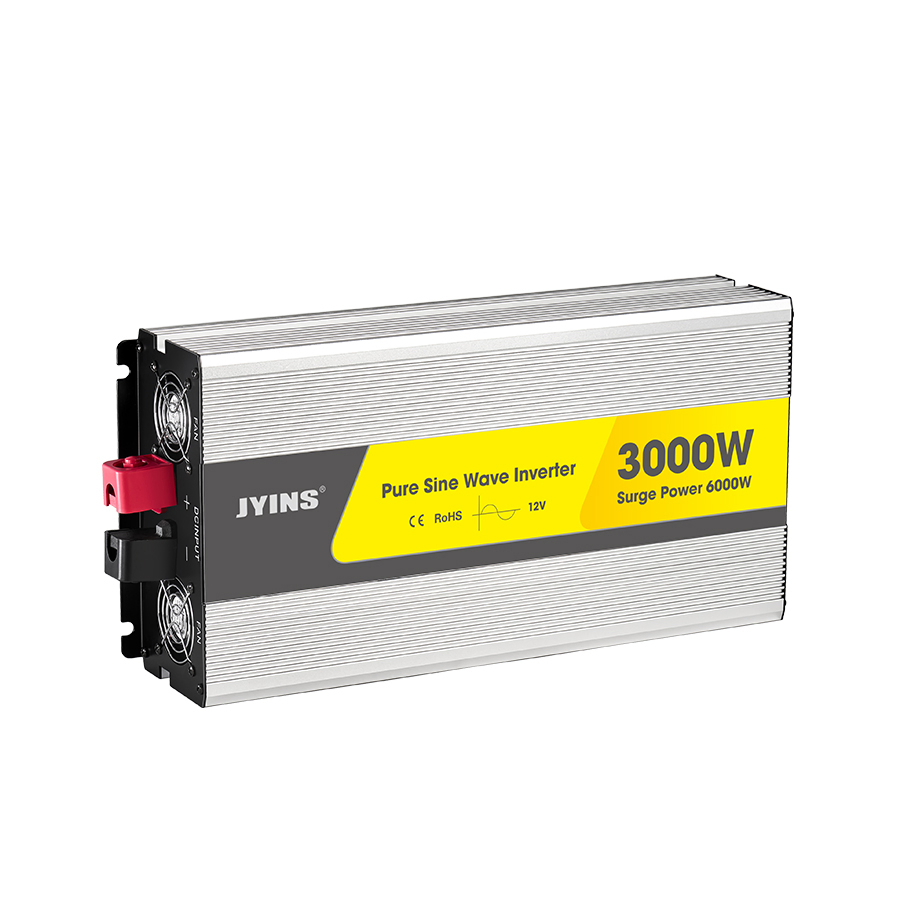

3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter
1 / 5
3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter

3000W off Grid Solar Pure Sine Wae Power Inverter

Customization: Available
Nature of Source Flow: Active Inverter
Certification: RoHS, CE
Send Inquiry

Product Description

Overview
Model NO.
JYP-3000W
Output Power
3000W
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Push-Pull Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
OEM
Accepted
Certificate
CE & RoHS
Output Voltage
110V / 220V
Input Voltage
12V / 24V / 48V
Warranty
12 Months
Shell Material
Aluminium Alloy
Wave Form
Pure Sine Wave Inverter
HS Code
8504403090
Production Capacity
10,000 PCS/Month
Product Description
3000W Off-Grid Solar Pure Sine Wave Power Inverter

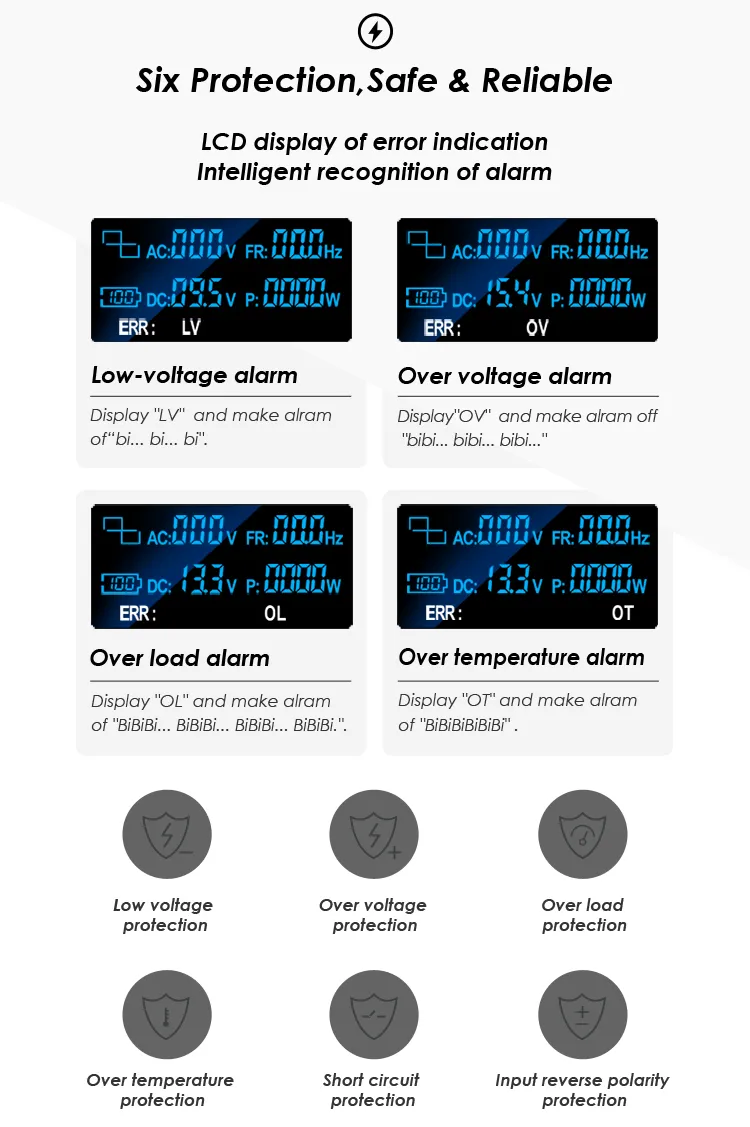

Protection Functions:
Low voltage alarm & Shutdown
Over voltage protection
Overload protection
Over temperature protection
Short circuit protection
Reverse Polarity protection
Soft start
Auto-reset after protection
Grounding protection
Inverter View 1
Inverter View 2
Inverter View 3

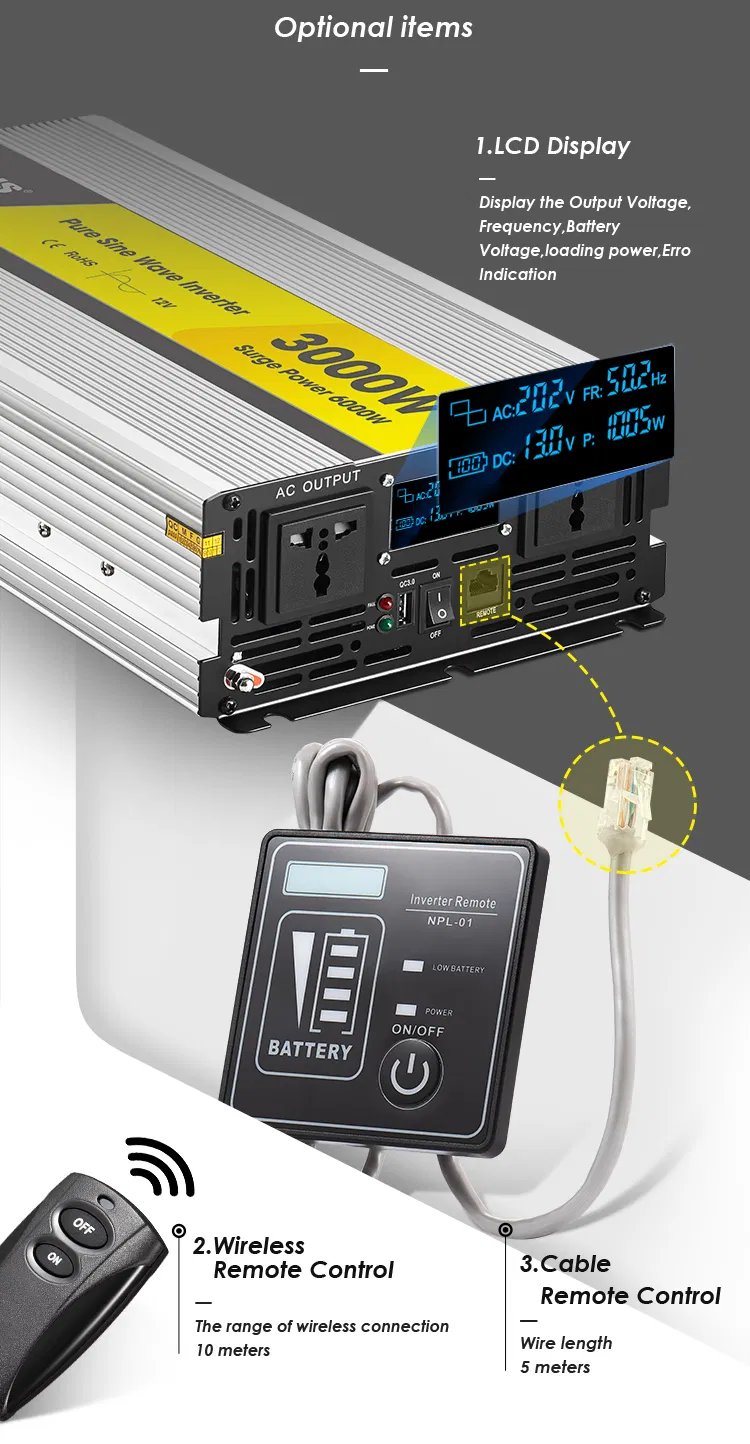

Technical Detail
Display Detail 1

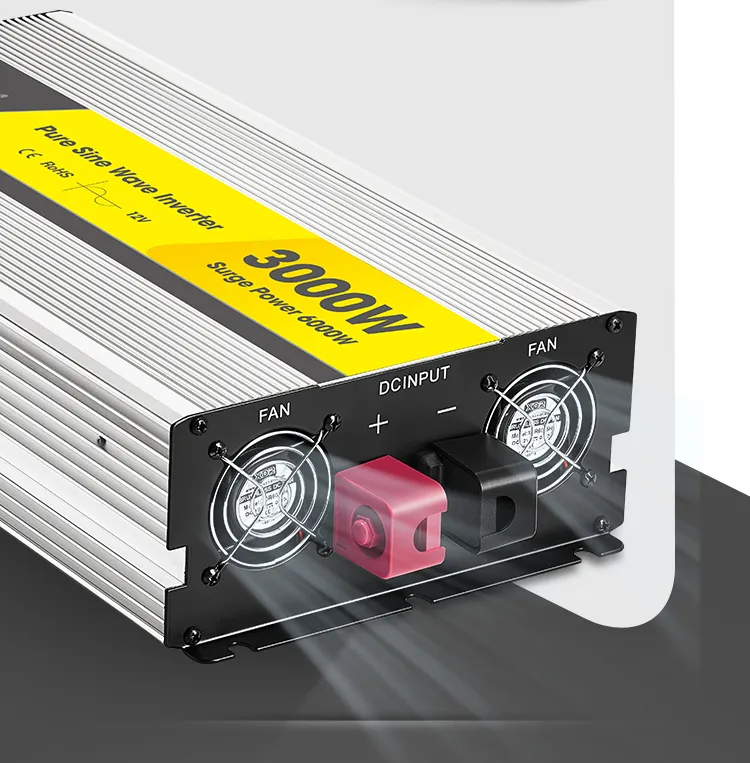

Display Detail 2

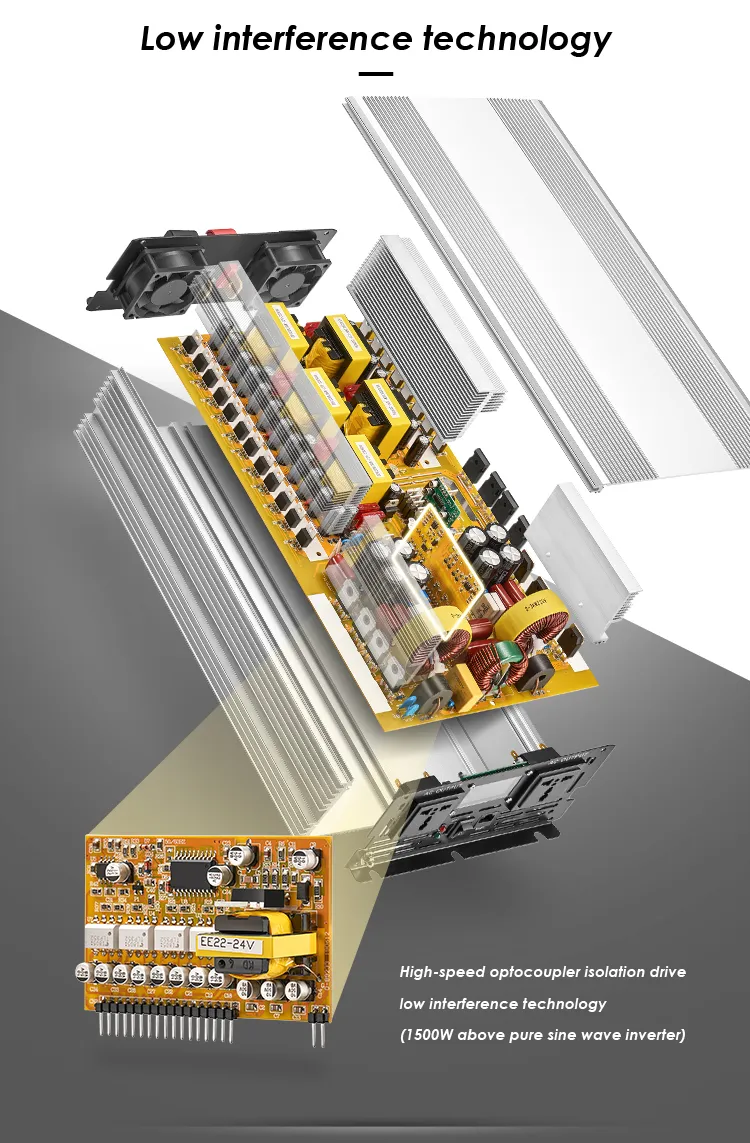

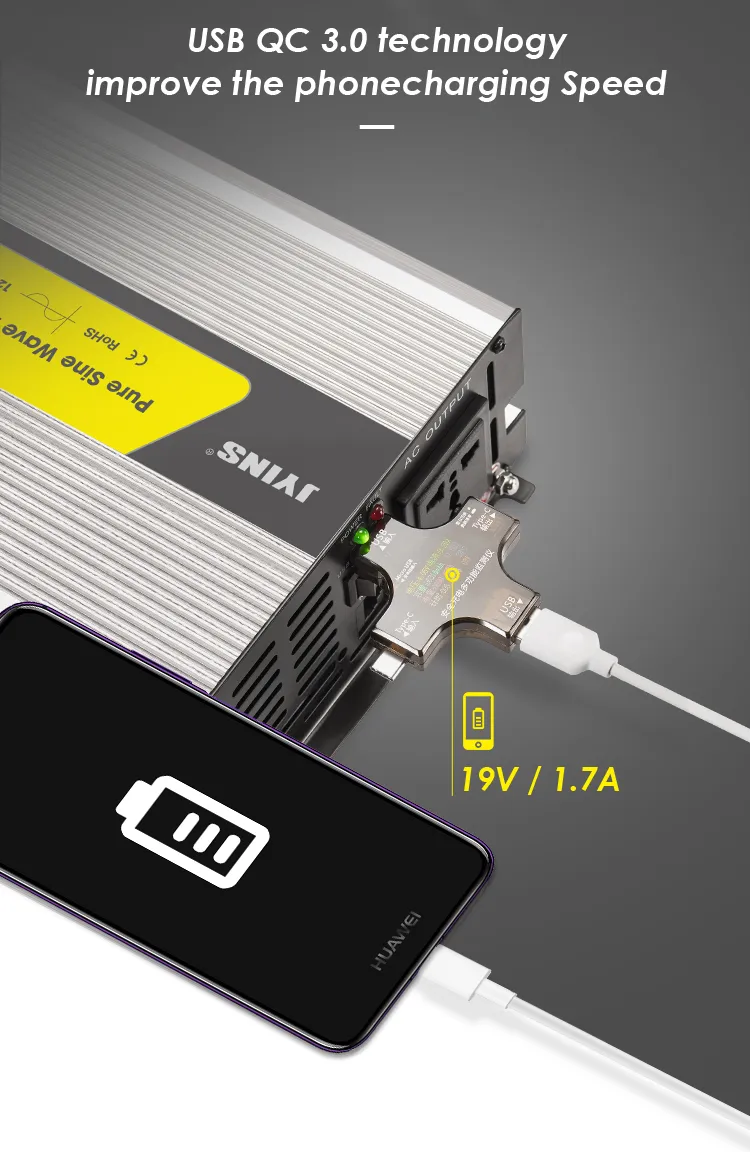

Internal Structure

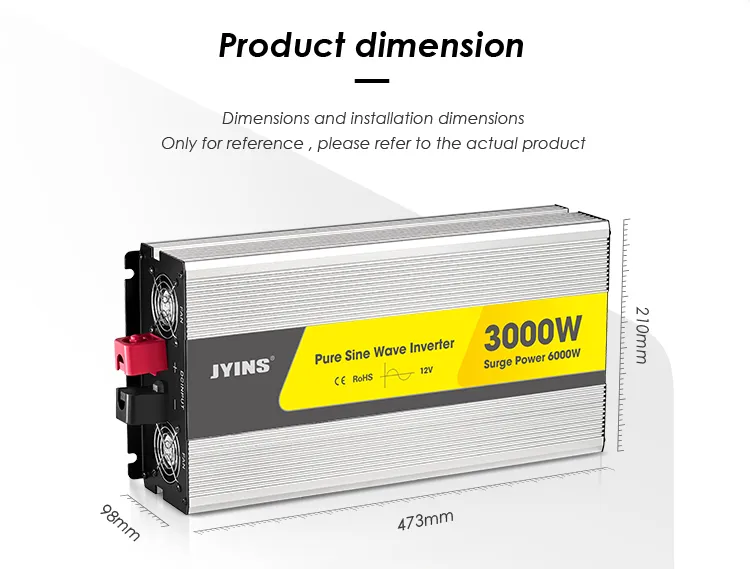

Port Detail 1

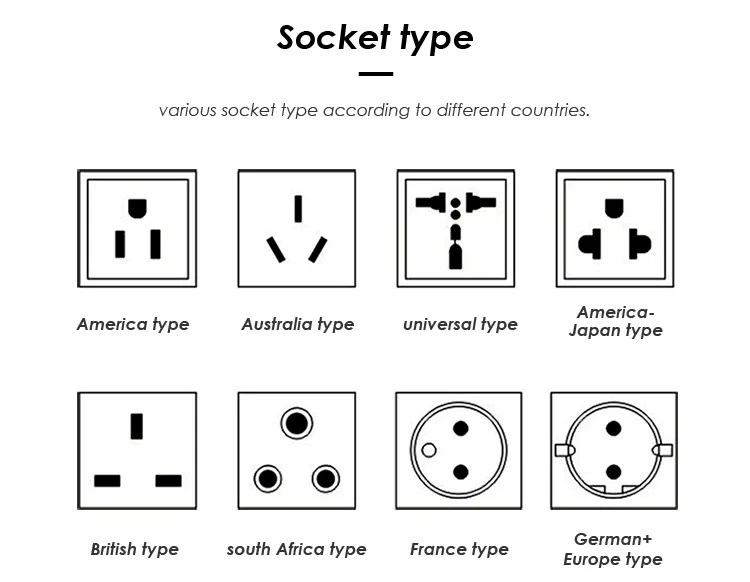

Port Detail 2
Product Parameters
Model JYP-3K-1JYP-3K-1JYP-3K-1 JYP-3K-2JYP-3K-2JYP-3K-2
Rated power 3000W
Peak power 6000W
Input voltage DC12VDC24VDC48V DC12VDC24VDC48V
Output voltage 100VAC / 110VAC / 120VAC±5% 220VAC / 230VAC / 240VAC±5%
Unload current 1.3A0.8A0.6A 1.3A0.8A0.6A
Output frequency 50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform Pure Sine Wave
Max. efficiency 90%
Working Temp. -10° to +50°
Dimension 398 x 180 x 130 mm

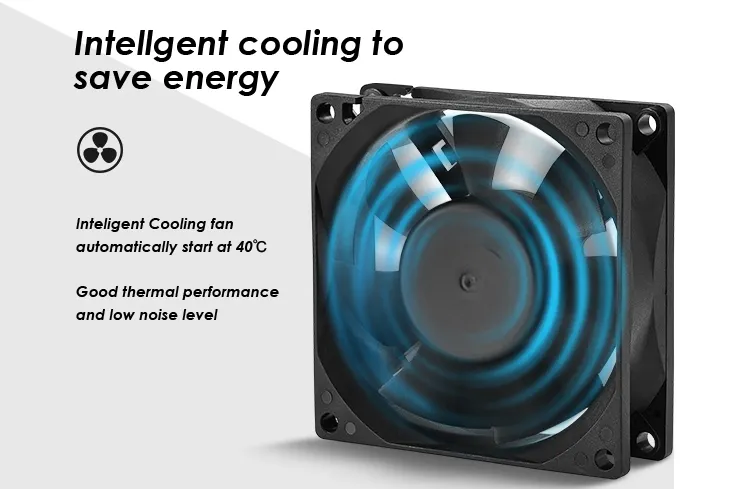

Cooling method Intelligent air cooling

Note: Technical parameters are for reference only. Please refer to the actual product.

Our Advantages
Advantage 1

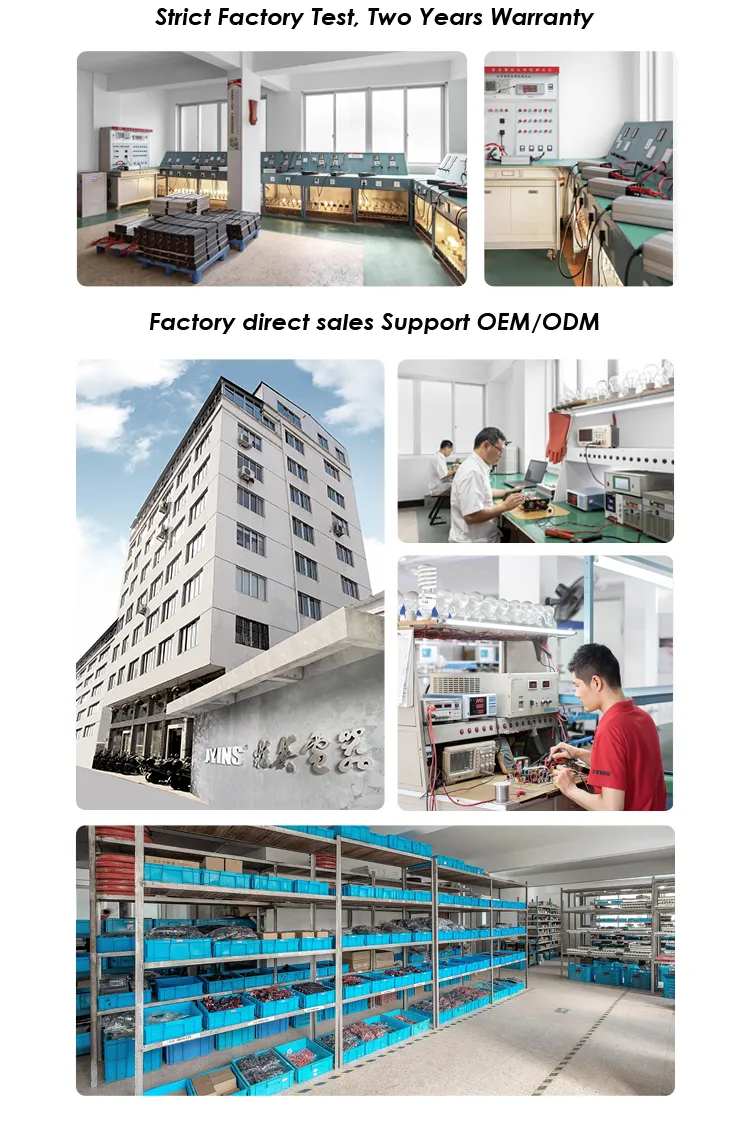

Advantage 2
Frequently Asked Questions
1. Why is your quotation higher than other suppliers?
In the market, inverter qualities vary. Low-cost inverters are often assembled in unlicensed workshops using substandard components, posing significant security risks. To protect personal and property safety, always choose a reliable inverter rather than focusing solely on a low price.
2. What are the categories based on output waveform?
Type One: Modified Sine Wave. Uses PWM modulation. Suitable for most basic electrical equipment. It may have 20% harmonic distortion, which can interfere with sophisticated or radio equipment.
Type Two: Pure Sine Wave. Adopts isolated coupling circuit design. High stability and efficiency. Suitable for all loads, including inductive ones like refrigerators and drills, without interference or noise.
3. Is the output voltage of our inverter stable?
Absolutely. Our inverters feature a high-quality regulator circuit. While ordinary multimeters might show unstable readings (as they are designed for pure sine waves only), a true RMS multimeter will confirm the output is quite stable.
4. What are resistive load appliances?
These include mobile phones, computers, LCD TVs, incandescent lights, electric fans, rice cookers, and small printers. Our modified sine wave inverters can power these successfully.
5. What are inductive load appliances?
These products use electromagnetic induction, such as motors, compressors, refrigerators, air conditioners, pumps, and fluorescent lamps. These require 3-7 times their rated power during startup. Only pure sine wave inverters are suitable for these devices.
6. What should be noticed during installation?
Place the inverter in a well-ventilated, cool, dry, and waterproof location. Do not place foreign objects on or inside the unit. Always turn on the inverter before turning on the connected appliance.
