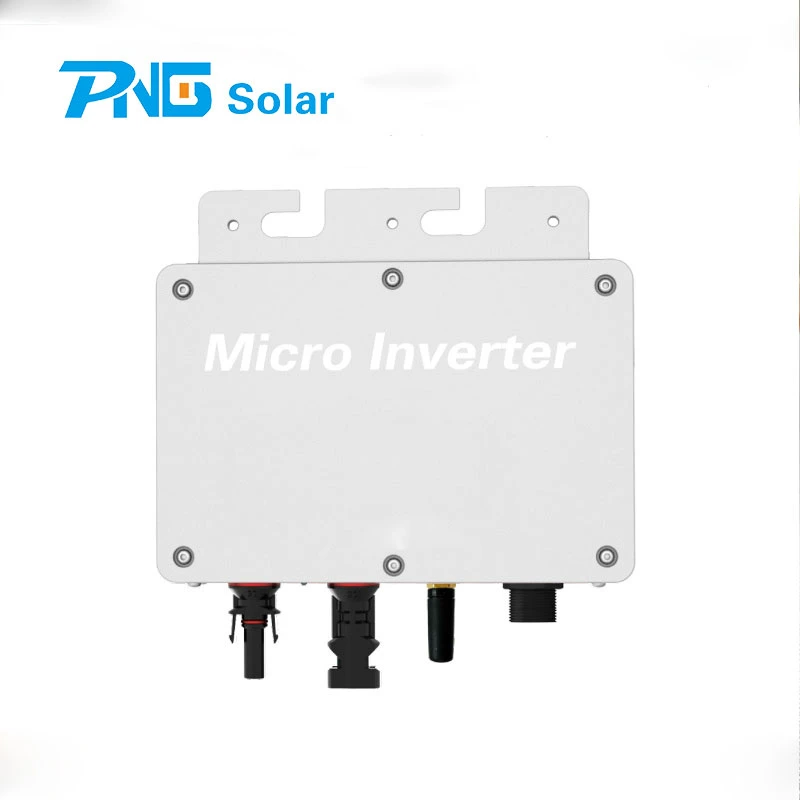

⚡ WVC-300 Wireless Smart Micro Inverter

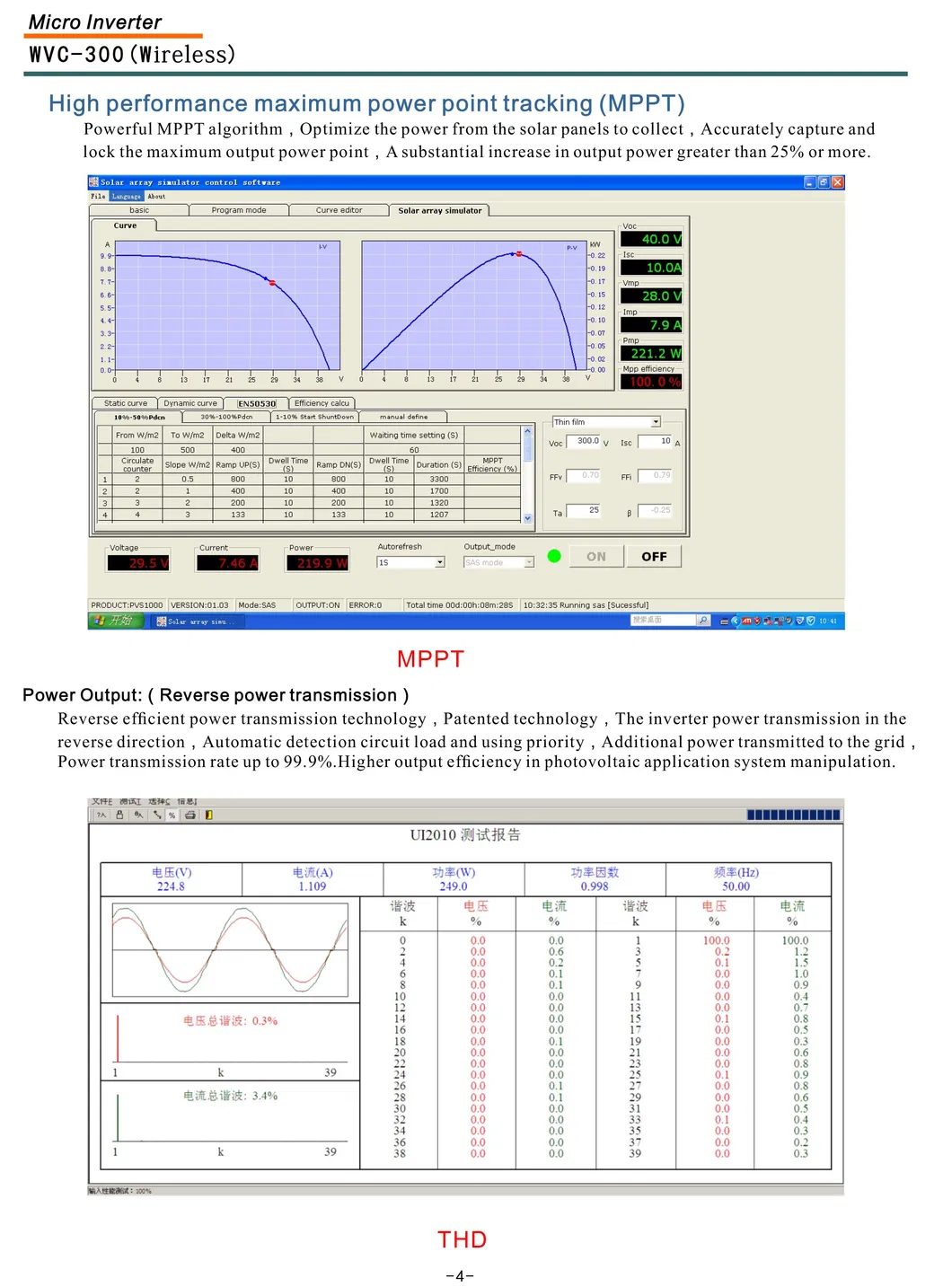

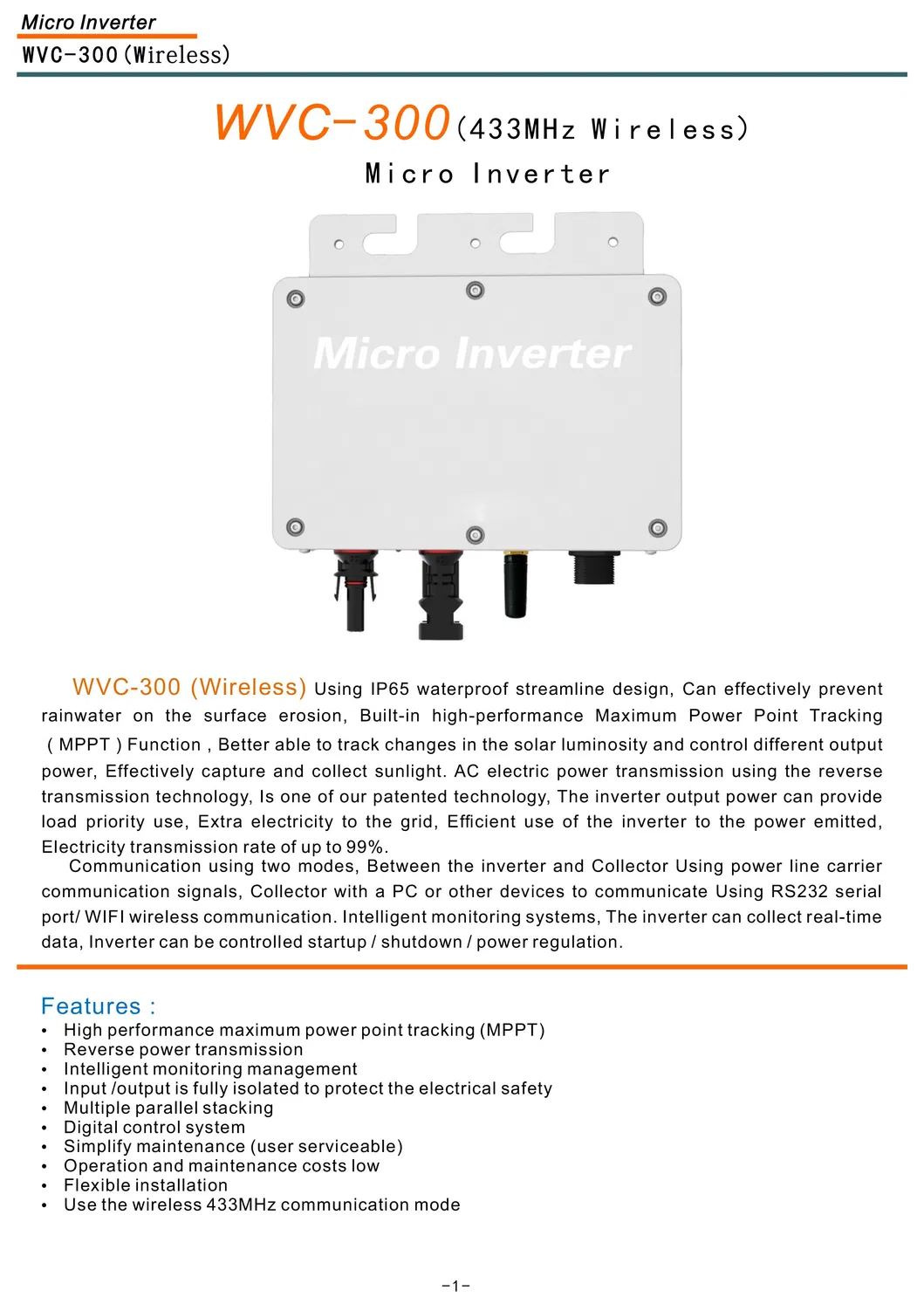

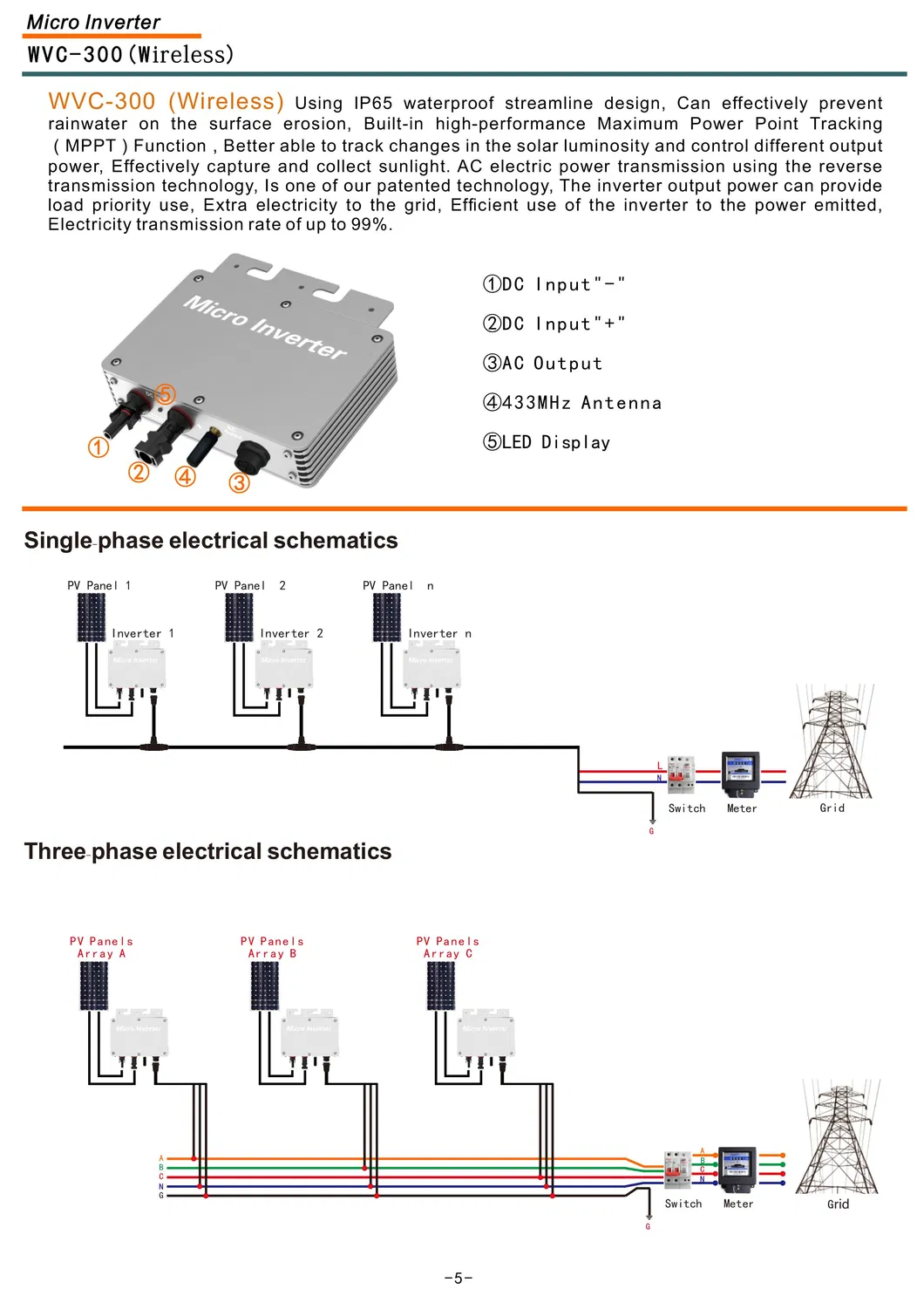

WVC-300 (Wireless) utilizes an IP65 waterproof streamline design that effectively prevents rainwater erosion on the surface. It features a built-in high-performance Maximum Power Point Tracking (MPPT) function, enabling better tracking of changes in solar luminosity and control of different output powers to efficiently capture and collect sunlight.
AC electric power transmission uses reverse transmission technology, where the inverter output power provides load priority use, sending extra electricity to the grid. This ensures efficient use of the emitted power with an electricity transmission rate of up to 99%.

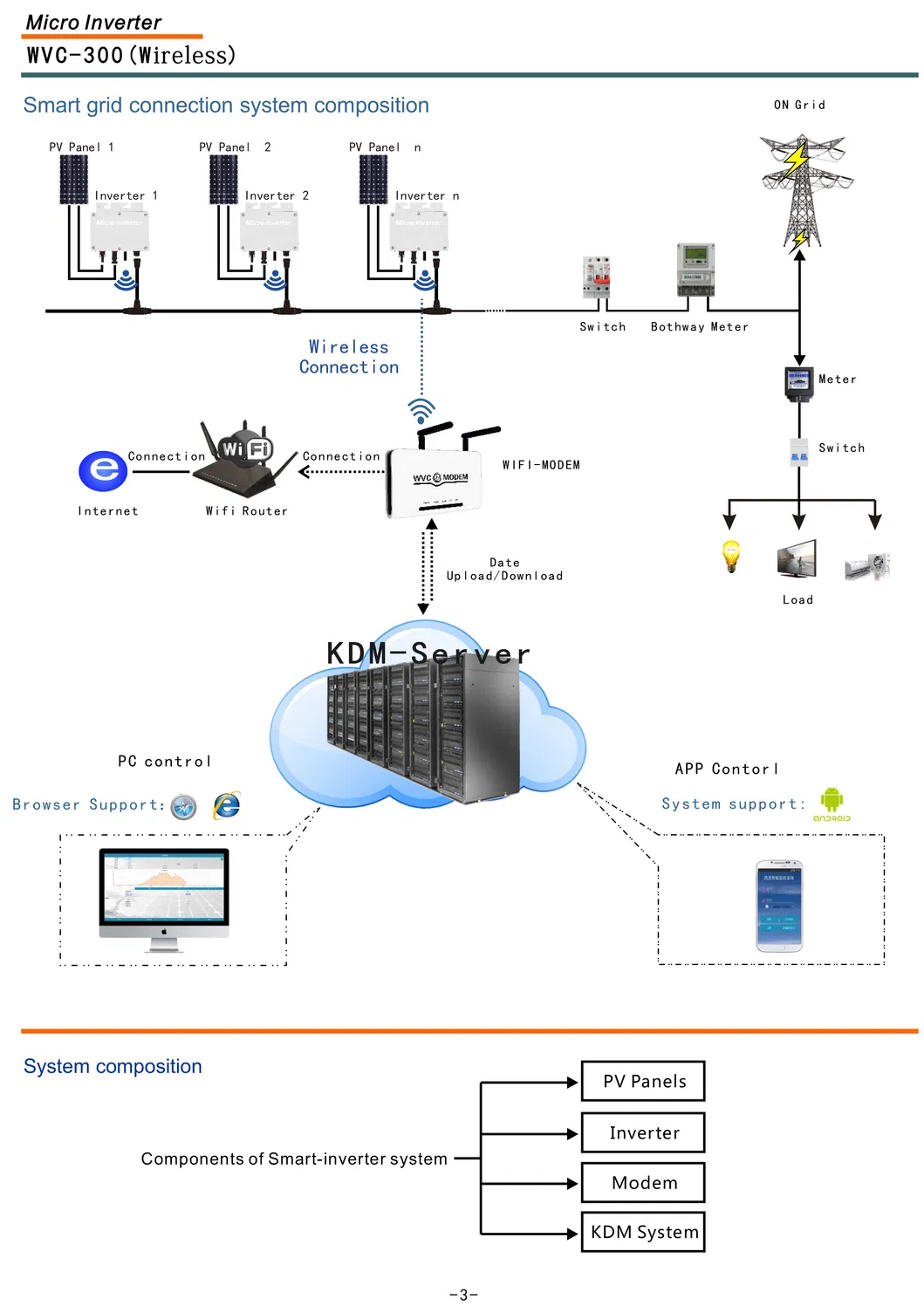

Communication is handled via two modes: Power line carrier signals between the inverter and collector, and RS232 serial port/WIFI wireless communication between the collector and PC/devices. The intelligent monitoring system allows for real-time data collection and control over startup, shutdown, and power regulation.
❓ Frequently Asked Questions
What is the waterproof rating of the WVC-300?
The WVC-300 features an IP65 waterproof streamline design, which effectively prevents erosion from rainwater and ensures stable operation in outdoor environments.
How does the MPPT function benefit my solar system?
The high-performance Maximum Power Point Tracking (MPPT) tracks changes in solar intensity in real-time, optimizing the power output to capture the maximum possible energy from the sun.
What is "Reverse Power Transmission" technology?
It is a patented technology where the inverter prioritizes powering your local loads first. Any excess electricity generated is then efficiently transmitted back to the grid, with rates up to 99%.
Can I monitor the inverter's performance remotely?
Yes, the system supports intelligent monitoring via WIFI or RS232 serial ports. You can collect real-time data and control functions like startup, shutdown, and power regulation.
Is the installation of this micro inverter complicated?

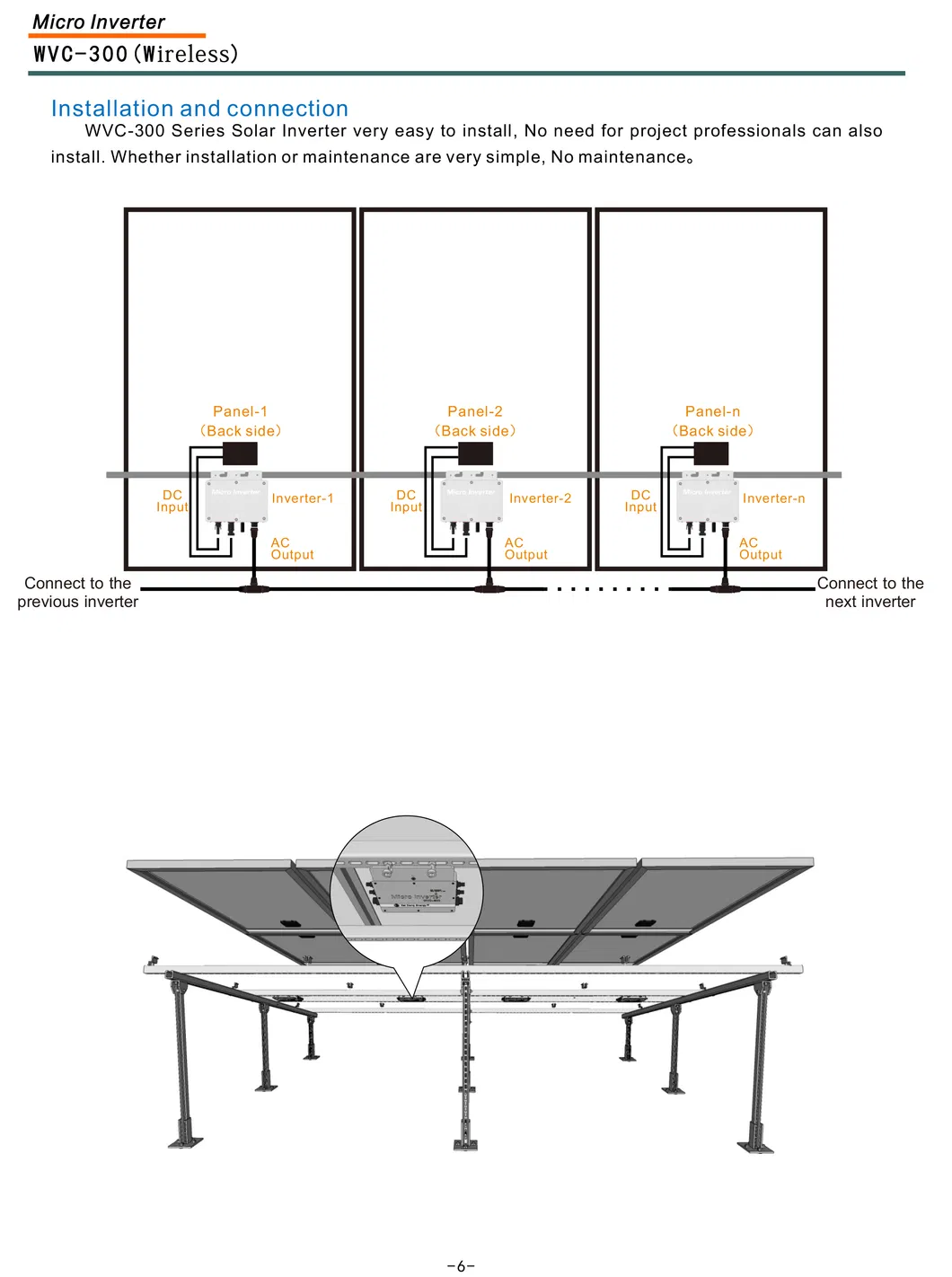

No, the WVC-300 is designed for flexible installation. It supports multiple parallel stacking and is user-serviceable, which simplifies both setup and long-term maintenance.
How is electrical safety ensured with this device?
The input and output of the WVC-300 are fully isolated. This design ensures the safety of the electrical system and prevents potential damage to connected equipment.
