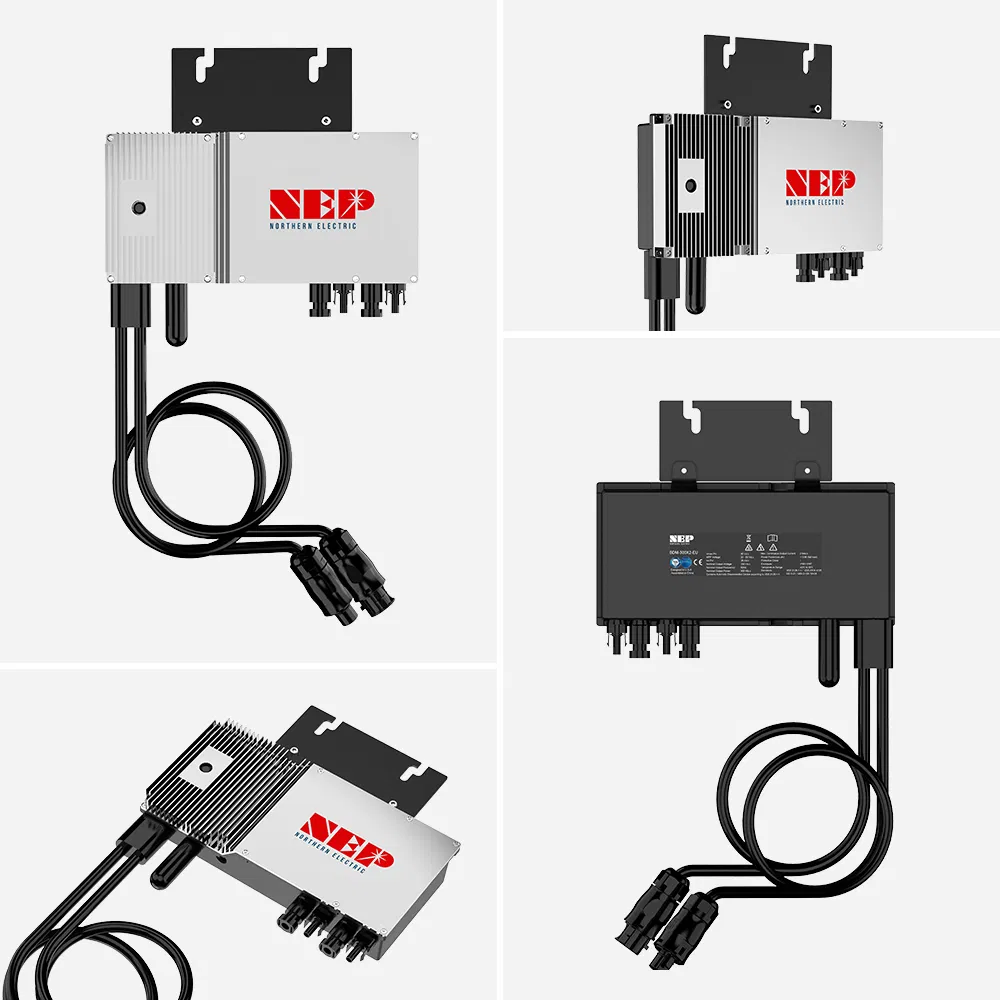

Micro Solar Grid Tied Micro Inverter 300W 500W 600W 800W Easy Solar Kit
Micro Solar Grid Tied Micro Inverter 300W 500W 600W 800W Easy Solar Kit
Micro Solar Grid Tied Micro Inverter 300W 500W 600W 800W Easy Solar Kit
Micro Solar Grid Tied Micro Inverter 300W 500W 600W 800W Easy Solar Kit
Micro Solar Grid Tied Micro Inverter 300W 500W 600W 800W Easy Solar Kit
1 / 5
Micro Solar Grid Tied Micro Inverter 300W 500W 600W 800W Easy Solar Kit
Micro Solar Grid Tied Micro Inverter 300W 500W 600W 800W Easy Solar Kit
Micro Solar Grid Tied Micro Inverter 300W 500W 600W 800W Easy Solar Kit
Micro Solar Grid Tied Micro Inverter 300W 500W 600W 800W Easy Solar Kit
Micro Solar Grid Tied Micro Inverter 300W 500W 600W 800W Easy Solar Kit

Micro Solar Grid Tied Micro Inverter 300W 500W 600W 800W Easy Solar Kit

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
BDM 300/500/600/800W-230v
Nature of Source Flow
Passive inverter
Phase
Single
Output Power
300-800W
Certification
CE, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Pure Sine Wave
Output Frequency
50/60Hz
Inverter Efficiency
97%
Input Voltage
60V
Protection Degree
NEMA-6 / IP-66 / IP-67
Production Capacity
1000 Pieces Per Month
📍 Product Description

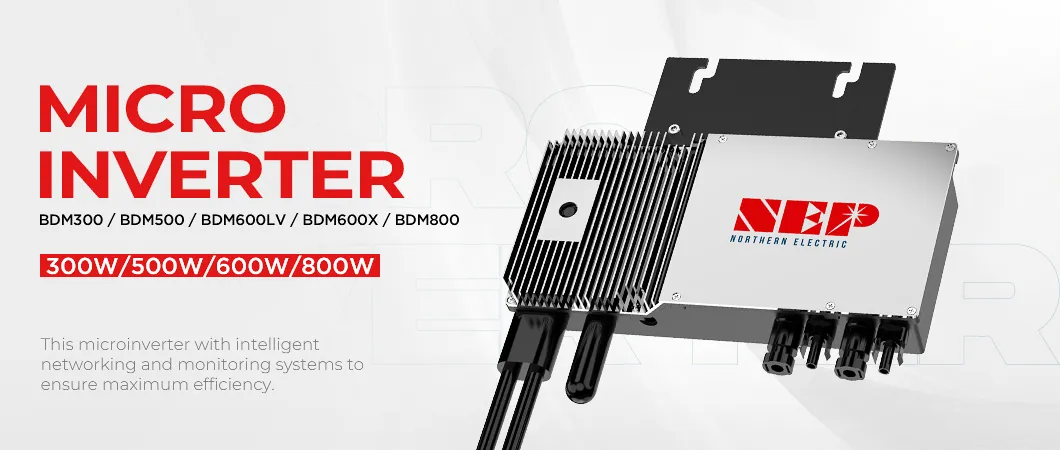

Solar Grid Tied Micro Inverter Overview

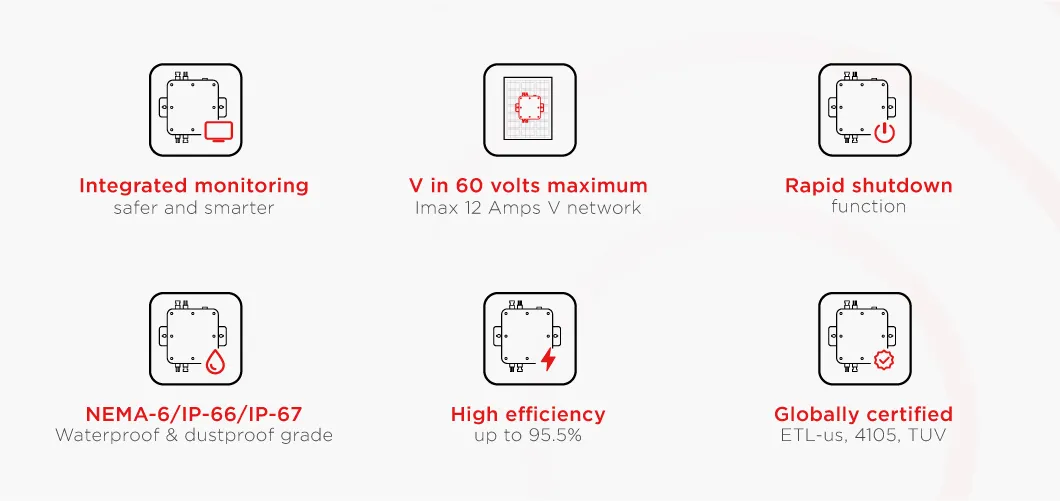

Easy Solar Kit Detail
⚙ Technical Specifications
Model BDM 300 BDM 500 BDM 600 BDM 800
Recommended Max PV Power450W750W450W*2600W*2
Max DC Open Circuit Voltage60V
Max DC Input Current14A15.5A14A*217A*2
MPPT Tracking Accuracy>99.5%
MPPT Tracking Range22-55V35-55V22-55V22-55V
Rated AC Output Power300W500W500W800W
Nominal Power Grid Voltage240V/208V/230V
THD<3% (at rated power)
Weighted Averaged Efficiency95.5%
ProtectionOver/Under Voltage; Over/Under Frequency; Anti-Islanding; Over Current; Reverse DC Polarity; Overload Protection
Operating Temperature-40°C to +85°C
📶 System Connection

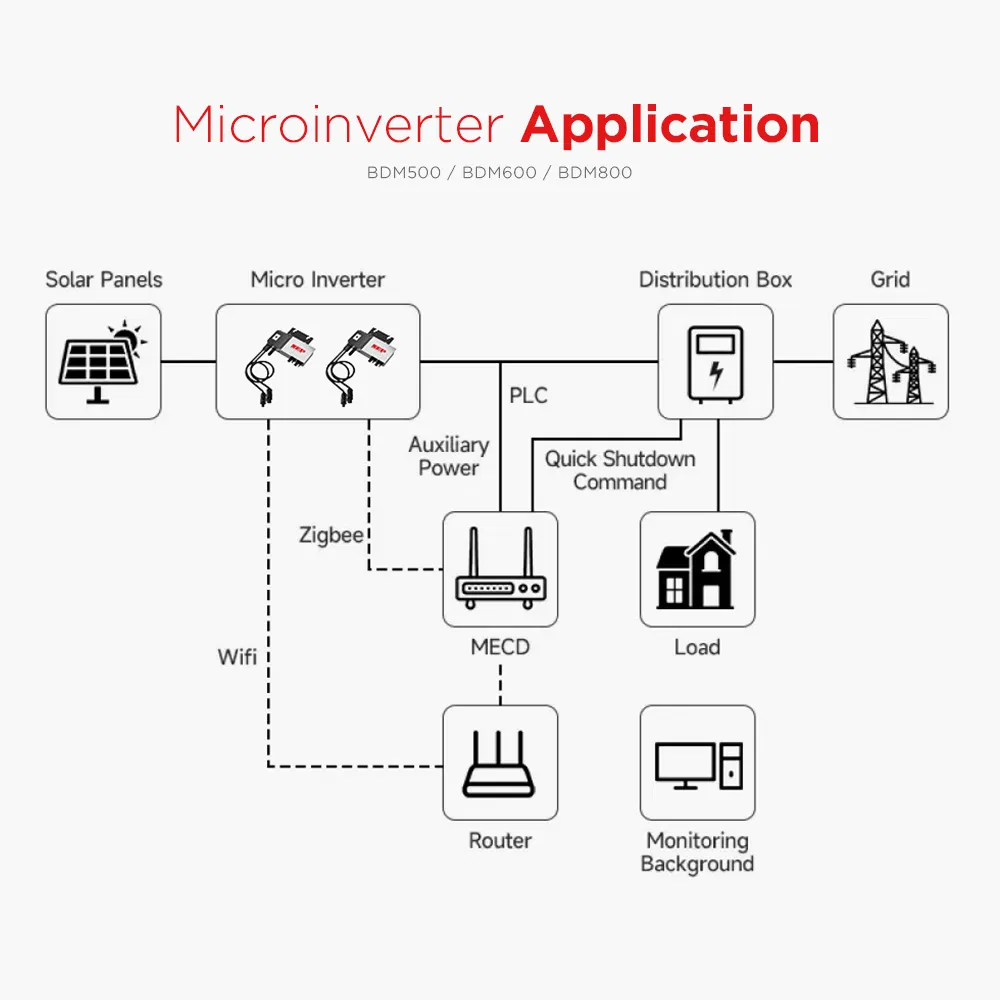

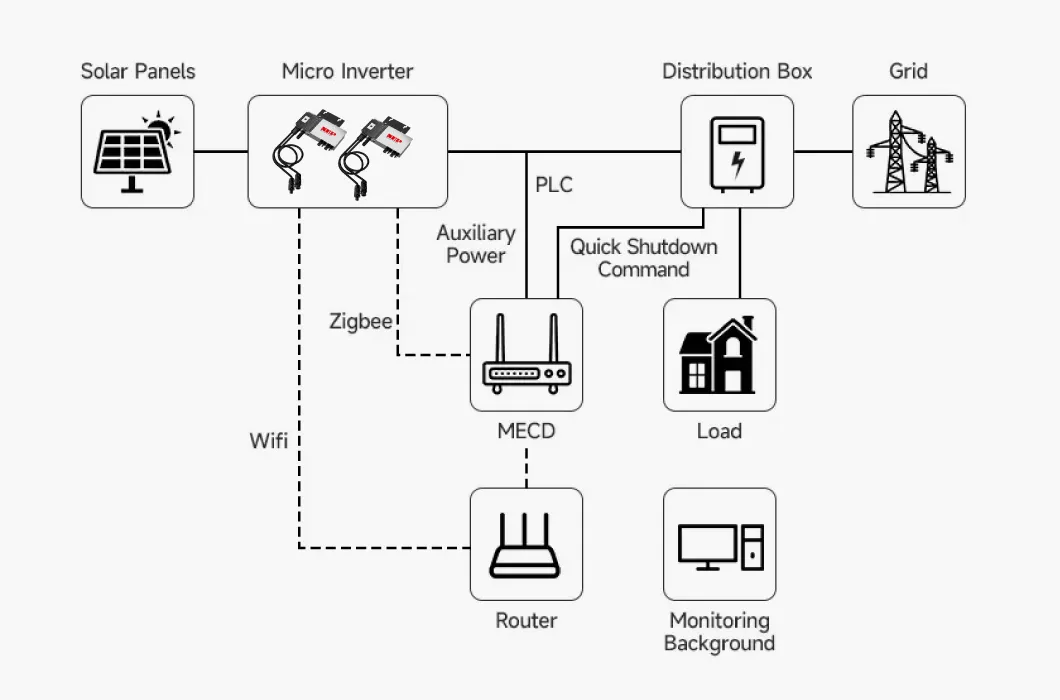

System Connection Diagram

How does it work?

The basic application includes the following devices to have a complete running system:

  • Generator or Utility
  • PV modules

This inverter can power all kinds of appliances in home or office environments, including motor-type appliances such as refrigerators and air conditioners.

🔍 Intelligent Monitoring & Features

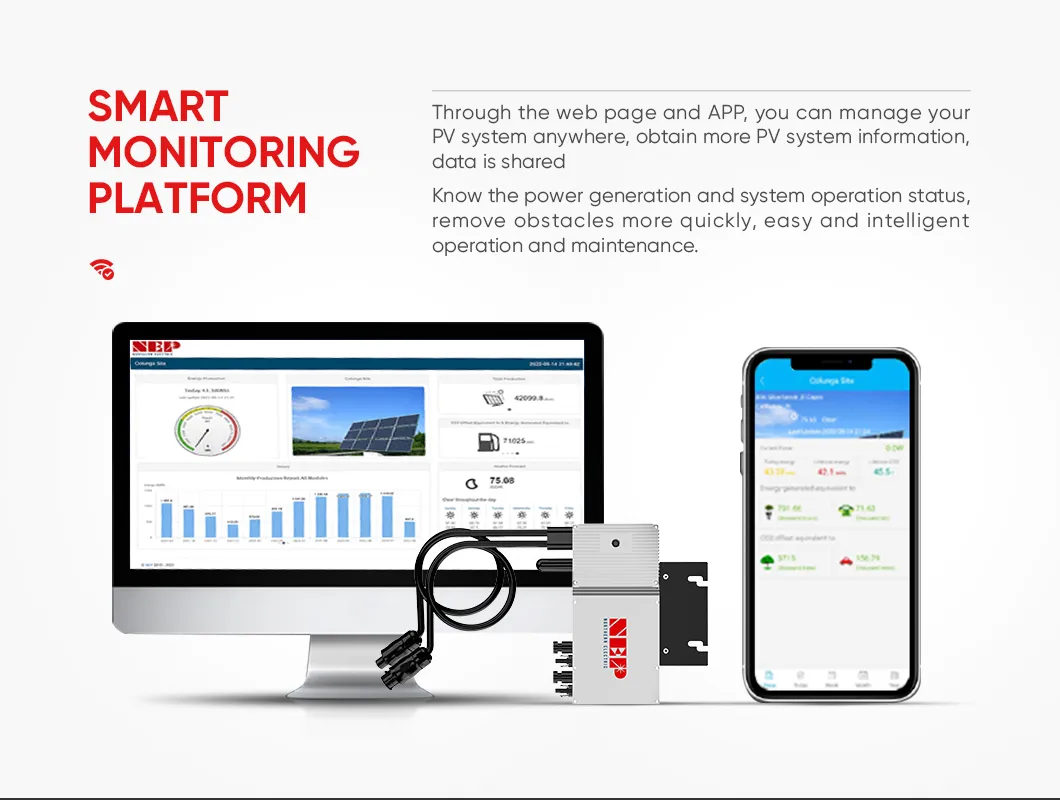

Intelligent Monitoring App

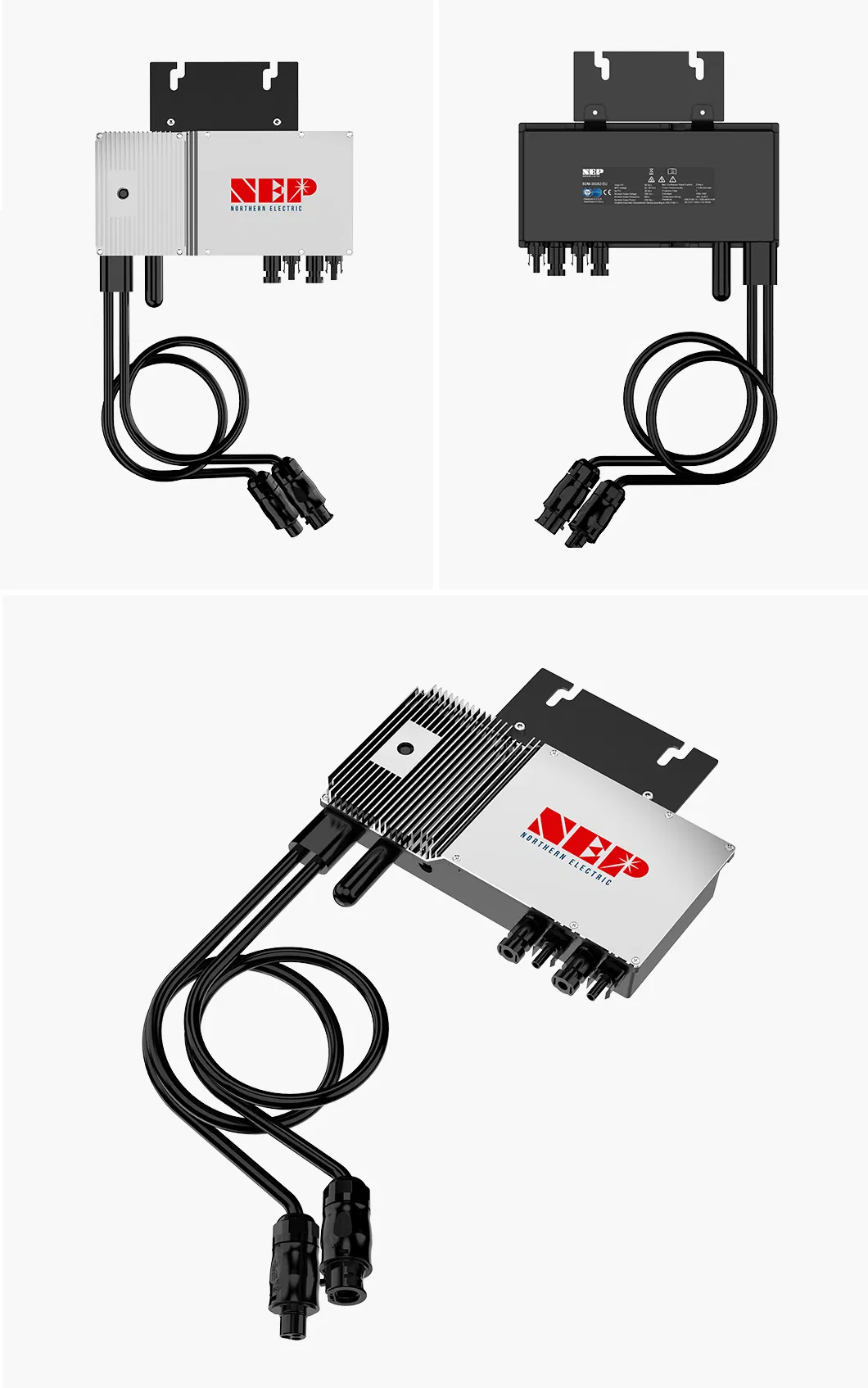

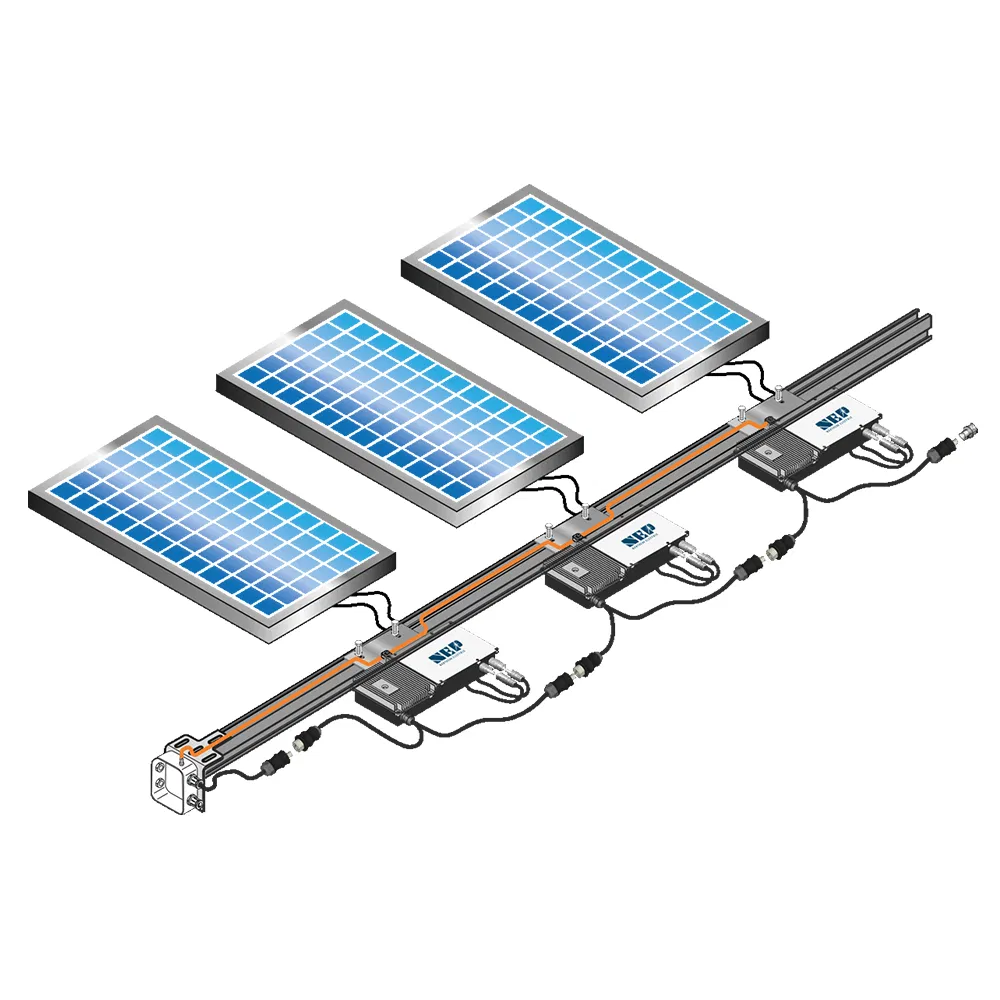

Microinverter Installation
✔
Simple to install: The Microinverter is placed in the same structure as the solar panels and the cable connections are made through its own connectors.
📈
High efficiency: Maximum conversion efficiency of up to 95.5%. Take full advantage of solar energy with advanced MPPT technology.
🚀
Innovation: Over 10 years of experience in revolutionary environmental care and power solutions.
🛡
Reliable Monitoring: Supports full lifecycle data storage, traceable logs, and one-click installation and registration.
🏭 Factory & Logistics

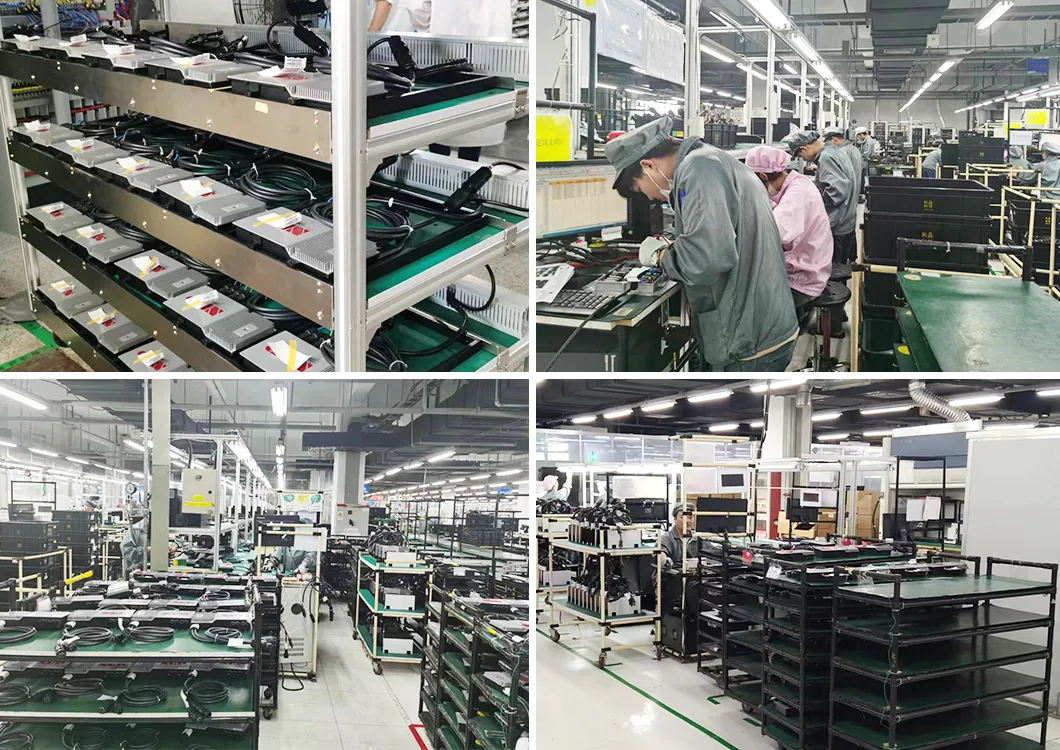

Manufacturing Factory
Packaging and Shipping
🏠 Project Cases

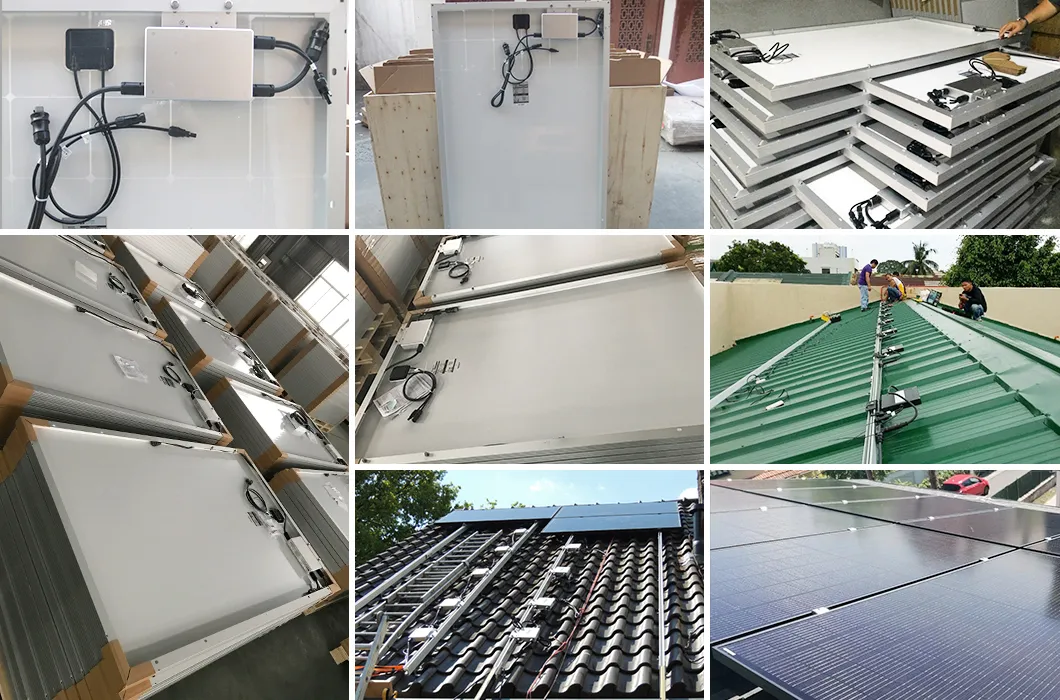

Solar Project Installation
FAQ - Frequently Asked Questions
What is the peak efficiency of these micro inverters?
The micro inverters offer a maximum conversion efficiency of up to 97%, with a CEC weighted averaged efficiency of 95.5%.
Are these units suitable for outdoor installation?
Yes, they are designed for both indoor and outdoor use with protection degrees of NEMA-6, IP-66, and IP-67, making them suitable for wet locations.
What range of solar panel wattage is recommended?
Depending on the model, they can handle PV power from 450W up to 600W*2 (for the BDM 800 model).
What safety protections are built into the device?
The system includes Over/Under Voltage and Frequency protection, Anti-Islanding, Over Current, Reverse DC Polarity, and Overload protection.
How is the system monitored?
The inverters use Power Line communication and support intelligent monitoring with traceable logs and full lifecycle data storage via an open station app.
Can these inverters power heavy appliances?
Yes, they provide a pure sine wave output which is compatible with all kinds of home and office appliances, including refrigerators and air conditioners.
