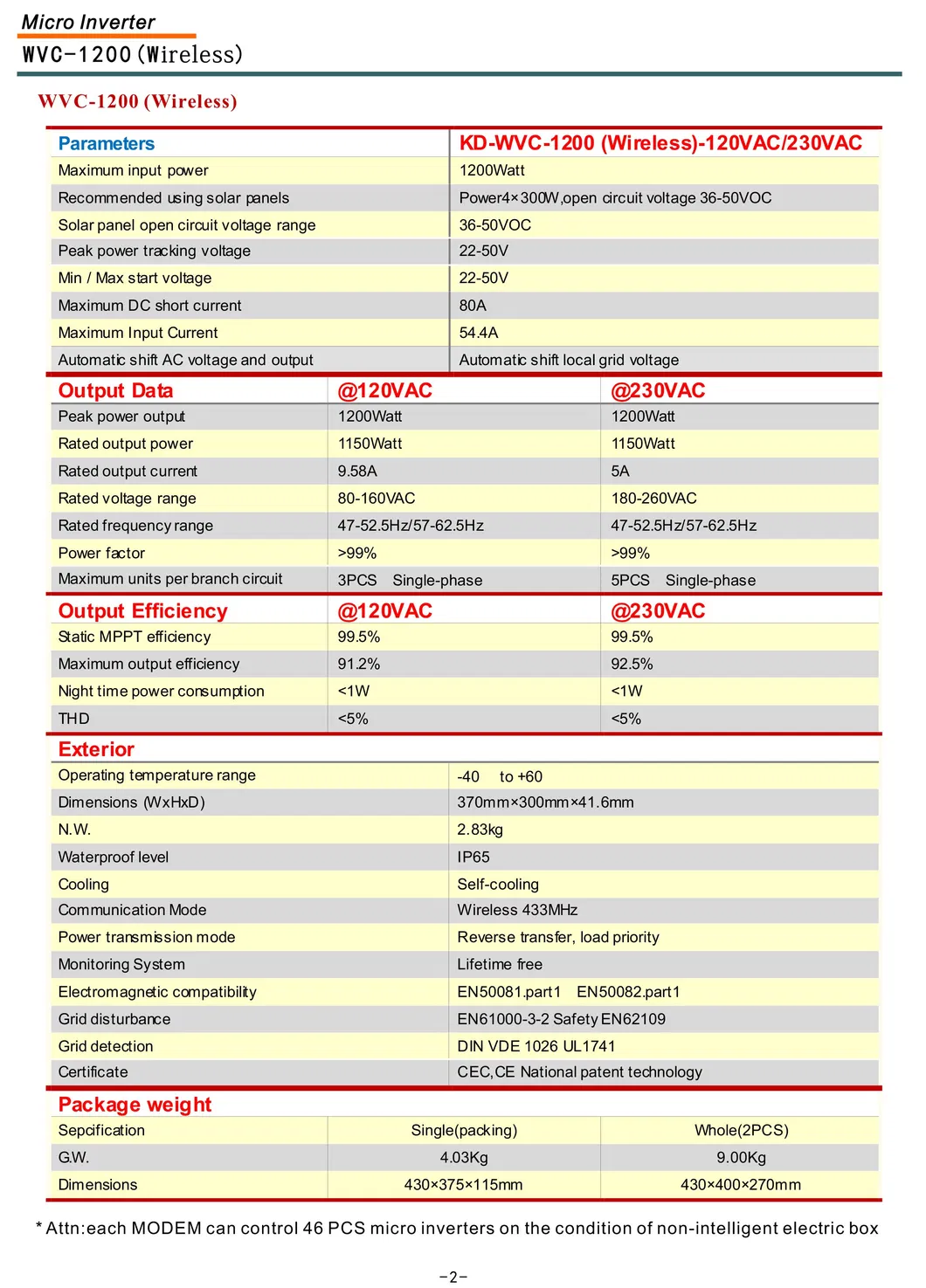

| Model NO. | WVC-1200v |
| Output Power | 1200W |
| Grid Type | Grid Inverter |
| Output Type | Single |
| Circuit Topologies | Full-Bridge Type |
| Nature of Wave String | Sine Wave Inverter |
| Type | DC/AC Inverters |
| Power Source | Solar Power |
| Heat Dissipation Mode | Self-Cooling |
| Communication Mode | 433MHz/WiFi |
| Monitoring System | Lifetime Free |
| N.W | 2.83kg |
| Output Current | 9.58A/5A |
| Waterproof Level | IP65 |
| Output Waveform | Pure Sine Wave Output |
| Output Frequency | 50/60Hz |
| Power Transmission Mode | Reverse Transfer, Load Priority |
| Application | Grid Tied Solar System |
| Warranty | 5 Years |
| Specification | 370*300*41.6mm |

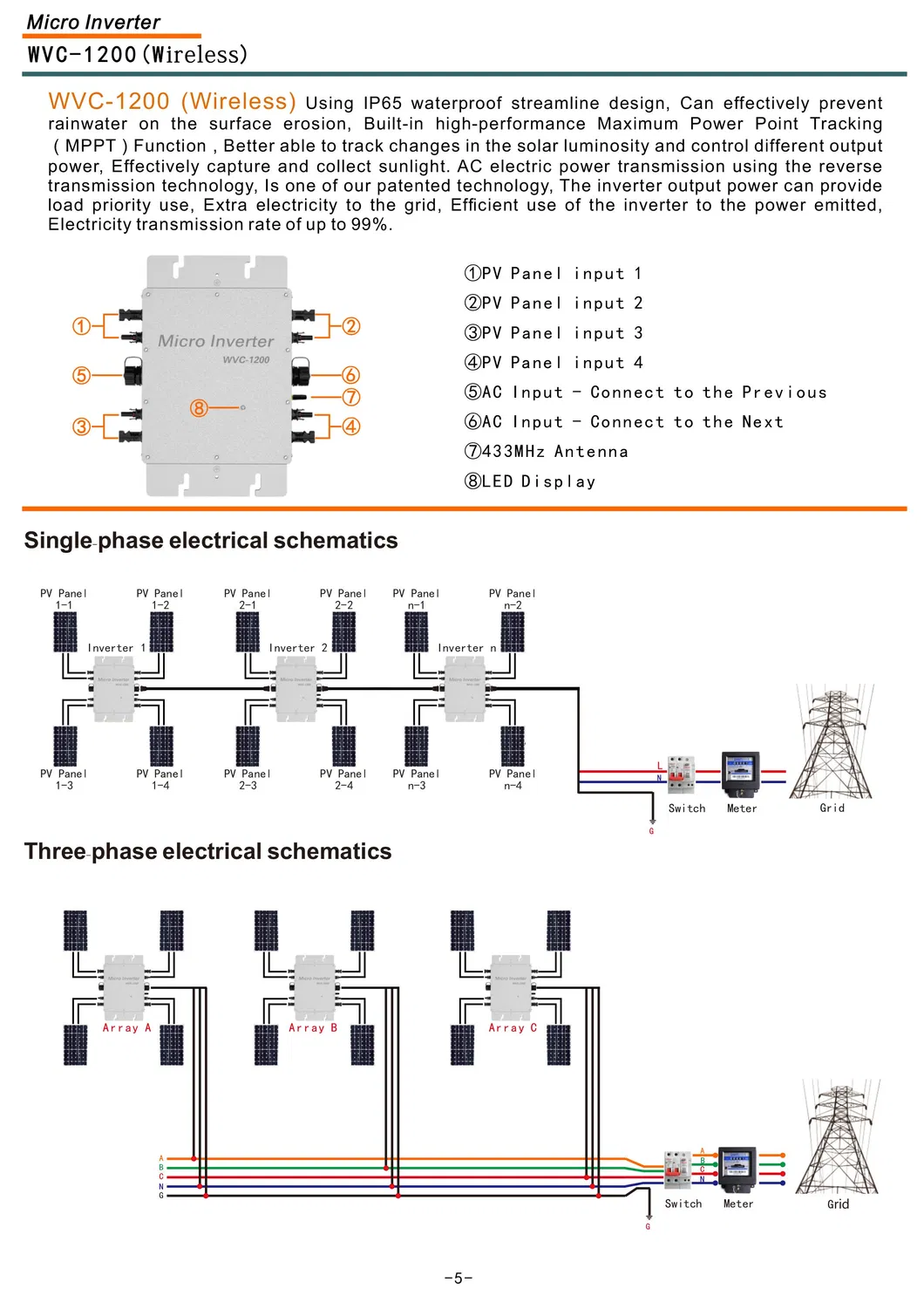

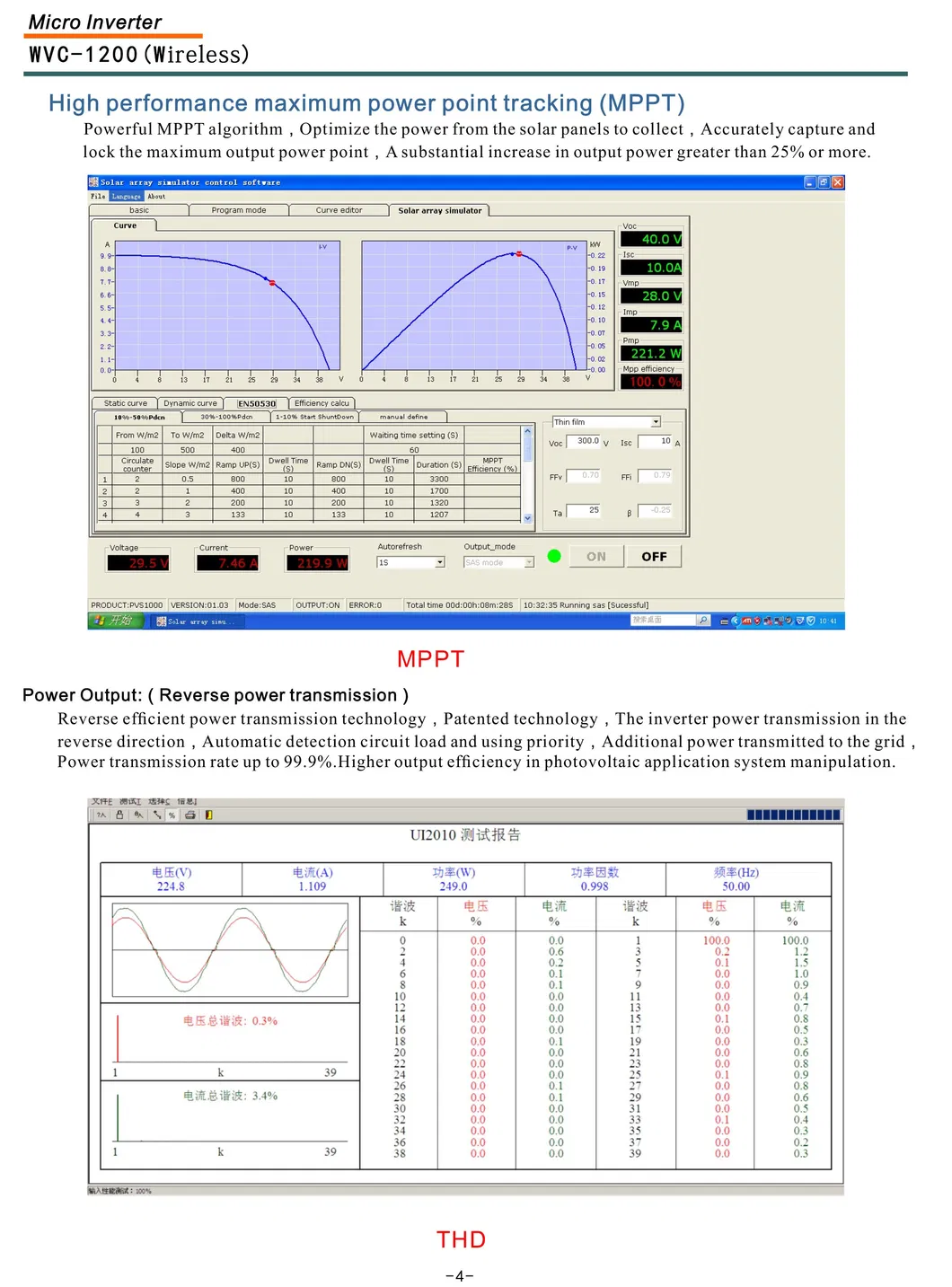

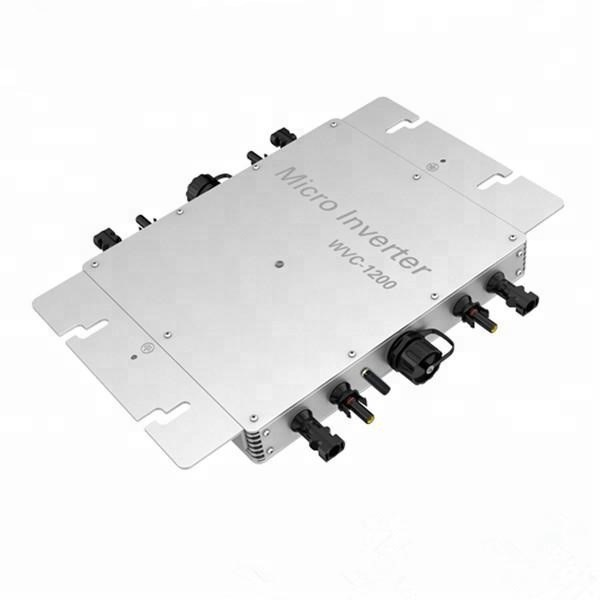

WVC-1200 (Wireless) utilizes an IP65 waterproof streamline design, effectively preventing rainwater erosion on the surface. It features a built-in high-performance Maximum Power Point Tracking (MPPT) function, enabling better tracking of changes in solar luminosity and control of output power to efficiently capture sunlight.

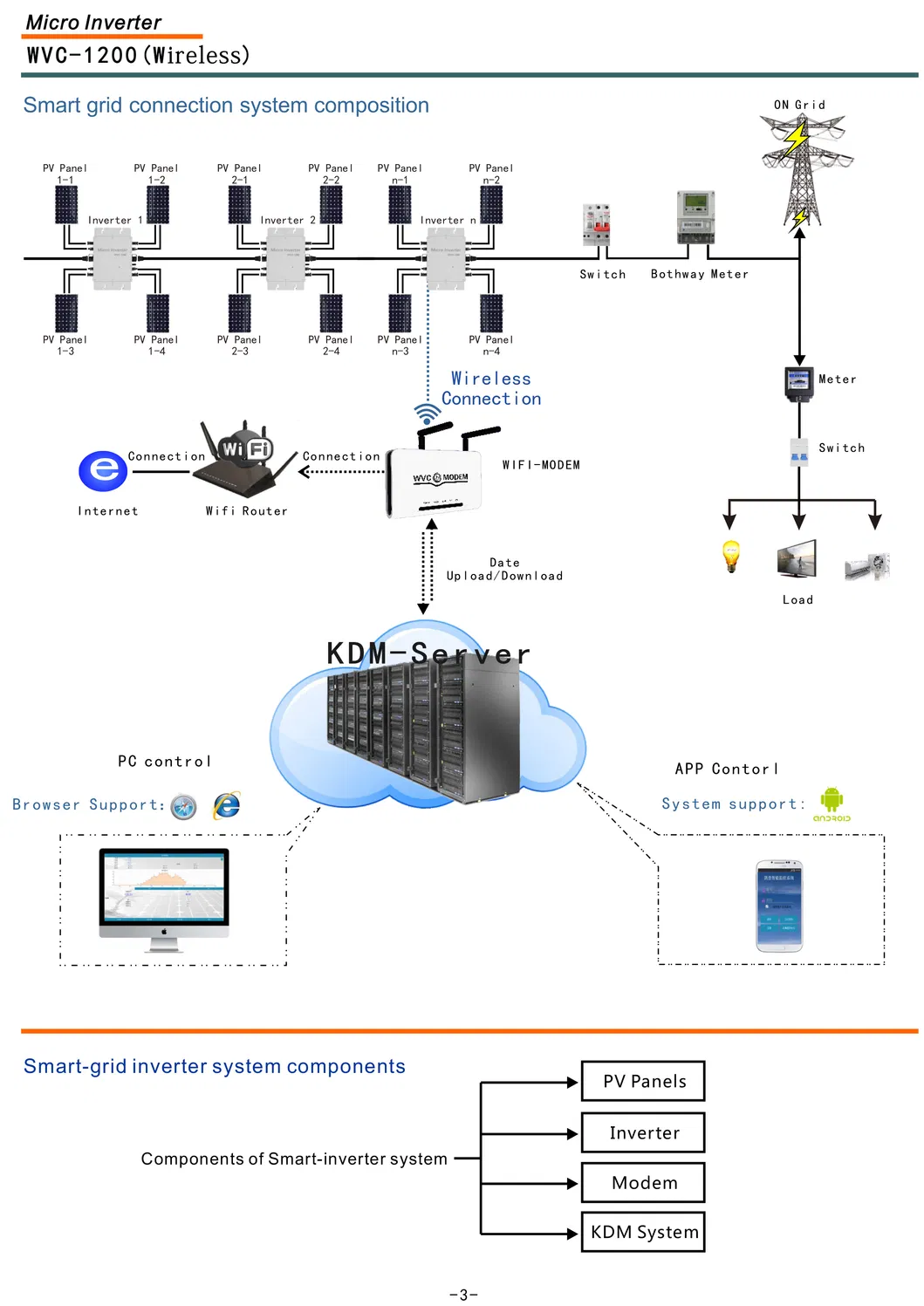

The AC electric power transmission uses patented reverse transmission technology. The inverter output provides load priority use, sending extra electricity to the grid with a transmission rate of up to 99%. Communication is handled via power line carrier signals between the inverter and collector, and RS232/WiFi between the collector and monitoring devices.
