Product Description

Products Description: PV500 Series Solar Pumping Inverter

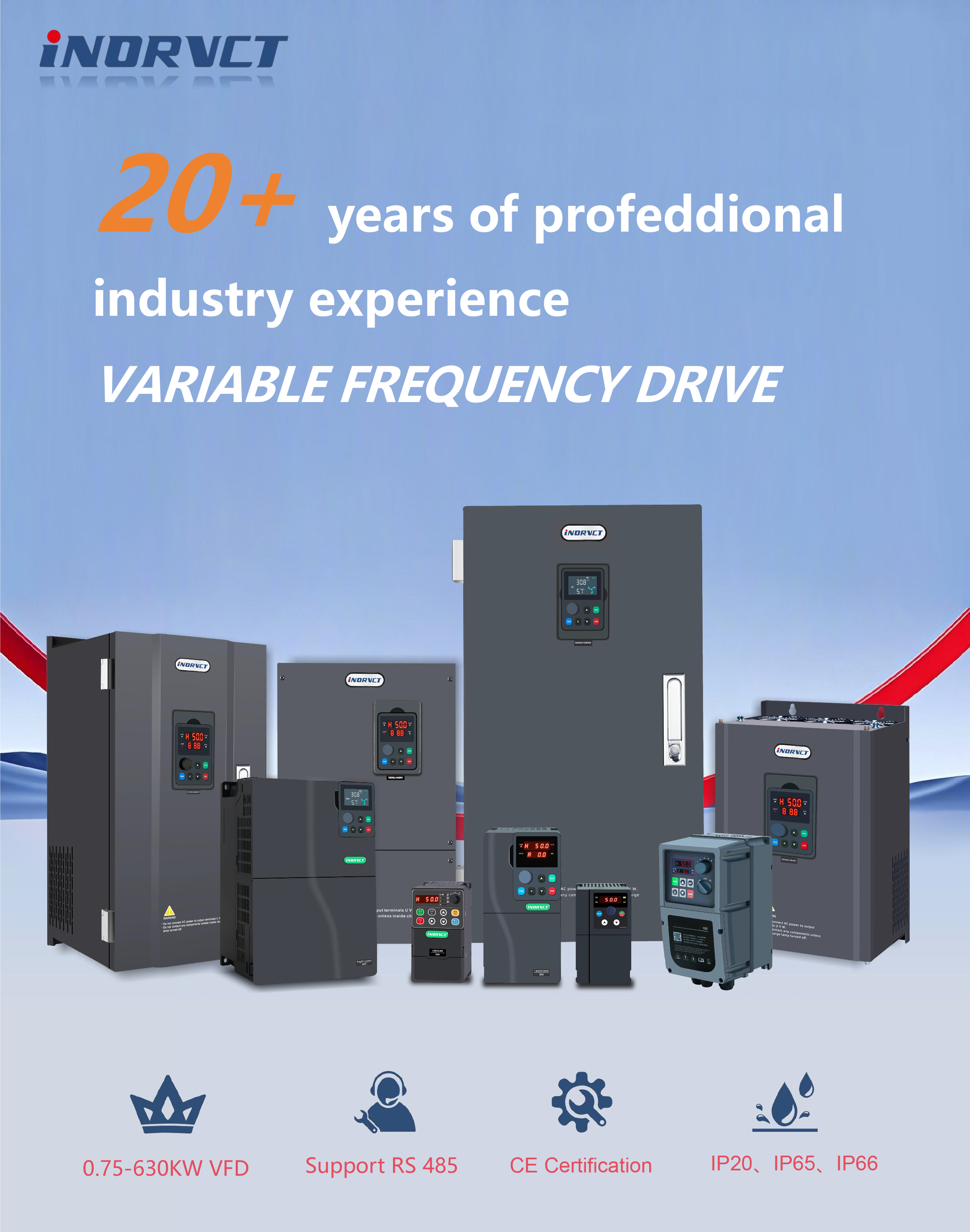

Solar Pumping Inverter
Note: When inverter distance to pump exceeds 100m, an AC reactor is to be installed at the output of the inverter to protect motor insulation against AC drive short circuits or IGBT reflective wave damage.

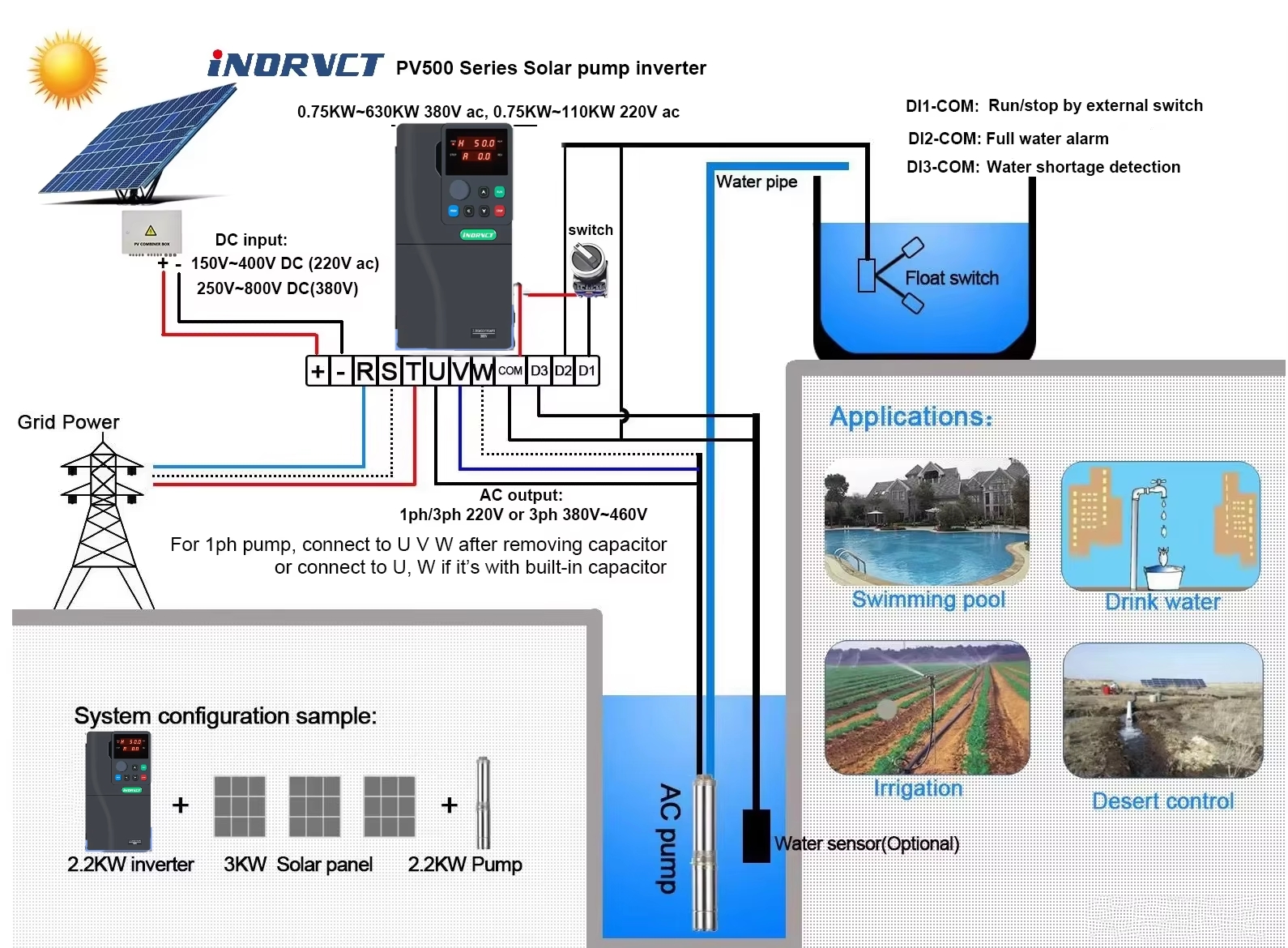

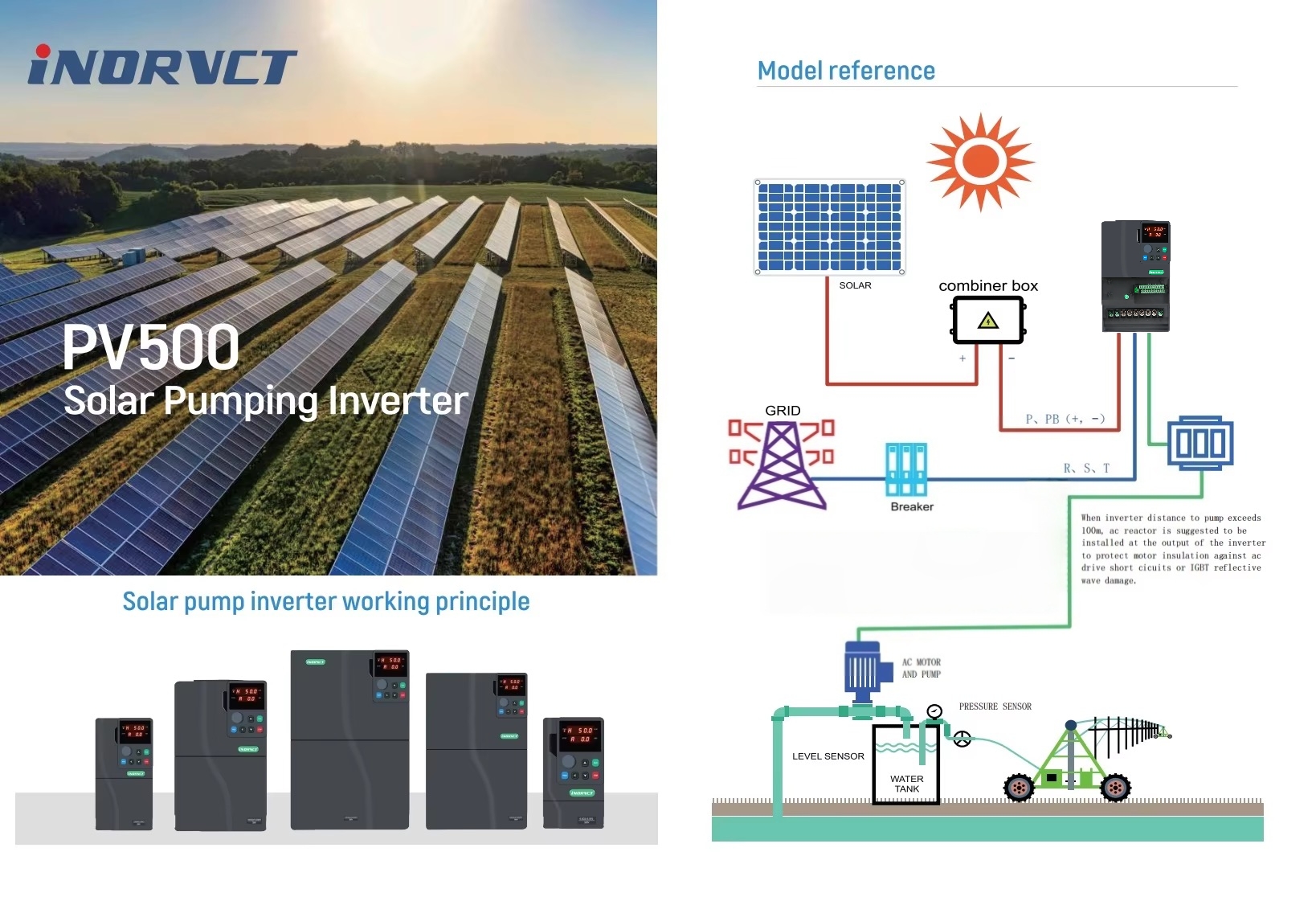

Solar Inverter Diagram
🚀 Product Overview
The solar pumping system consists of a solar pumping inverter, pump, and PV array. Storing water is more efficient than storing electricity; therefore, the system is designed to directly drive the pump without batteries, effectively reducing construction, operating costs, and routine maintenance.

The solar pumping inverter controls the entire system's operation, driving the pump by converting DC power produced by the PV array to AC power. This inverter adjusts output frequency according to solar irradiation intensity in real-time to implement Maximum Power Point Tracking (MPPT).

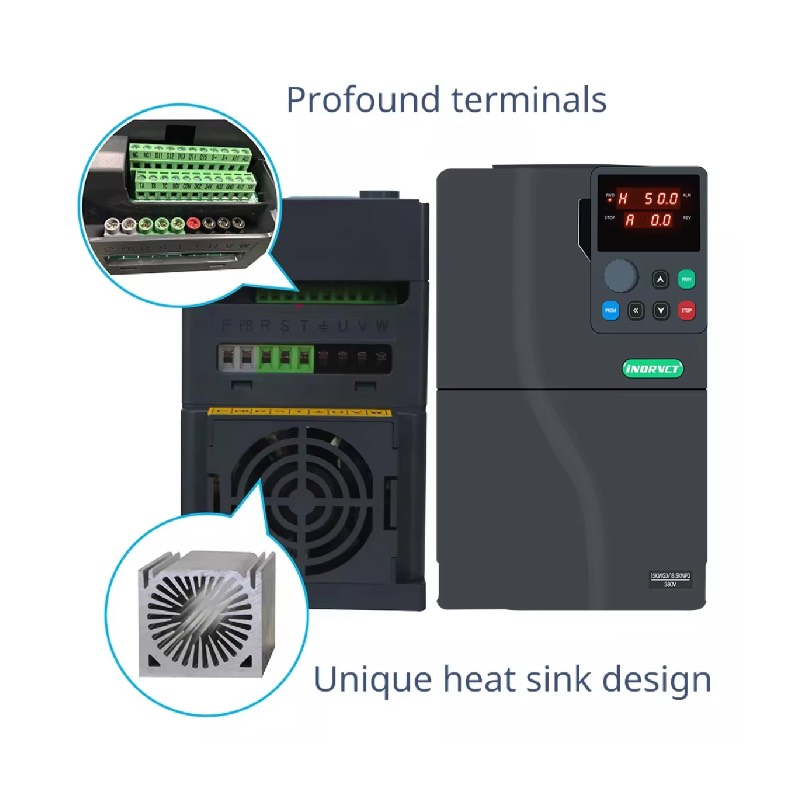

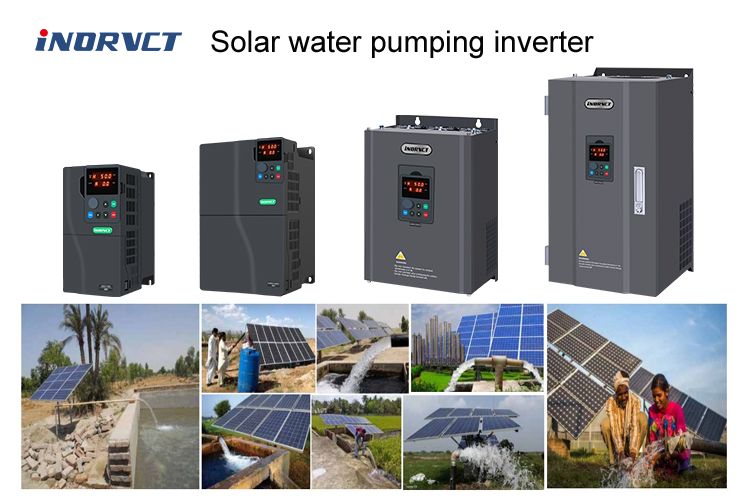

PV500 Details 1

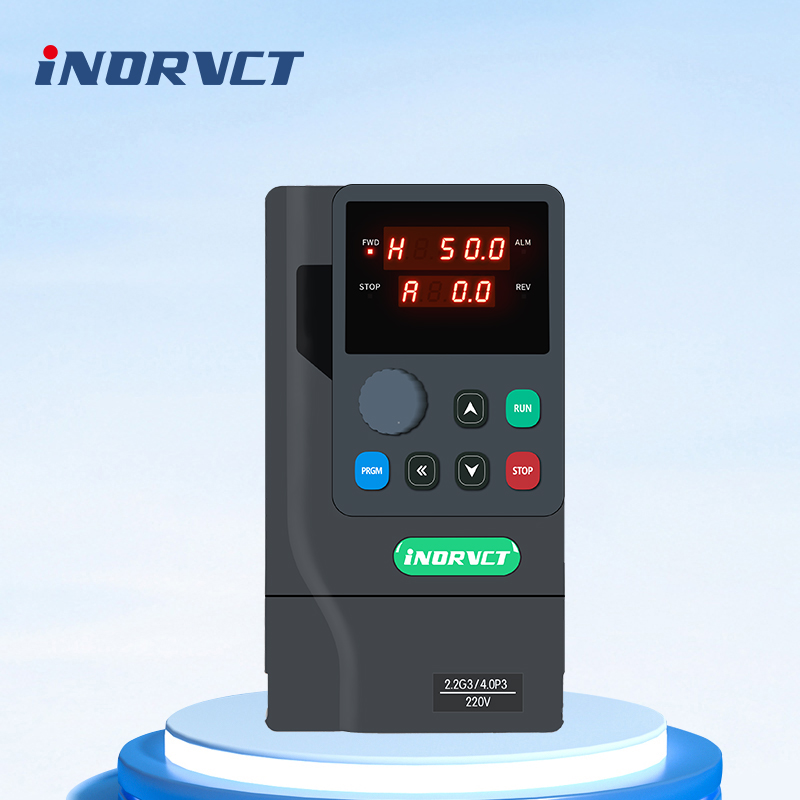

PV500 Details 2
⭐ Key Features
1. Broad Voltage & Power Range Supports 0.75kw to 110kw (220Vac) and 0.75kw to 630kw (380V~480V ac).
2. Plug & Play Extremely easy to use, just plug in and it starts working.
3. Multiple Protective Measures Includes PV polarity reverse warning and auto derating against over-temperature.
4. Advanced MPPT Algorithms Precisely tracks the PV array output to ensure maximum power point operation.
5. Dual AC & DC Input System is regularly powered by solar panels. When sunlight is insufficient, it can be powered by the AC grid.
6. Dry Run Protection Automatically stops the pump if no water is detected in the source and restarts when water returns.
7. Auto Sleep & Wake Slows down or sleeps when sunlight is weak, and wakes up automatically as sunlight strengthens.
8. Smart Water Level Control Automatically sleeps when the tank reaches maximum level and wakes up when it falls below minimum level.
📊 Technical Specifications
Input Specification (220V & 380V Series)
Max Input DC Voltage400V DC (220V series) / 800V DC (380V series)
Recommended MPPT Range250~350V DC (220V series) / 450~600V DC (380V series)
Grid Input VoltageSingle phase 220V / Three phase 380V (-15%~30%)
Rated Output Voltage3PH 220V / 3PH 380V
Output Frequency0~500.00Hz (Default: 0~50.00Hz)
Built-in ProtectionLightning, over-current, overvoltage, output phase loss, under-load, short circuit, overheating, dry run.
Protection GradeIP20
EfficiencyRated Power Run ≥ 93%
📷 Product Gallery

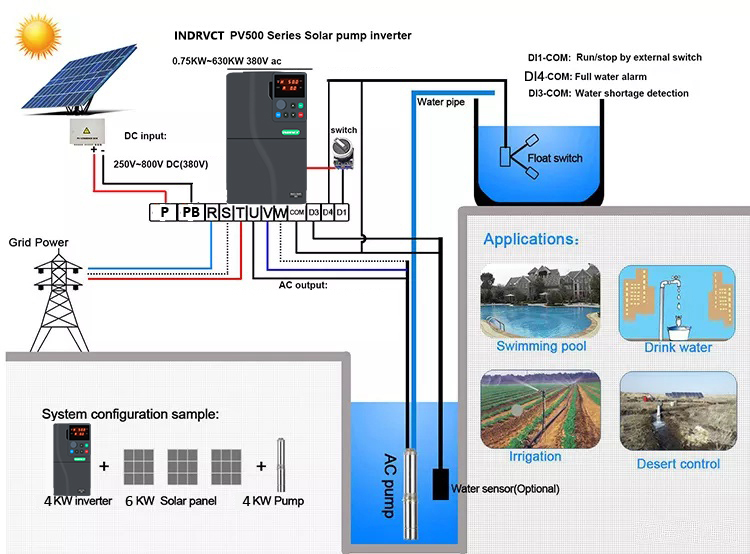

Detail 1

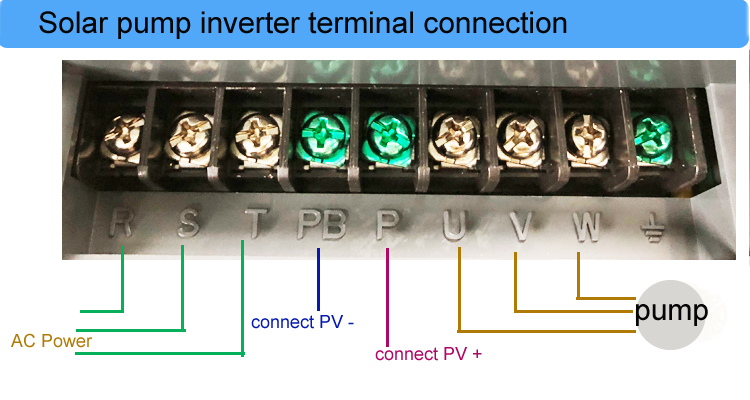

Detail 2

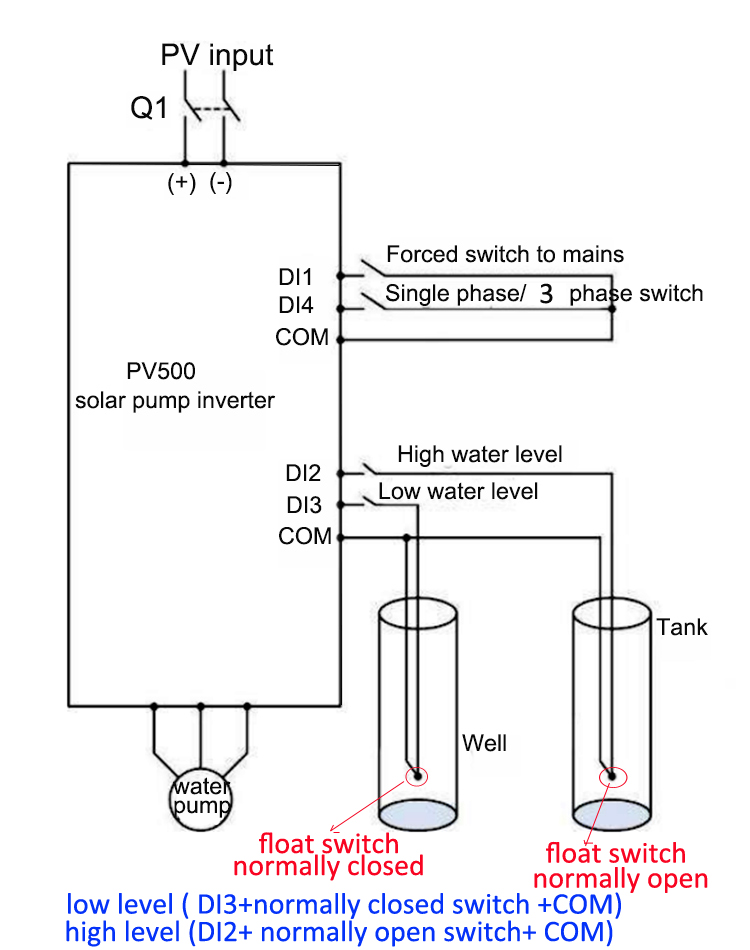

Detail 3
🌍 Application & Packaging

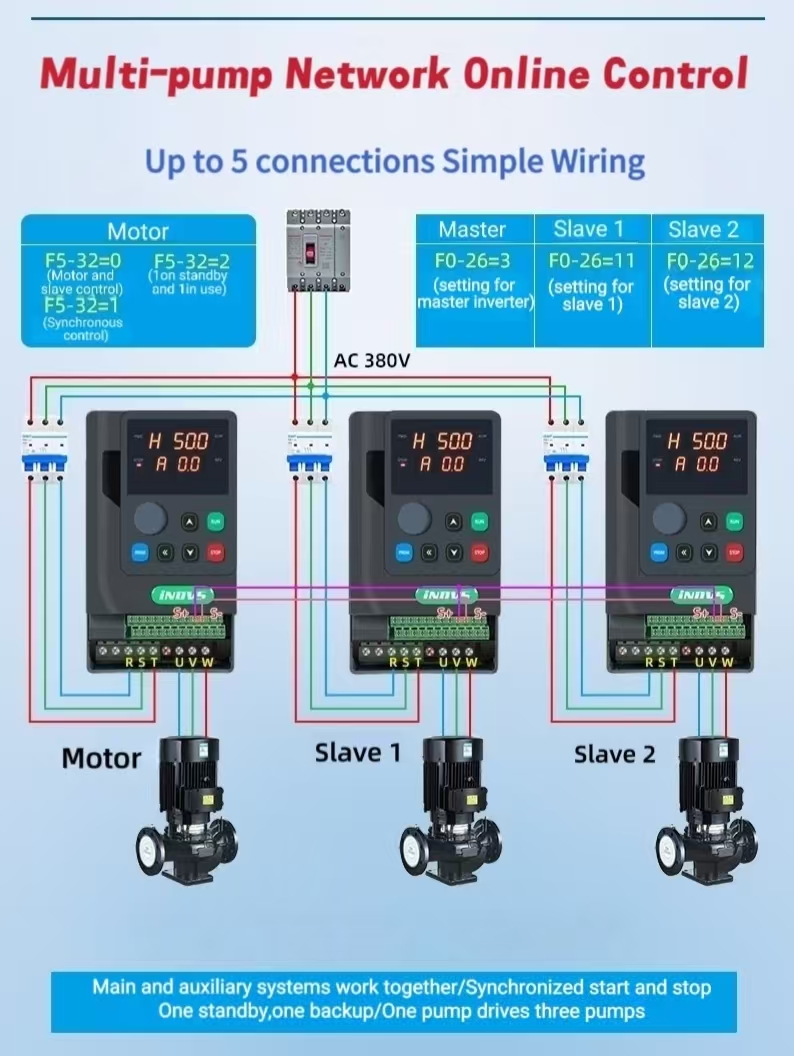

Application 1

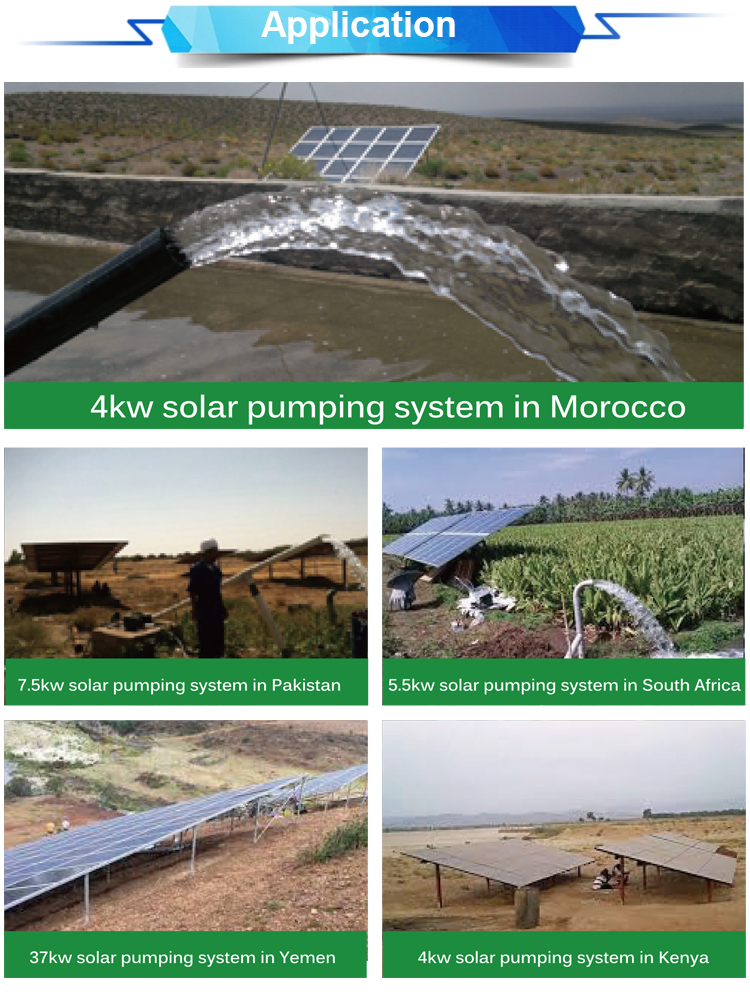

Application 2
Application 3
Packaging 1
Packaging 2
Certification
❓ Frequently Asked Questions
How long is the typical lead time for orders?
Generally, it is 3-7 days if the goods are in stock. For items not in stock, it is 10-20 days, depending on the order quantity.
What are the supported payment terms?
We accept T/T, L/C, and Cash payments.
Is there a warranty provided for the solar pumping inverter?
Yes, we provide an 18-month warranty for all goods supplied.
Can the system switch between solar and grid power?
Yes, the system supports both AC and DC input. It primarily uses solar power and can switch to the AC grid when sunlight is insufficient.
How does the dry-run protection work?
If the water source runs dry, the inverter automatically stops the pump to prevent damage. It will resume operation automatically once the water level returns.
Do you provide technical support for installation?
With over 19 years of experience in this field, our engineers provide comprehensive technical suggestions to help solve any installation or operational problems.
