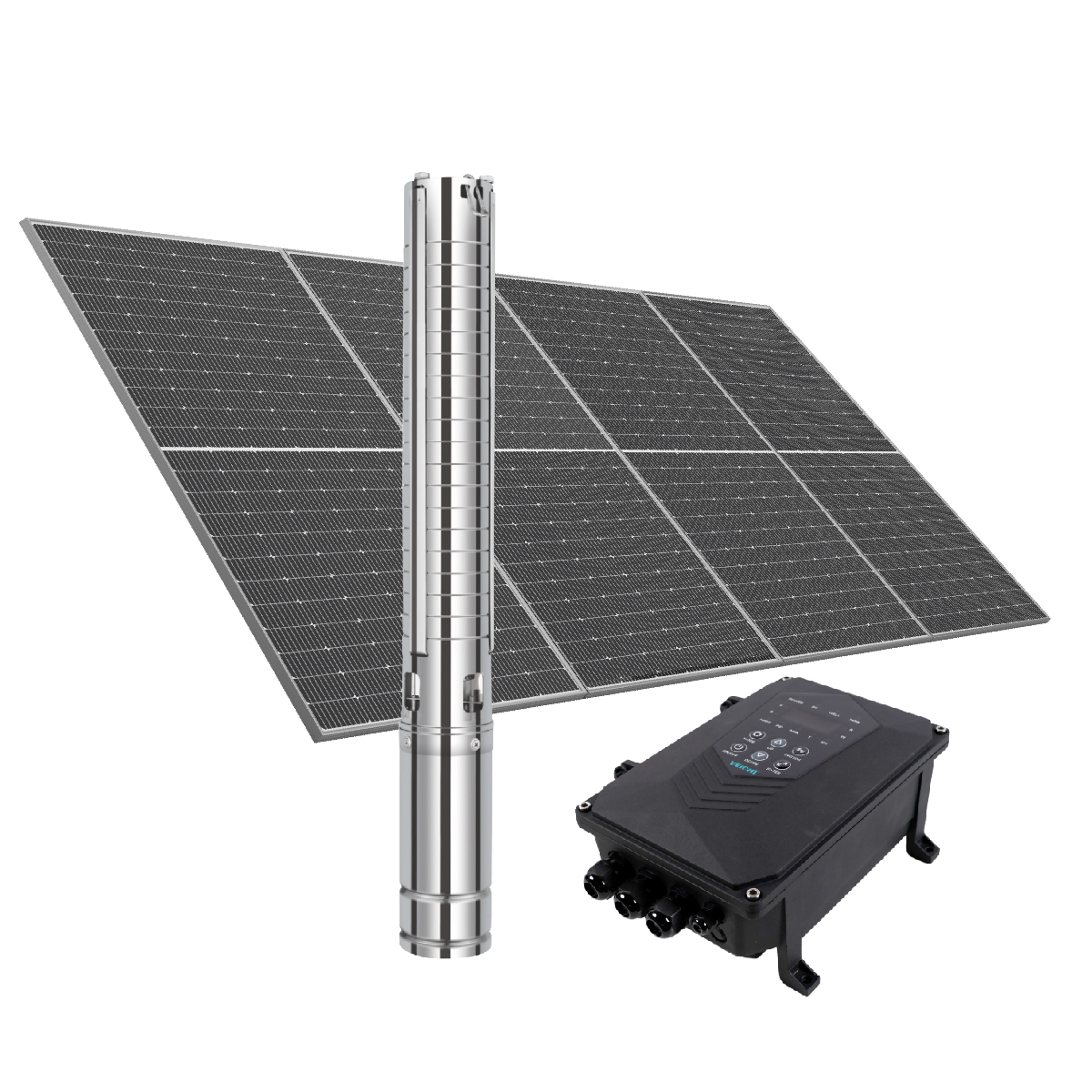

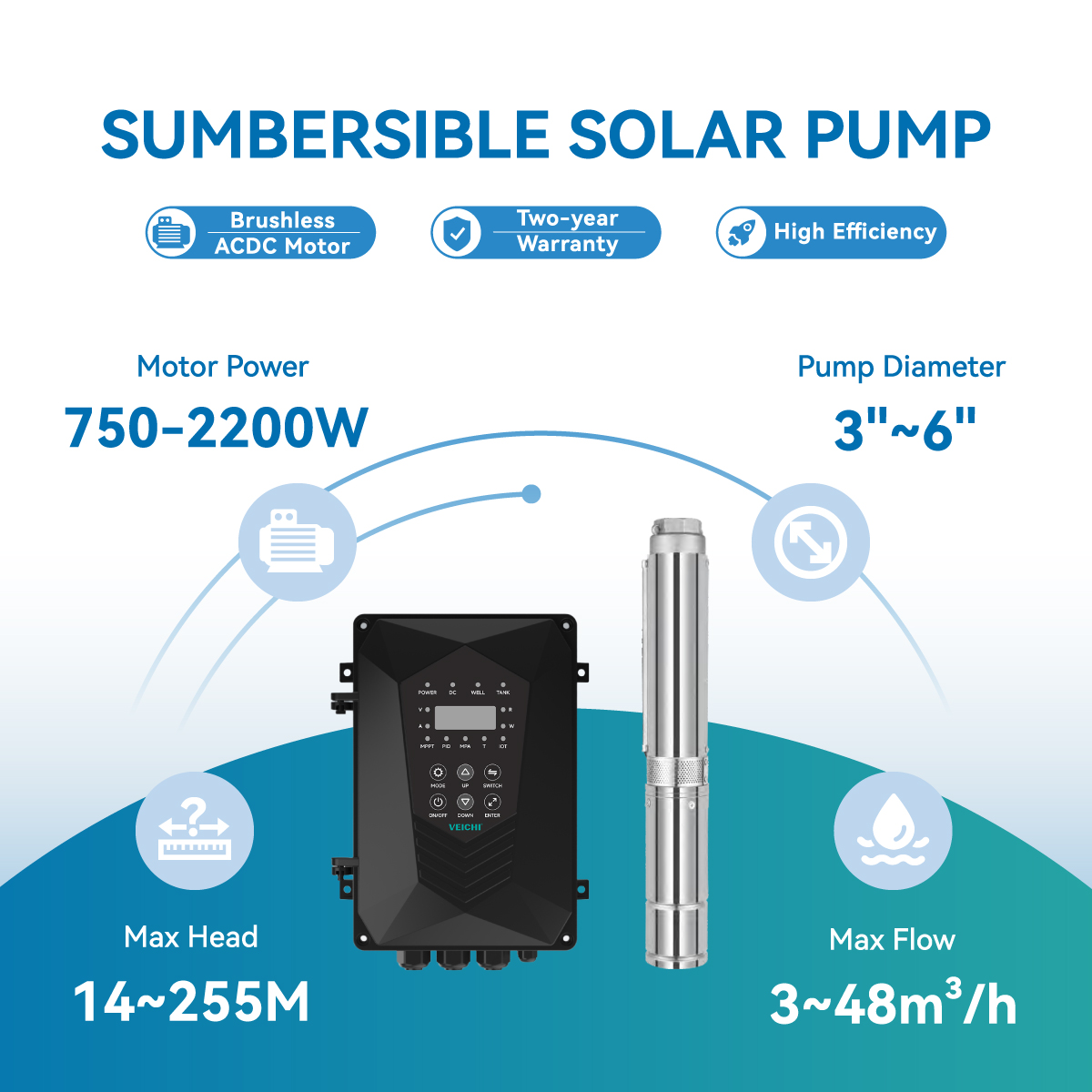

| Pump Model | SI4VS10-204-300-2200-A/D |
| Protection Class | IP55 |
| Input Voltage(V) | 80-280Vdc / 90-430Vac |
| Outlet Size | 2" |
| Max.Flow | 10m³/h |
| Max. Head | 204 meter |
| Power | 2200w |
| Pump Size | 4" |
| Warranty | 2-Year Warranty |
| Certification | CE, ISO9001, ISO14001 Certificate |
Solar water pumps are ideal for agricultural irrigation in remote areas with limited access to electricity. They provide a sustainable and cost-effective solution to deliver water to crops, fields, and orchards using solar energy.
Commonly used to draw water from wells or reservoirs, supporting consistent water supply for rice fields, vegetable plots, and greenhouses.

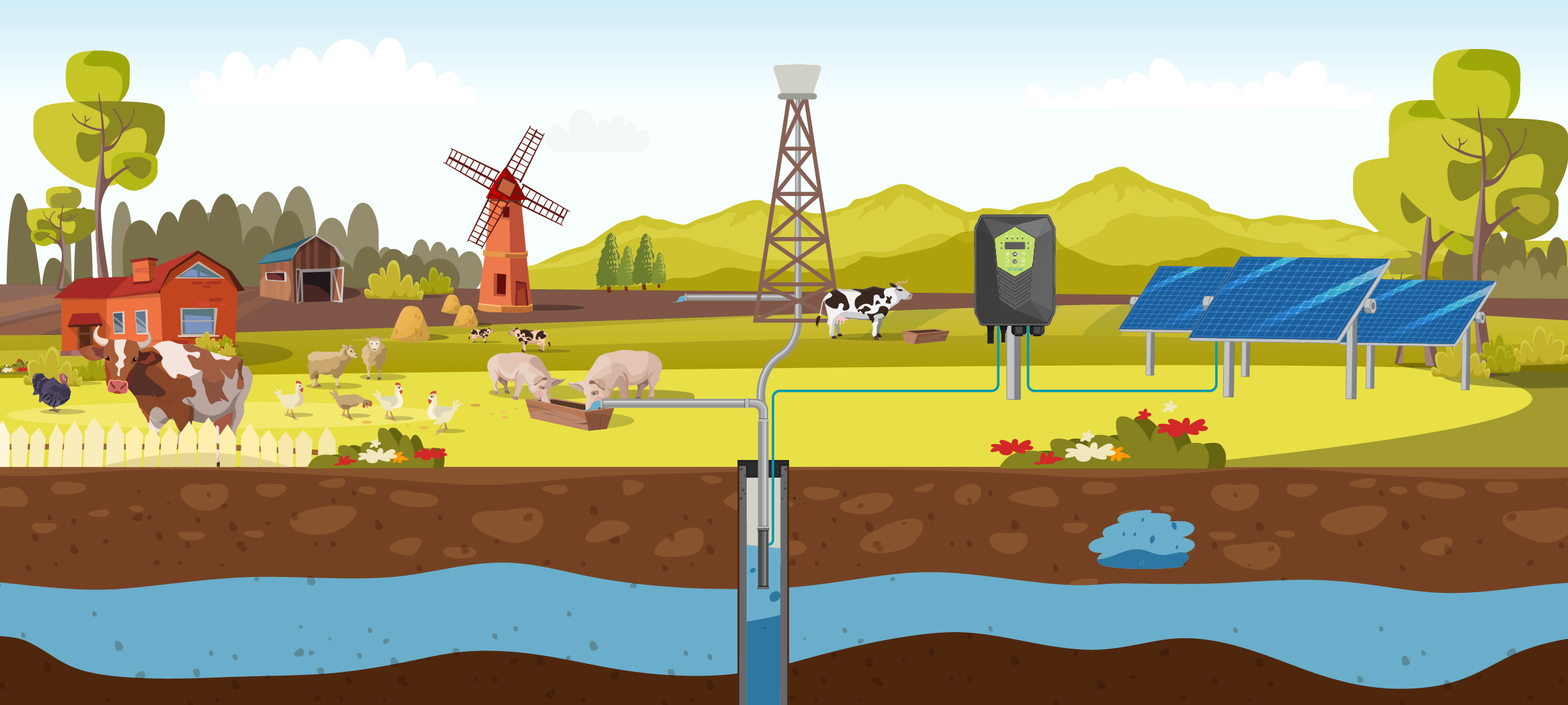

An excellent solution for providing consistent water sources to livestock in remote areas where grid power is unavailable. These systems reduce manual labor, eliminate fuel costs, and require minimal maintenance, drawing water from deep wells directly to troughs.
In off-grid rural homes or remote villages, solar water pumps offer a sustainable solution for drinking, showering, laundry, or gardening. These systems empower families with access to safe and consistent water with minimal infrastructure.

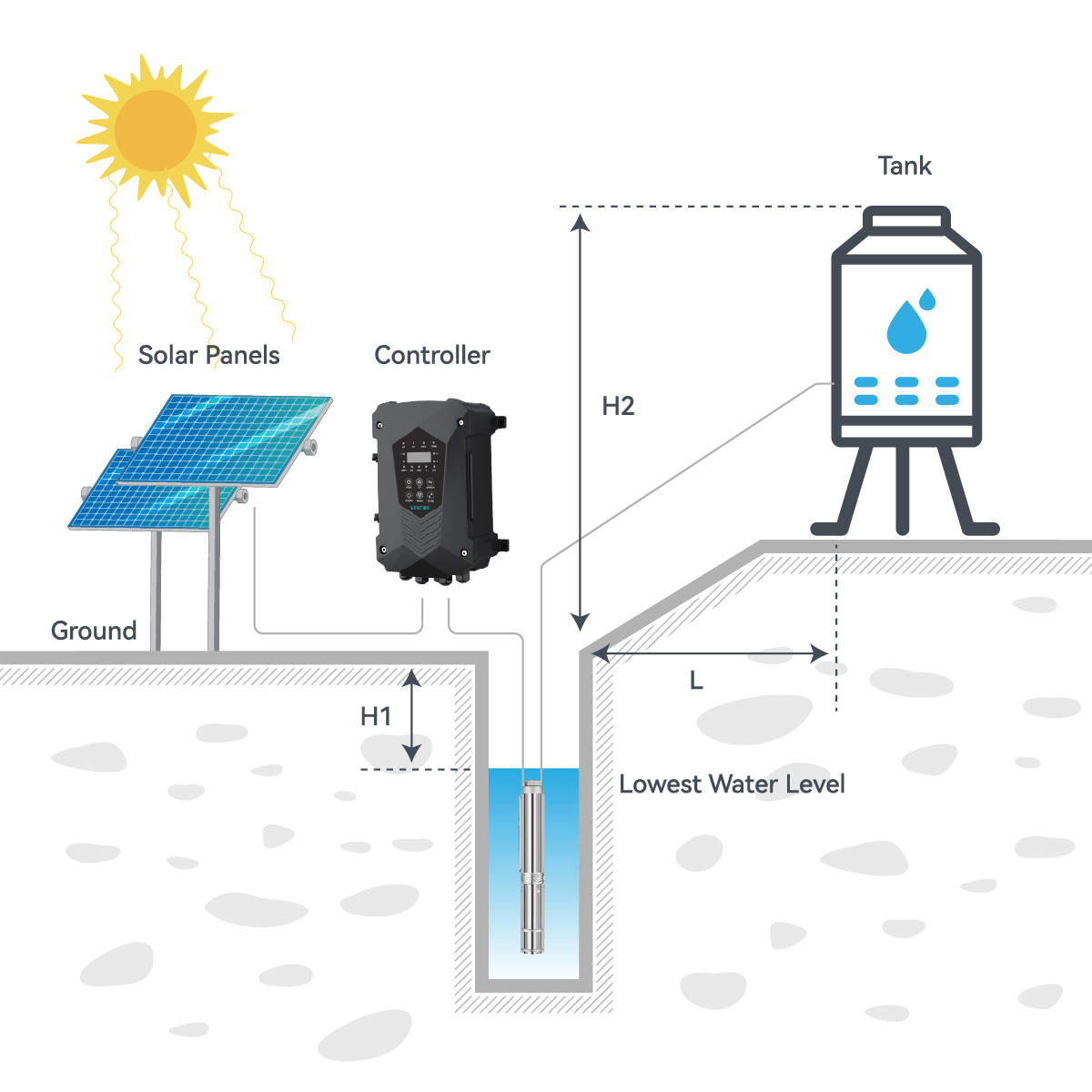

Head Calculation: Rated Head ≥ H1 + H2 + (10% x L). Ensure the pump efficiently meets your delivery needs by calculating vertical lift and horizontal distance.

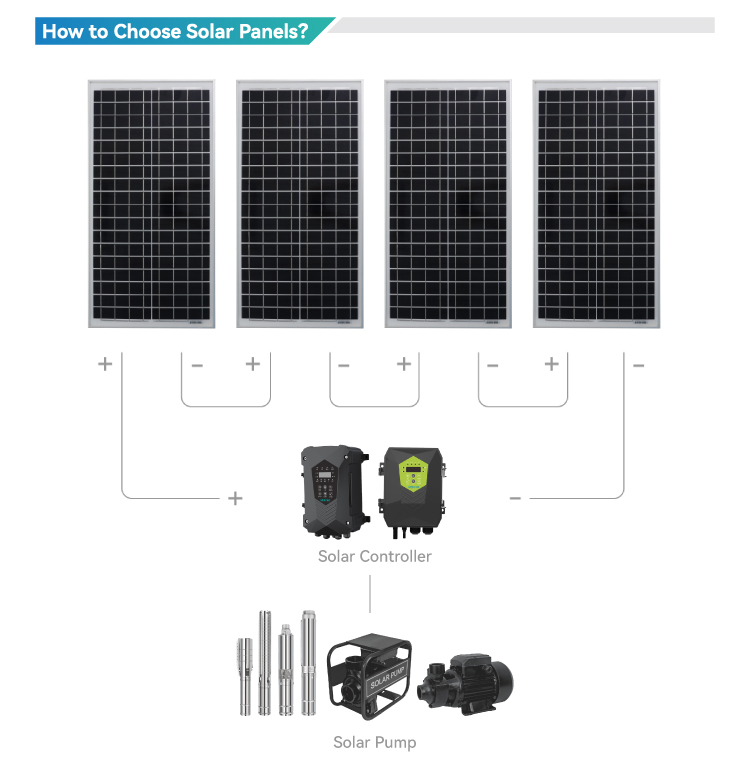

Solar Panel Sizing: Total wattage should be 1.3~1.5 times the pump's rated power. Ensure Operating Voltage (VMP) and Open Circuit Voltage (VOC) stay within the controller range.
We are a high-tech enterprise professionally engaged in the development, manufacturing, and marketing of industrial automation control products. Our solar pumping solutions are high-efficiency systems designed to maximize the use of renewable energy for agricultural, domestic, and industrial applications.

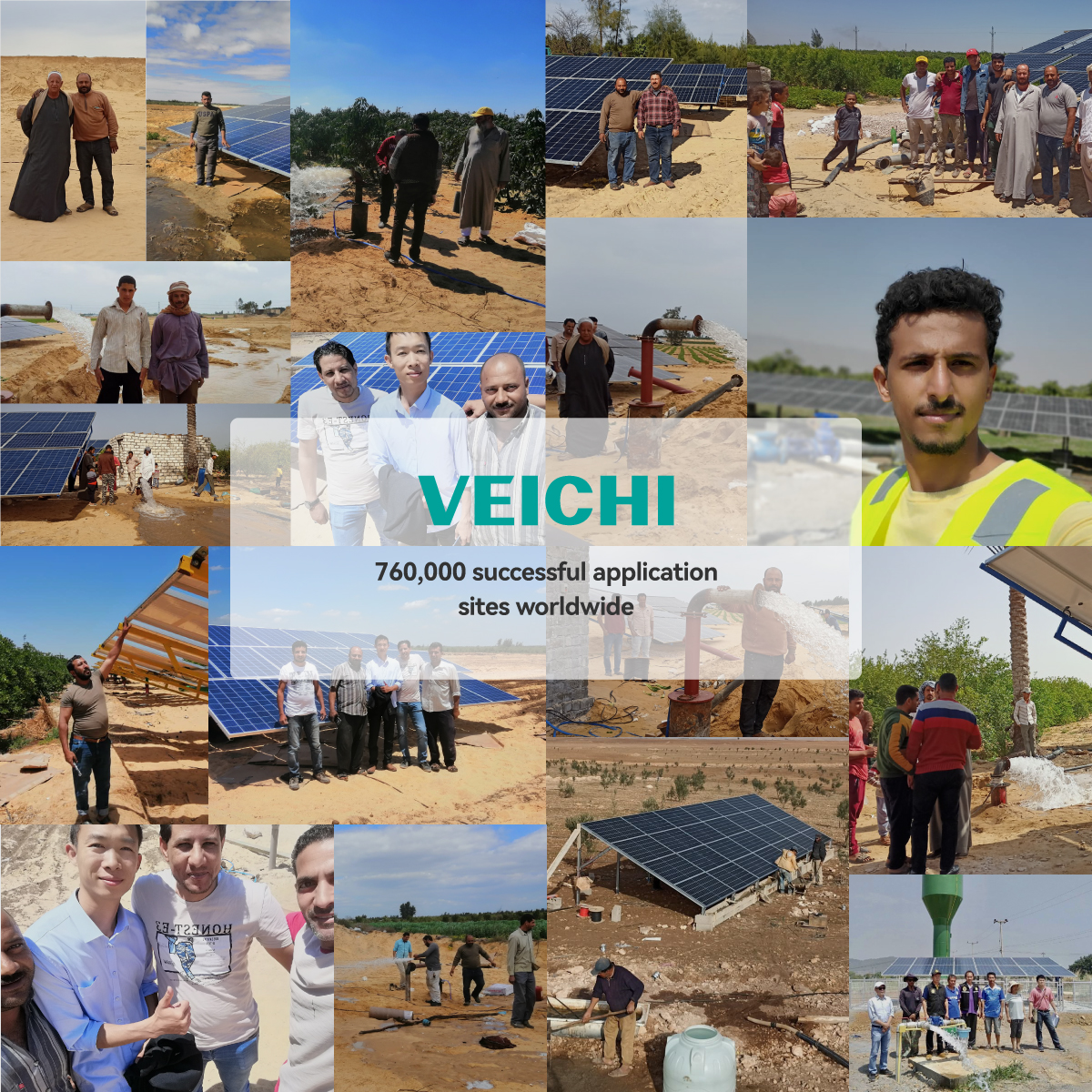

With a presence in 85 countries, our solutions have been successfully implemented across Africa, the Middle East, Southeast Asia, South Asia, and the Americas.
