Efficiency of MPPT reaches 99.99% for maximum energy harvest.
Support RS323/RS485 protocol for intelligent system monitoring.
Overload, overcurrent, overvoltage, undervoltage, short circuit, dry pumping, and PV reversed connection protection.
The harm of poor quality power supply can be devastating to your equipment.

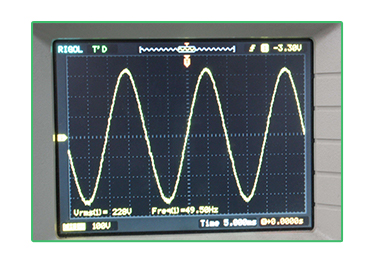

Pure sine wave waveform is identical to municipal power. It is perfectly suitable for household appliances and ensures no damage to sensitive electronics.

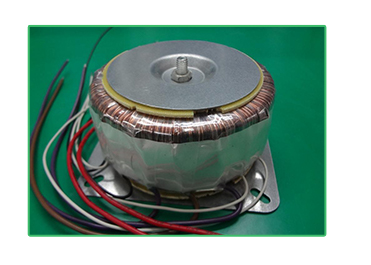

Manufactured using a special process, our ring transformers are characterized by light weight, high efficiency, and low calorific value.

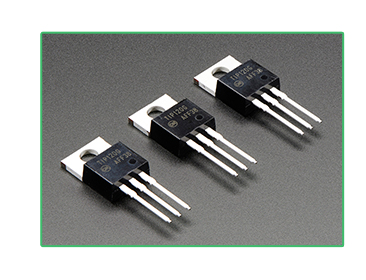

All models adopt international brand IRF power tubes. High-quality components prevent the "burst pipe" phenomenon common in poor-quality alternatives.
| Three Phase Inverter Specification | |
| Input Specification (PV Input) | |
| Maximum Input DC Voltage | 800VDC |
| Recommended MPPT Voltage Range | 450～600VDC |
| Recommended Input Operation Voltage | 540VDC (Vmpp) |
| Grid or Backup Generator Input | |
| Input Voltage | Three phase 380V (-15%～30%) |
| Output Specification | |
| Rated Output Voltage | 3PH 380V |
| Output Frequency | 0～600.00Hz (Default 0～60.00Hz) |
| Protection Features | |
| Built-in Protection | Lighting Protection, over-current, overvoltage, output phase-lose, under-load, under-voltage, short circuit, overheating, water pump run dry, etc. |
