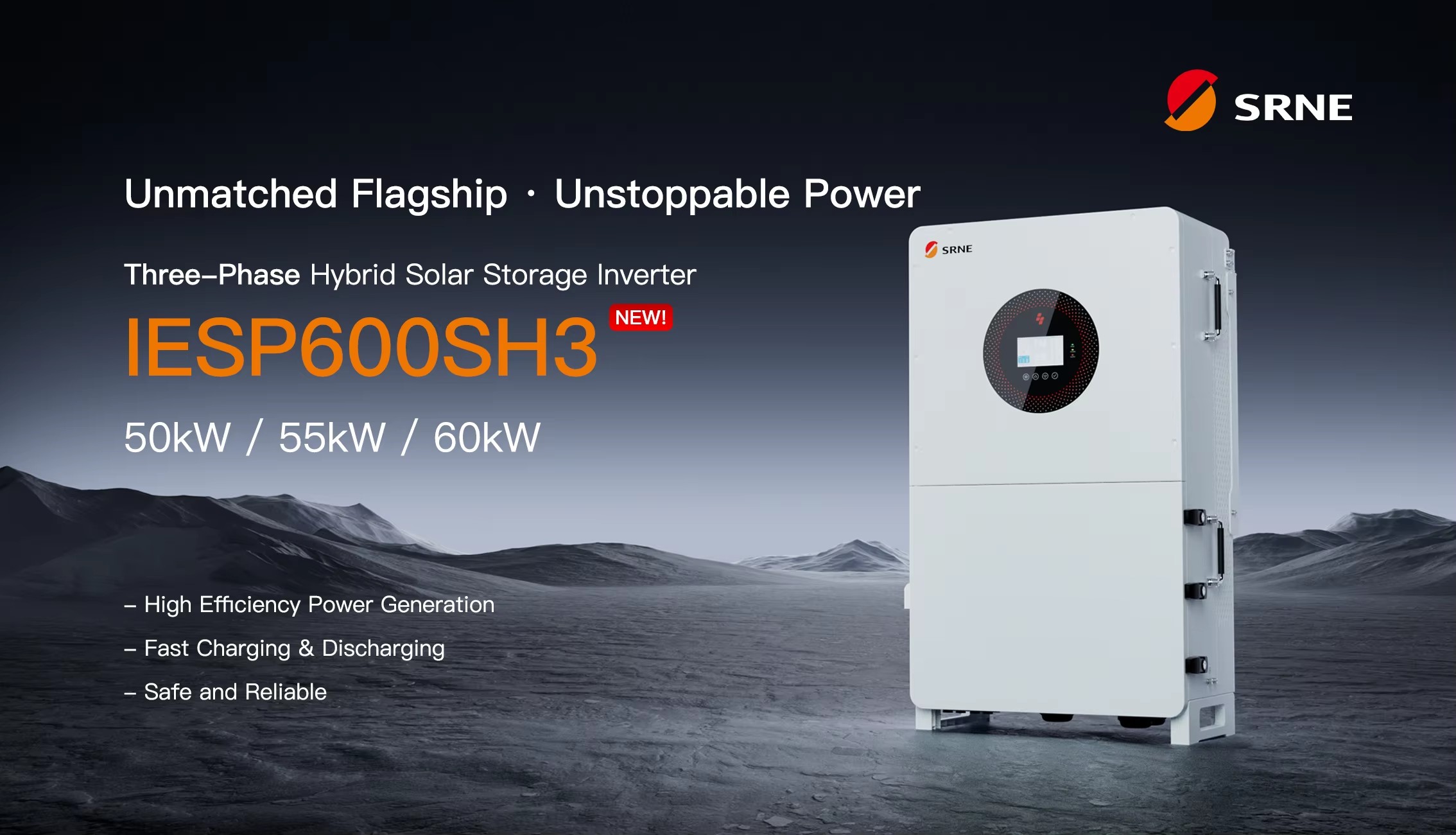

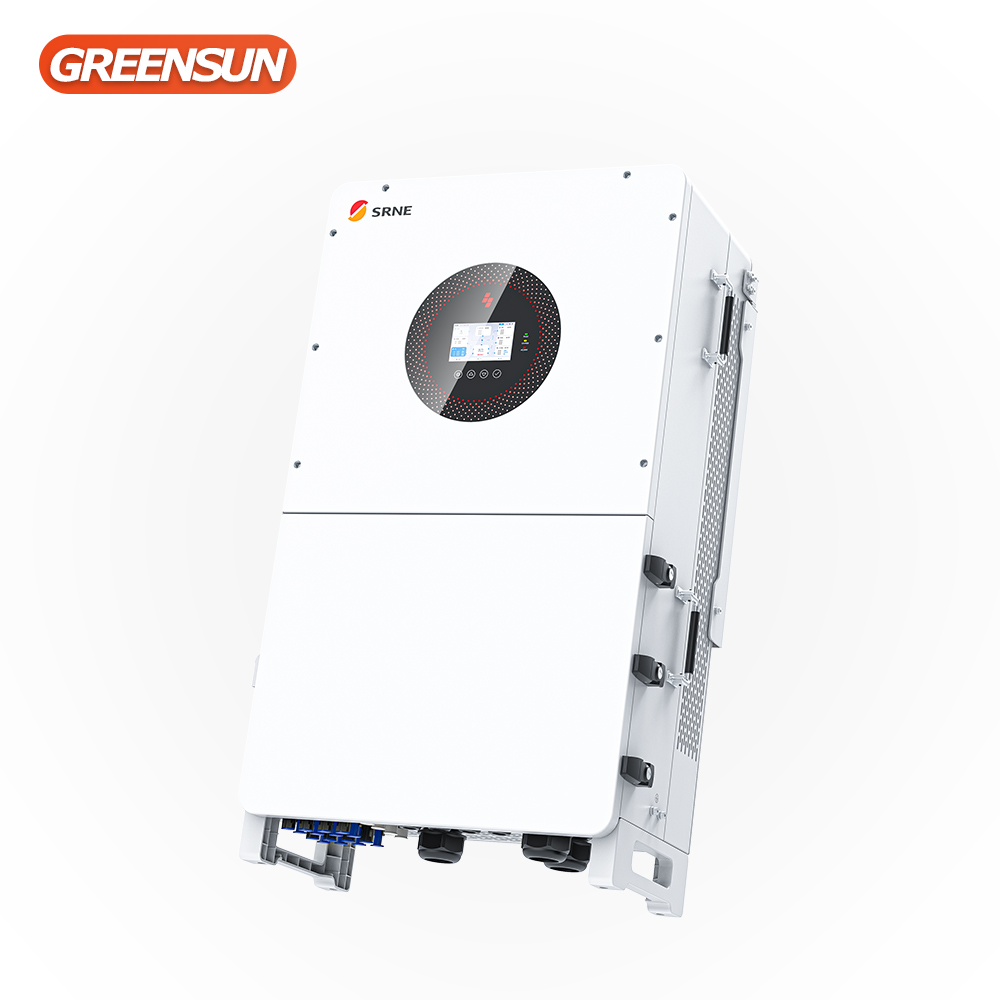

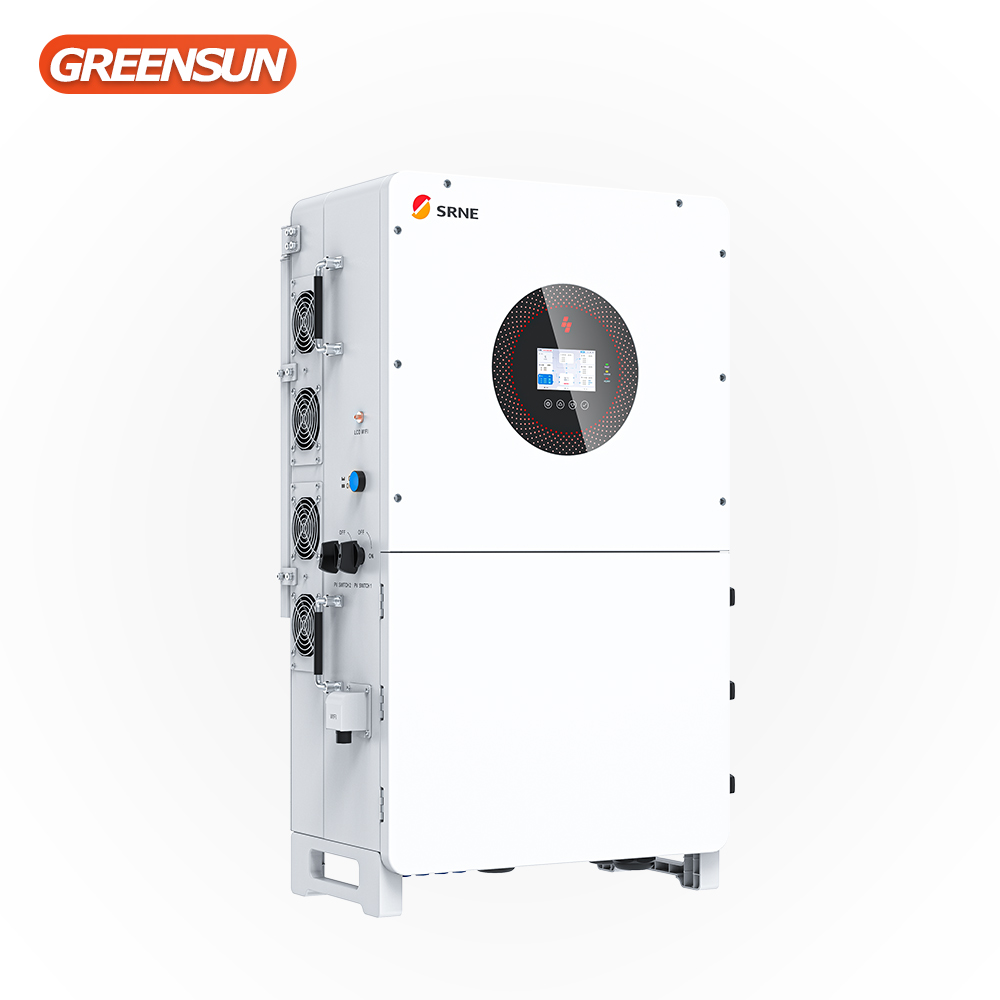

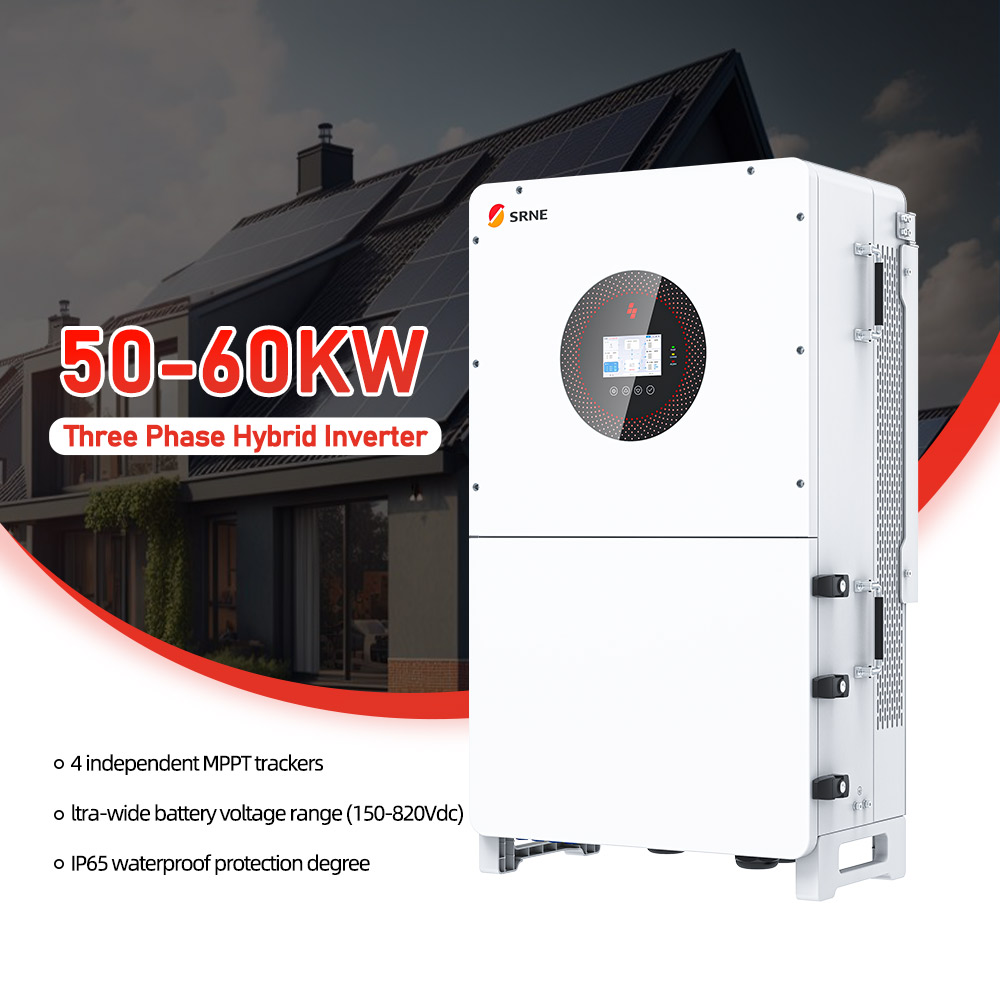

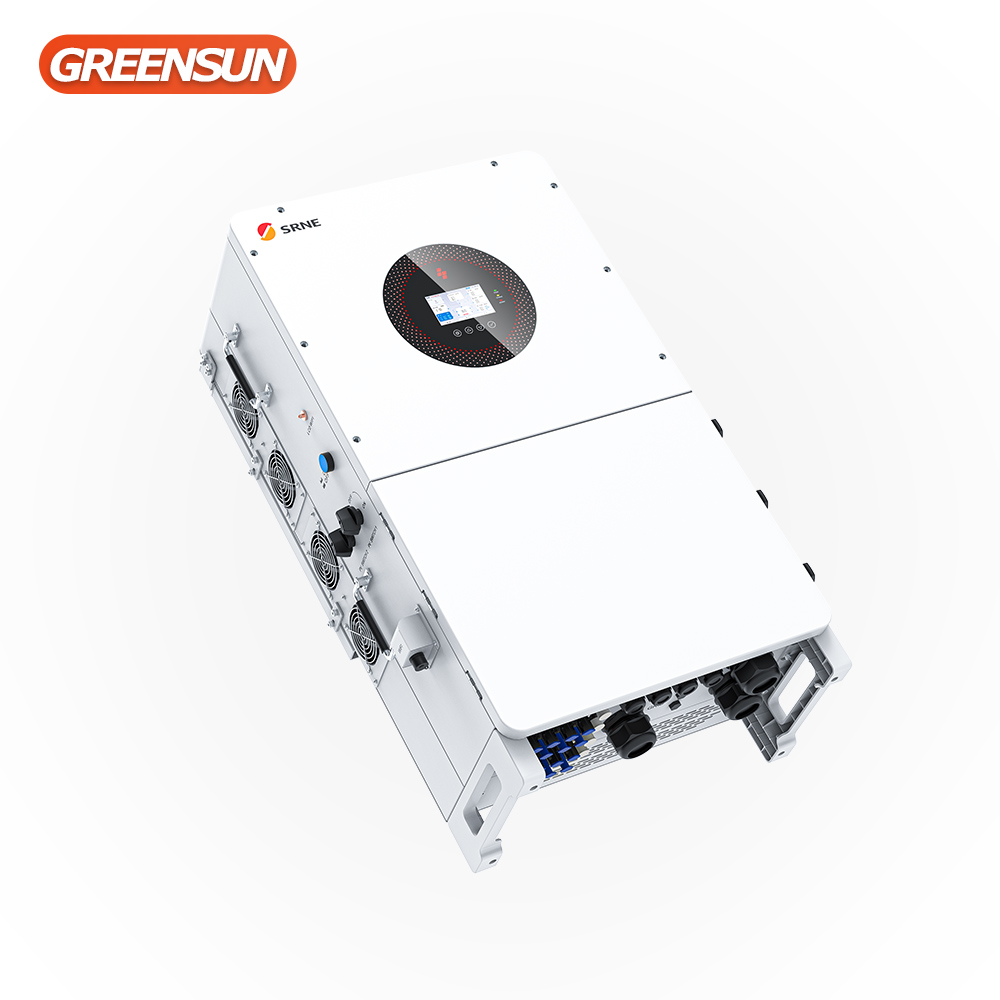

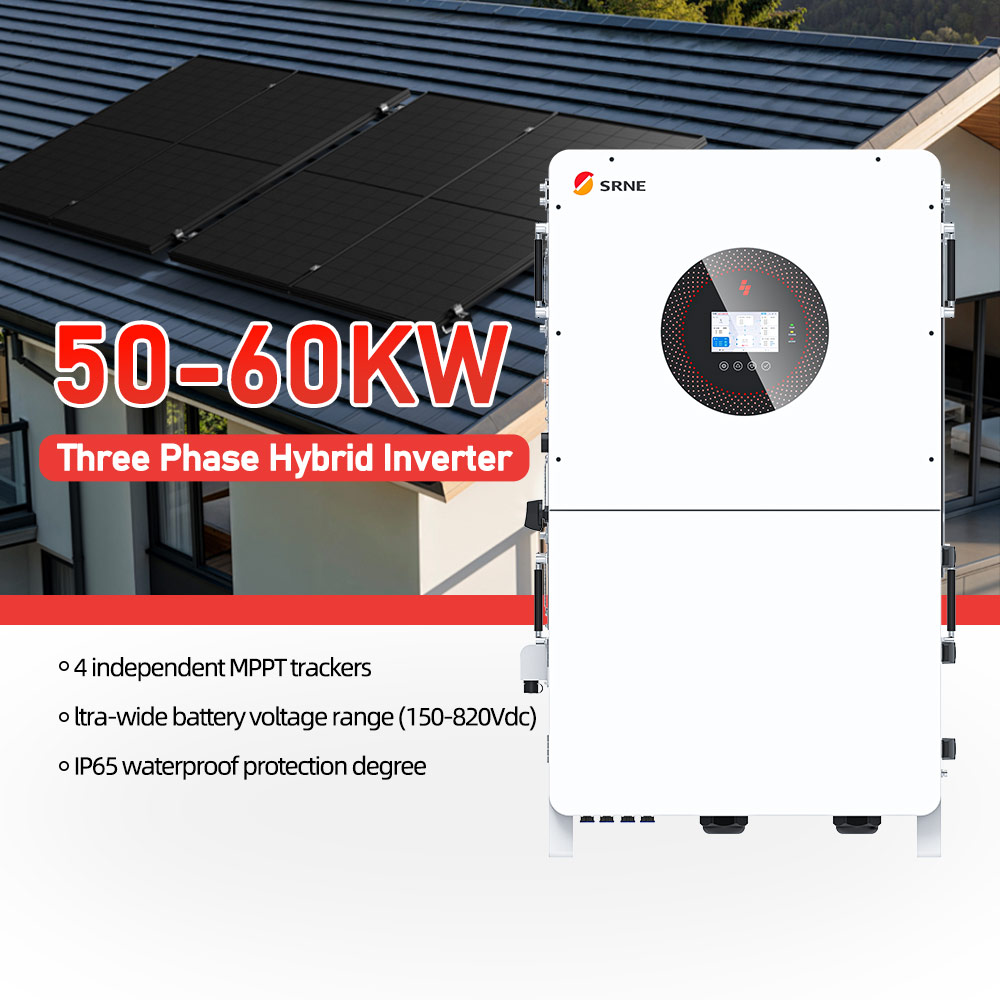

SRNE Hybrid 3 Phase 380V 50HZ HIgh Efficiency 50KW 55KW 60KW Solar Inverter Work with High Voltage Lithium Battery

Send Inquiry

Product Description

Specification

Model	IESP500SH3	IESP550SH3	IESP60OSH3
AC OUTPUT
Rated Output Power	50000W	55000W	60000W
Peak Power (off-grid)	1.6 times rated power, 10s		1.5 times rated power, 10s
Max. Apparent Power	55000VA	60500VA	66000VA
Rated Output Voltage	220/380Vac, 230/400Vac (3L+N+PE)
Rated Output Current	75.9A	83.6A	91.2A
Max. Output Current	91.2A	91.9A	100.3A
Load Motor Capacity	21HP	23HP	25HP
Power Factor	0.8 leading to 0.8 lagging
THDI	<3% (of nominal power)
Rated Frequency	50/60Hz ±0.3Hz
Grid Connection Form	3L+N+PE
Switch Time	10ms (typical value)
Waveform	Pure sine wave
BATTERY
Battery Type	Lithium-ion Battery
Number of Battery Input	2
Battery Voltage Range	150-820Vdc
Max. Charging/Discharging Current	150A (75A+75A)
PV INPUT
No. Of MPPT Trackers	4
Max. PV Input Power	75000W	82500W	90000W
Rated PV Input Voltage	600Vdc
Max. PV Input Voltage	1000Vdc
Start-up Voltage	160Vdc
Max. PV Input Current	40A*4
Max. Short-circuit Current	60A*4
MPPT Voltage Range	150-850Vdc
GENERAL DATA
Parallel Capacity	1~9 Units
Dimension	622x342x1010mm	Humidity	0~100%
Weight	98kg	Cooling Method	Heat sink + Fan
Protection Degree	IP65	Noise	<65dB
Temperature	-40 to +60°C	Communication	RS485/CAN/USB
Warranty	5 years	External Module	Wi-Fi/4G (Optional)
PROTECTION
PV Reverse Protection	Yes	Anti-Islanding	Yes
Residual-Current Monitoring	Yes	Insulation Resistance	Yes
Output Short-Circuit	Yes	Over-Voltage	Type II/III

Product Details

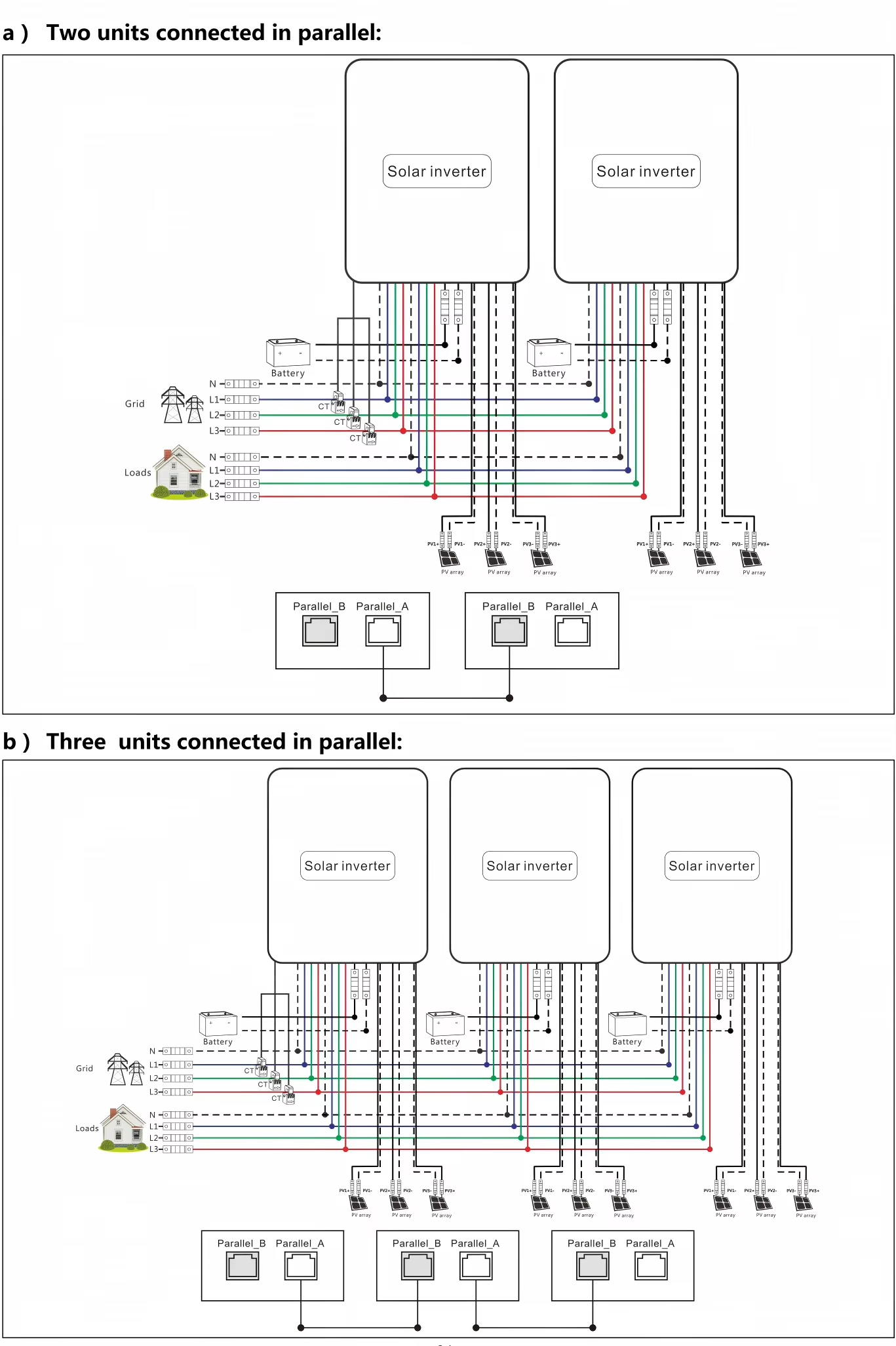

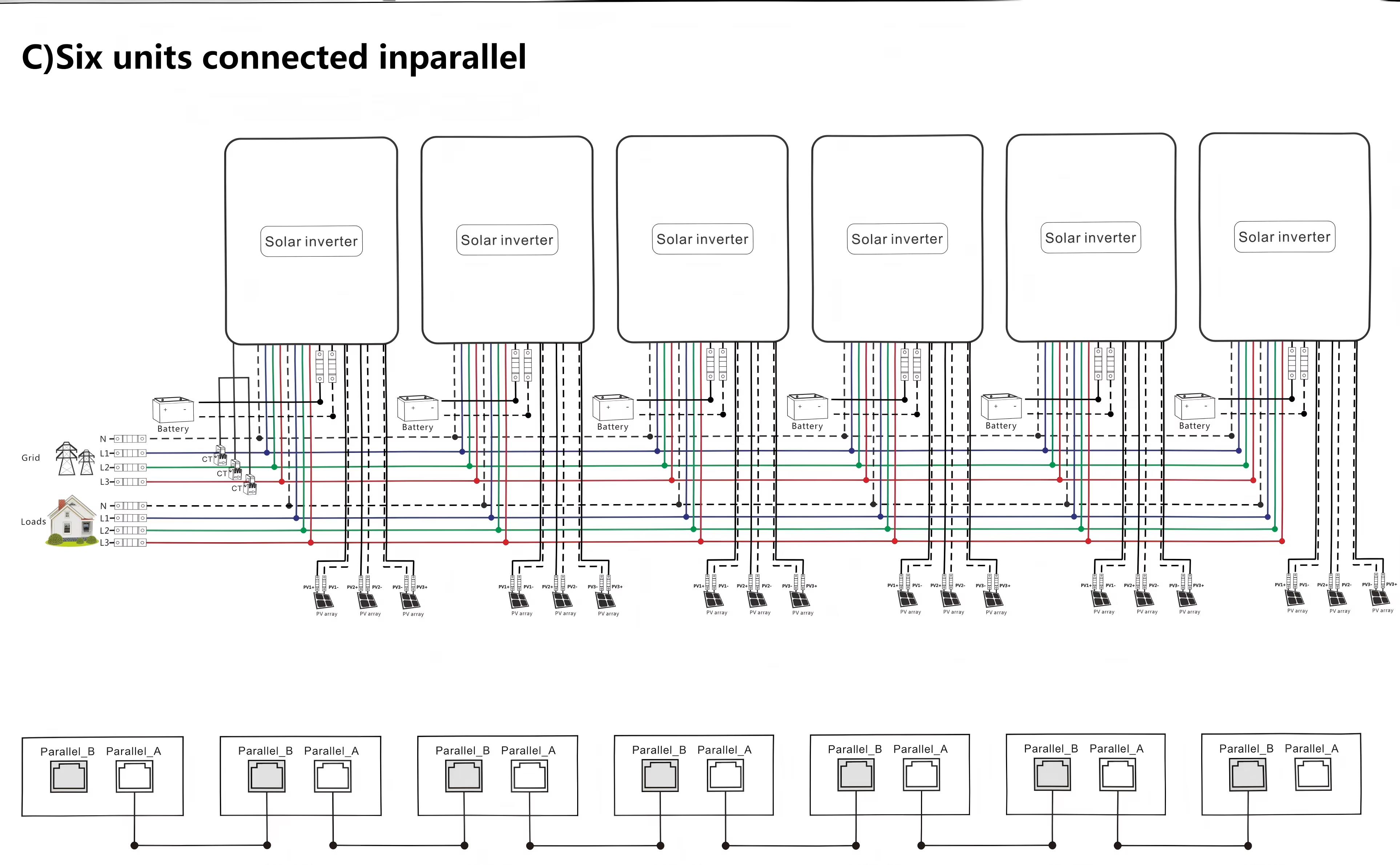

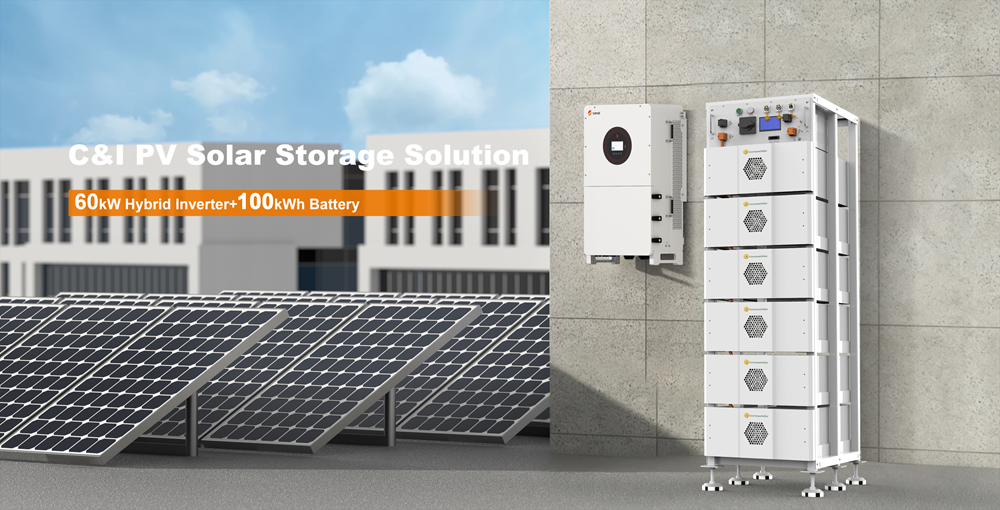

System Diagram

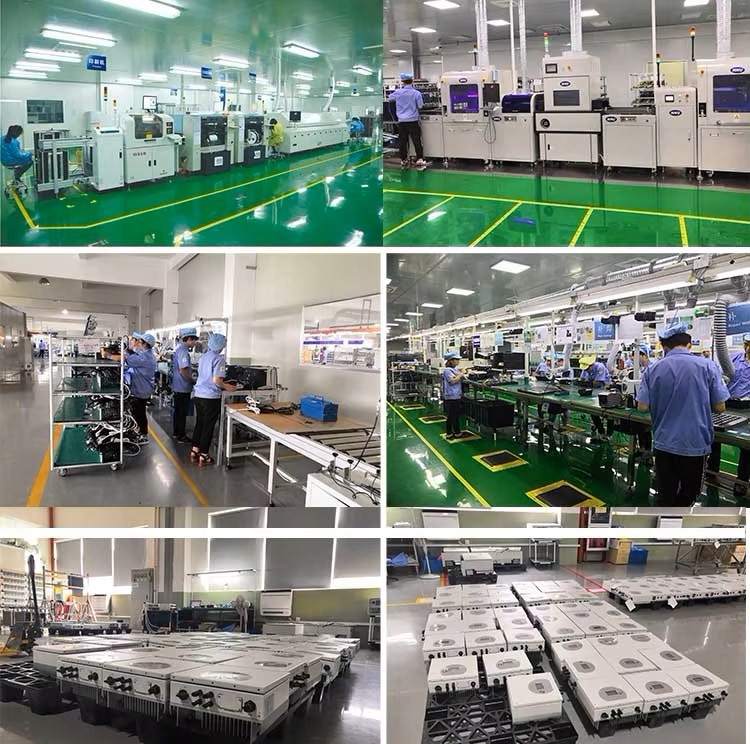

Projects & Production

Exhibition & More

Frequently Asked Questions

Q1: Can these inverters be connected in parallel?

Yes, this series supports parallel connection for 1 to 9 units, allowing you to scale up the system capacity as needed.

Q2: What is the maximum PV input voltage supported?

The maximum PV input voltage for all models is 1000Vdc, with an MPPT operating voltage range of 150-850Vdc.

Q3: Is the inverter suitable for outdoor installation?

Yes, the unit features an IP65 protection degree, making it highly resistant to dust and water, suitable for outdoor environments.

Q4: What types of batteries are compatible with this system?

These inverters are specifically designed for Lithium-ion batteries with a voltage range between 150Vdc and 820Vdc.

Q5: How fast is the switch time during a power outage?

The typical switch time is approximately 10ms, ensuring a seamless transition and continuous power supply for sensitive loads.

Q6: What communication interfaces are available?

The system supports RS485, CAN, USB, and Dry Contact communication. Wi-Fi or 4G sticks are also available as optional external modules.
