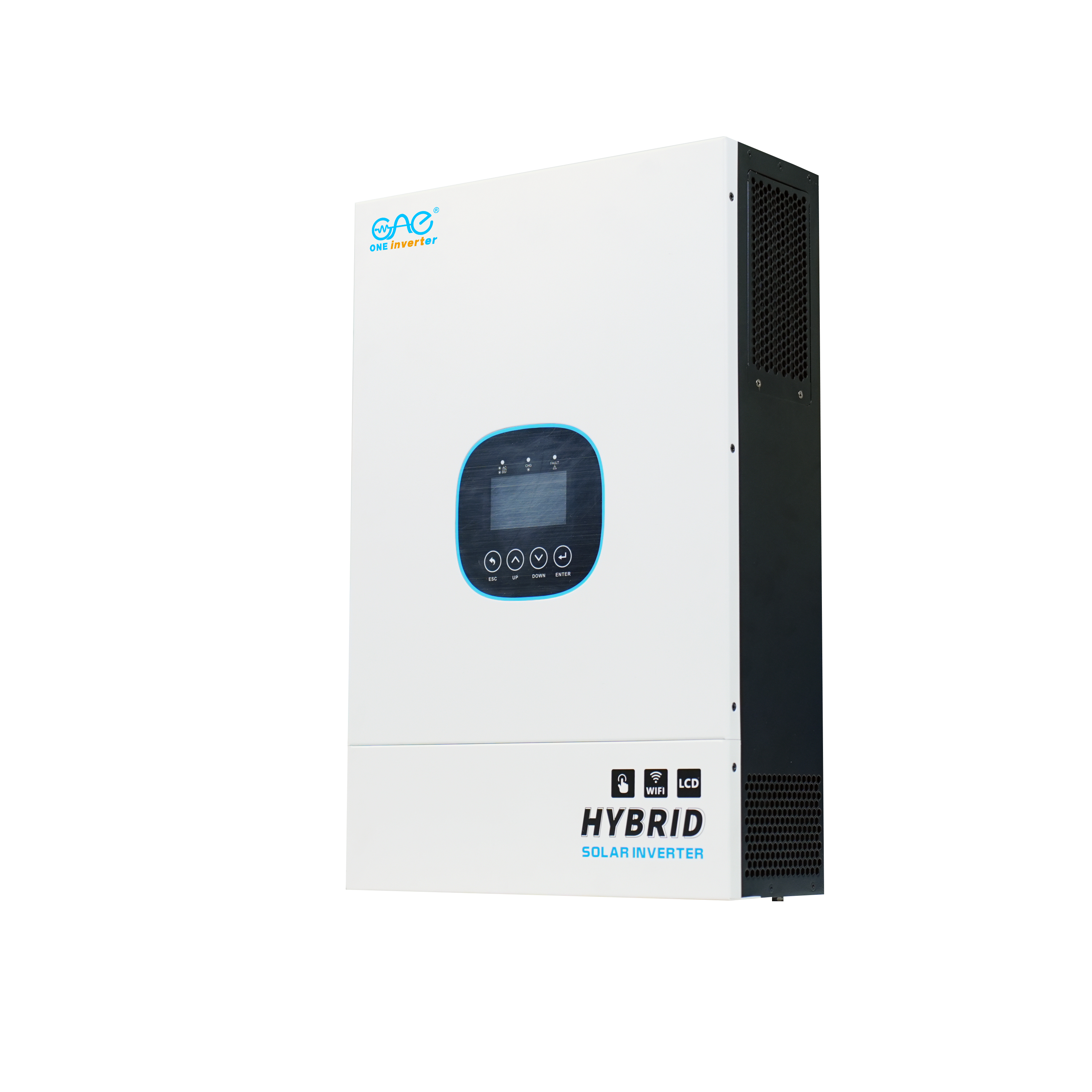

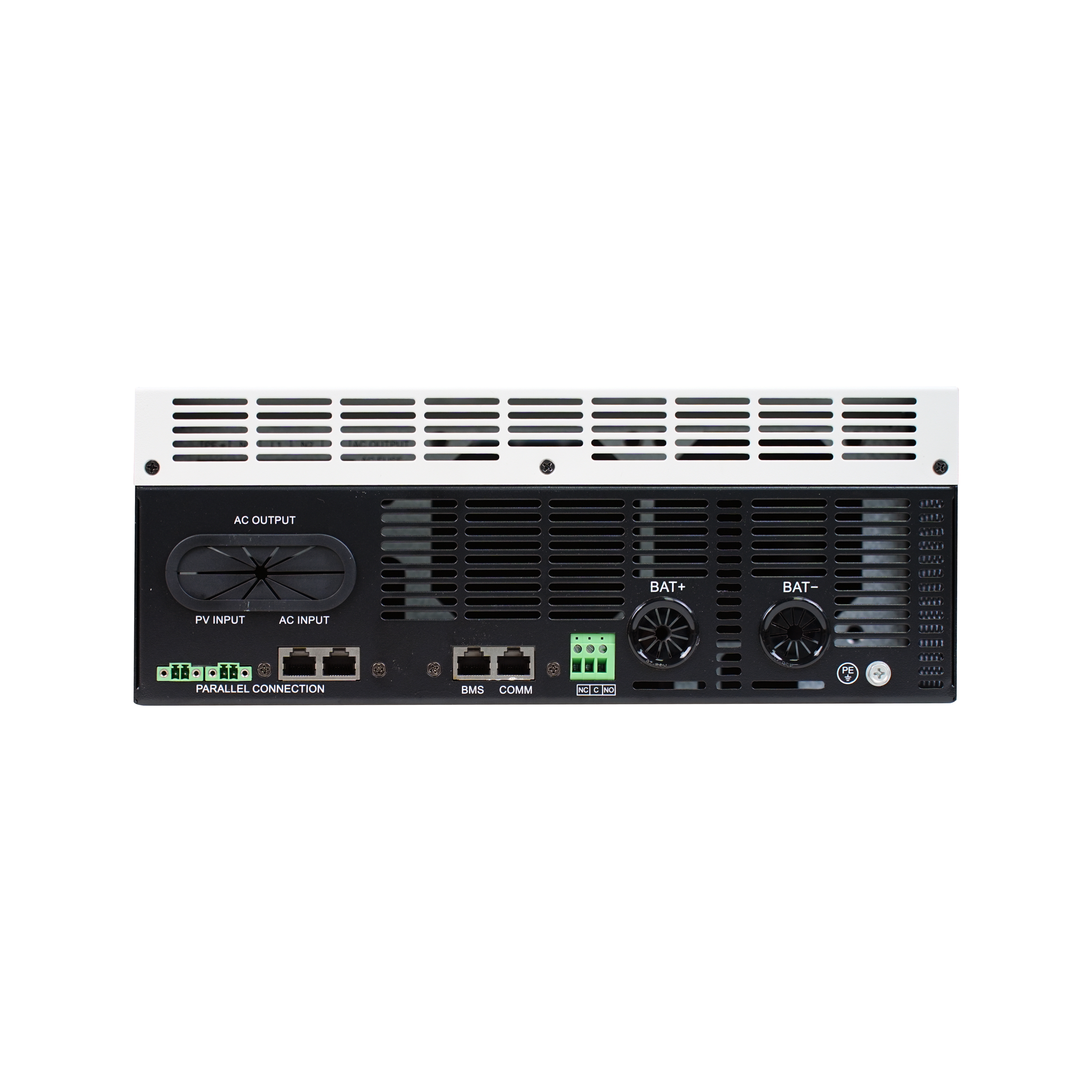

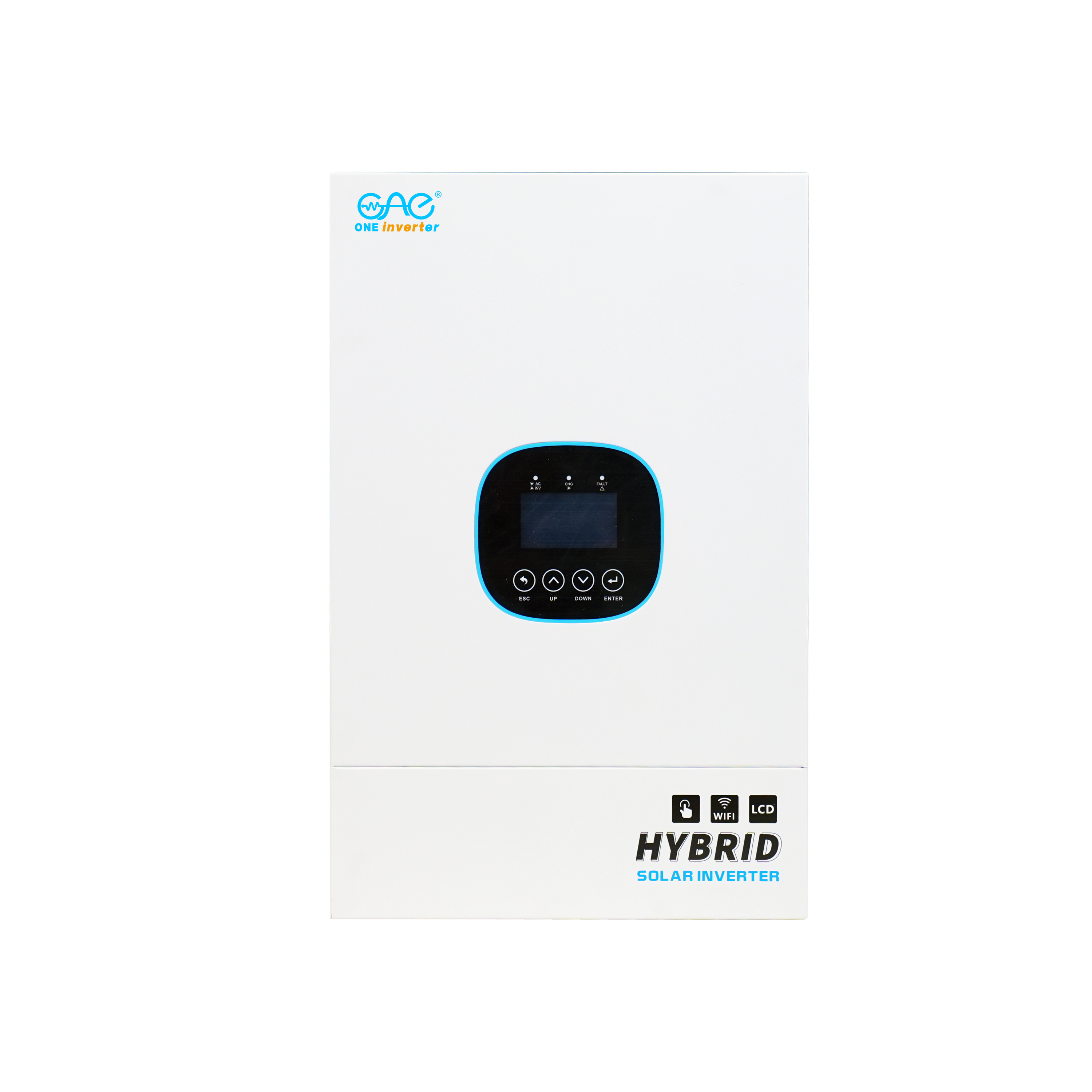

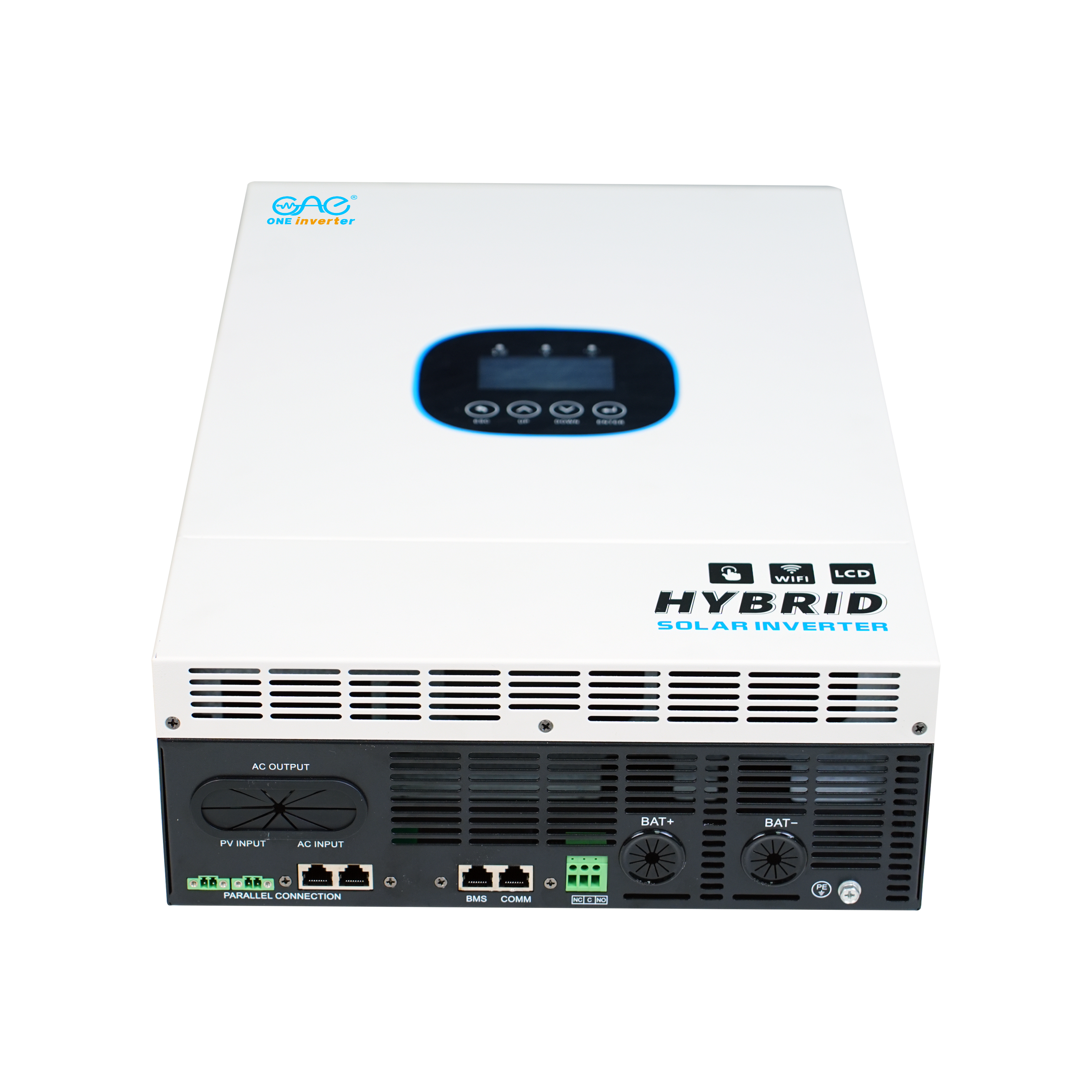

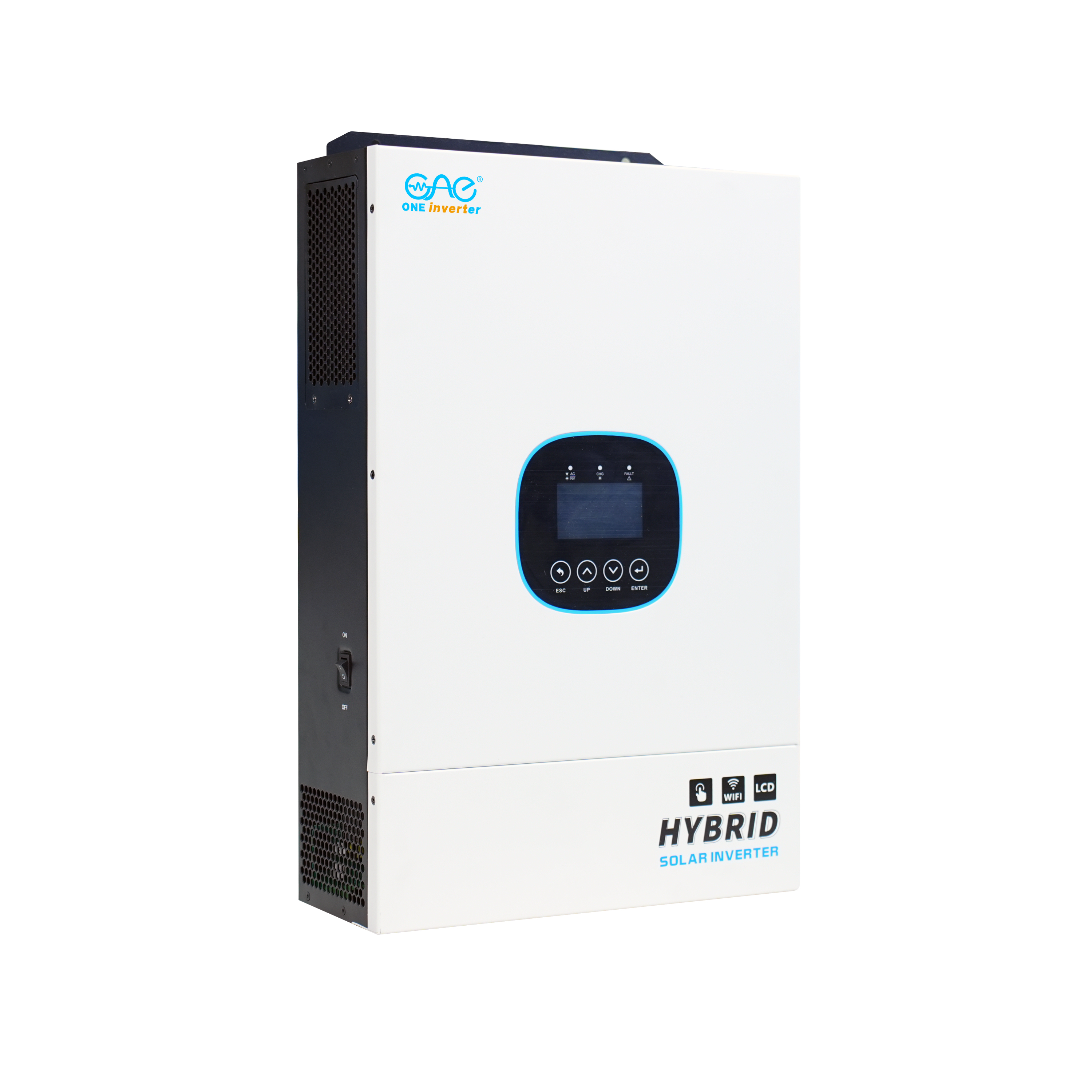

3KW 5KW 6KW 7KW 10KW 11KW Hybrid Solar Inverter 24V 48V Inbuilt High Voltage MPPT Solar Charger Parallel Function
3KW 5KW 6KW 7KW 10KW 11KW Hybrid Solar Inverter 24V 48V Inbuilt High Voltage MPPT Solar Charger Parallel Function
3KW 5KW 6KW 7KW 10KW 11KW Hybrid Solar Inverter 24V 48V Inbuilt High Voltage MPPT Solar Charger Parallel Function
3KW 5KW 6KW 7KW 10KW 11KW Hybrid Solar Inverter 24V 48V Inbuilt High Voltage MPPT Solar Charger Parallel Function
3KW 5KW 6KW 7KW 10KW 11KW Hybrid Solar Inverter 24V 48V Inbuilt High Voltage MPPT Solar Charger Parallel Function
1 / 5
3KW 5KW 6KW 7KW 10KW 11KW Hybrid Solar Inverter 24V 48V Inbuilt High Voltage MPPT Solar Charger Parallel Function
3KW 5KW 6KW 7KW 10KW 11KW Hybrid Solar Inverter 24V 48V Inbuilt High Voltage MPPT Solar Charger Parallel Function
3KW 5KW 6KW 7KW 10KW 11KW Hybrid Solar Inverter 24V 48V Inbuilt High Voltage MPPT Solar Charger Parallel Function
3KW 5KW 6KW 7KW 10KW 11KW Hybrid Solar Inverter 24V 48V Inbuilt High Voltage MPPT Solar Charger Parallel Function
3KW 5KW 6KW 7KW 10KW 11KW Hybrid Solar Inverter 24V 48V Inbuilt High Voltage MPPT Solar Charger Parallel Function

3KW 5KW 6KW 7KW 10KW 11KW Hybrid Solar Inverter 24V 48V Inbuilt High Voltage MPPT Solar Charger Parallel Function

Send Inquiry

Product Description

Products Description

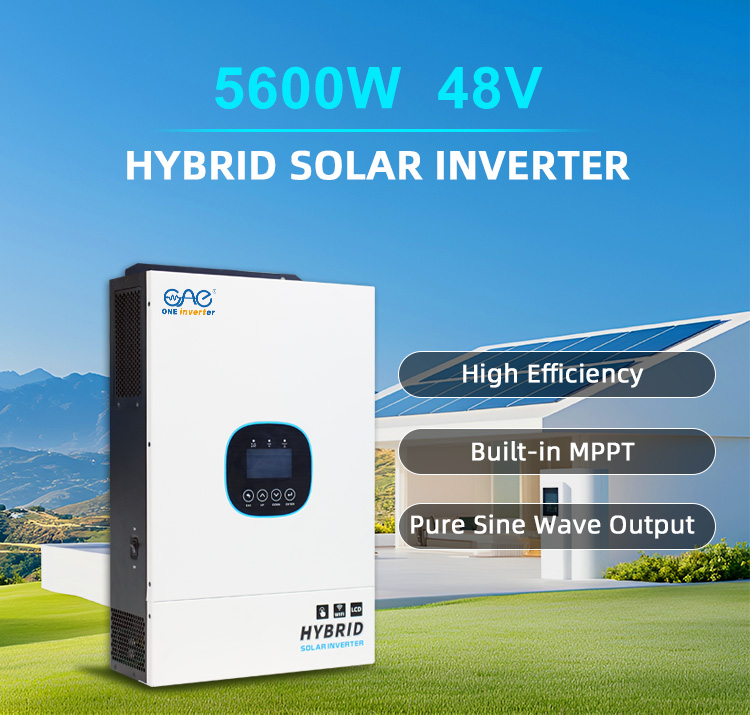

Product View 1
Product View 2
Product View 3
Product View 4

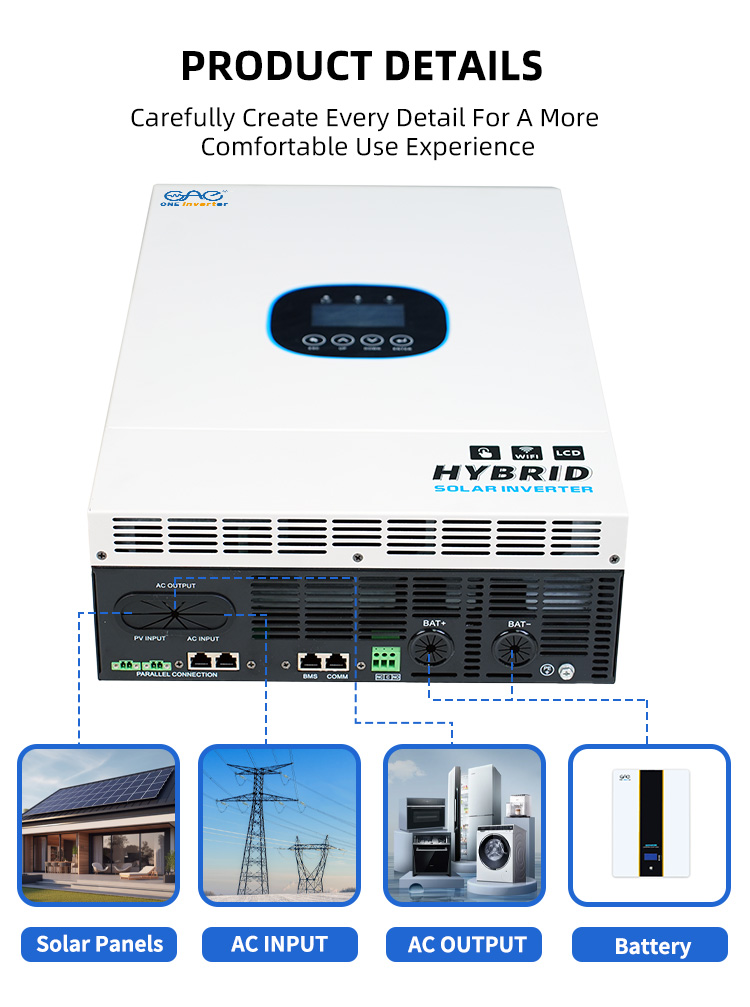

Product View 5

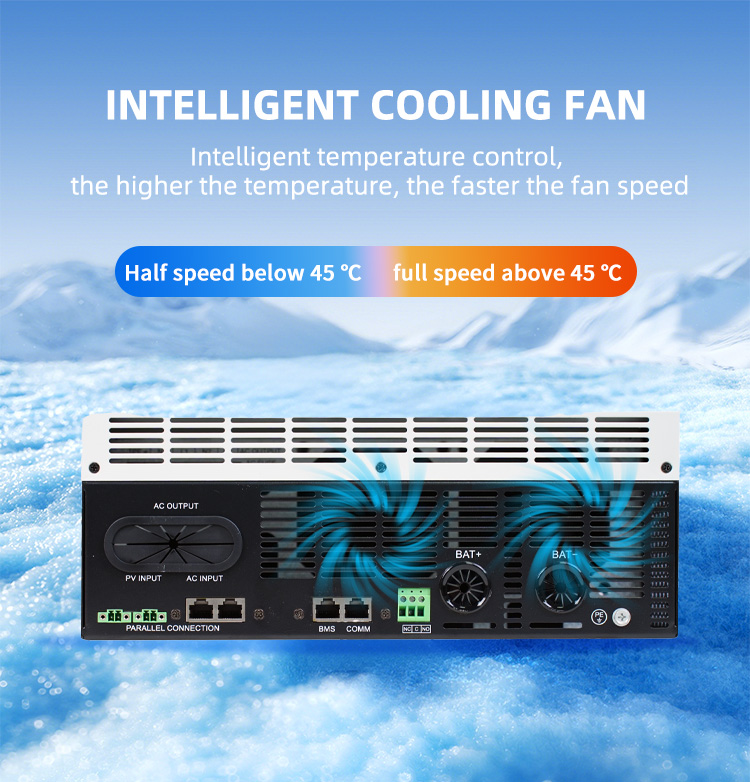

Product View 6
Product View 7
Product View 8

Product Parameters

Models 5.6KW
Permitted parallel number 1~6 units
AC Mode
Rated input voltage 220/230Vac
Input voltage range (170Vac~280Vac)±2% / (90Vac-280Vac)±2%
Frequency 50Hz/60Hz (Auto detection)
Efficiency >95%
Conversion time 10ms (typical)
Inverter Mode
Output voltage waveform Pure sine wave
Rated output power (W) 5600
Peak power 11200VA
Rated battery input voltage 48V (Minimum starting voltage 44V)
PV Charging
Max PV open circuit voltage 500Vdc
MPPT voltage range 90-450Vdc
Maximum PV input power 6000W
Certified Specifications
Certification CE(IEC62109-1)/CETL(UL 1741)/FCC/SAA

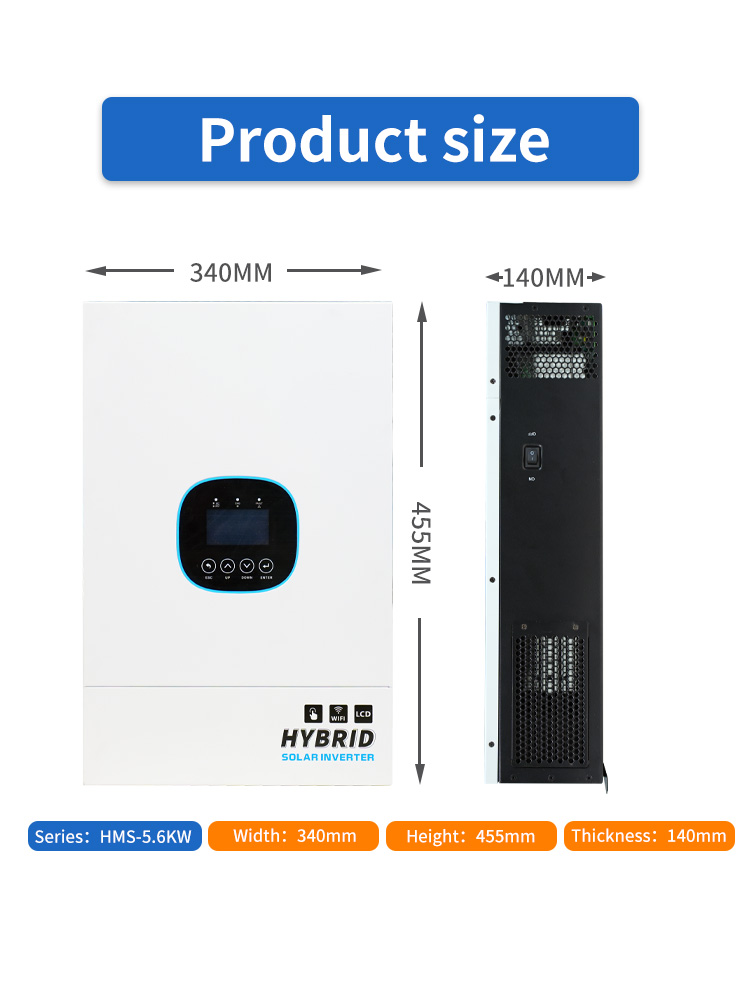

Product Size(D*W*H) 455mm*340mm*140mm
Net Weight (Kg) 11.5KG

Why Choose Us

Company Profile

Frequently Asked Questions

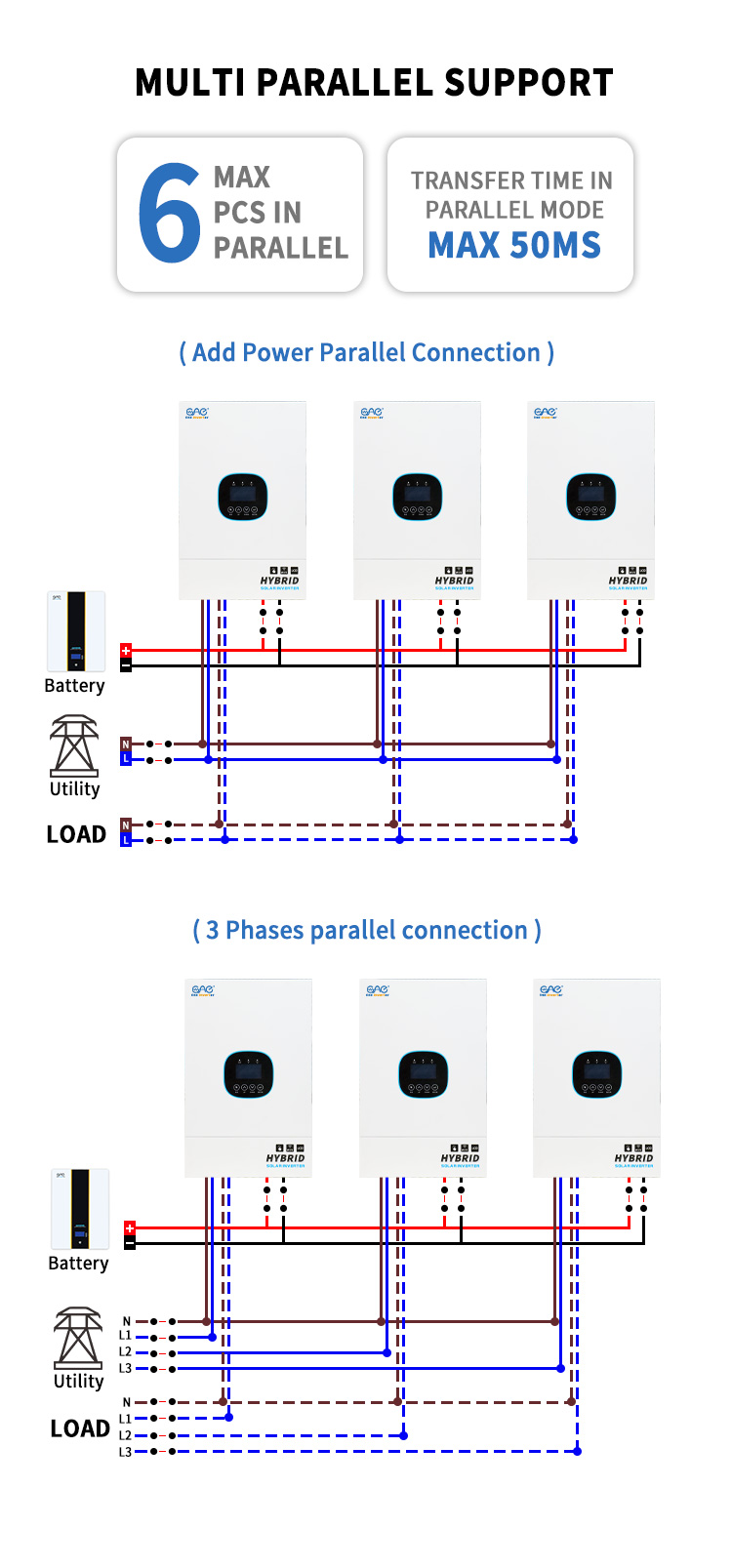

How many units can be connected in parallel?
The system supports parallel connection of 1 to 6 units, allowing for scalable power capacity.
What types of batteries are compatible with this inverter?
It is compatible with both Lead-acid and Lithium batteries, with a rated battery input voltage of 48V.
What is the maximum PV input power and voltage?
The maximum PV input power is 6000W, and the maximum PV open circuit voltage is 500Vdc.
Is this inverter suitable for running motor loads?
Yes, it has a loaded motor capability of up to 4HP and a peak power of 11200VA to handle high startup currents.
What monitoring and communication interfaces are available?
The inverter includes USB, RS485 (supporting WiFi/GPRS modules), and Dry contact control for comprehensive monitoring.
What safety certifications does this product hold?
The product is certified according to CE (IEC62109-1), CETL (UL 1741), FCC, and SAA standards.
