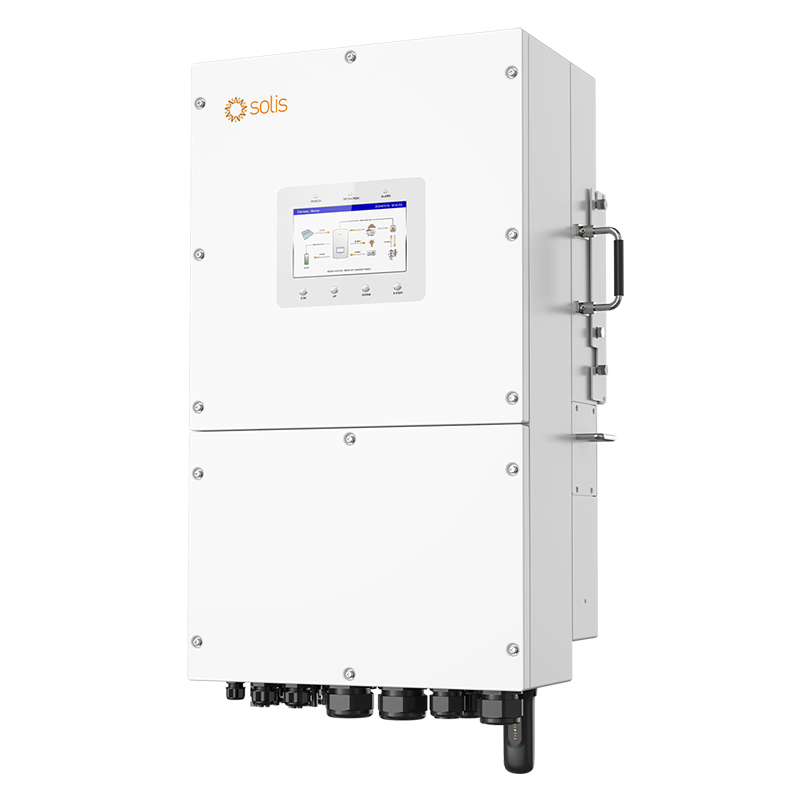

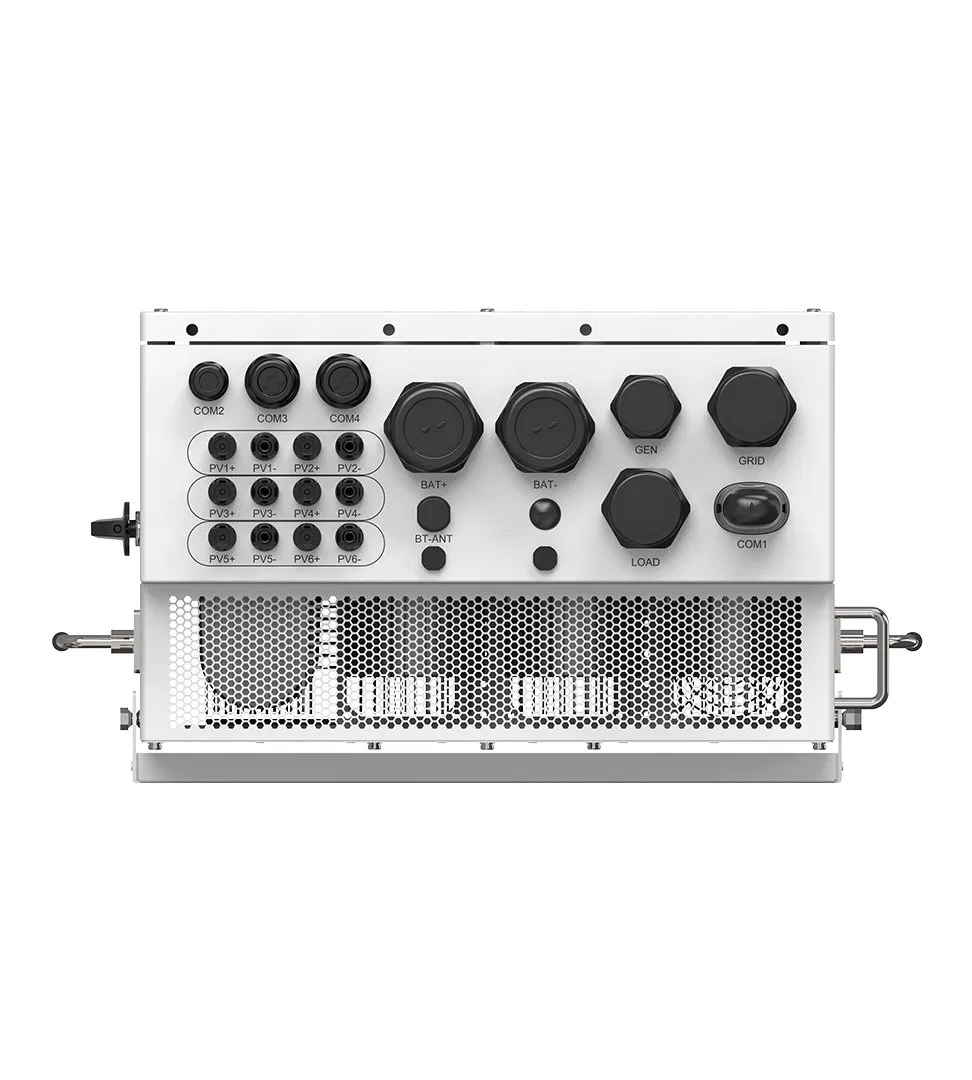

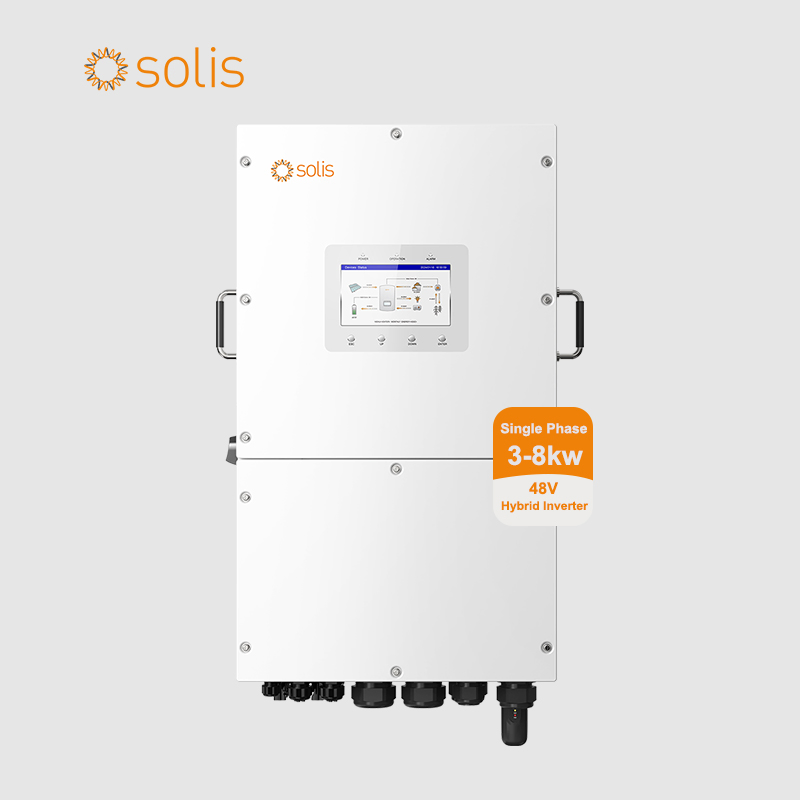

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
1 / 5
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

●

Basic Information

Model NO.:S6-EH1P(3-8)K-L-PLUS
Nature of Source Flow:Active Inverter
Phase:Single
Output Power:3-8kw
Certification:SAA, CE, ROHS, ISO9001, CCC
Type:DC/AC Inverters
Power Source:Solar Power
Circuit Topologies:Full-Bridge Type
Wave String:Sine Wave Inverter
Input Voltage:500V
Output Voltage:220V/230V
Output Frequency:50 Hz / 60 Hz
Communication:RS485, CAN, Wi-Fi, GPRS, LAN
Display:7.0" LCD Display & Bluetooth + APP
Protection:IP66
Battery Type:Lead Acid / Lithium
★

Product Description

Hybrid Solar Inverter S6-EH1P(3-8)K-L-PLUS: A high-performance single-phase low voltage energy storage inverter designed for residential solar systems, ranging from 3kW to 8kW capacity.
Hybrid Inverter Overview

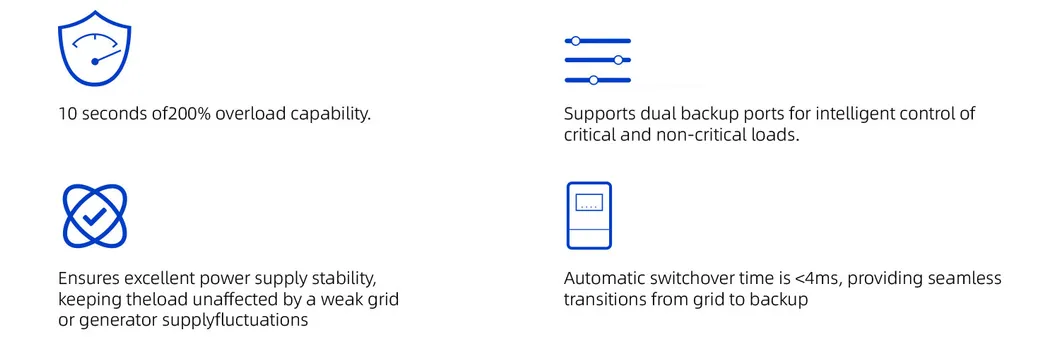

Inverter Features
⚙

Product Parameters

S6-EH1P(3-8)K-L-PLUS Series
Models 3K 3.6K 5K 6K 8K
Input DC (PV side)
Max. PV array size 6 kW 7.2 kW 10 kW 12 kW 16 kW
Max. input voltage 500 V
MPPT voltage range 90-435 V
Battery
Battery type Li-ion / Lead-acid
Max. charge power 3 kW 3.6 kW 5 kW 6 kW 8 kW
Output AC (Grid side)
Rated output power 3 kW 3.6 kW 5 kW 6 kW 8 kW
Efficiency Max. 97.5% / EU 96.5%
◈

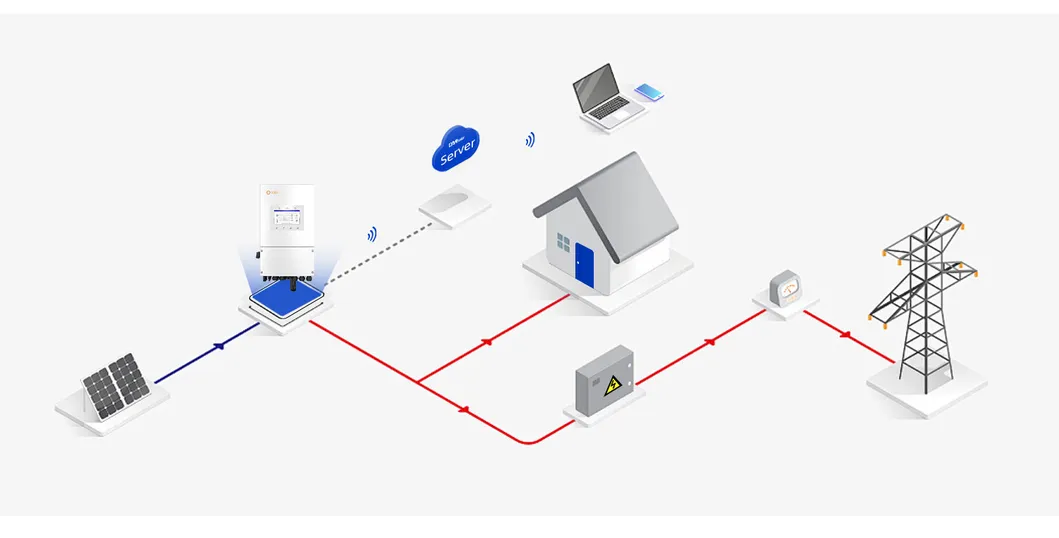

Basic System Architecture

System Architecture
📦

Packaging & Shipping

Packaging Detail
✔

Project Cases

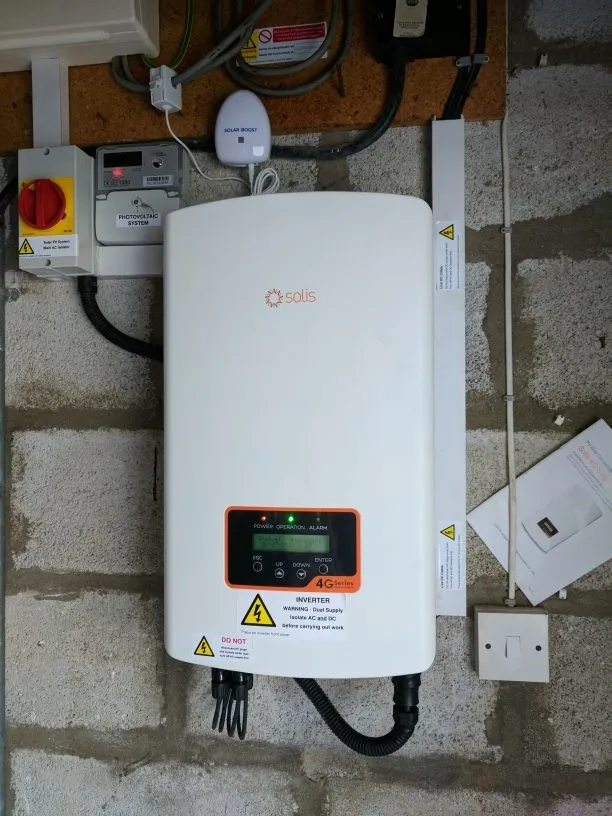

Project Case 1

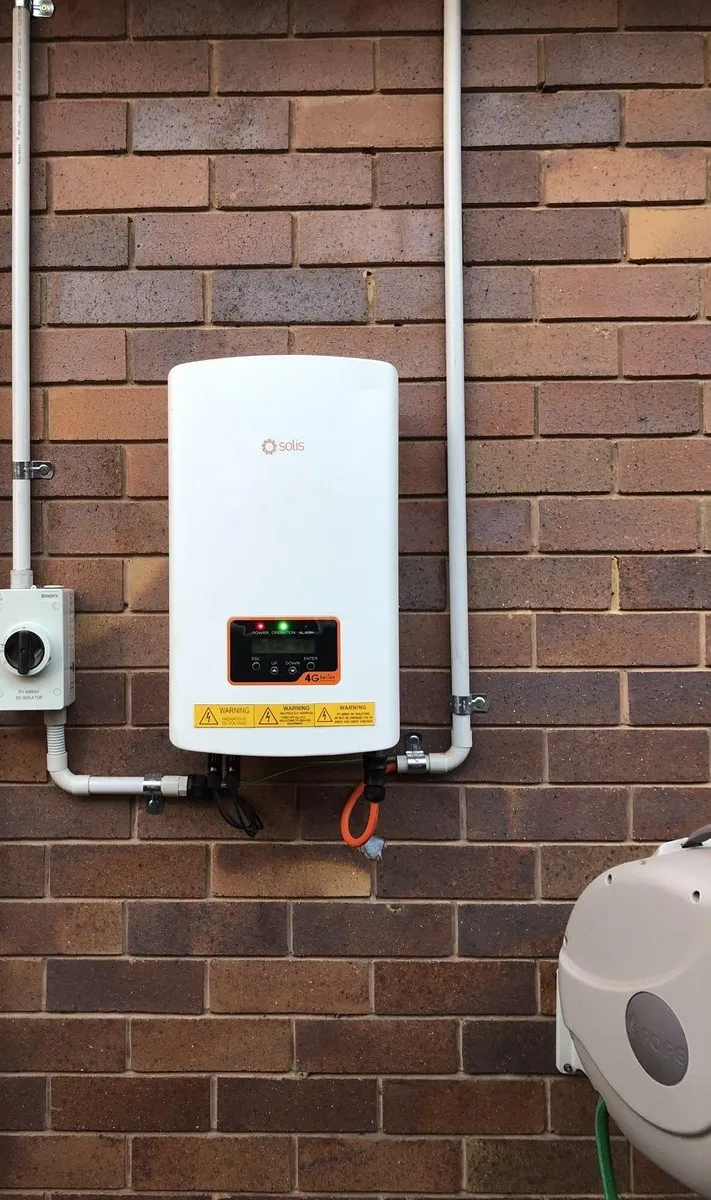

Project Case 2

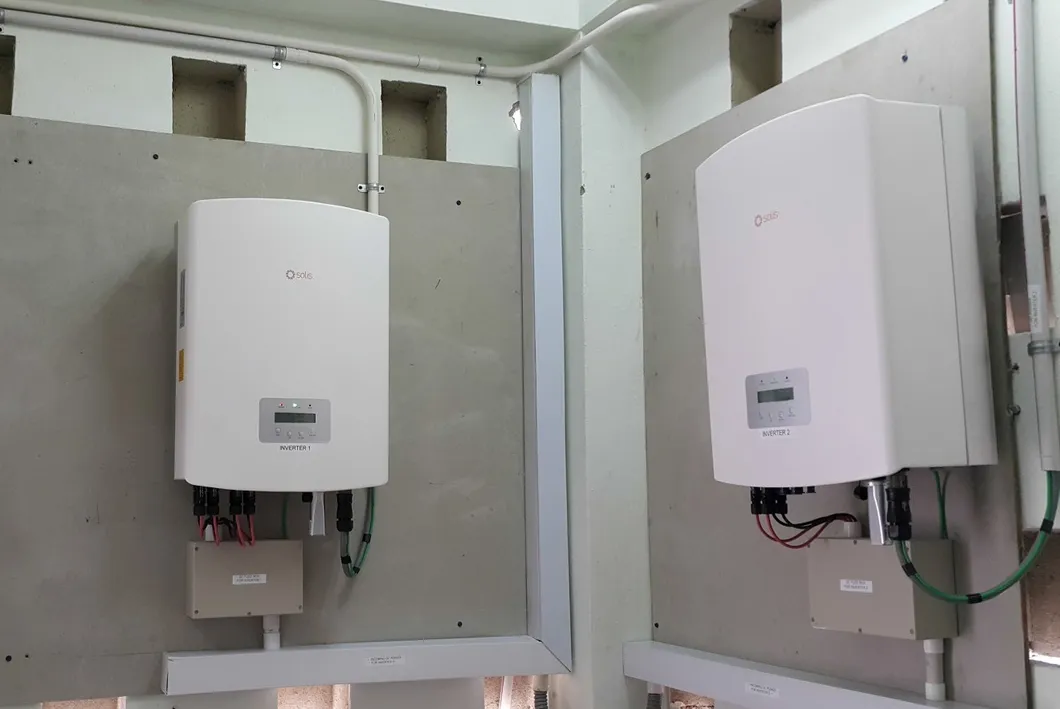

Project Case 3

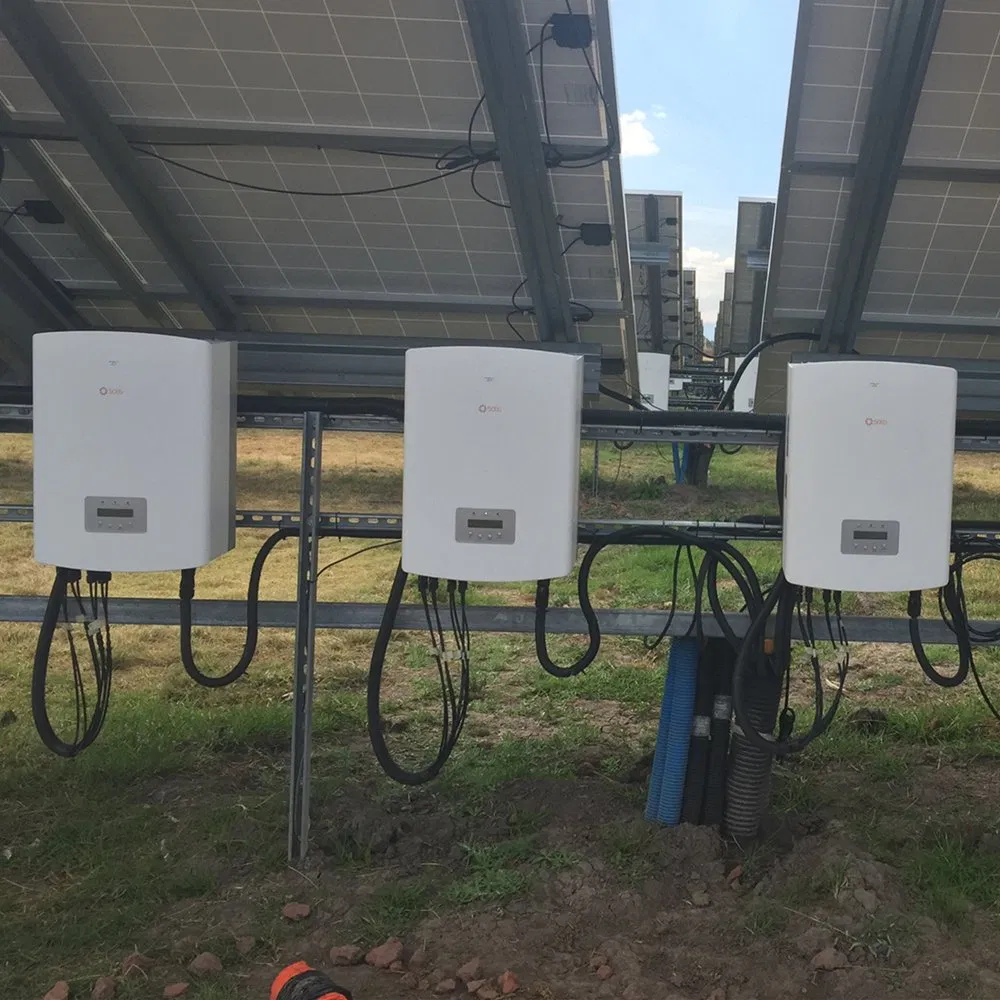

Project Case 4

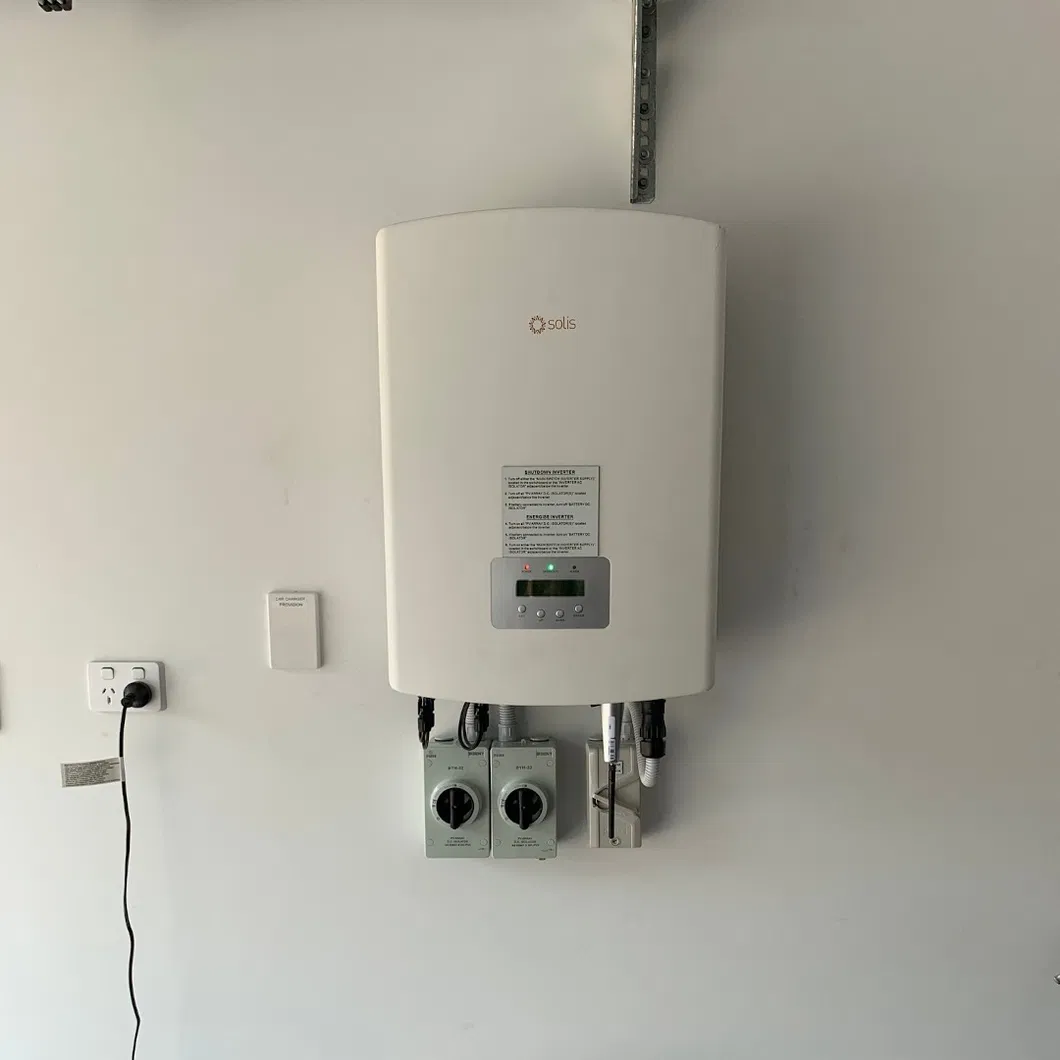

Project Case 5
?

Frequently Asked Questions

What battery types are compatible with this hybrid inverter?
The S6-EH1P series is compatible with both Lithium-ion and Lead-acid batteries, providing flexibility for different energy storage needs.
What is the UPS switching time for backup power?
The inverter features a backup switch time of less than 4ms, ensuring a seamless transition and uninterrupted power supply for critical loads.
Is the inverter suitable for outdoor installation?
Yes, it comes with an IP66 ingress protection rating, making it highly resistant to dust and water, and suitable for various outdoor environments.
Does it support remote monitoring?
Yes, the system supports multiple communication methods including RS485, CAN, and optional Wi-Fi, GPRS, or LAN for comprehensive remote monitoring via an APP.
What is the maximum PV input voltage?
The maximum PV input voltage for the S6-EH1P series is 500V, allowing for versatile solar array configurations.
Can this inverter handle high-power PV modules?
Absolutely. With a maximum input current of up to 16A/32A (depending on the model), it is designed to be compatible with modern high-power and large-format solar panels.
