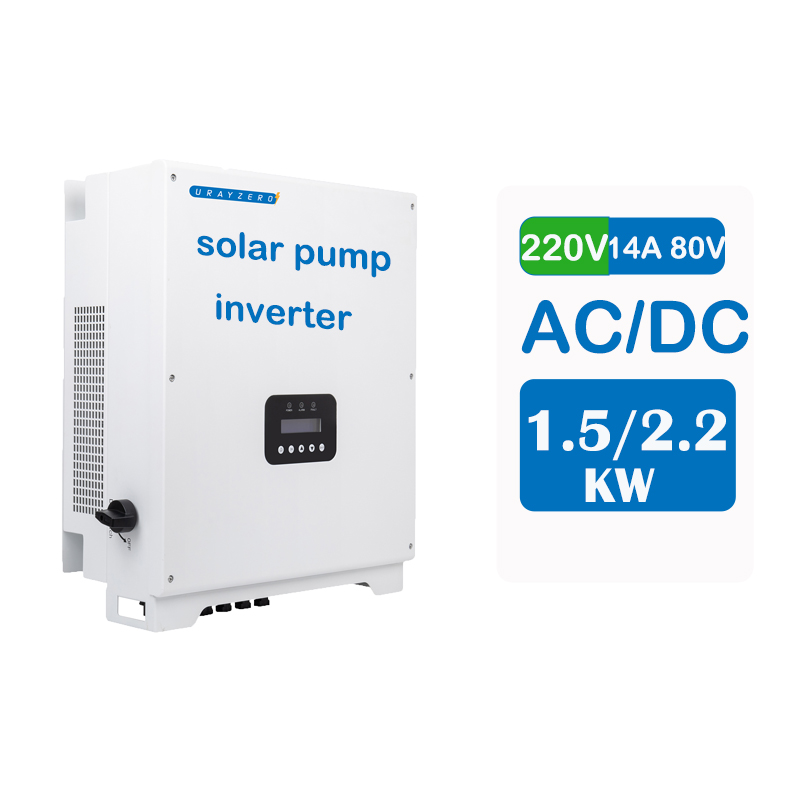

Solar Water Pump Inverter Ip65 Water Pump 220v 1hp Inverter Solar Inverter for a Water Pump

Product Description

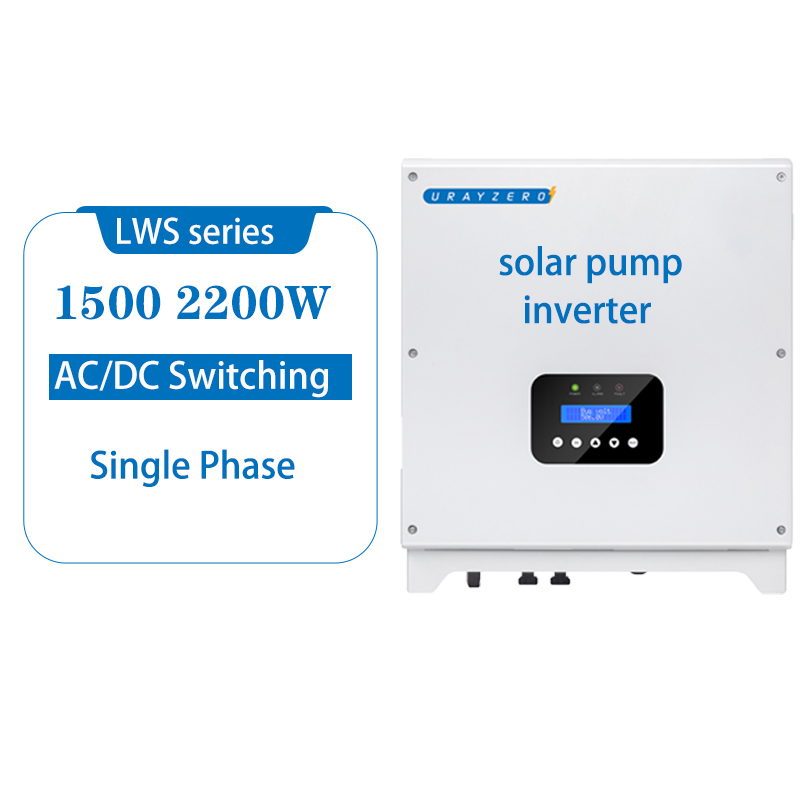

Solar Pumping Inverter
Products Description

1.5kw - 2.2kw single phase solar pumping inverter for residential and shallow wells & deep well, as long as the water pump is running by AC motor.

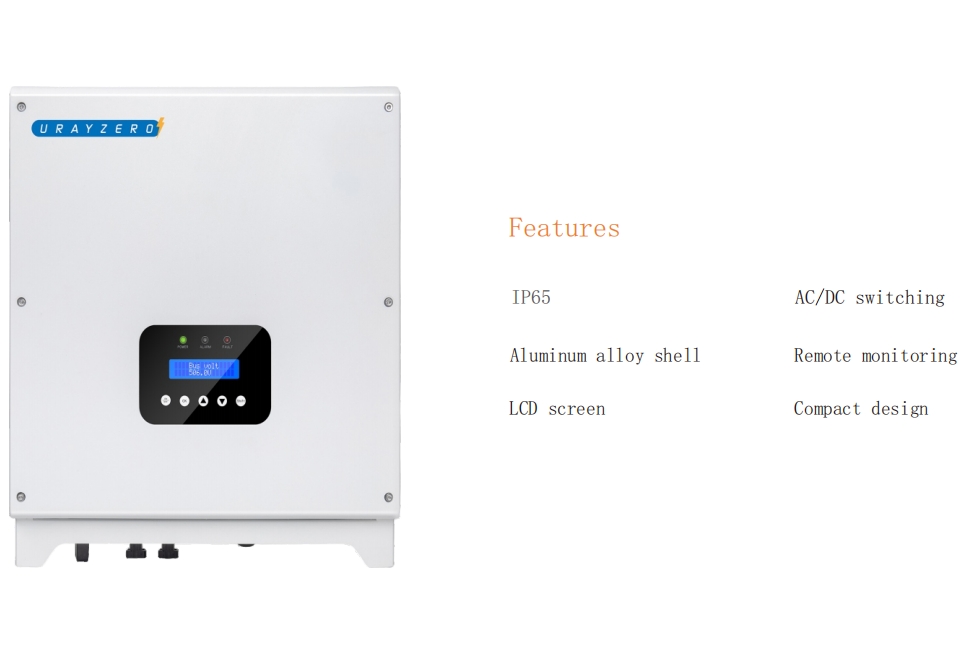

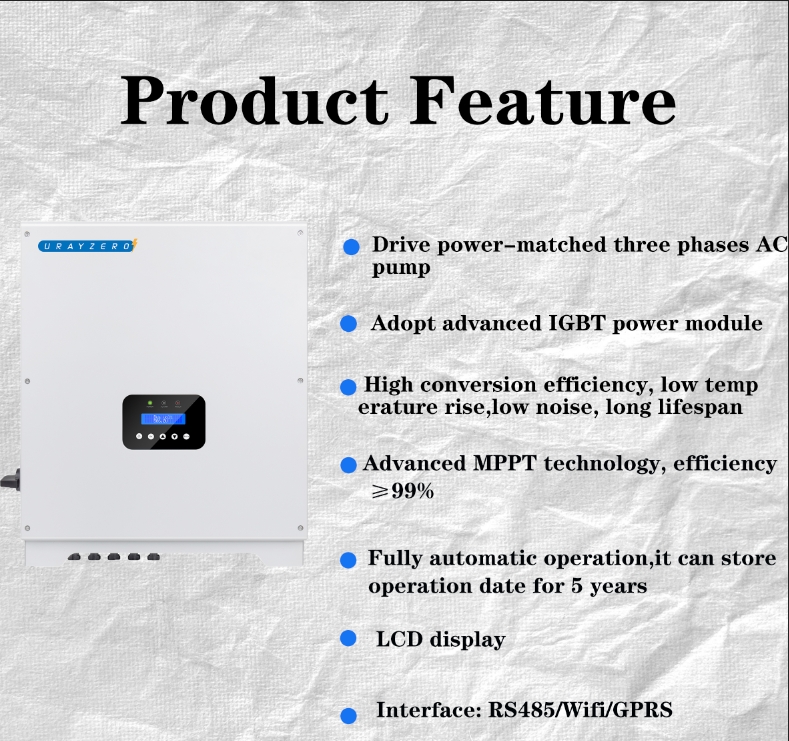

Product View 1 Product View 2
  • Comes with combiner box function, easy to install, operate and maintain
  • Come with AC bypass function to get power from government grid
  • Don't connect to battery, efficiently store water instead of electricity
  • Perfect system protection: Overload, Over voltage, Over current, Under voltage, Reverse connection, Dry load protection, Overflow protection, Under frequency, Minimum start power, and Waterproof protection

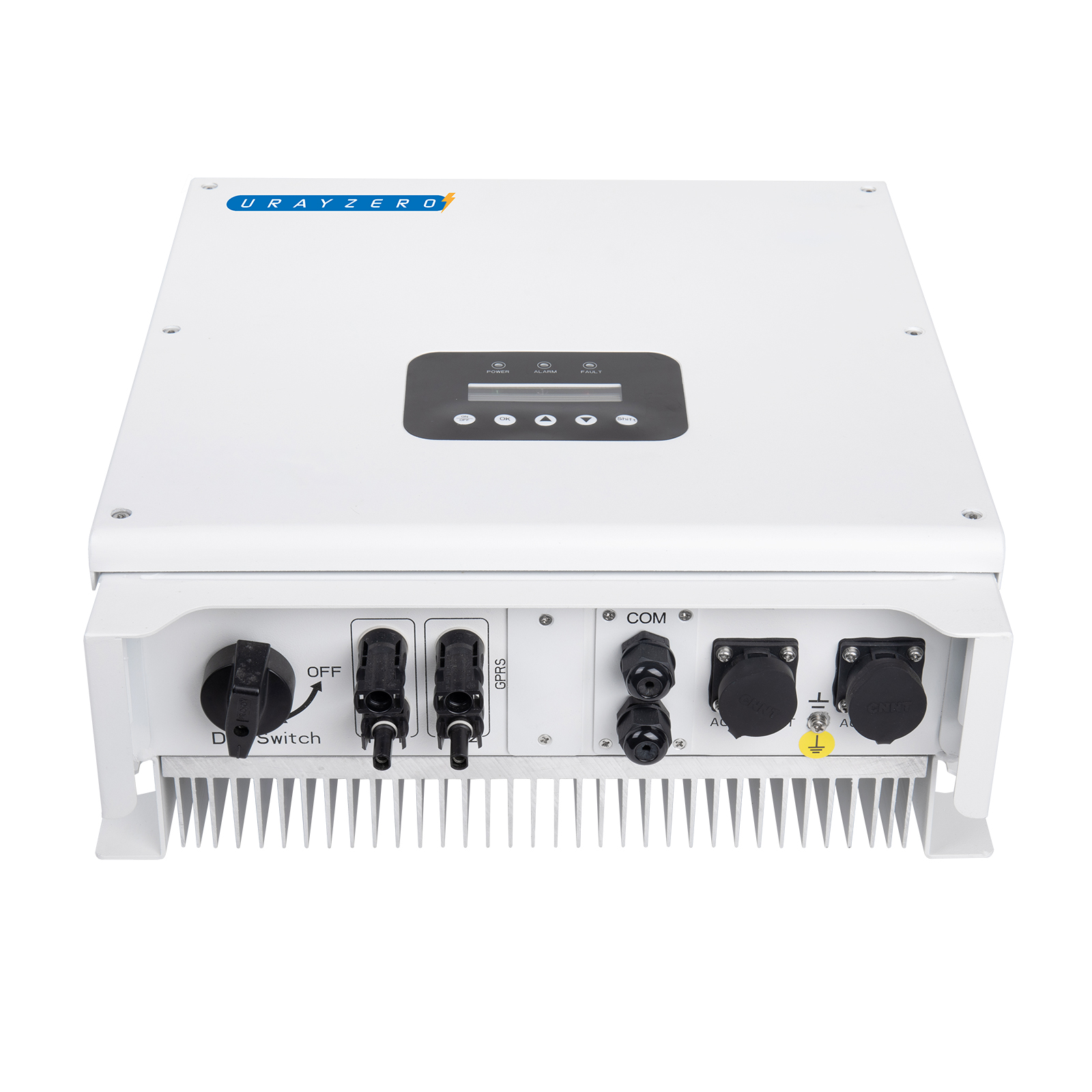

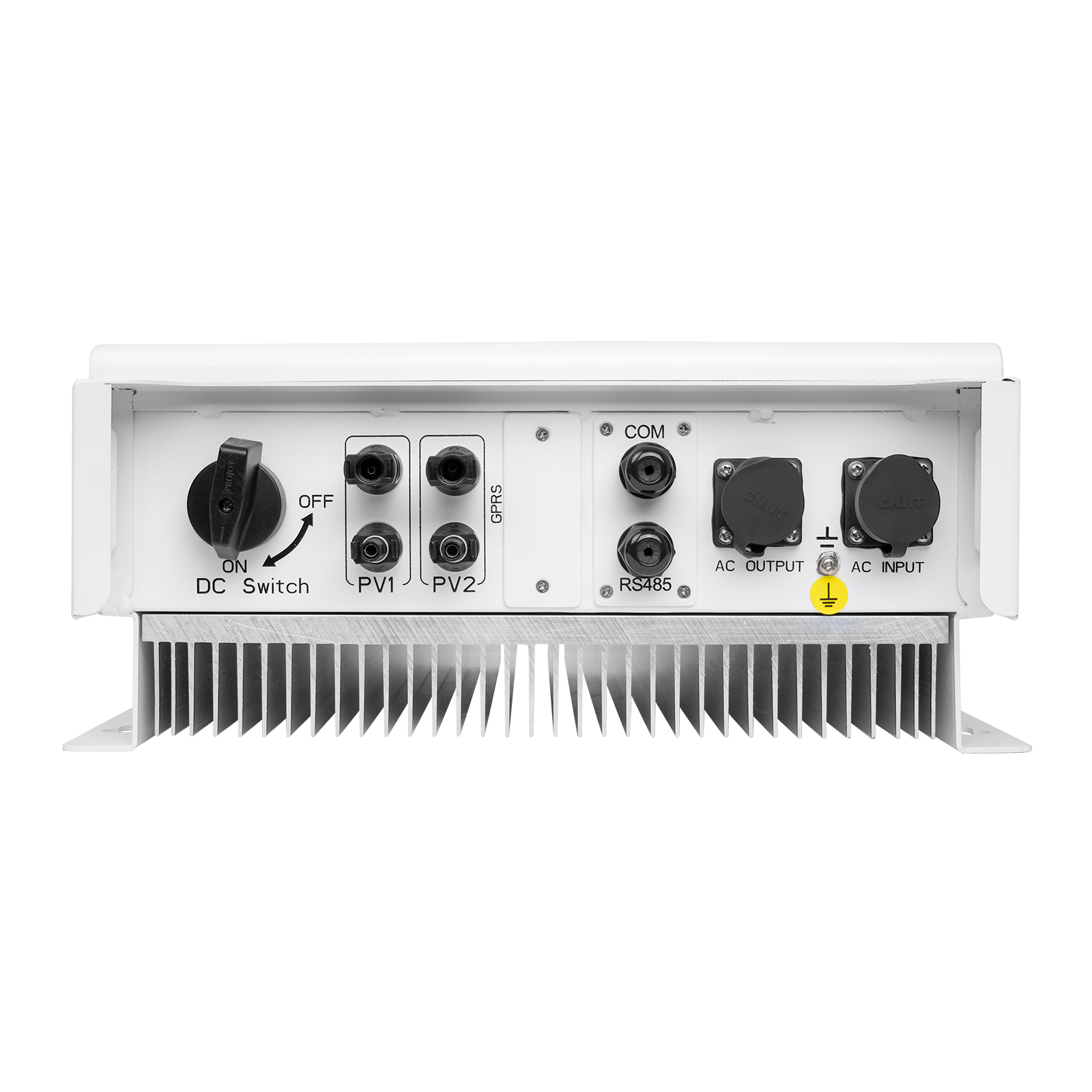

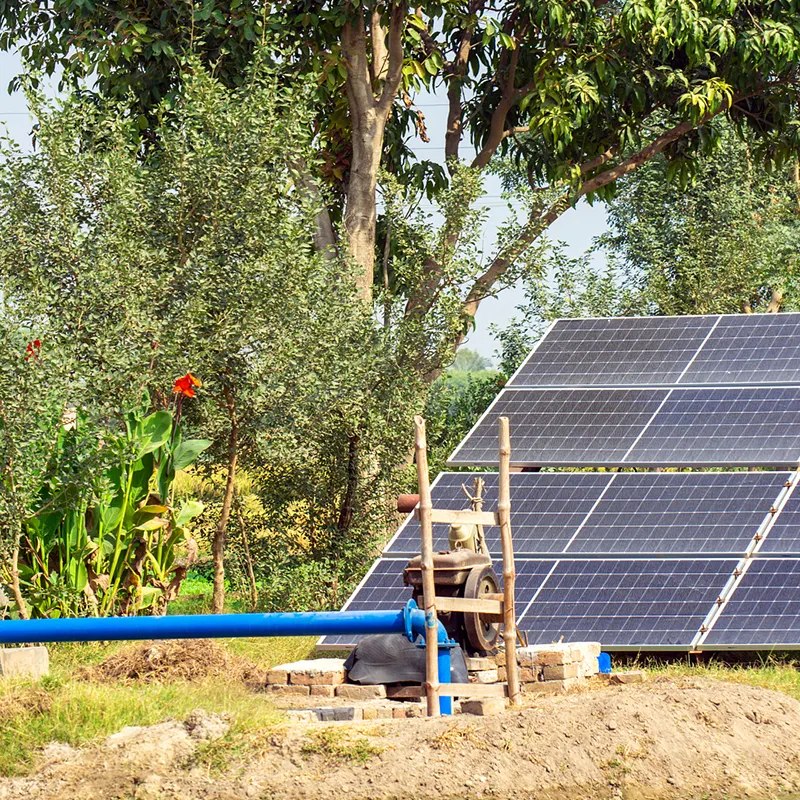

Application 1 Application 2

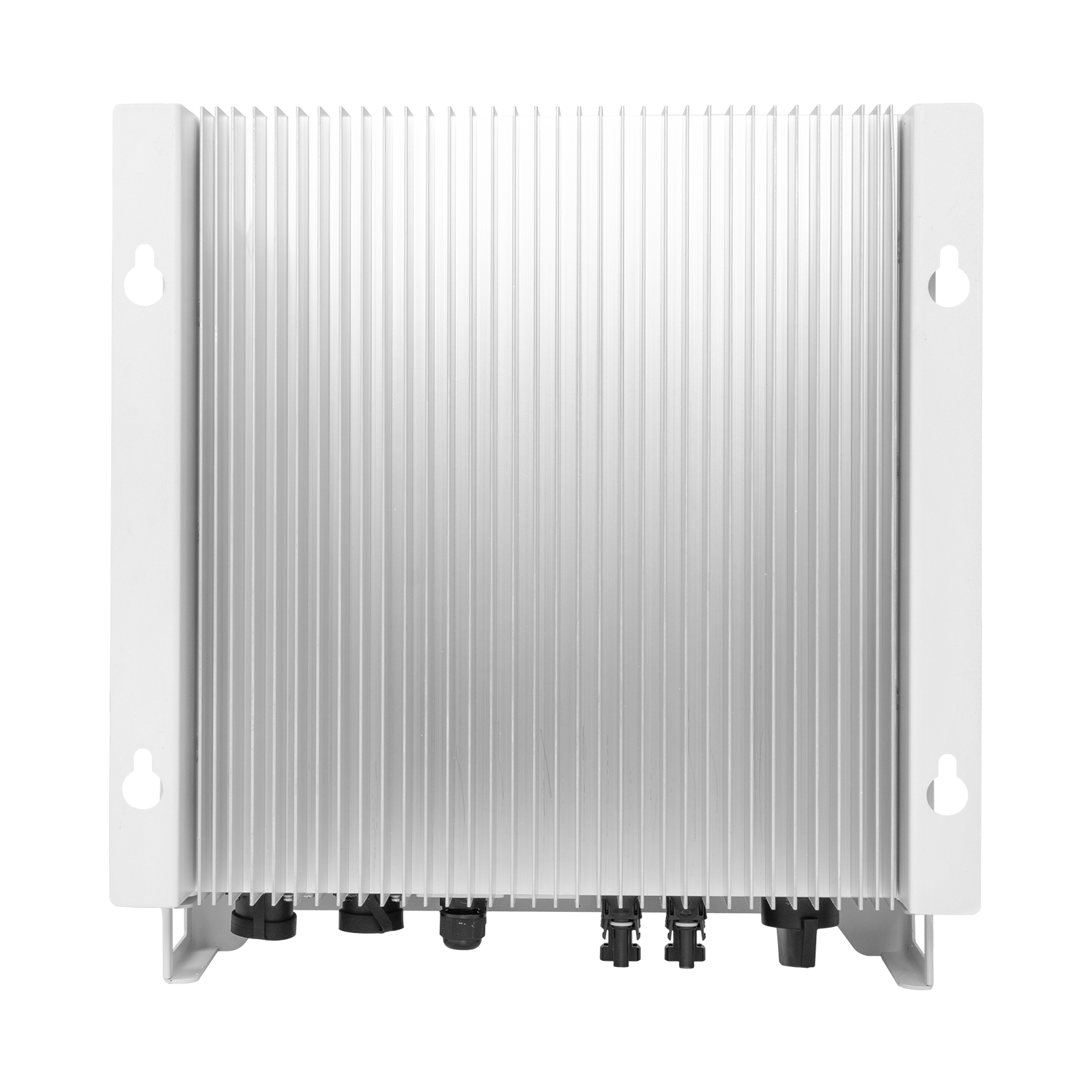

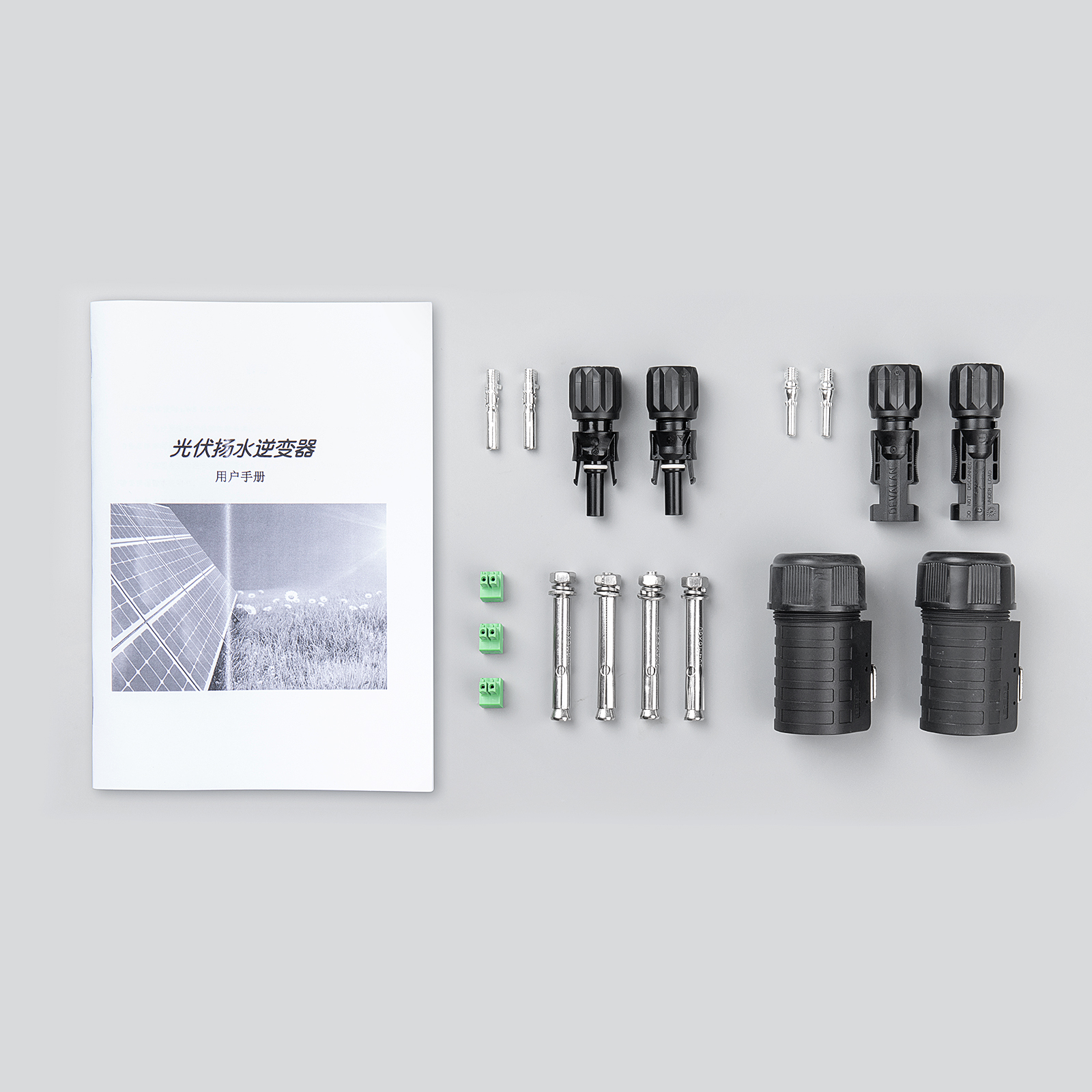

Application 3 Application 4
Data Sheet
Model LWS1500SL LWS1500SLA LWS2200SL LWS2200SLA
DC Input
MPPT number1
Max. input strings12
Start voltage (V)80
Max. input voltage (V)500
Max. input current (A)1315
MPPT voltage range (V)200-400
AC Input
Input voltage range (V)----220±15%----220±15%
Input frequency (Hz)---50/60±5%---50/60±5%
AC Output
Rated power (W)15002200
Rated voltage (V)220
Output voltage range (V)0 - 220
Output frequency (Hz)0 - 50/60
Max. output current (A)1014
General Data Chart
General Data
Display screenLCD
Communication portRS485/CAN/GPRS
Protection levelIP65
Operating altitude (m)<6000 (>3000 derating)
Cooling conceptNatural cooling
Operating temperature-25℃~+60℃
Dimension (D*W*H mm)395*355*160
Net weight (kgs)12
Recommended Water Pump
Pump Type AC Pump
Rated voltage (V)220
Frequency (Hz)50
Inverter power (W)15002200
Applicable motor power1.5kW/2HP2.2kW/3HP
Customer Visit and Exhibition
Customer Visit Exhibition
Projects

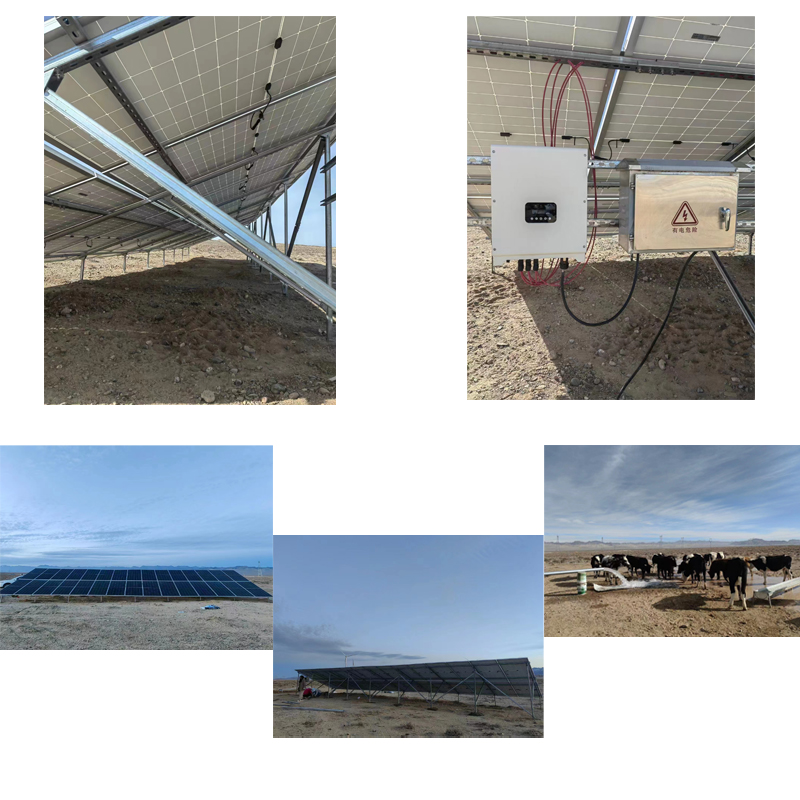

Solar Project
Company Profile
Factory
We have more than 10 years experience in the field of solar energy. As a professional OEM and ODM manufacturer and supplier, our company focused on the production of solar panels, solar inverters, solar water pumping inverters, MPPT charge controller, Gel lead acid battery, Lithium battery and complete kit solar power systems which are widely used for household, industrial and commercial solar power fields.

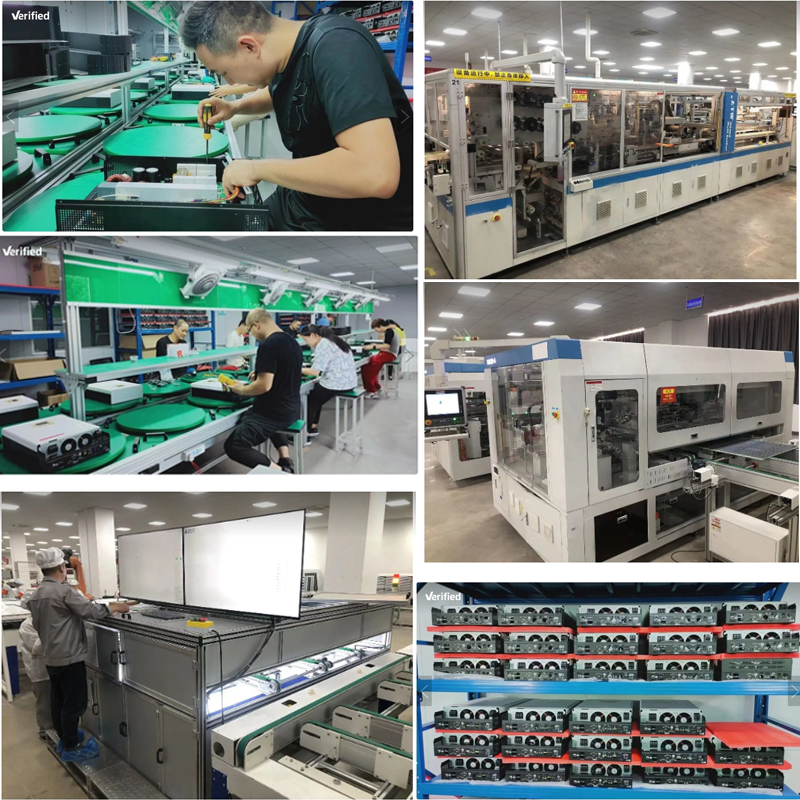

Production Line
Our company passed the ISO9001:2015, TUV certification, and all products are certificated by TUV, CE, MSDS. We are committed to provide high quality products and aim to be a leading supplier of solar products all around the world. We pay strict attention to product inspection; all products are tested and inspected before packing and delivery.
Certifications
Certificates
Frequently Asked Questions
How about the warranty and after-sales support?
The inverters come with a 2-year warranty. During this period, we offer free replacement parts, so there is no need to send the unit back. After the warranty, we continue to provide technical support with components provided at cost.
What is the expected delivery time?
We maintain stock for many models which can be sent out quickly. New production typically takes 1-2 weeks, while customized ODM/OEM orders generally require 4-5 weeks.
Do you provide technical support during installation?
Yes, we provide 24-hour online technical support. You can contact us anytime for assistance with installation, technical queries, or after-sales service.
What other solar products do you supply?
Beyond solar pumping inverters, we provide Lead-acid and lithium batteries, Tier-one solar panels, hybrid/off-grid inverters, on-grid inverters, and complete integrated solar systems.
What certifications do your products hold?
Our products have acquired ISO9001, CE, EMC, UL, and LVD certificates, satisfying the importing requirements of most countries. Samples are available for testing upon request.
What are your shipping terms and duration?
We offer various terms including EXW, DDU, DDP, FOB, CIF, and DAP. Shipping by air (DHL, UPS, FEDEX) typically takes 5-10 days. Sea freight options are also available.
