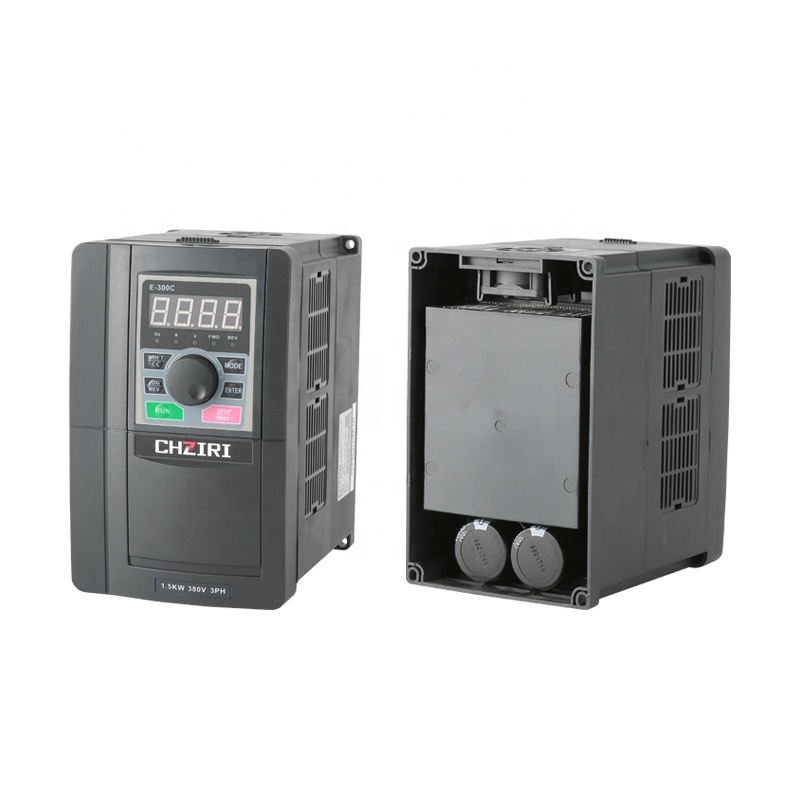

Professionally Multifunctional Deep Well Pump Solar Controller Inverter Mppt Solar Inverter for Water Supply System
Professionally Multifunctional Deep Well Pump Solar Controller Inverter Mppt Solar Inverter for Water Supply System
Professionally Multifunctional Deep Well Pump Solar Controller Inverter Mppt Solar Inverter for Water Supply System
Professionally Multifunctional Deep Well Pump Solar Controller Inverter Mppt Solar Inverter for Water Supply System
Professionally Multifunctional Deep Well Pump Solar Controller Inverter Mppt Solar Inverter for Water Supply System
1 / 5
Professionally Multifunctional Deep Well Pump Solar Controller Inverter Mppt Solar Inverter for Water Supply System
Professionally Multifunctional Deep Well Pump Solar Controller Inverter Mppt Solar Inverter for Water Supply System
Professionally Multifunctional Deep Well Pump Solar Controller Inverter Mppt Solar Inverter for Water Supply System
Professionally Multifunctional Deep Well Pump Solar Controller Inverter Mppt Solar Inverter for Water Supply System
Professionally Multifunctional Deep Well Pump Solar Controller Inverter Mppt Solar Inverter for Water Supply System

Professionally Multifunctional Deep Well Pump Solar Controller Inverter Mppt Solar Inverter for Water Supply System

Send Inquiry

Product Description

Solar Inverter Hero Top Ten Function
Top Ten Function

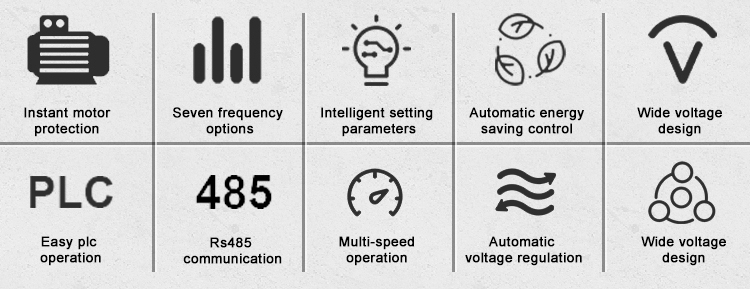

Functions Overview
Products Description
Product Description
Main Features of Solar Inverter Series

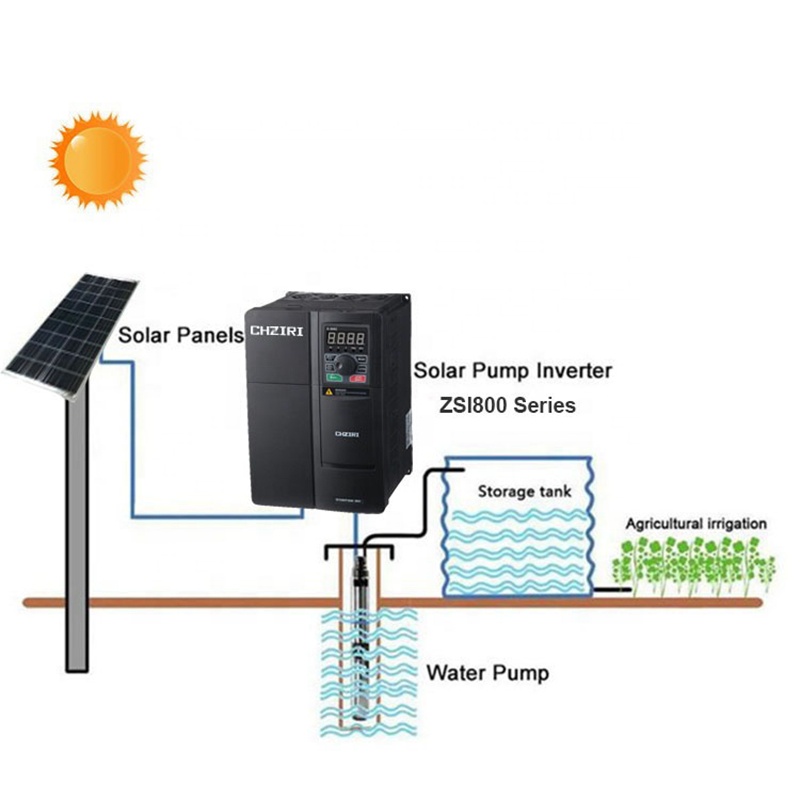

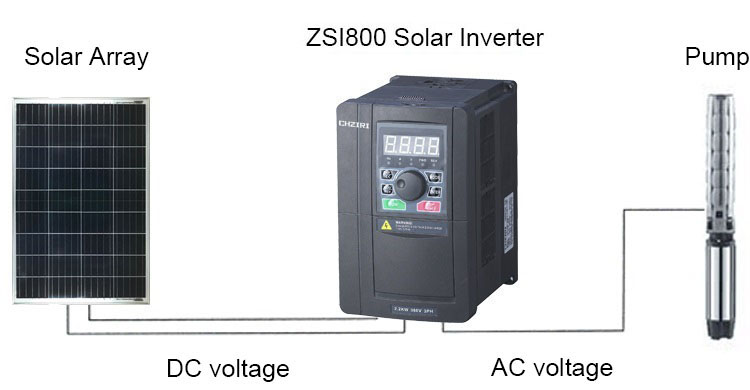

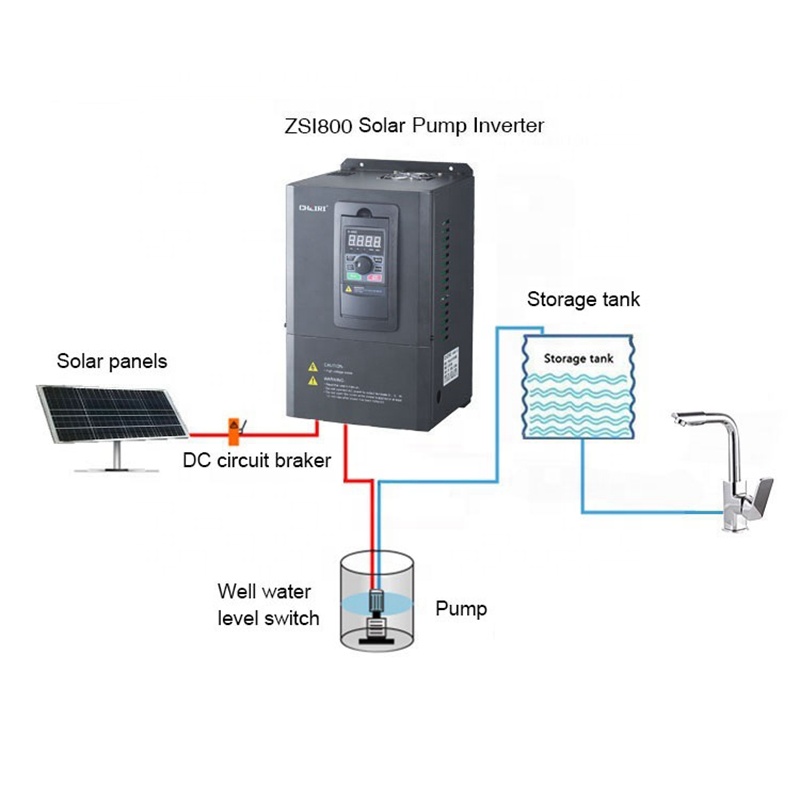

The Solar Inverter Series applies to transforming three phase 380V or Single phase 220V submersible deep well pump into solar water pump system. It works this way that direct current produced by solar module inputs into alternating current which drives all kinds of water pump, especially for submersible well pump.
Terminal Connection

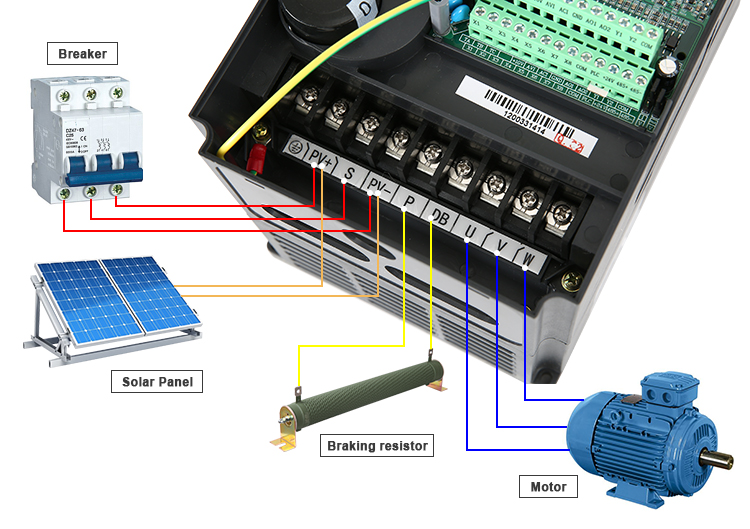

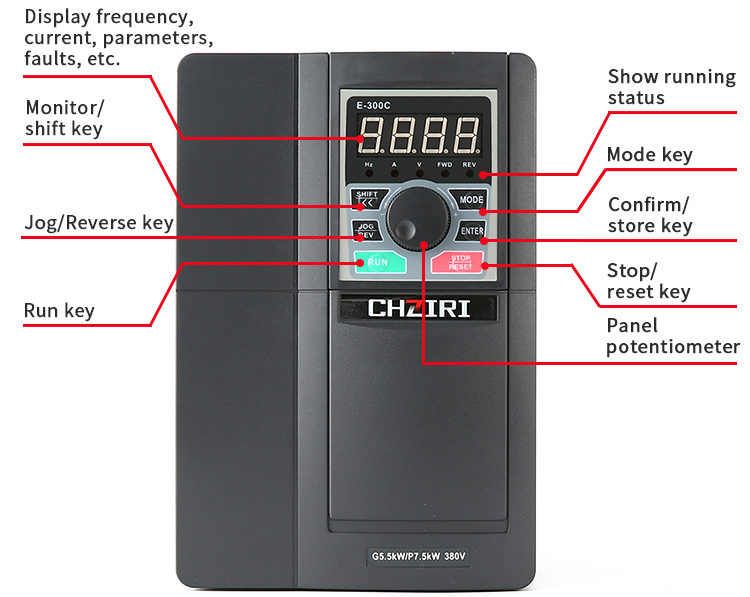

Connection Diagram 1 Terminal Layout
Solar Pump Inverter Model And Specification

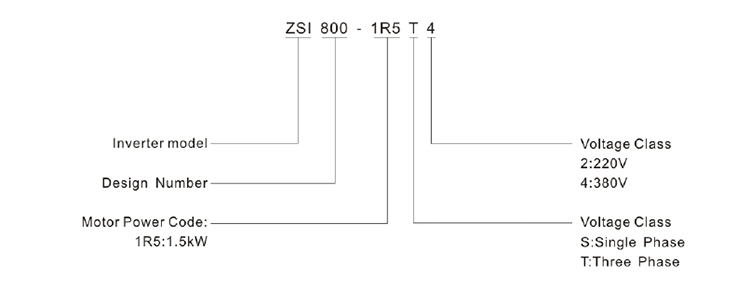

Model Chart
Inverter Model Input Voltage(V) Rated Output Power(KW) Rated Output Current(A) Adaptation Motor Power(KW)
ZSI800-0R4S2260-380VDC
(Single Phase 220V±15%)		0.42.40.4
ZSI800-0R7S20.754.50.75
ZSI800-1R5S21.571.5
ZSI800-2R2S22.2102.2
ZSI800-0R7T4420-750VDC
(Three Phase 400V±15%)		0.752.50.75
ZSI800-1R2T41.53.71.5
ZSI800-2R2T42.252.2
ZSI800-5R5T45.5135.5
ZSI800-011T4112511
ZSI800-022T4224522
⚙️ 1. Fully automatic
📊 2. MPPT function
📱 3. GPRS monitoring system
📉 4. Low frequency protection
🌵 5. Dry run protection
🔔 6. Water level detect and alarm

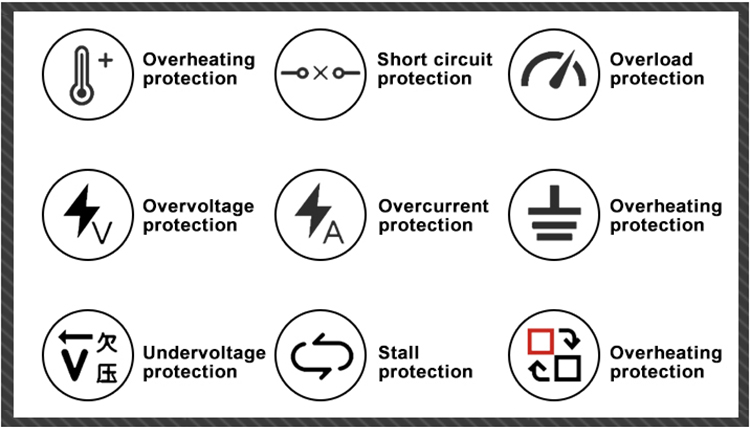

Nine Protection Mechanisms
Protection Mechanisms

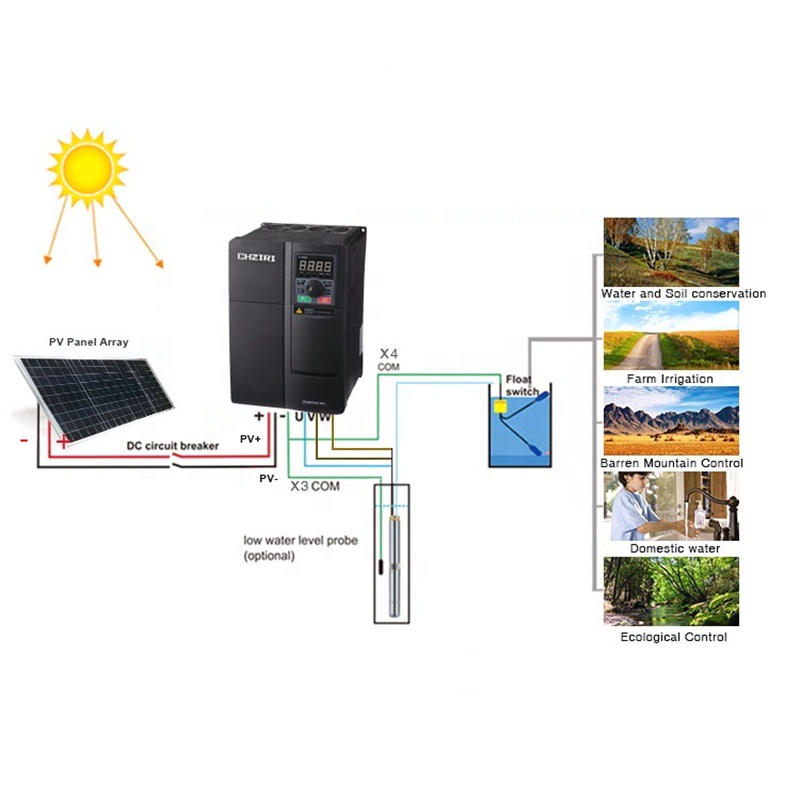

Application Scenario
Application Scenario
Product Technical Details

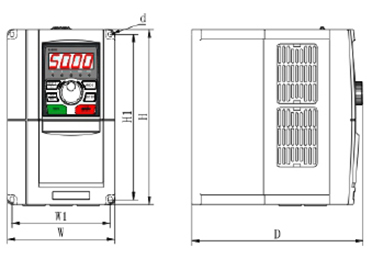

Technical Detail 1 Technical Detail 2 Technical Detail 3
Solar Inverter User Manual Highlights

Maximum Power Point Tracking (MPPT): The MPPT controller detects the voltage generated by a solar panel in real time and tracks the highest voltage and current (VI), allowing the system to charge the battery with maximum efficiency.

  • Software unique MPPT algorithm ensures fast dynamic response.
  • Motor always works at the maximum power point for maximum economic efficiency.
  • Dual power mode: Supports both solar PV DC power and single/three-phase AC power.
  • Wide voltage design ensures stable operation under varying conditions.
Manual Info
Industry Experience
Industry Presence
1. Manufacturer and exporter specializing in low voltage frequency inverters and soft starters.
2. More than 15 years of experience in automation control systems.
3. Products are CE certified and produced under ISO9001:2008 quality control systems.
4. Global distribution to Europe, South America, Southeast Asia, Middle East, and Africa.
Market Distribution
Main Product Categories
Main Products Product Range
Frequently Asked Questions
Q: What is the primary function of the MPPT algorithm in this inverter?
A: The MPPT (Maximum Power Point Tracking) algorithm detects the solar panel's voltage in real-time and adjusts the output frequency so the motor always operates at the maximum power point, maximizing economic efficiency.
Q: Does the solar inverter support AC power input?
A: Yes, it features a multi-power working mode that can utilize solar PV DC power or single-phase/three-phase AC power with simple wiring.
Q: What kind of protection does the system offer for water pumps?
A: The system includes dry run protection, low frequency protection, water level detection with alarms, and nine other specific protection mechanisms.
Q: Is the operation of the solar water pump system automated?
A: Yes, the system is fully automatic, coordinating solar panels, power supply, and pump loads without manual intervention.
Q: Can I monitor the system remotely?
A: Yes, the inverter supports a GPRS monitoring system for remote status tracking.
Q: What voltages are supported by the ZSI800 series?
A: It supports single-phase 220V (260-380VDC input) and three-phase 400V (420-750VDC input) variations to suit different pump requirements.
