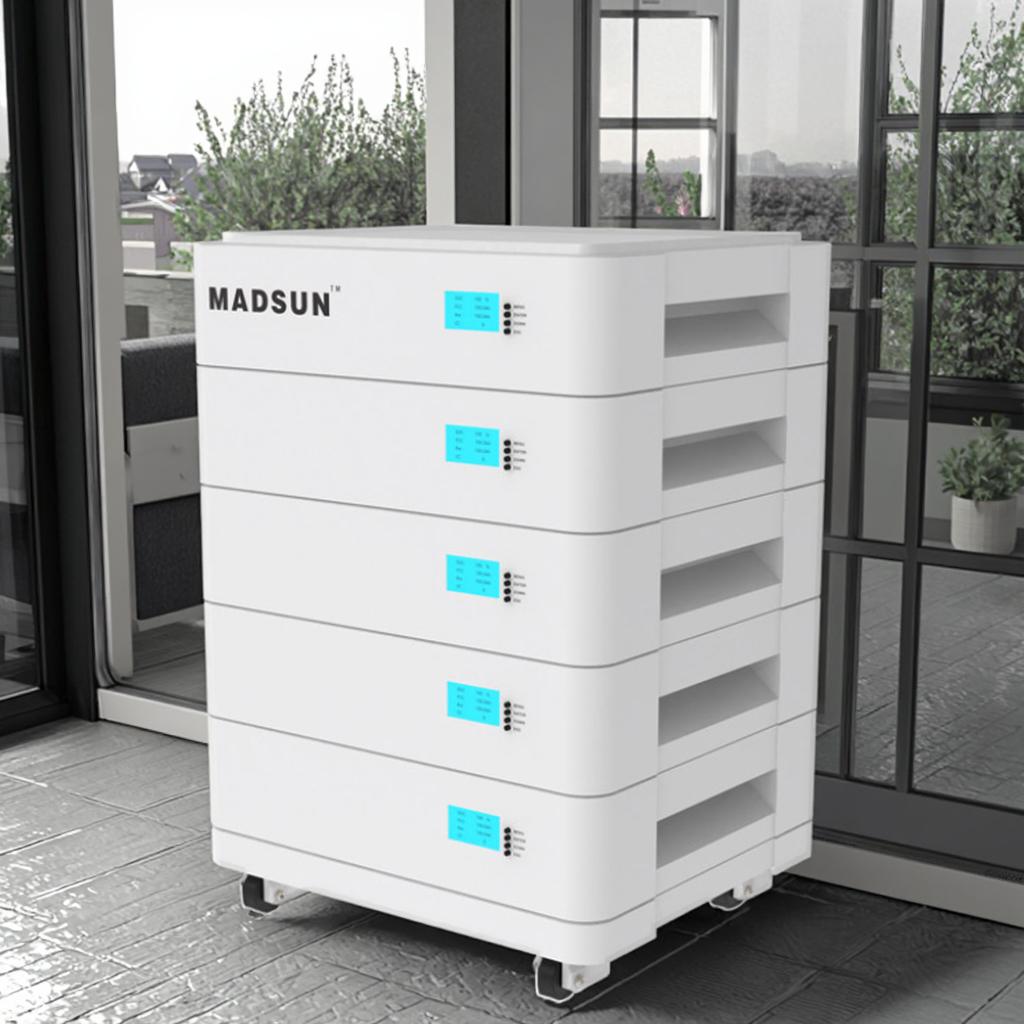

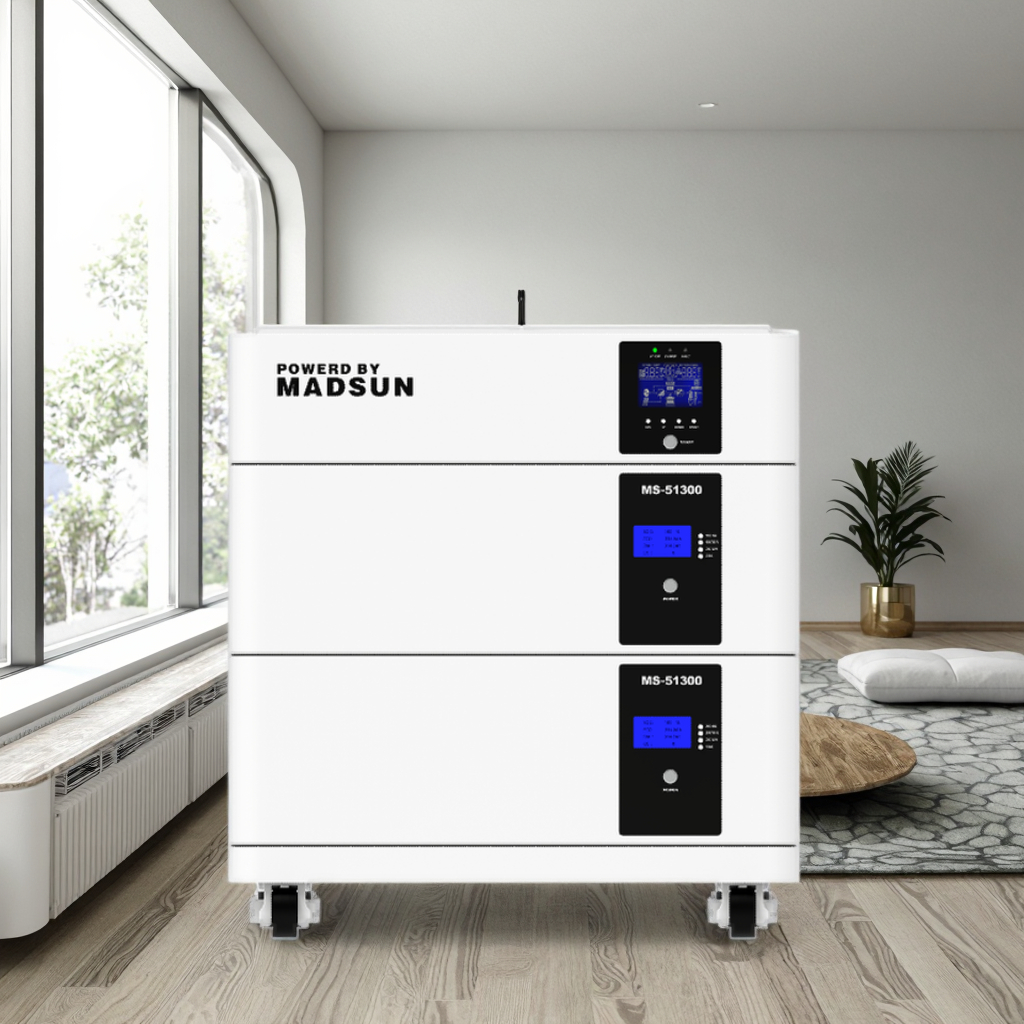

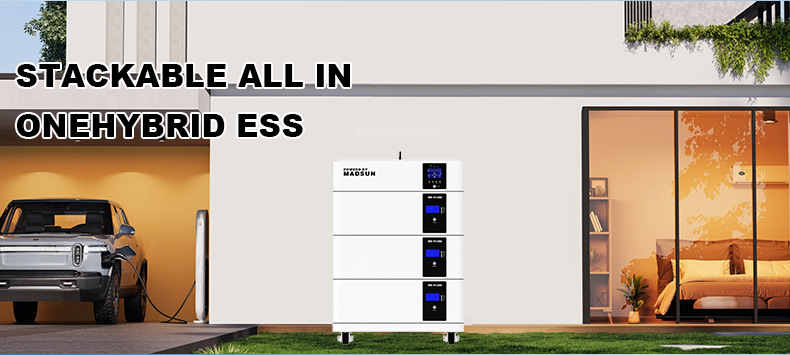

Madsun Complete All in One Split Type ESS Storage Stackable 15KWh 5kWh 10KWh 50kWh Home Solar Battery Inverter 10Kw 12kW 5kW

1 / 5

Madsun Complete All in One Split Type ESS Storage Stackable 15KWh 5kWh 10KWh 50kWh Home Solar Battery Inverter 10Kw 12kW 5kW

Send Inquiry

Product Description

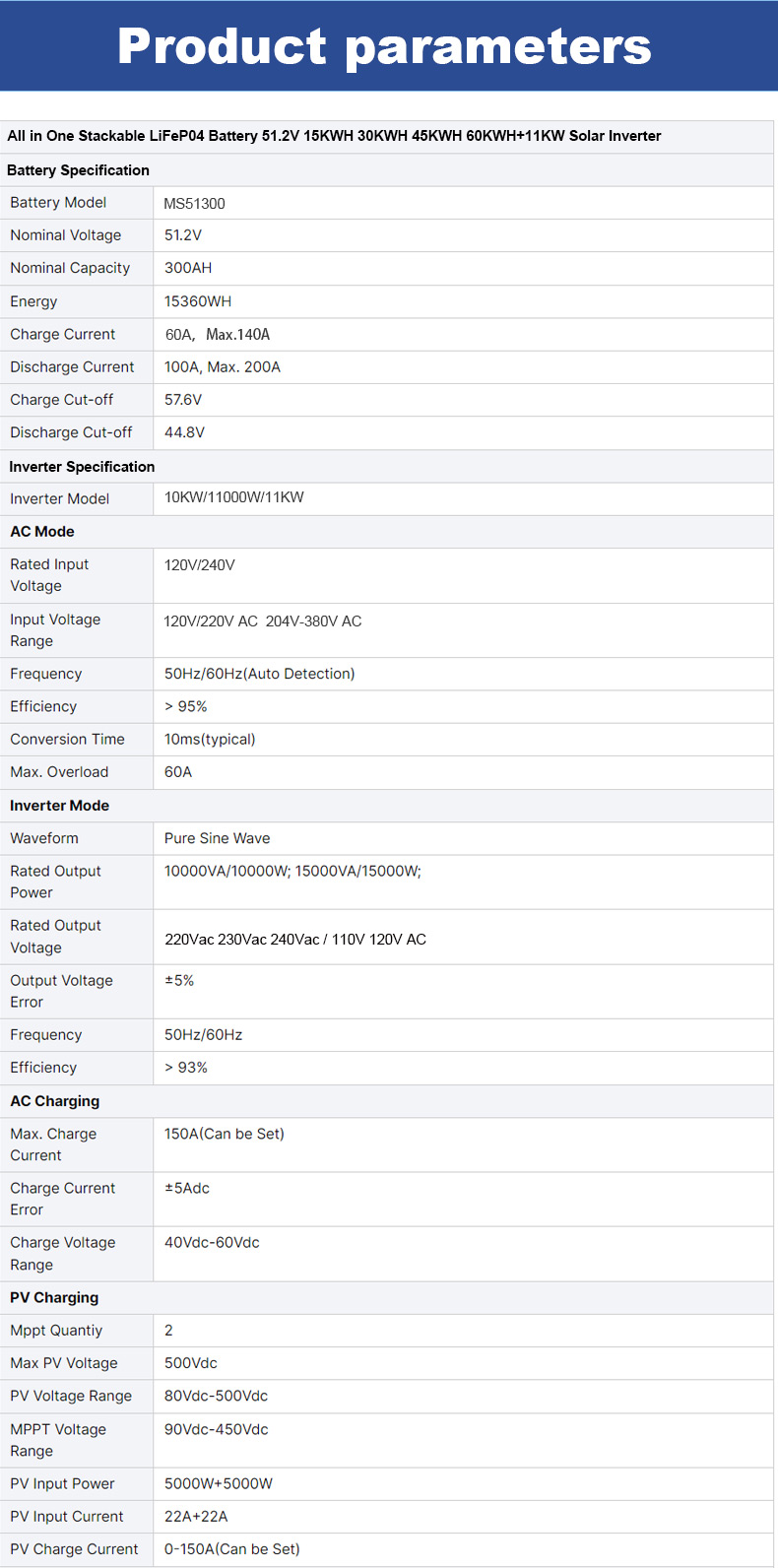

PRODUCT SPECIFICATIONS

Product Name	Complete All in One Split Type ESS Storage Stackable 15KWh 5kWh 10KWh 50kWh Home Solar Battery Inverter 10Kw 12kW 5kW
Model	MSBI51300	MSBI51200	MSBI51100
Energy	15kWh to 75kWh Option	10kWh to 50kWh Option	5kWh to 30kWh Option
ESS Specification	Stackable 15kWh + Inverter 10kW/12kW	Stackable + Inverter 10kW/12kW	Stackable + Inverter 5kW
Nominal Capacity	300Ah (stacked up to 1500Ah)	200Ah (stacked up to 1000Ah)	100Ah (stacked up to 500Ah)
Nominal Voltage	Low Voltage 51.2V (16S)
Cell Type	Grade A 3.2V 300Ah EV	Grade A 3.2V 200Ah EV	Grade A 3.2V 100Ah EV
Max Charge Current	140A	140A	70A
Max Discharge Current	200A	200A	100A
Cycle Life	≥6500 cycles
Lifespan	20 - 30 Years
Communication	RS485 / RS232 / CAN

Core Features & Benefits

🛡️

Professional Guarantee
10 years guarantee for product reliability and performance.

⚙️

Smart Management
Integrated Smart BMS (200A/100A) with RS485/RS232/CAN protocol support.

📊

Intuitive Control
Clear Touch Screen LCD for real-time battery monitoring and system status.

🔌

Plug and Play

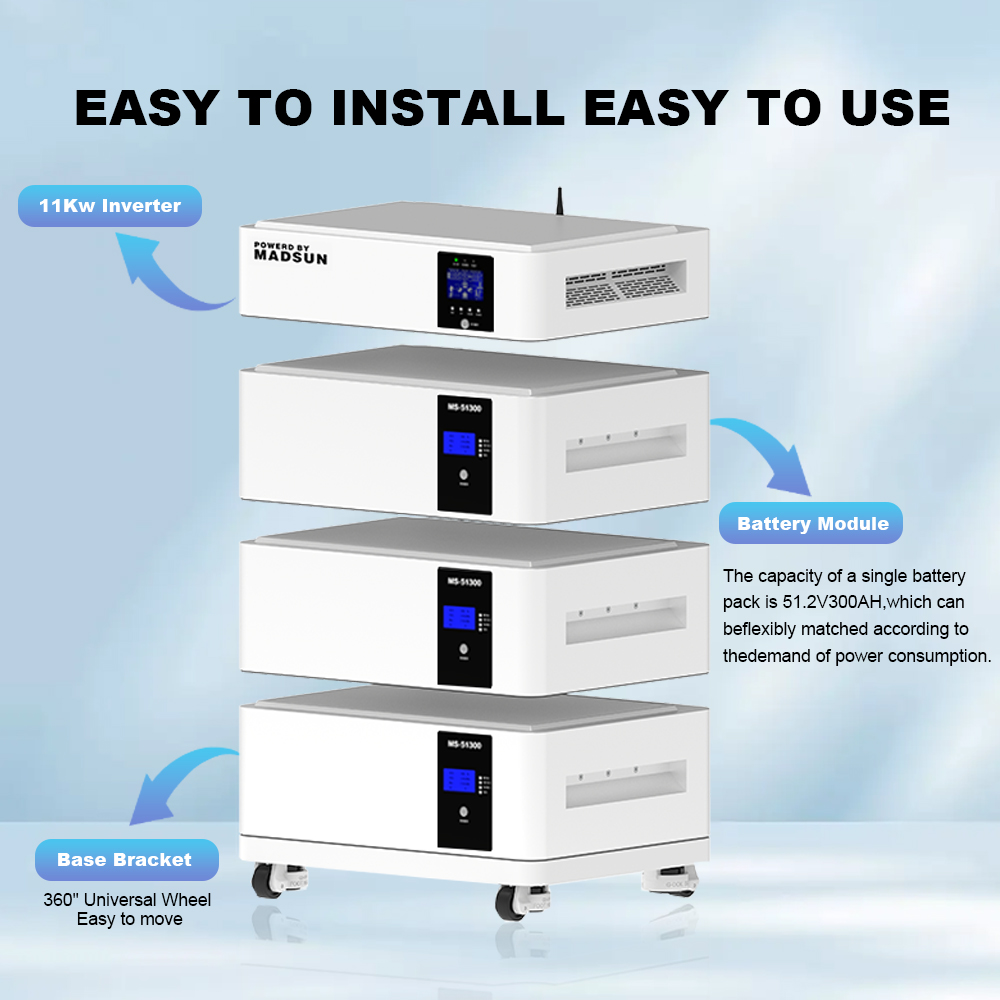

Split type design ensures easier connection between batteries and the inverter.

🛒

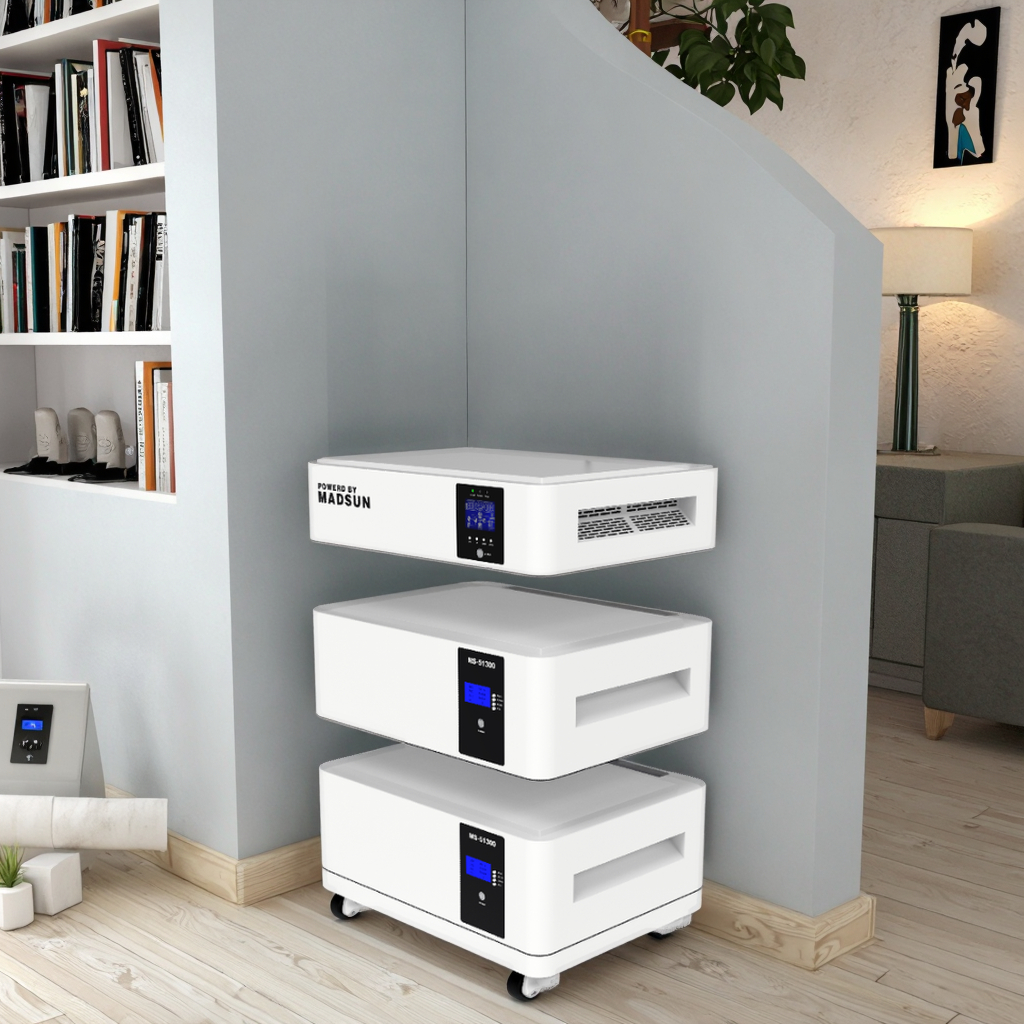

Universal Mobility
Bottom floor-grounded movable universal wheels base for easy placement.

🔋

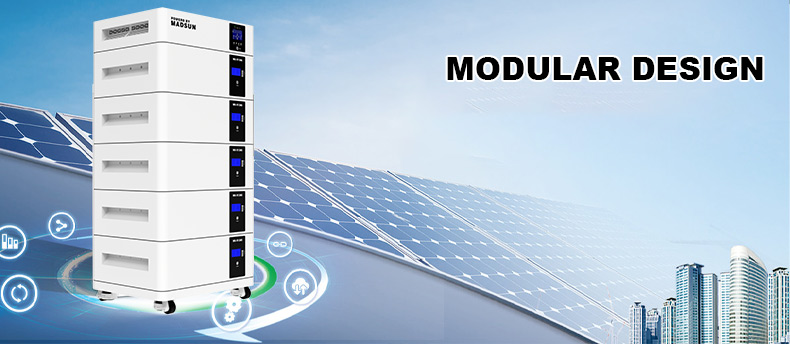

High Capacity Scalability

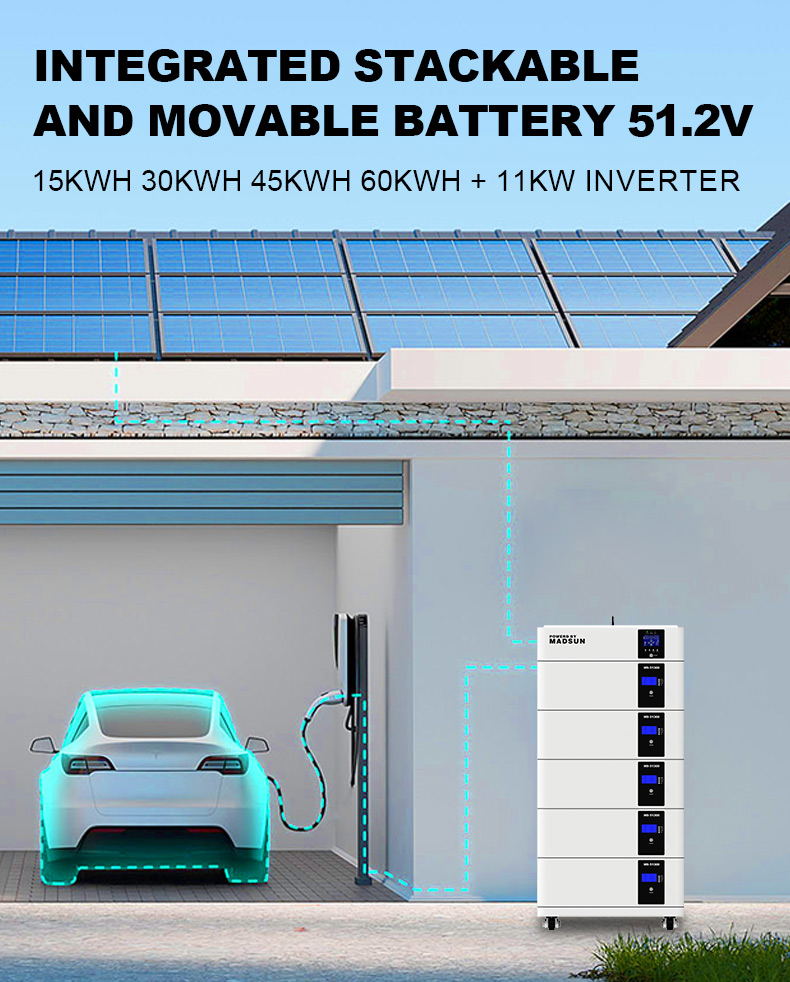

Stackable units in parallel to increase capacity from 5kWh up to 75kWh.

Product Overview

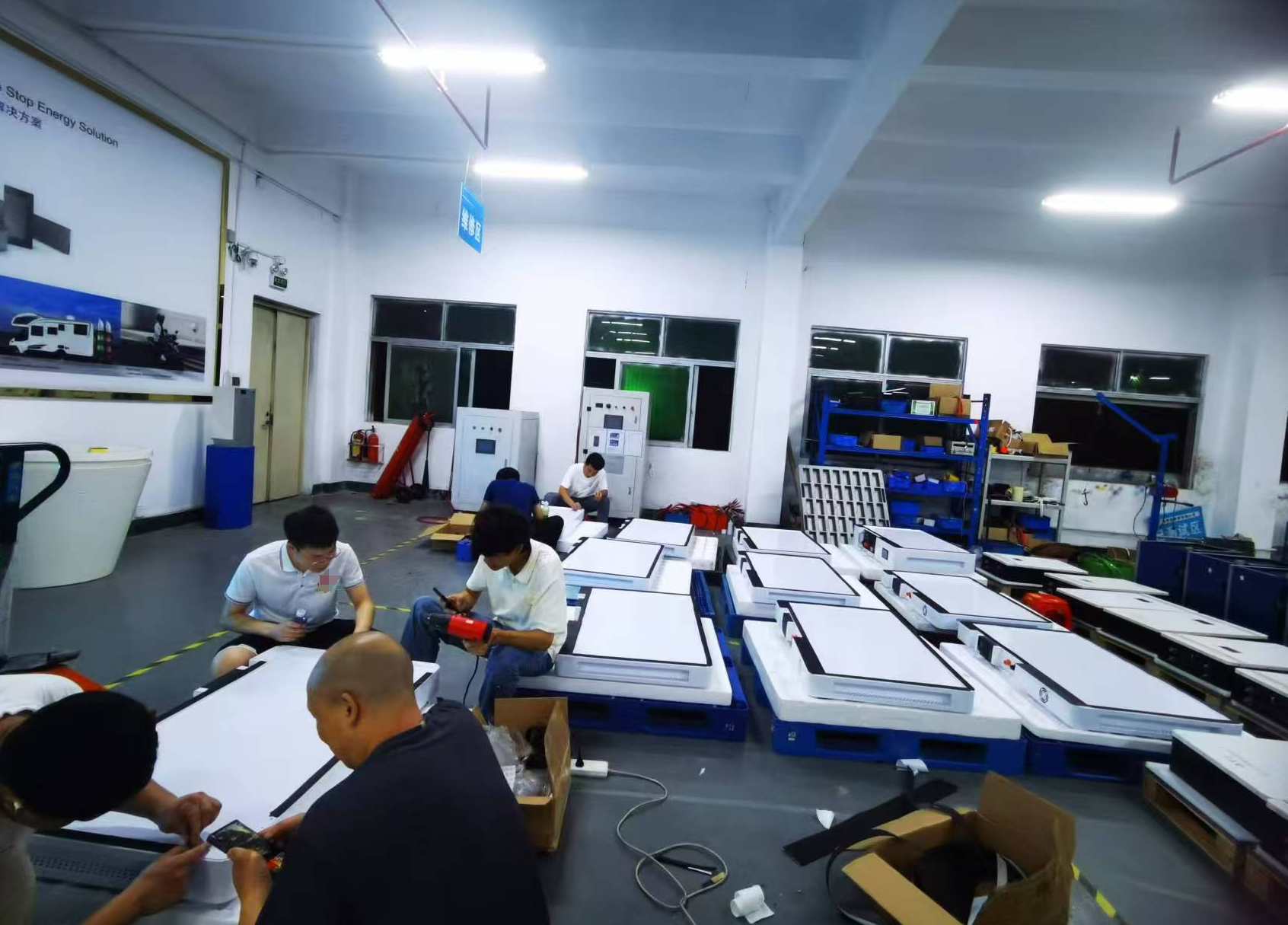

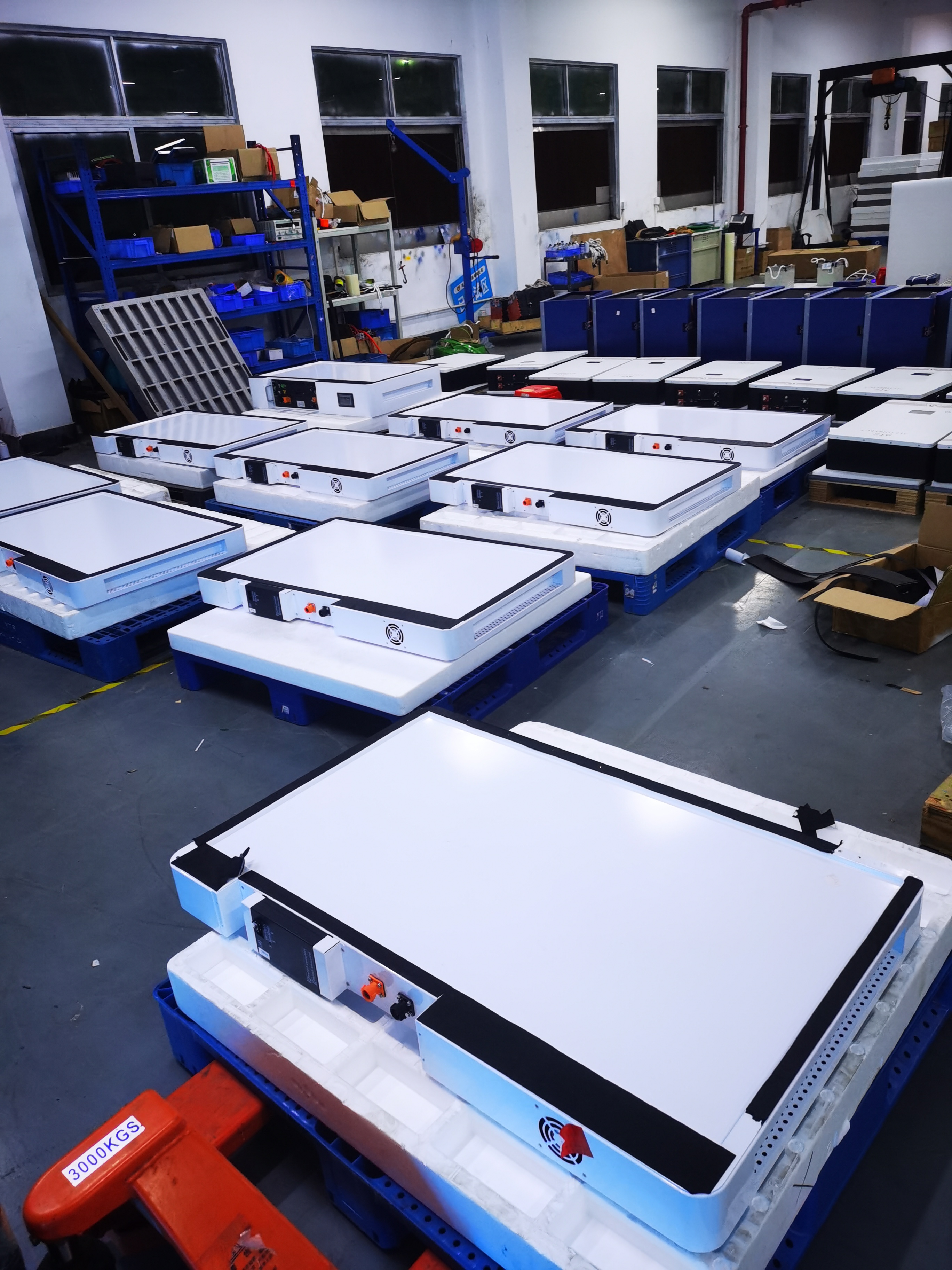

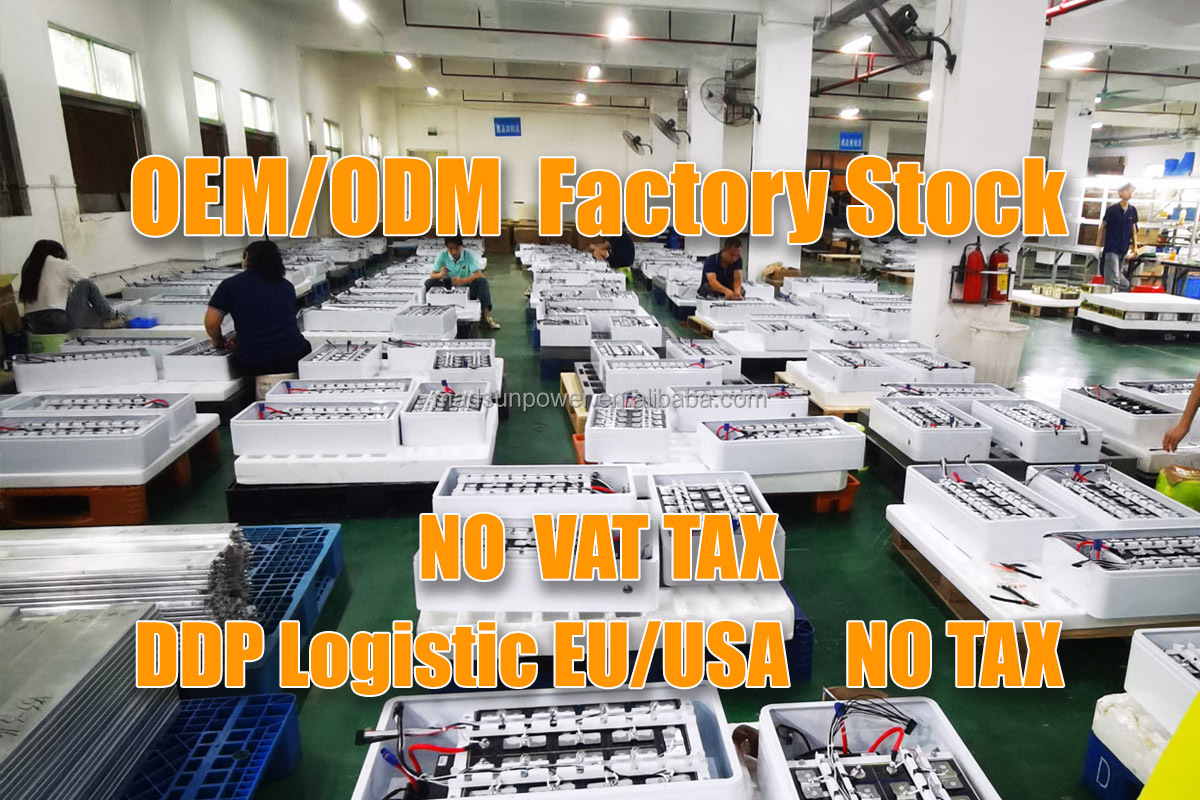

Manufacturing Quality

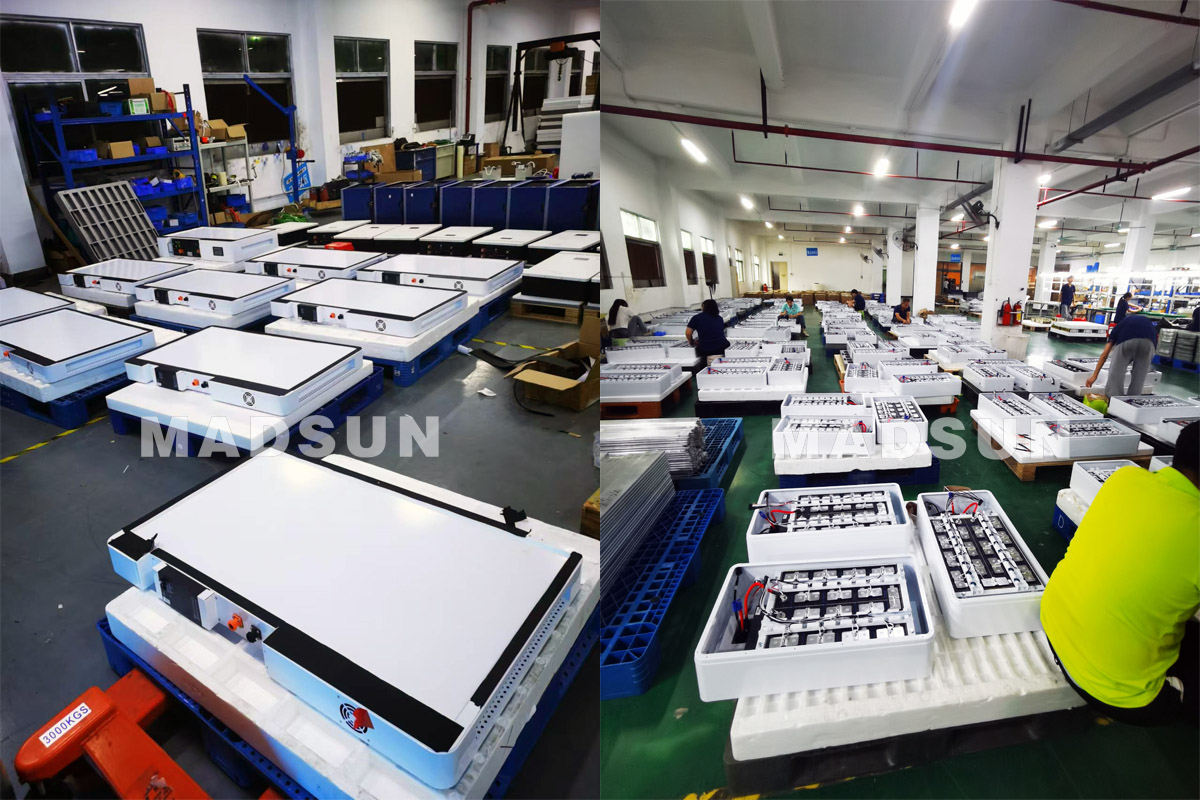

We use Grade A quality and top brand LiFePO4 cells. Only prismatic LiFePO4 cells are used for all energy storage projects to ensure longevity and safety. Our facility includes advanced battery testing devices to guarantee perfect condition before shipment.

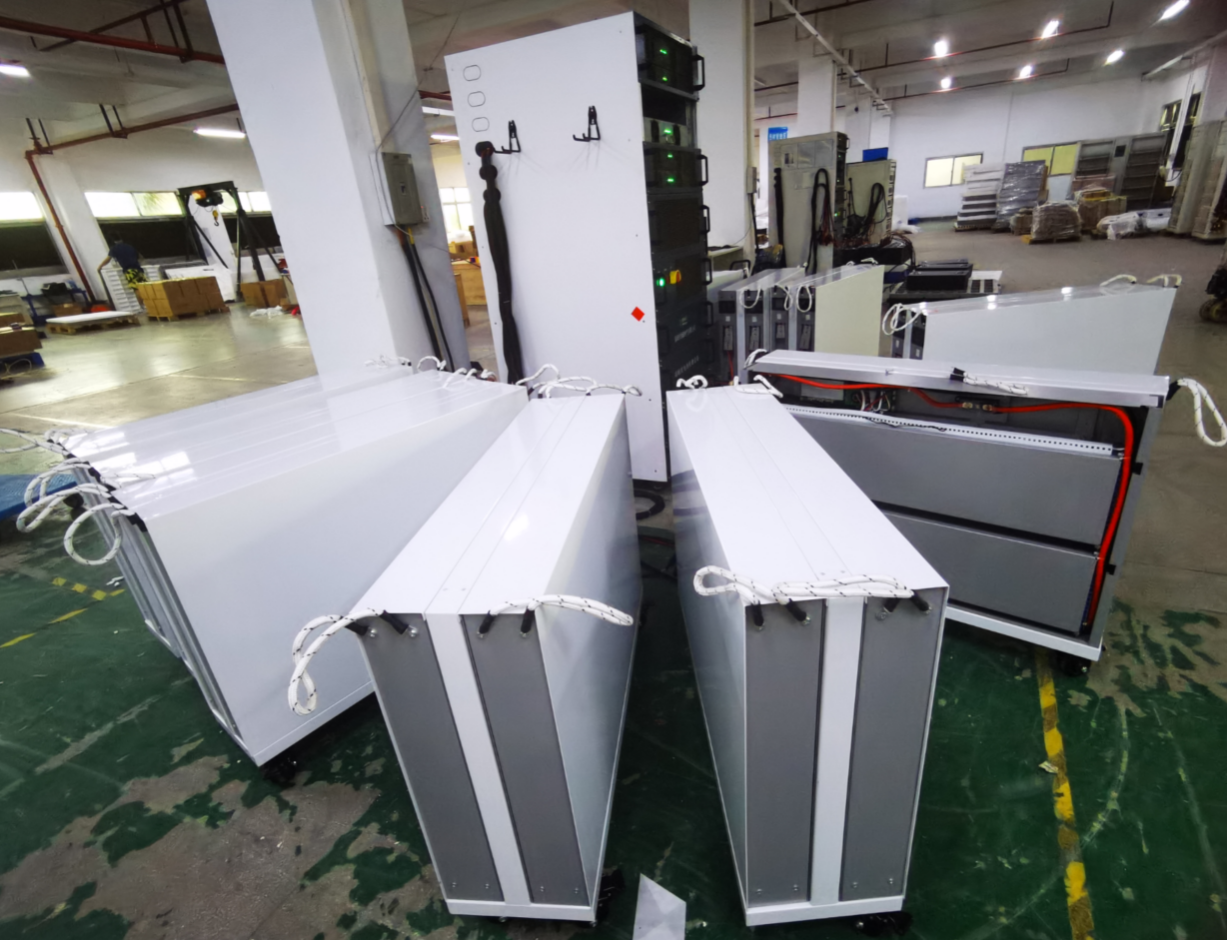

Packaging & Deployment

Frequently Asked Questions

What is included in the battery pack?

The package includes the battery case, BMS, and the battery pack. Customized connectors and chargers are also available.

How often should I recharge the battery?

It is recommended to recharge every 2 months. A full charge depends on the charger current: a 100A charger takes about 4+ hours for a 51.2V 300Ah battery, while a 140A fast charger takes 3+ hours.

How do I wake up a battery if I forgot to recharge it?

Please charge the battery for a longer duration than normal to reactivate the cells from sleep mode.

What are the delivery lead times?

Small quantities can be finished in 7-10 days. Bulk orders typically take 10-25 days depending on the specific quantity.

What is the expected cycle life and warranty?

We offer a 10-year warranty. The LiFePO4 battery pack is rated for at least 6000 cycles at 80% DOD, ensuring a lifespan of approximately 15-20 years with daily use.

Can I customize the logo and packaging?

Yes, we provide silk printing, metal curving logos, and customized packaging options for bulk orders and agent partners.
