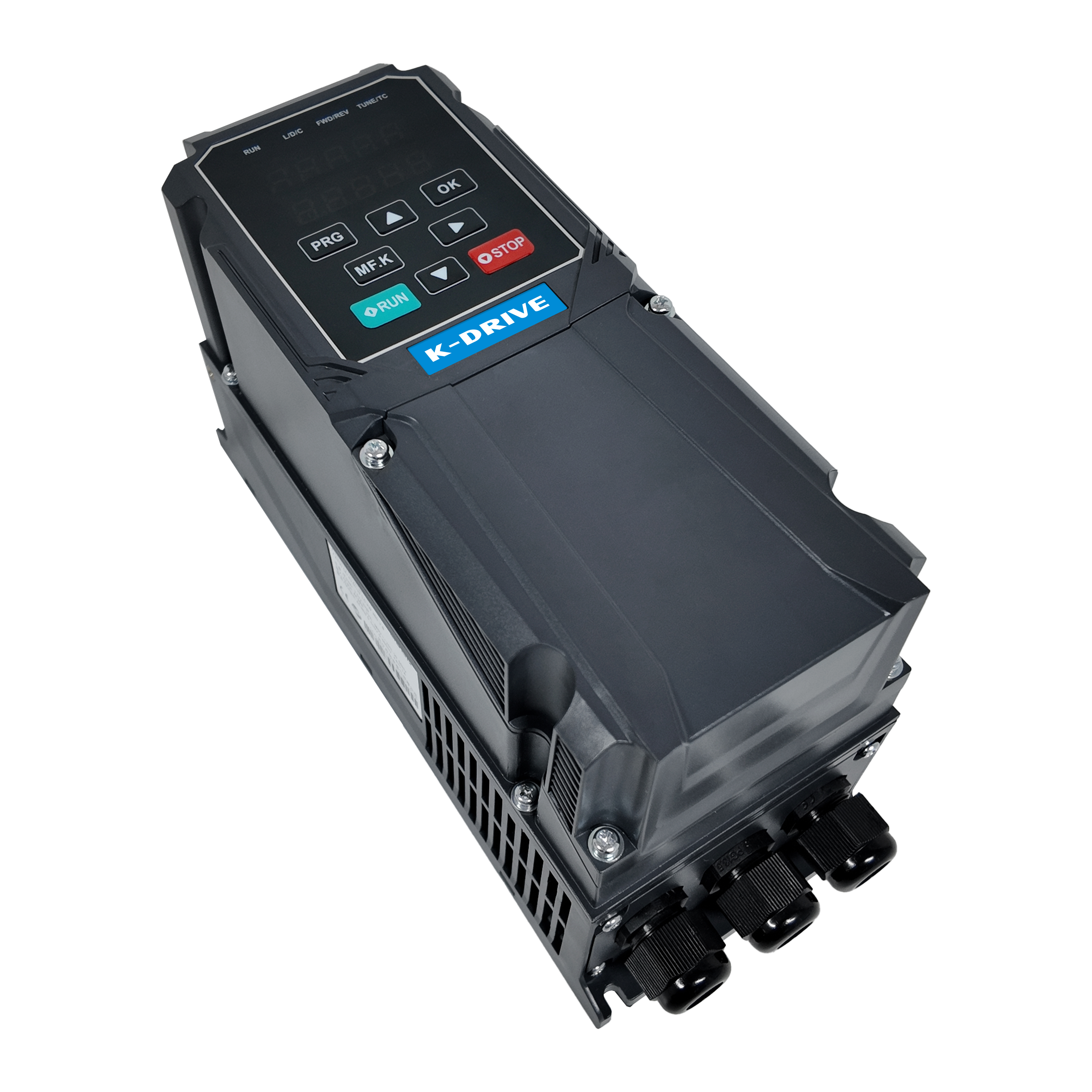

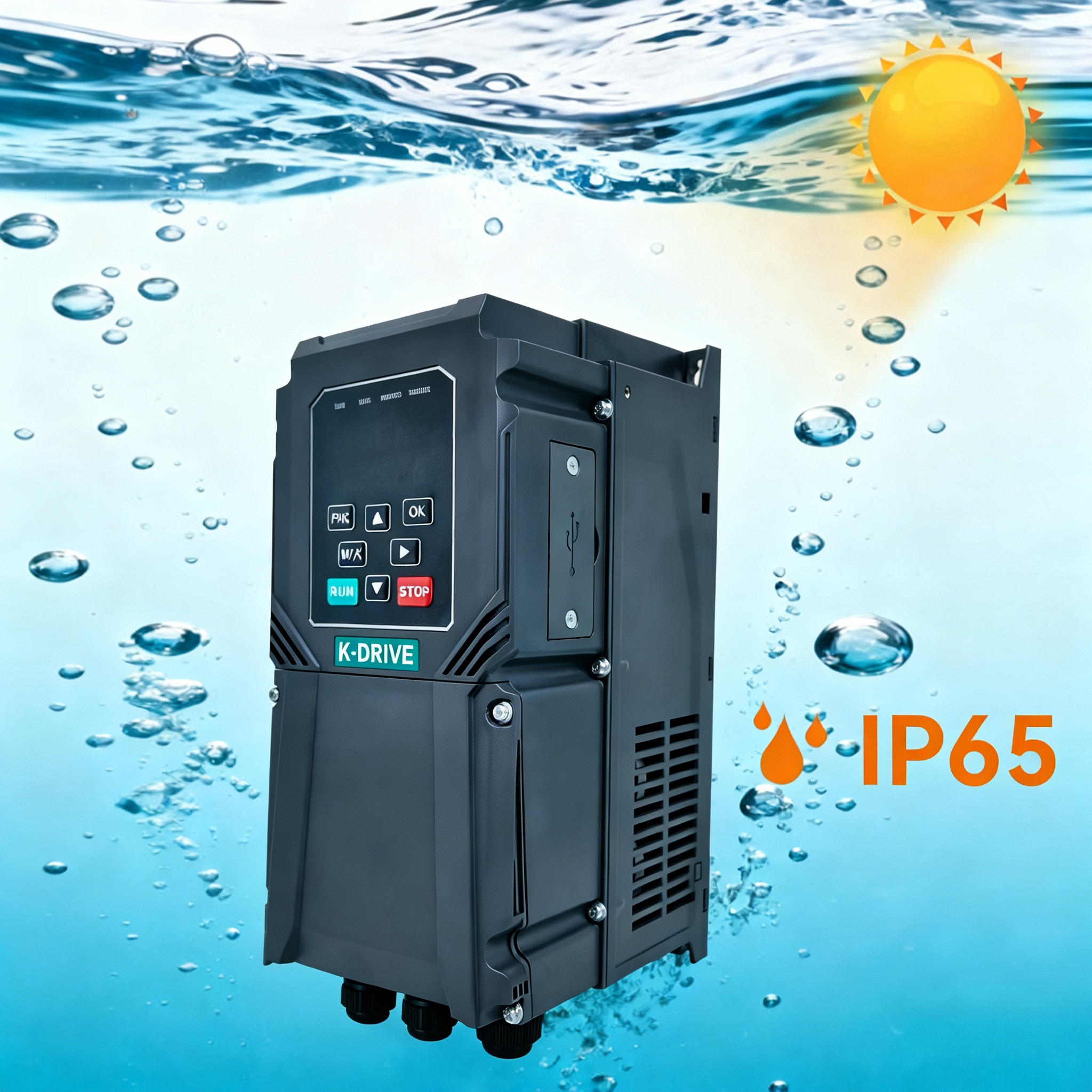

IP65 Waterproof Outdoor 11kw Frequency Inverter Variable Frequency Drivers for Solar Pump Single Three Phase 380V 220V

Products Description

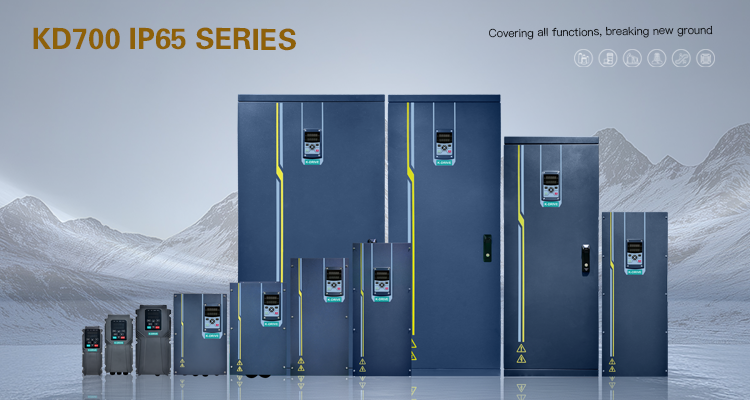

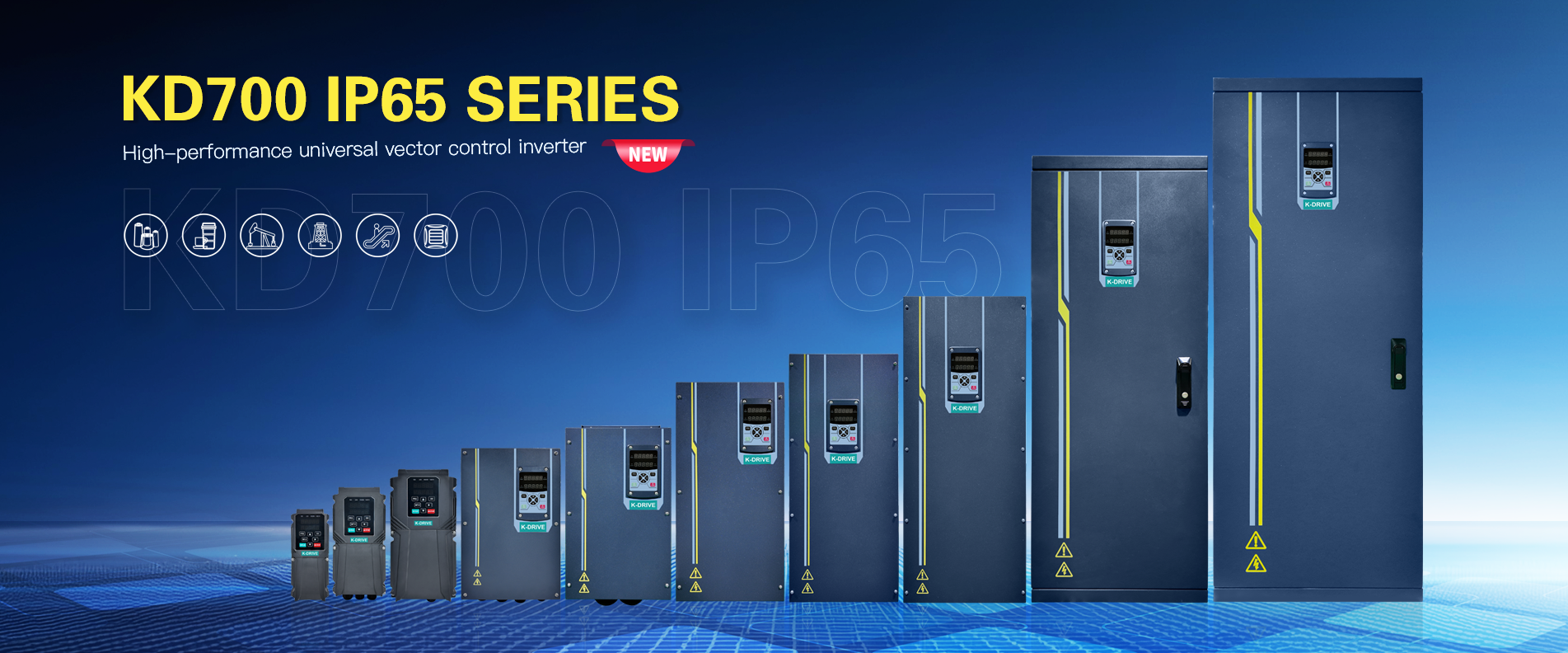

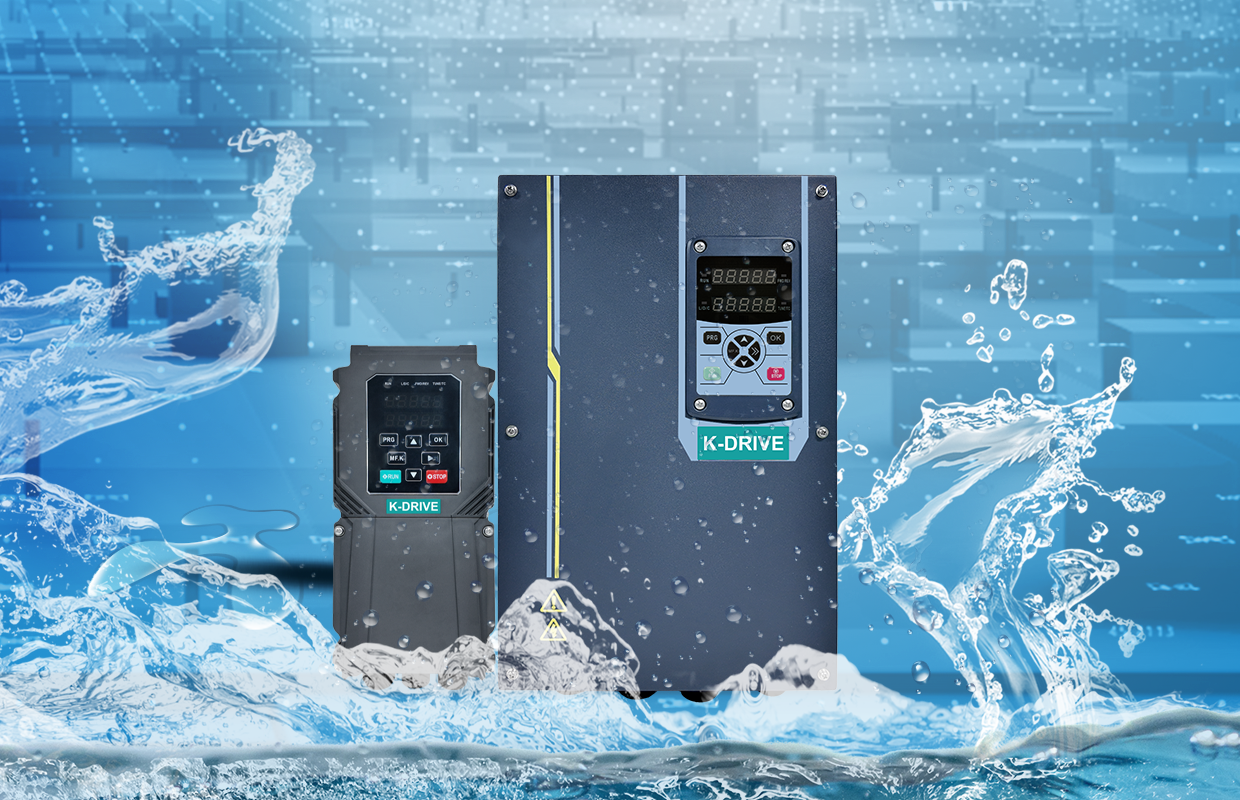

KD700/IP65 series is a high protection performance products, based on the KD700 platform development, efficient, intelligent, easy to use, economy, quality, service as a whole. Realize synchronous, asynchronous motor integration drive, integration of various control, communication, expansion and many other functions. Safe and reliable, excellent control!

Function Introduction

Flame retardant ABS thermoplastic polymer material, rice gold baking paint spray process, safer, more corrosion resistant.
Built-in 105°C-10000h high quality capacitor, more durable.
Independent air cooling design, longer life.
0.1s output 200% curve current protection, more vigorous.
Equipped with PID, PLC function, more intelligent.
A variety of phase, voltage, current, motor, drive protection, more comprehensive.
Motor control mode optional, SVC speed sensorless vector control, more accurate.
Thousands of groups of parameter Settings, more powerful.
Wide voltage design -15% to +20%, more suitable.

Product features

High starting torque characteristics

Low frequency torque is high. In closed-loop vector mode, it can output 200% rated torque at 0.0Hz and run stably with load at ultra-low speed of 0.01Hz. Powerful low torque output can effectively ensure the stability and smooth start. In torque control mode, the torque output is stable. The linearity deviation is less than 3%, which greatly ensures the stable operation of the equipment.

Self-learning of motor parameters

No matter in the rotation or static motor self-learning, the motor parameters can be accurately obtained, convenient debugging, simple operation, providing higher control accuracy and response speed.

Overexcitation braking function

In the case of partial inertia shutdown, the braking resistance can be not increased, and the over-excited braking function can realize rapid braking, improving the product usability. Overexcitation braking function effectively inhibits the bus voltage rise in the deceleration process, avoids the inverter overvoltage fault, and realizes fast braking to meet the power outage and quick stop.

Wide voltage design

The allowable fluctuation range of the input voltage is 15% of the standard rated voltage taxi, so that the time can be protected from the impact of voltage fluctuations to meet the harsh grid environment.

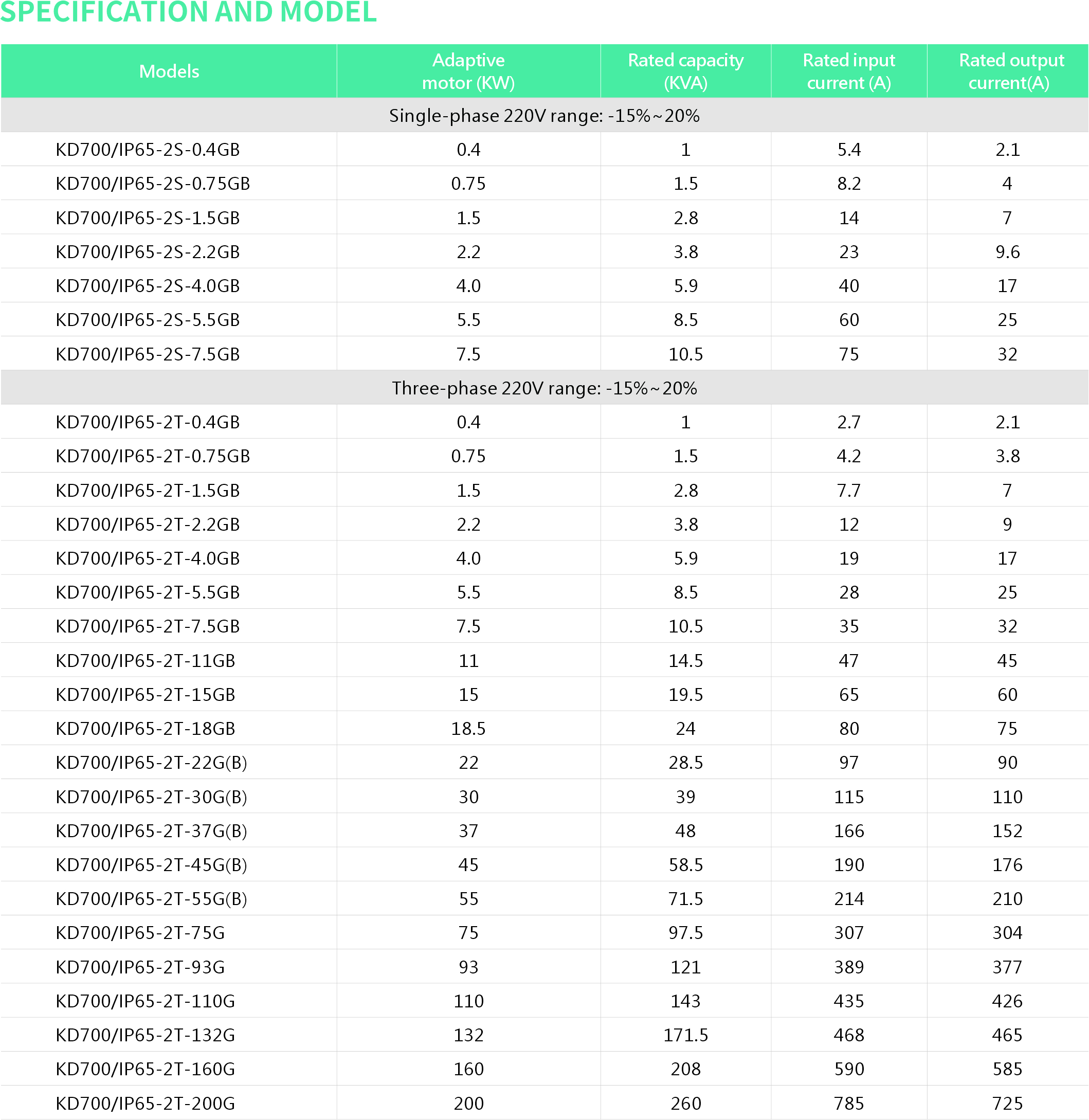

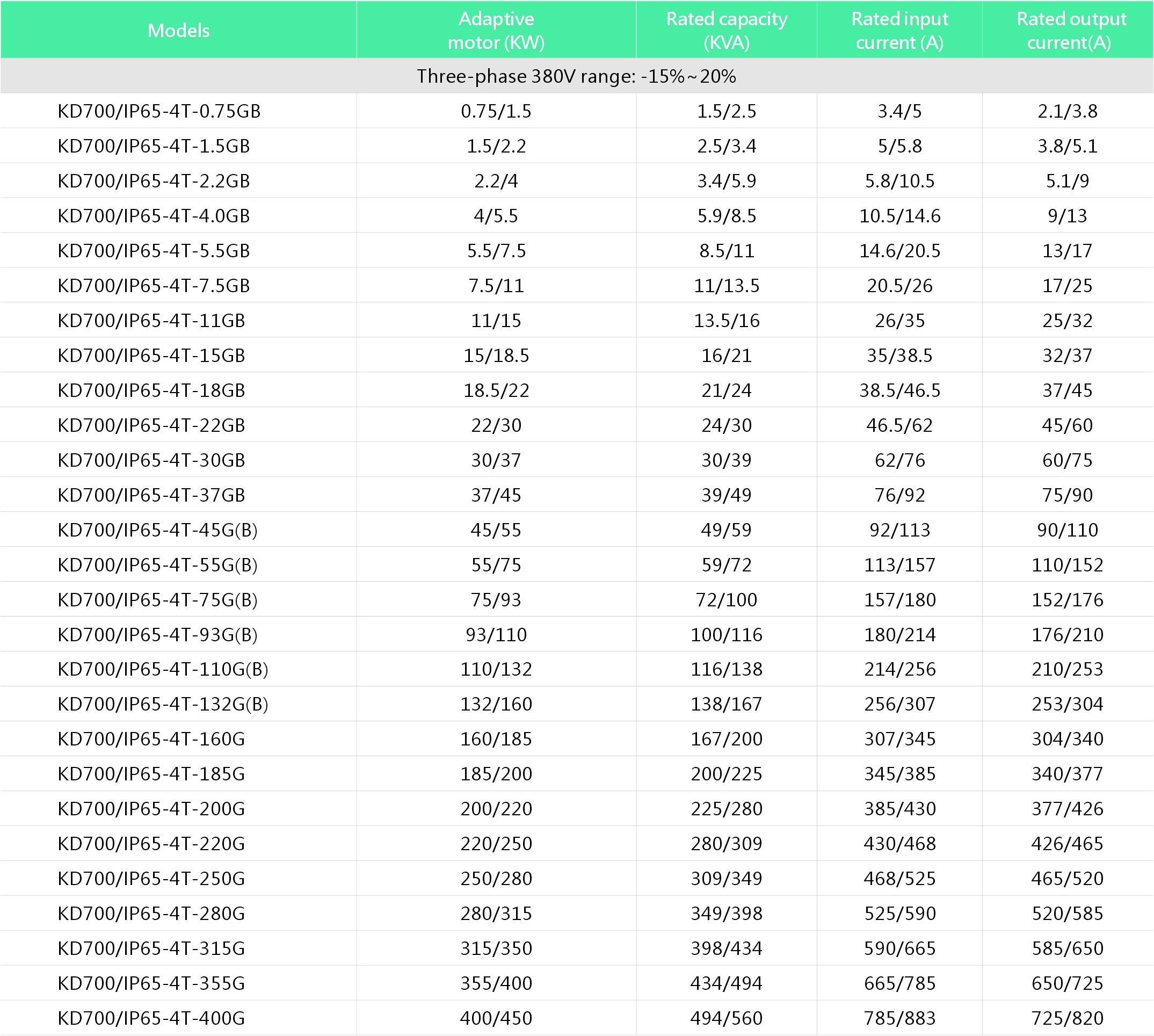

Technical Parameter

Category	Project	Description
Control Characteristics	Highest frequency	Vector control: 0-600Hz; VF control: 0-1200Hz
	Carrier frequency	1K-16kHz; automatic adjustment based on load
	Input resolution	Digital: 0.01Hz; Analog: Max frequency × 0.1%
	Control mode	V/F, Open loop vector (SVC), Closed loop vector (FVC)
	Motor type	Asynchronous motor, permanent magnet synchronous motor
	Starting torque	G type: 0.5Hz/180%; P type: 0.5Hz/120%
	Speed range	1:200 (SVC); 1:1000 (FVC)
	Current limiting	Built-in fast current limiting algorithm to reduce overcurrent faults
	Run Command	Operation panel, control terminal, and serial communication
	Frequency source	10 sources including digital, analog voltage/current, pulse, etc.

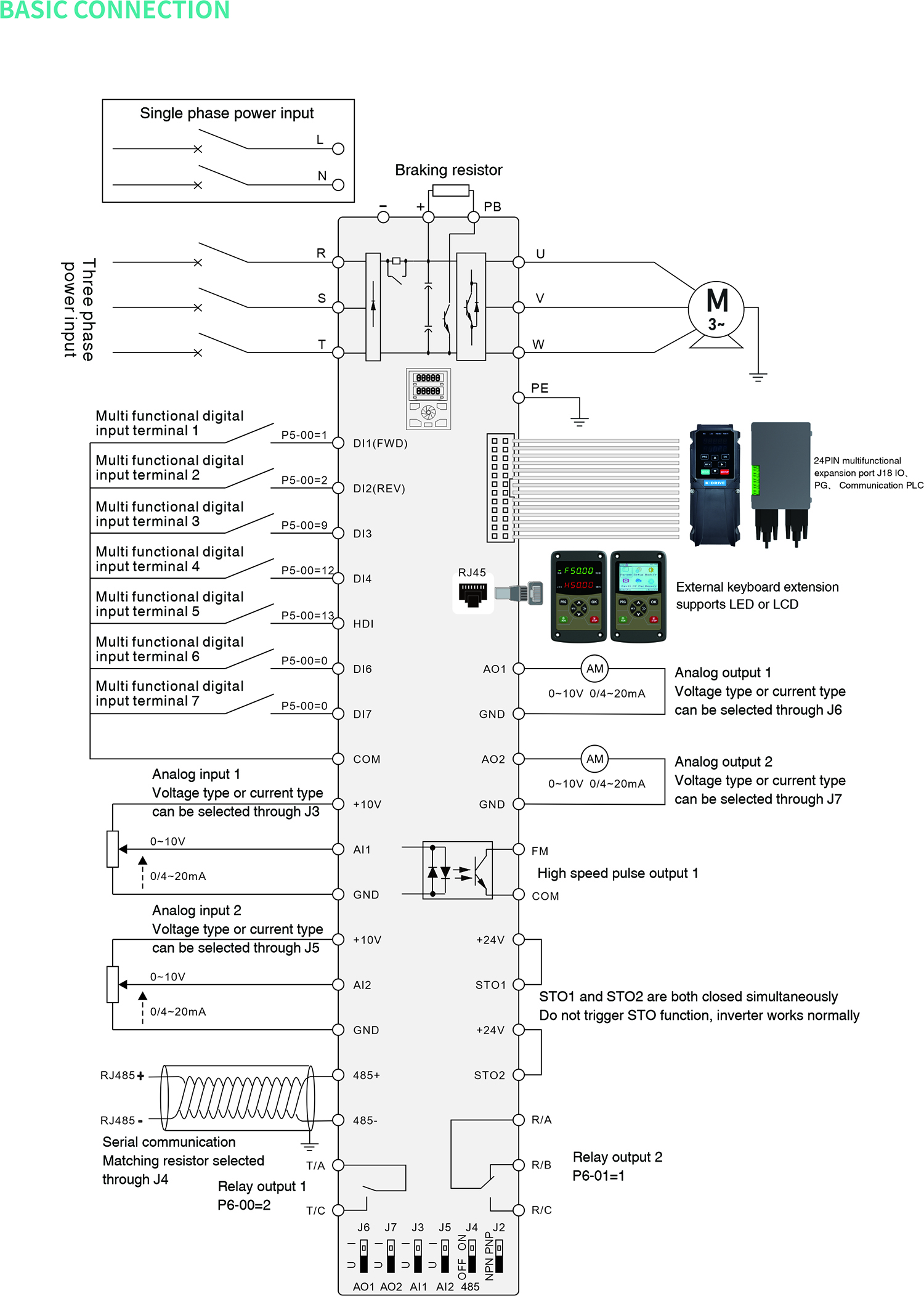

Input and Output	Digital input	D1-DI7 multifunctional, HDI high-speed pulse input
	Analog input	Two inputs, 0-10V or 0/4-20mA selectable
	Analog output	Two outputs, 0-10V or 0/4-20mA selectable
	Relay output	Two relay outputs, 250VAC/3A or 30VDC/1A

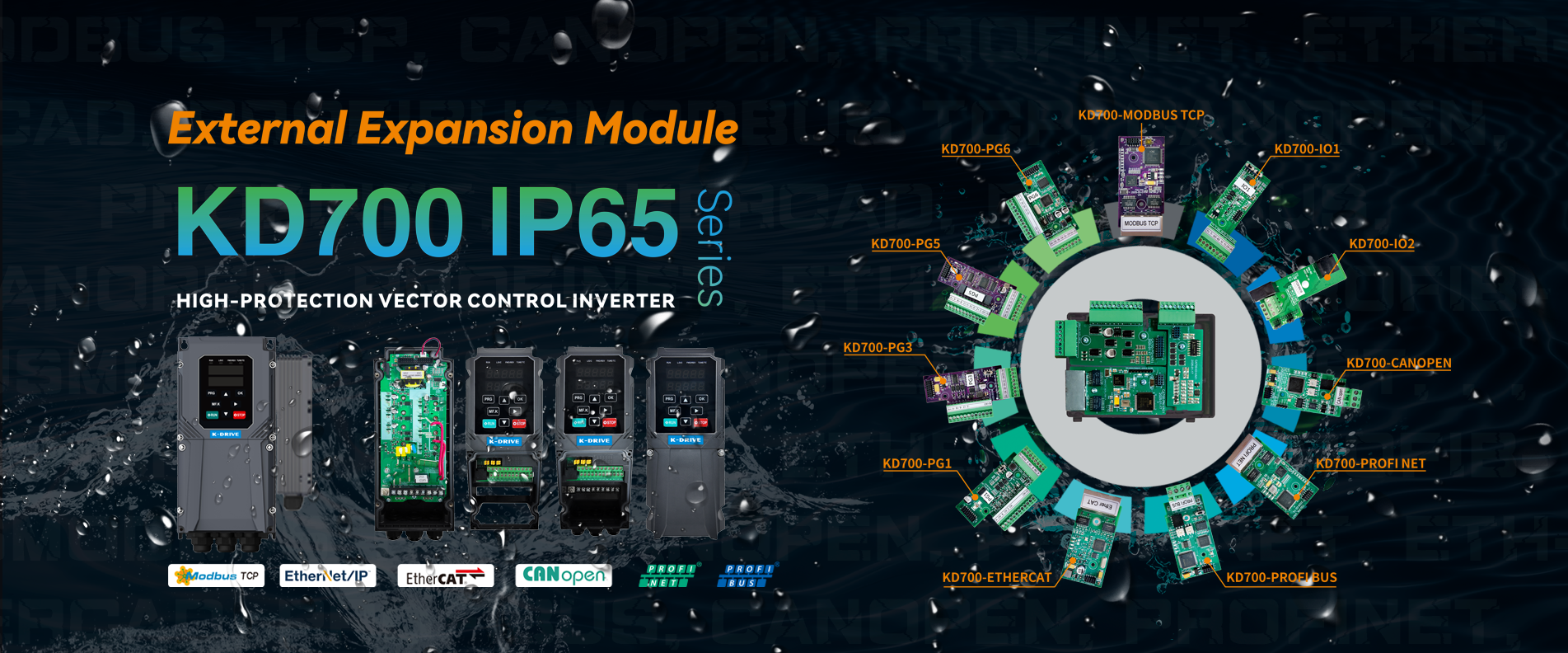

	Communication	Standard Modbus 485; Optional Profinet, Ethercat, CANopen
Environmental	Protection level	IP65 (High protection) / IP20 (Standard)
	Temperature	-10℃ to +50℃ (derating required above 40℃)
	Humidity	Less than 95% RH, no condensation

Company Profile

FAQ

Q1: What motors can the KD700/IP65 series drive? It realizes integrated driving for both synchronous and asynchronous motors, offering high versatility for various industrial applications.

Q2: How does the wide voltage design benefit the user? The allowable input voltage fluctuation is -15% to +20%, allowing the device to operate stably even in harsh or unstable power grid environments.

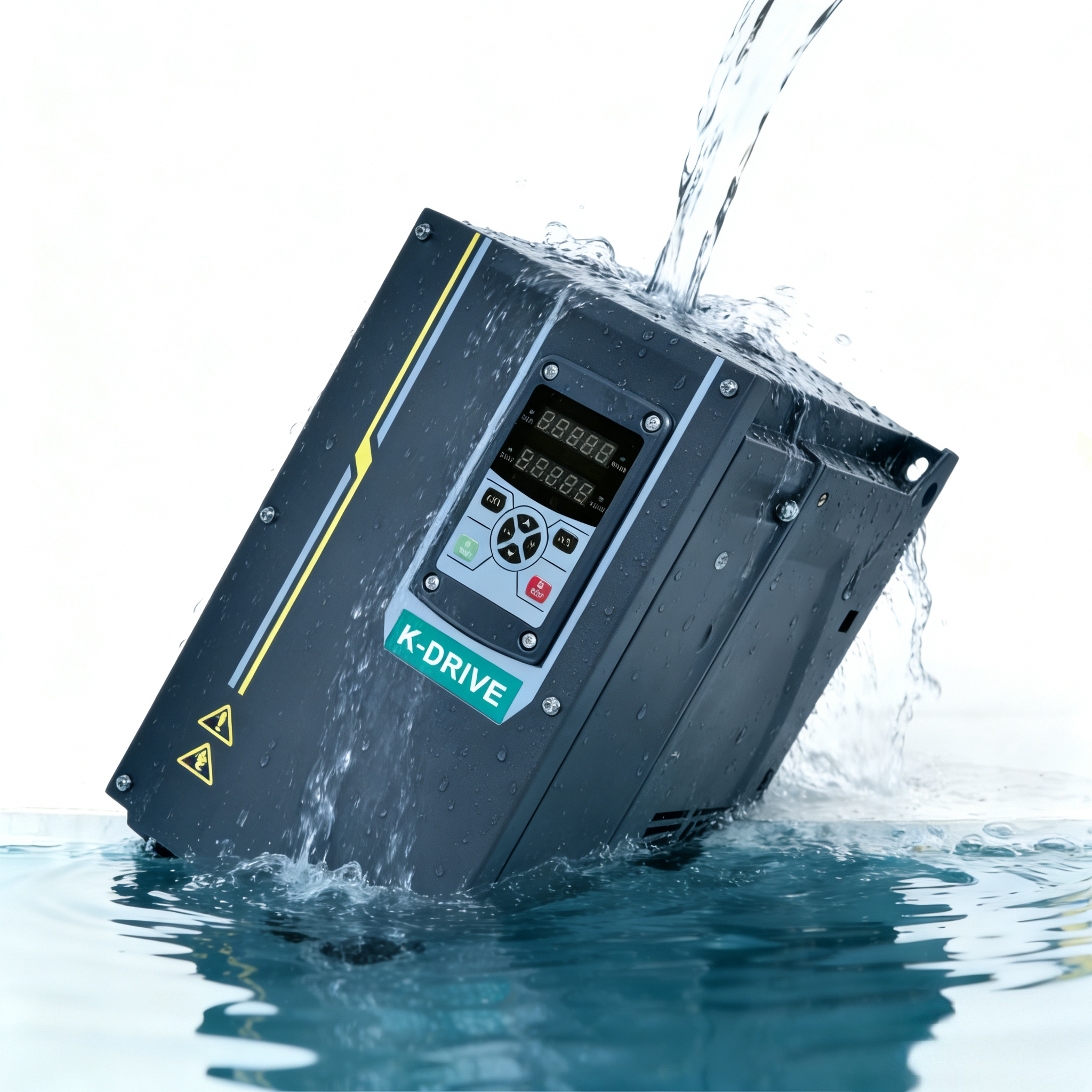

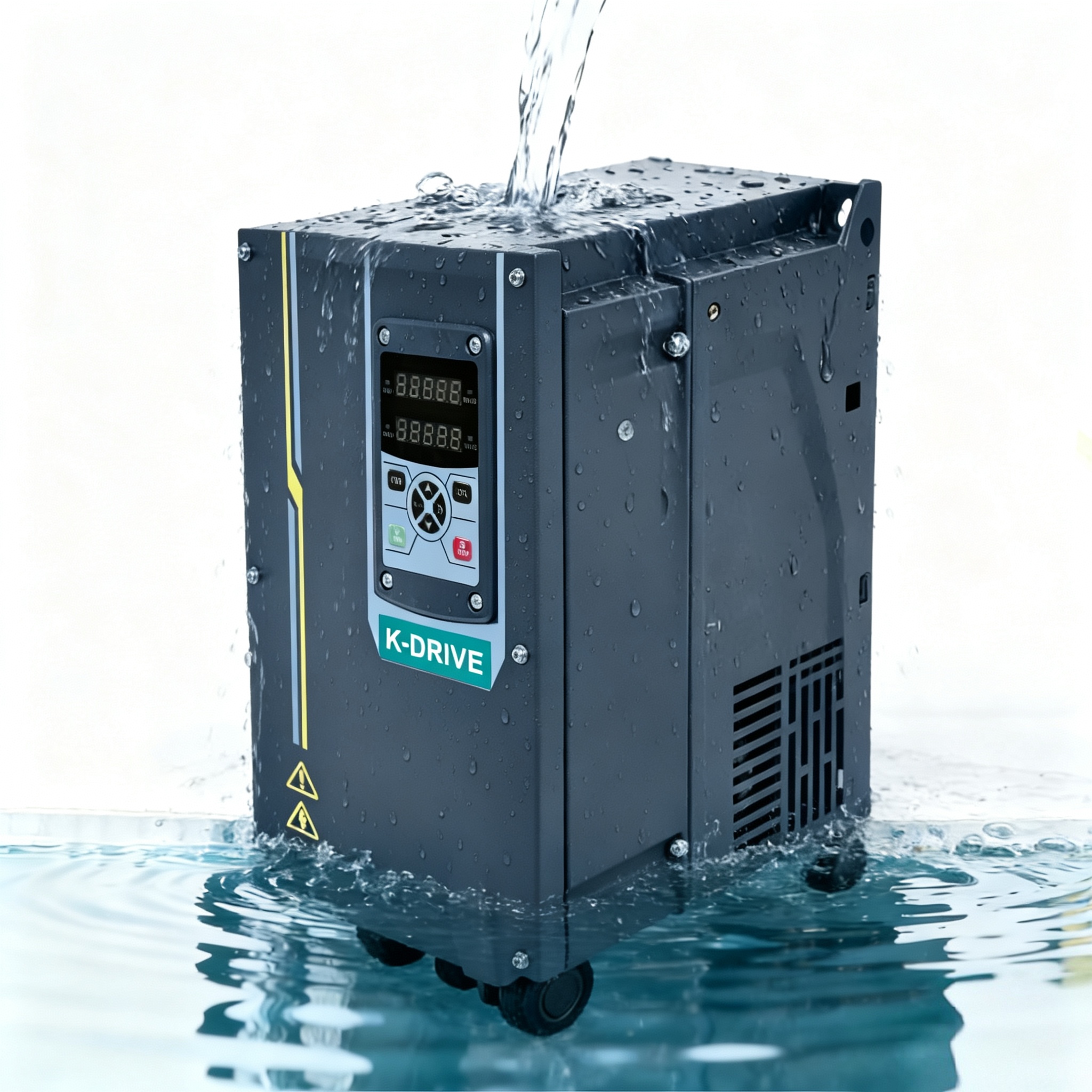

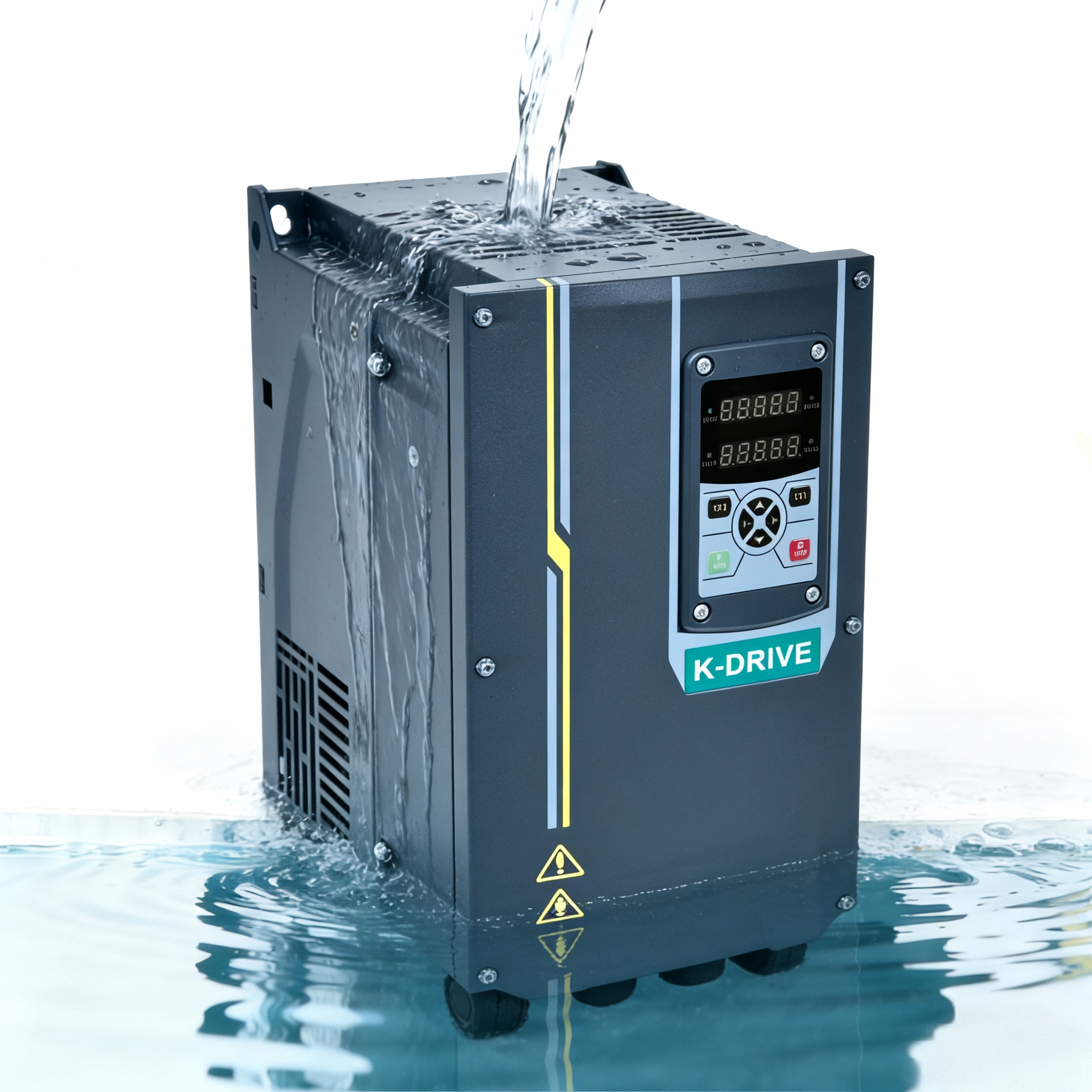

Q3: What is the benefit of the IP65 protection level? The IP65 rating ensures high protection against dust and water, making it ideal for environments where high durability and reliability are required.

Q4: Does the KD700 support high starting torque? Yes, in closed-loop vector mode, it can output 200% rated torque even at 0.0Hz, ensuring smooth and stable starts under heavy loads.

Q5: Can I extend the keyboard for remote operation? Yes, customers can extend the keyboard using standard Ethernet cables, simplifying installation and control layout.

Q6: What communication protocols are compatible? It features standard Modbus 485 and supports optional modules for Profinet, Ethercat, CAN, and CANopen protocols.
