| Technical Data | |||||
|---|---|---|---|---|---|
| Model | Jup-3G2-LE | Jup-5G2-LE | Jup-6G2-LE | Jup-8G2-LE | Jup-10G2-LE |
| Battery Input | |||||
| Battery Type | Lead-acid or Li-ion | ||||
| Battery Voltage Range (V) | 40-60 | ||||
| Max. Charge Current (A) | 70 | 120 | 140 | 190 | 210 |
| Max. Discharge Current (A) | 70 | 120 | 140 | 190 | 210 |
| Charging Curve | 3 Stages/Equalization | ||||
| Number of Battery input | Optional | ||||
| Charging Strategy for Li-ion Battery | Self-Adaption to BMS | ||||
| PV String Input | |||||
| Max. DC Input Power (W) | 4,500 | 7,500 | 9,000 | 12,000 | 15,000 |
| PV Input Voltage (V) | 370(125~500) | ||||
| MPPT Range (V) | 150~425 | ||||
| Start-up Voltage (V) | 120 | ||||
| PV Input Current (A) | 17 | 17+17 | 17+17 | 26+26 | 26+26 |
| Max. PV Isc (A) | 20 | 20+20 | 20+20 | 34+34 | 34+34 |
| No. of MPPT Trackers | 1 | 2 | 2 | 2 | 2 |
| No. of Strings per MPPT Trackers | 1 | 2/2 | 2/2 | 2/2 | 2/2 |
| AC Output | |||||
| Rated AC Output Power and UPS Power (W) | 3,000 | 5,000 | 6,000 | 8,000 | 10,000 |
| Max. AC Output Power (W) | 3,600 | 6,000 | 7,200 | 9,600 | 12,000 |
| Peak Power(off grid) | 2 times of rated power, 10s | 1.8 times of rated power, 10s | |||
| AC Output Rated Current (A) | 13.04 | 21.73 | 26.08 | 34.78 | 43.47 |
| Max. AC Current (A) | 15.65 | 26.08 | 31.3 | 41.73 | 52.17 |
| Max. Continuous AC Passthrough (A) | 40 | 50 | 50 | 50 | 60 |
| Power Factor | 0.8 leading to 0.8 lagging | ||||
| Output Frequency and Voltage (V) | 50/60Hz,220/230Vac(single phase) | ||||
| Grid Type | single phase | ||||
| Current Harmonic Distortion | THD<3%(Linear load <1.5%) | ||||
| Efficiency | |||||

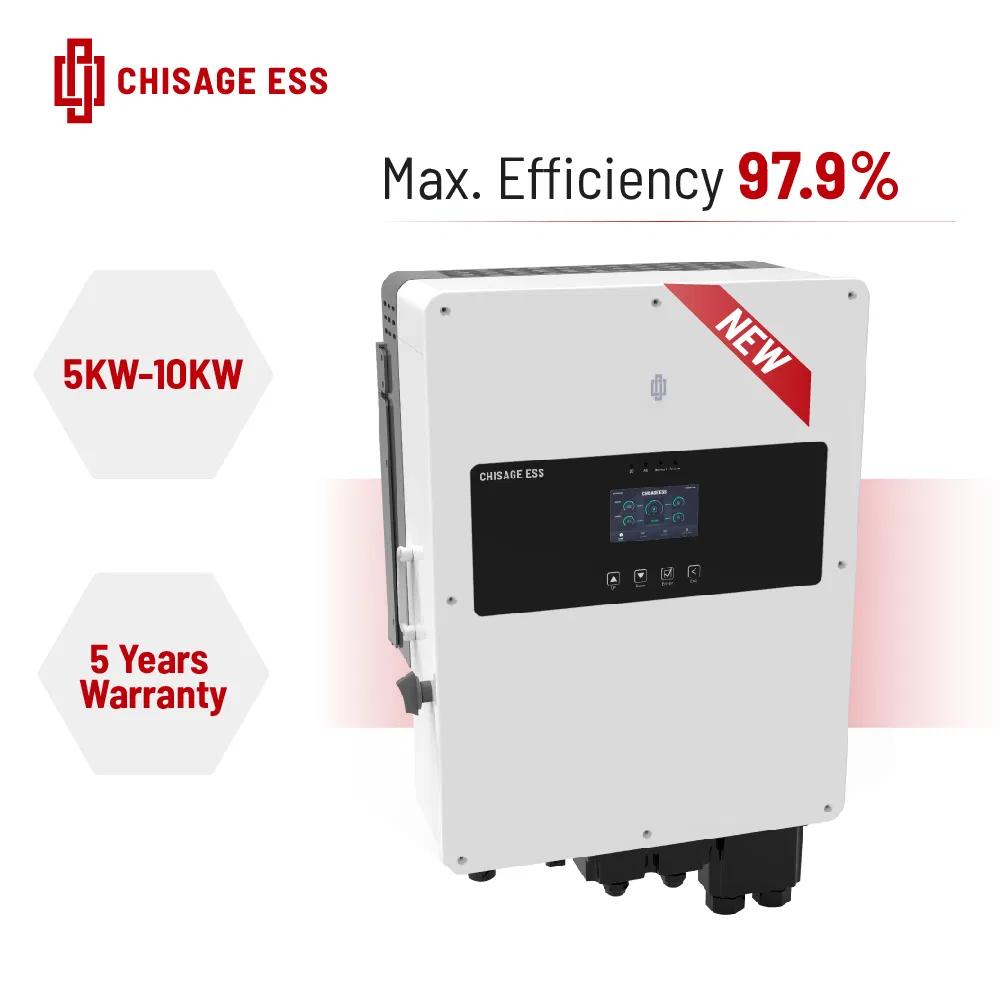

| Max. Efficiency | 97.90% | ||||
| Euro Efficiency | 97.00% | ||||
| MPPT Efficiency | 99.90% | ||||
| Protection | |||||
| Integrated | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection | ||||
| PV ARC Fault Detection | Optional | ||||
| Output Over Voltage Protection | DC Type II/ AC Type III | ||||
| Certifications and Standards | |||||
| Grid Regulation | CEI 0-21,VDE-AR-N 4105,NRS 097,IEC61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11 | ||||
| EMC/Safety Regulation | IEC/EN 62109-1 IEC/EN 62109-2,IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 | ||||
| General Data | |||||
| Operating Temperature Range (ºC) | -45~60,>45 Derating | ||||
| Cooling | Smart Cooling | ||||
| Noise (dB) | ≤45 | ||||
| Communication with BMS | CAN, RS485 34 | ||||
| Weight (kg) | 34/35 | ||||
| Dimensions (mm) | 514W×665H×292D | ||||
| Protection Degree | IP65 | ||||

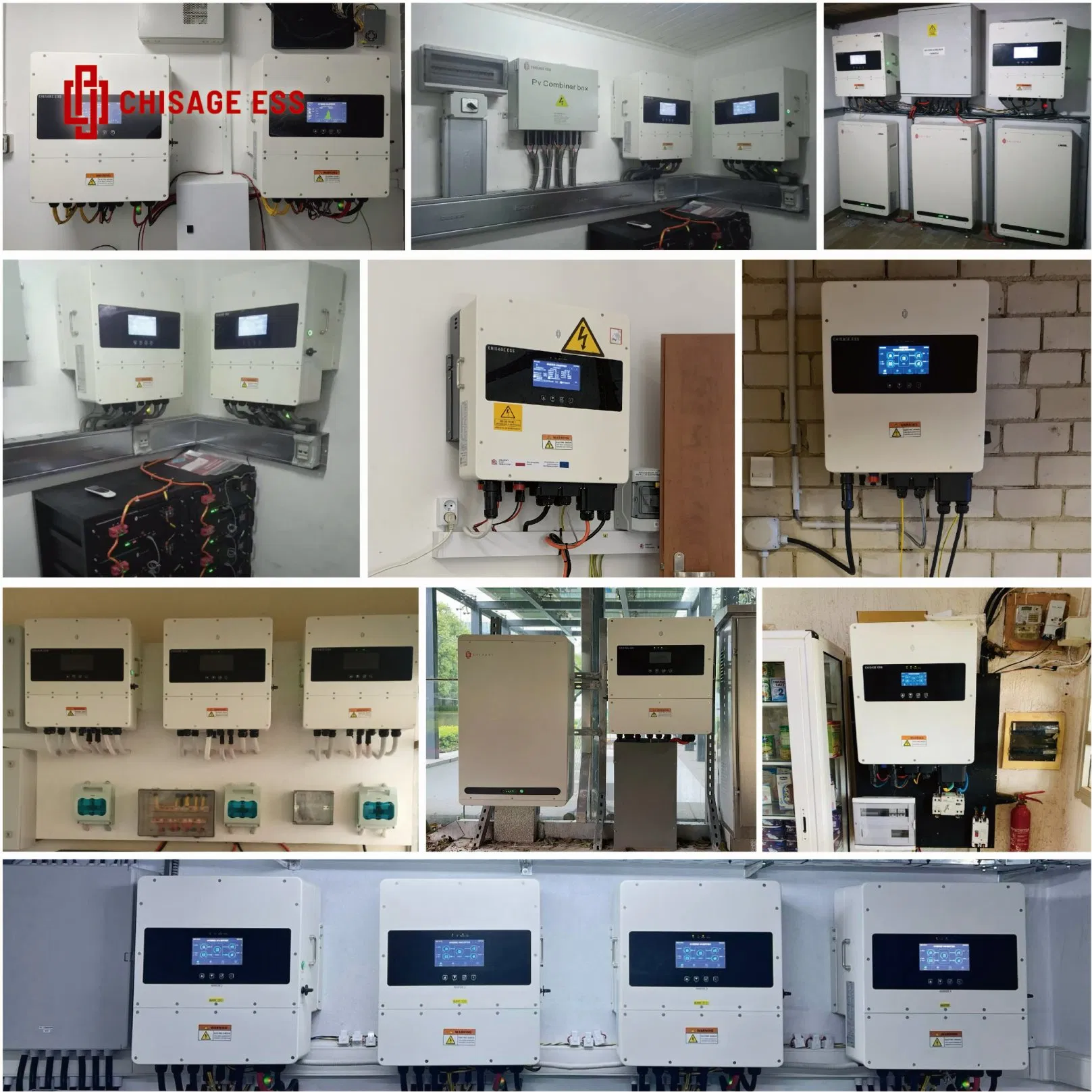

| Installation Style | Wall-mounted | ||||
