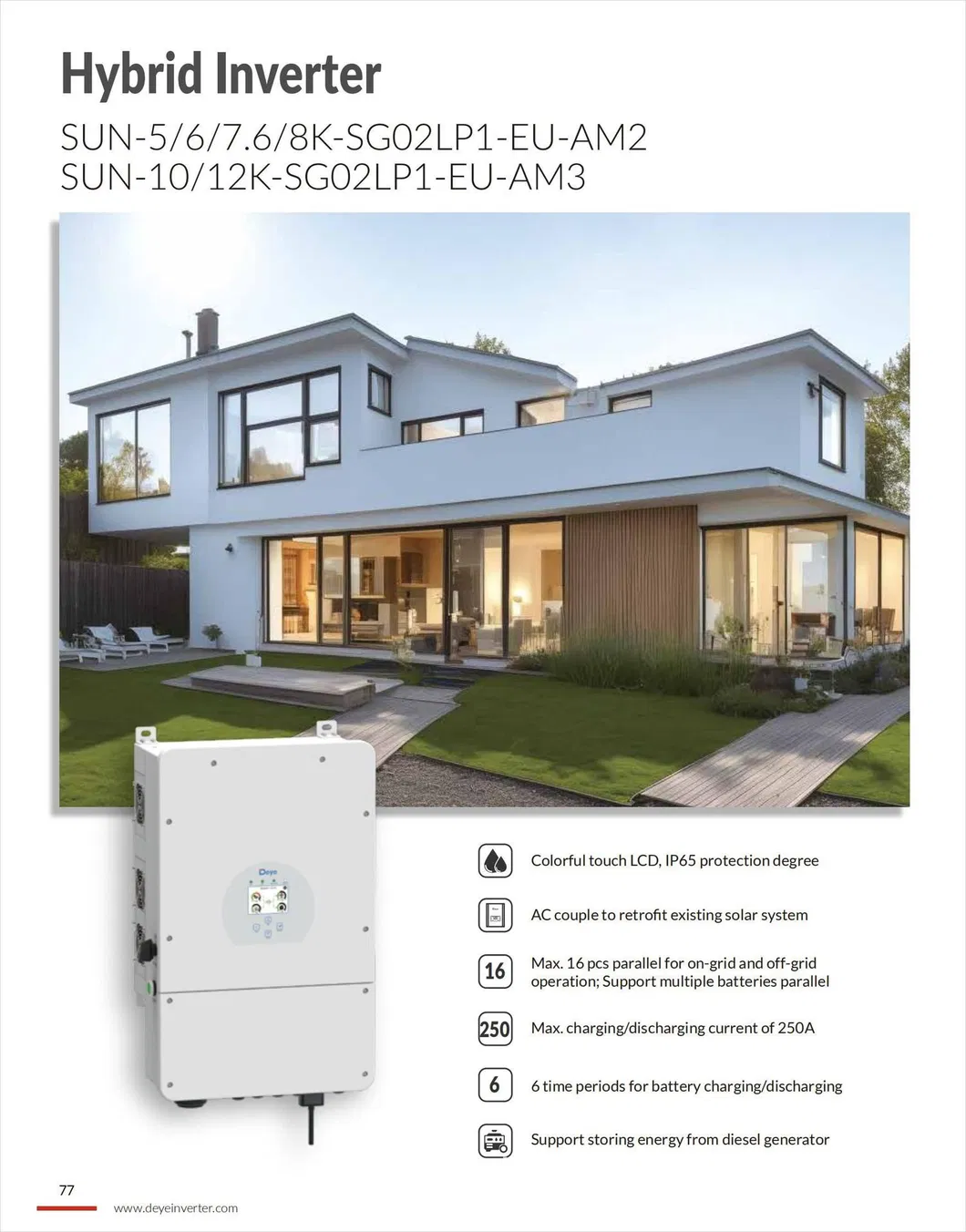

The Deye Hybrid Solar Inverter is available in 5kW, 8kW, 10kW, and 12kW power options, making it suitable for a wide range of applications, from residential rooftop systems to small commercial and light industrial projects.
Buyers can easily select the right inverter capacity based on system size, reducing oversizing costs while allowing flexible system design.
| Model | SUN-5K-SG04LP3-EU |
|---|---|
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60V |
| Max. Charging Current (A) | 120A |
| Max. Discharging Current (A) | 120A |
| Charging Curve | 3 Stages / Equalization |
| External Temperature Sensor | Yes |
| Charging Strategy | Self-adaption to BMS |
| PV String Input Data | |
| Max. DC Input Power (W) | 6500W |
| Rated PV Input Voltage (V) | 550V(160V~800V) |
| Start-up Voltage (V) | 160V |
| MPPT Range (V) | 200V-650V |
| Full Load DC Voltage Range (V) | 350V-650V |
| PV Input Current (A) | 13A+13A |
| Max. PV ISC (A) | 17A+17A |
| Number of MPPT | 2/1+1 |
| AC Output Data | |
| Rated AC Output and UPS Power (W) | 5000W |
| Max. AC Output Power (W) | 5500W |
| Peak Power (off grid) | 2 times of rated power, 10 S |
| AC Output Rated Current (A) | 7.6 |
| Max. AC Current (A) | 11.4 |
| Max. Continuous AC Passthrough (A) | 45A |
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380Vac, 230/400Vac |
| Grid Type | Three Phase |
| Current Harmonic Distortion | THD<3% (Linear load<1.5%) |
| Efficiency | |
| Max. Efficiency | 97.6% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| General Data | |
| Operating Temperature (ºC) | -45~60ºC, >45ºC Derating |
| Cooling | Smart cooling |
| Noise (dB) | ≤45dB |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 33.6 |
| Size (mm) | 422W×699.3H×279D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 years |
