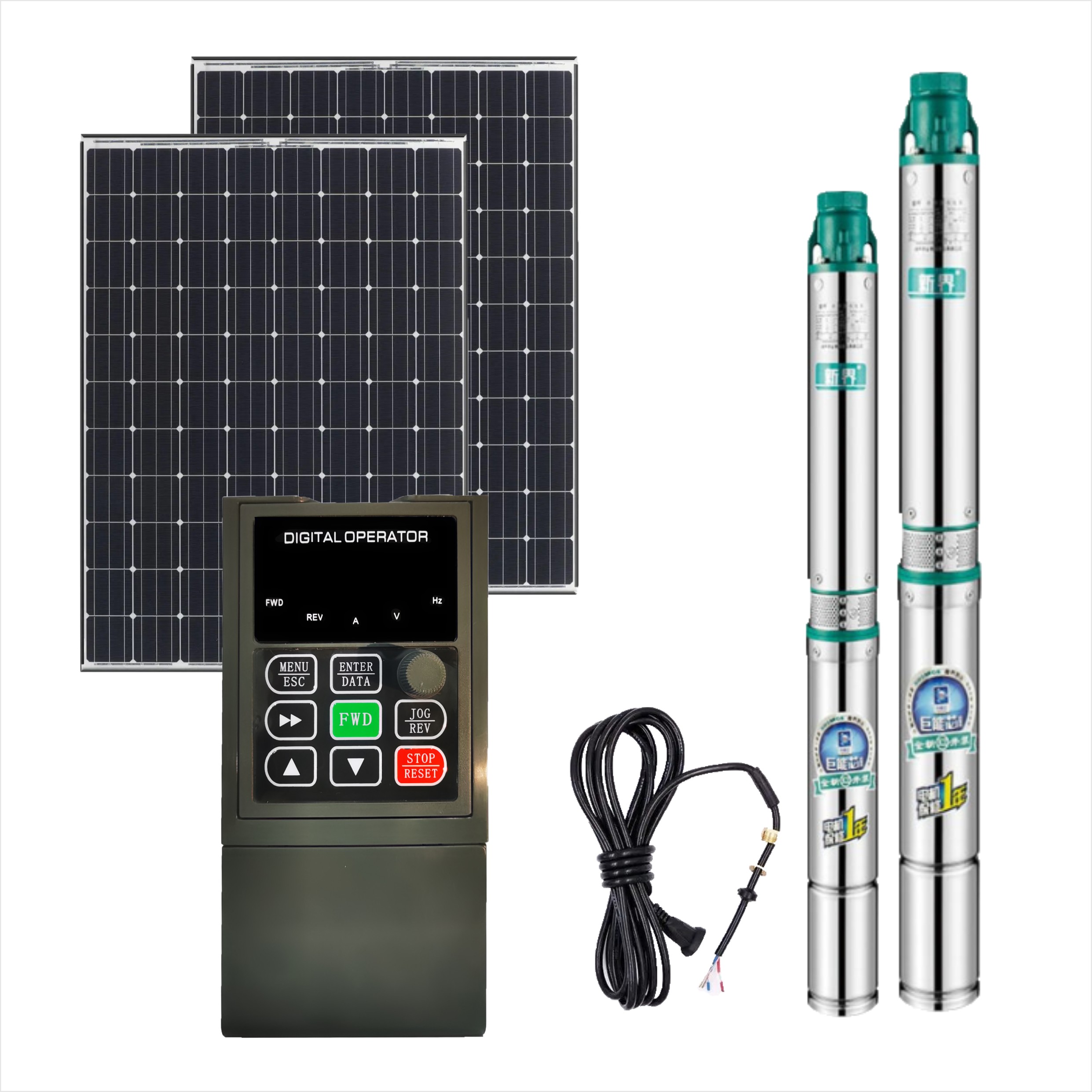

DC to AC Borehole Deep Well Submersible Agriculture Irrigation Vfd Solar Pump Inverter
DC to AC Borehole Deep Well Submersible Agriculture Irrigation Vfd Solar Pump Inverter
DC to AC Borehole Deep Well Submersible Agriculture Irrigation Vfd Solar Pump Inverter
DC to AC Borehole Deep Well Submersible Agriculture Irrigation Vfd Solar Pump Inverter
DC to AC Borehole Deep Well Submersible Agriculture Irrigation Vfd Solar Pump Inverter
1 / 5
DC to AC Borehole Deep Well Submersible Agriculture Irrigation Vfd Solar Pump Inverter
DC to AC Borehole Deep Well Submersible Agriculture Irrigation Vfd Solar Pump Inverter
DC to AC Borehole Deep Well Submersible Agriculture Irrigation Vfd Solar Pump Inverter
DC to AC Borehole Deep Well Submersible Agriculture Irrigation Vfd Solar Pump Inverter
DC to AC Borehole Deep Well Submersible Agriculture Irrigation Vfd Solar Pump Inverter

DC to AC Borehole Deep Well Submersible Agriculture Irrigation Vfd Solar Pump Inverter

Send Inquiry

Product Description

Product Description

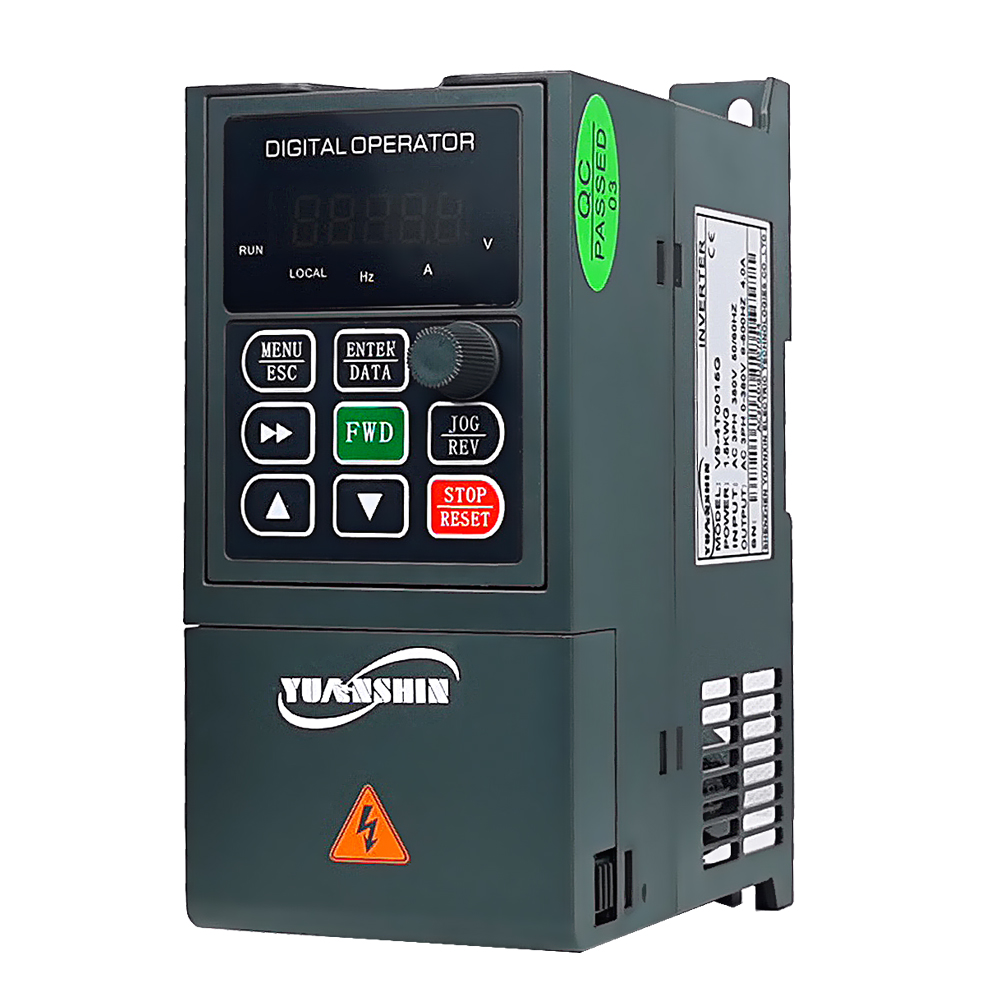

YX3900 Solar Pump Inverter

This model is our latest solar pump inverter with compact design, can easily fit in a small cabinet. Saving your cost for metal enclosures.

  • Support both normal asynchronous motor and PMSM motor, easier for installation.
  • Third generation MPPT function, improve the solar efficiency to a higher level.
  • Vector control for normal pump, provide higher torque at low frequency.
  • Multiple power supply, support DC input and AC 220V/380V input.
  • Support water level sensor for automatic operation according to tank level.
  • Simple setting, only need to set the motor voltage.
  • Support GPRS/GPS remote monitor and control function.

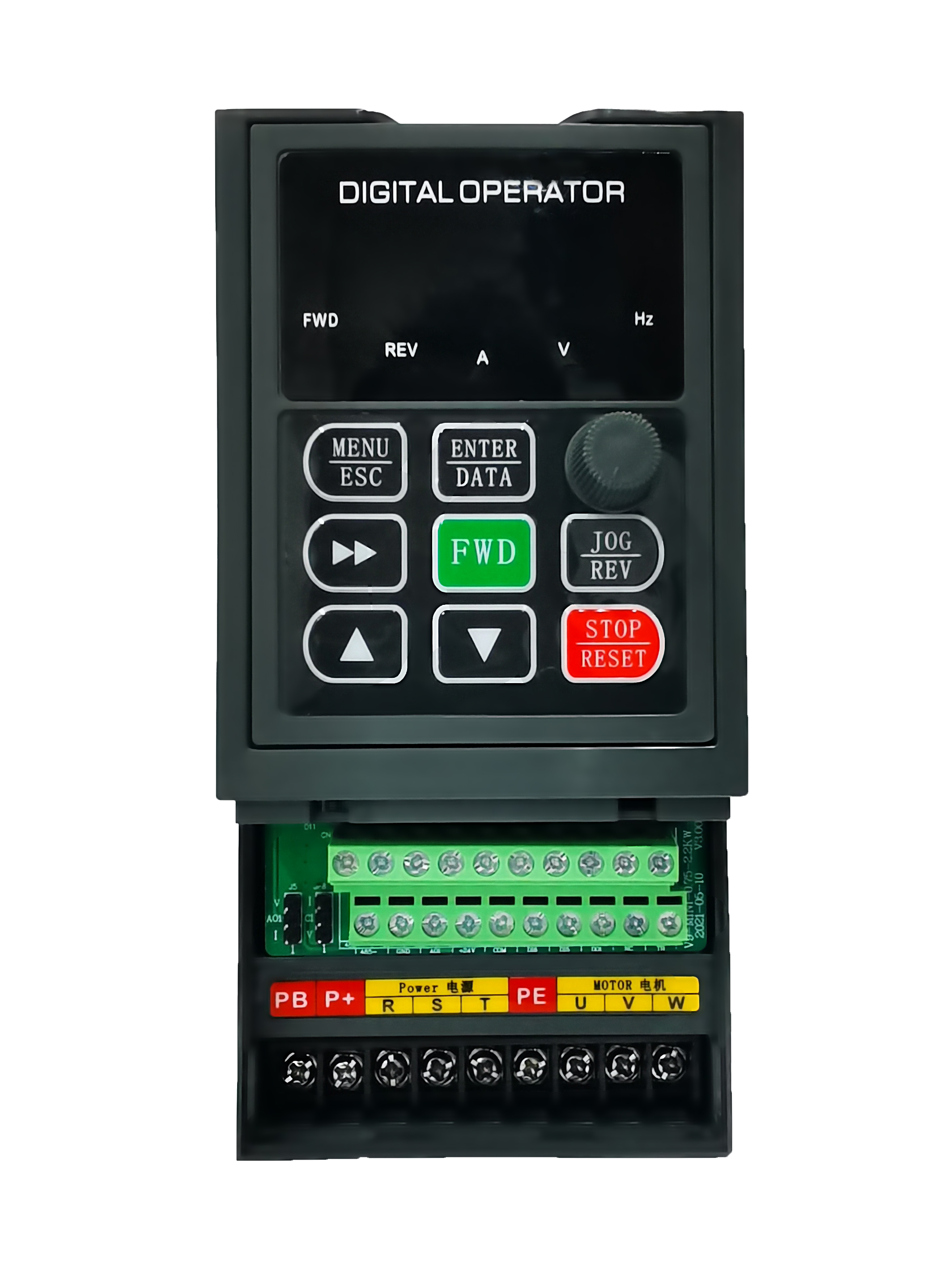

Solar Pump Inverter

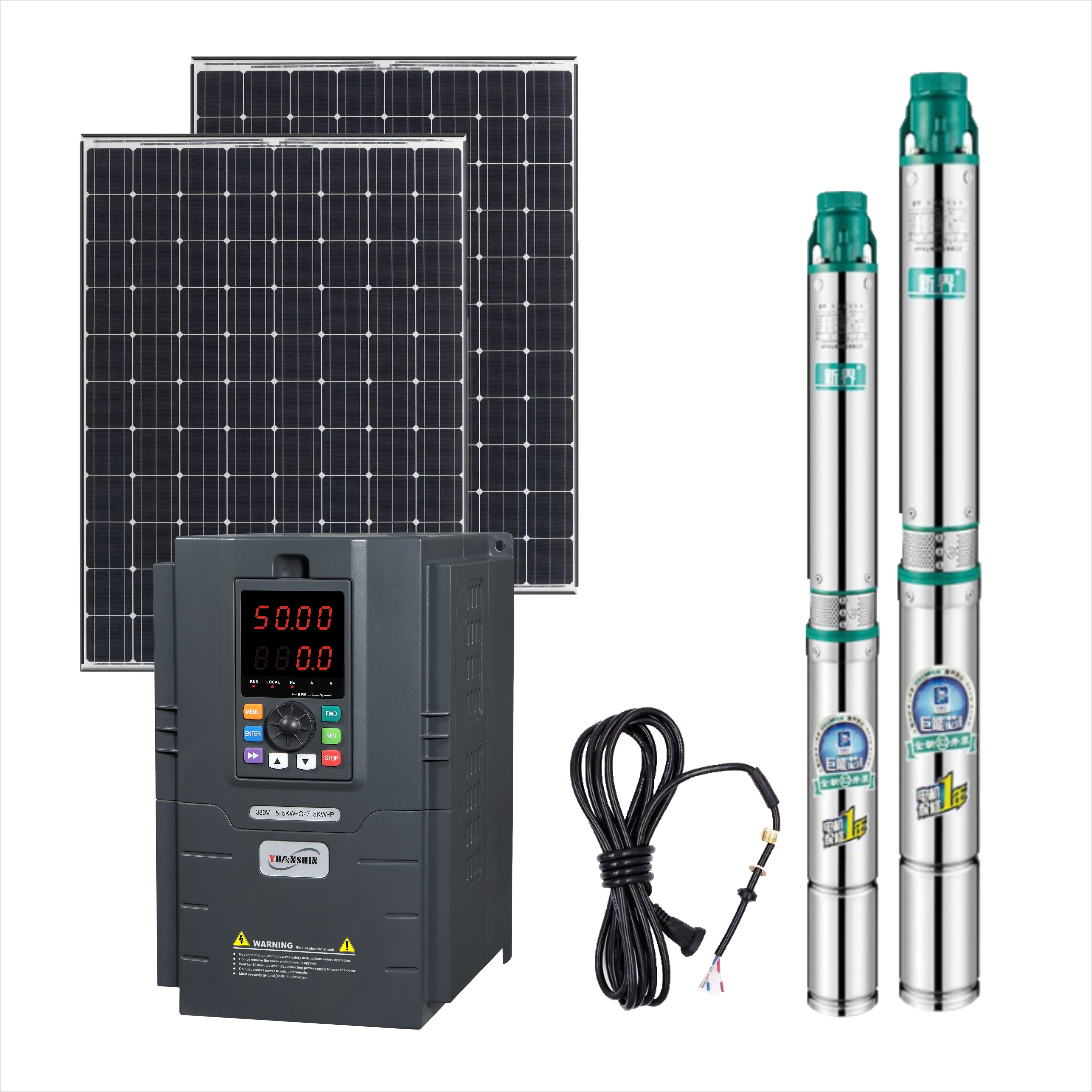

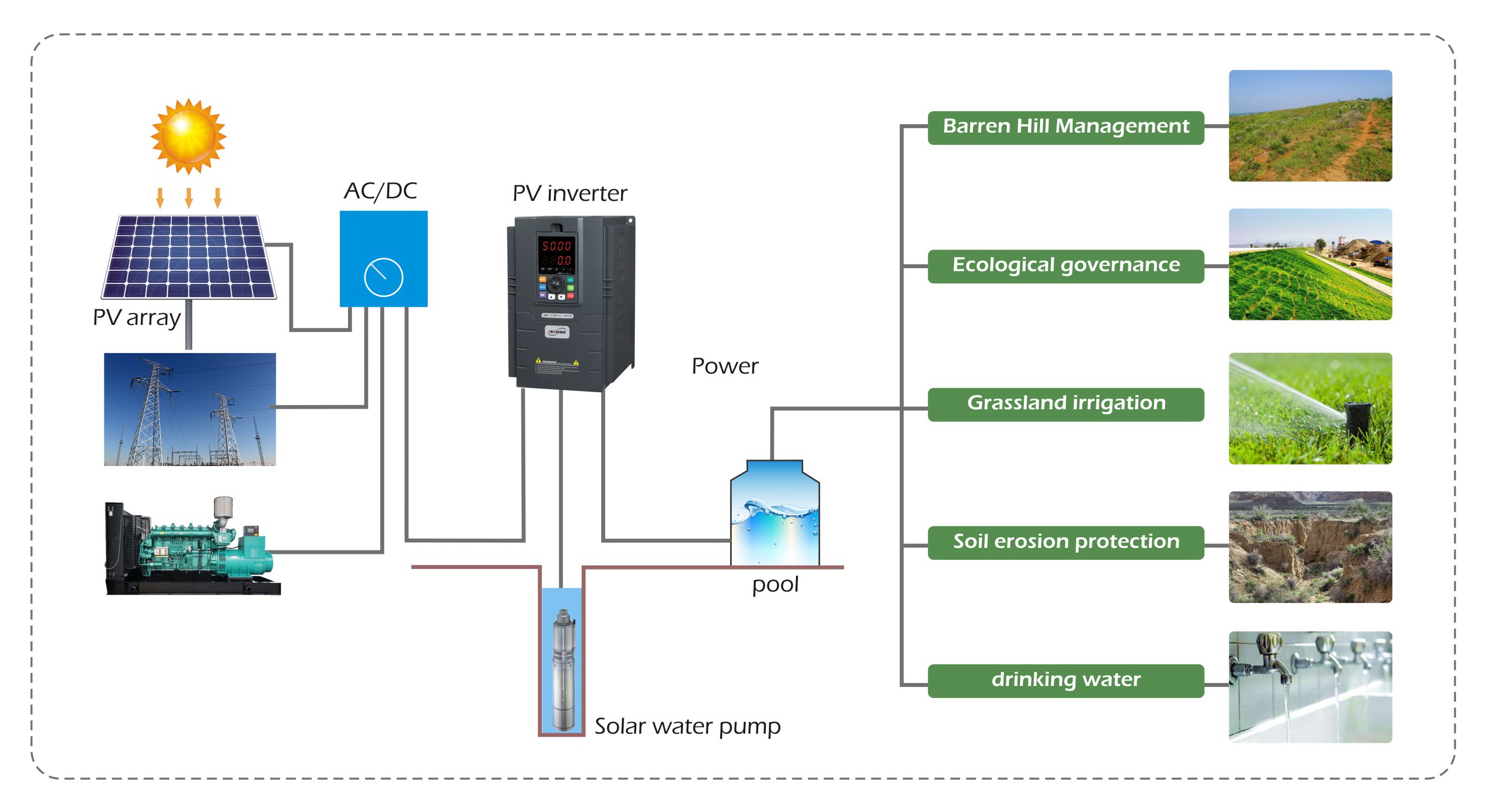

Product View 1 Product View 2 Product View 3
Specification
ModelYX3900-4T0022G
Input DC voltageDC 90V~450V
Input AC voltageAC 220V/1P
Rated Power2.2kw
Control ModelFOC/ Vector control
Support MotorAsynchronous type & PMSM type

Recommended DC voltage for different AC output:

DC 180VAC 110V/3P
DC 310VAC 220V/3P/1P
DC 560VAC 380V/3P
Packing & Delivery
Packing 1 Packing 2

Standard Packaging: Carton

Professional Solutions
Workshop 1 Workshop 2 Workshop 3

Qualified by the world. Our facility is a famous high tech and software R&D leader in electric drive and automatic control industry field. We are dedicated to the design, development, production, distribution, installation and service of a broad range of advanced frequency inverter equipment and solutions.

Empowered by an excellent R&D team, we have gained strong electrical experience and background of more than ten years' deep study and research. Our products have been widely deployed in oil, petro chemistry, plastics, fiber and cable, printing, municipality, machine tool, etc.

Frequently Asked Questions
What types of motors are compatible with the YX3900?
The YX3900 supports both standard asynchronous motors and Permanent Magnet Synchronous Motors (PMSM), providing flexibility for various pumping systems.
How does the 3rd generation MPPT benefit the system?
The 3rd generation Maximum Power Point Tracking (MPPT) optimizes solar energy harvesting, ensuring the highest possible efficiency even in changing weather conditions.
Can this inverter handle dual power inputs?
Yes, it supports multiple power supplies, including DC input from solar panels and AC input (220V/380V), making it easy to switch or deploy in different environments.
Is remote monitoring available?
Yes, the system supports GPRS/GPS modules for remote monitoring and control, which simplifies site maintenance and real-time performance tracking.
How is the water level controlled?
The inverter supports water level sensors, allowing it to start and stop automatically based on the water tank's level, preventing overflow or dry running.
What is the advantage of vector control in this model?
Vector control provides higher torque at low frequencies, resulting in more water flow even when the input current is low, such as during early morning or late afternoon.
