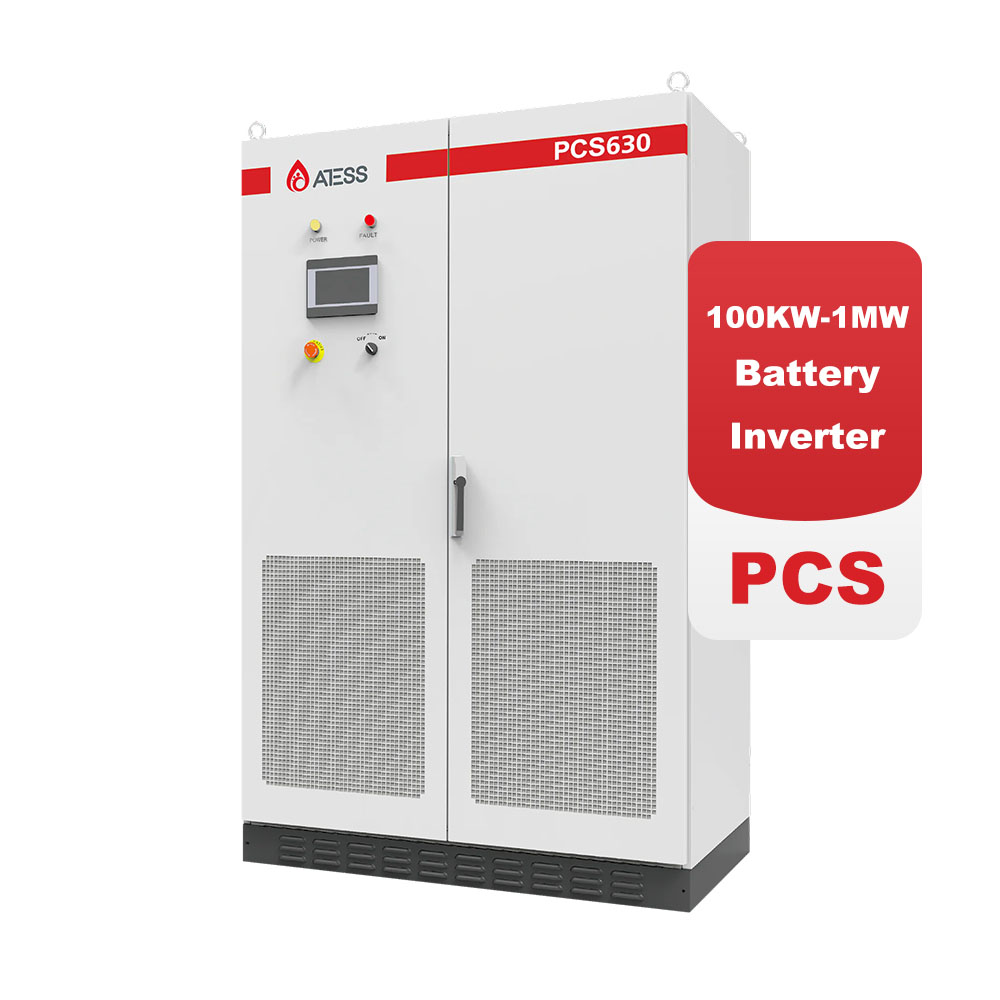

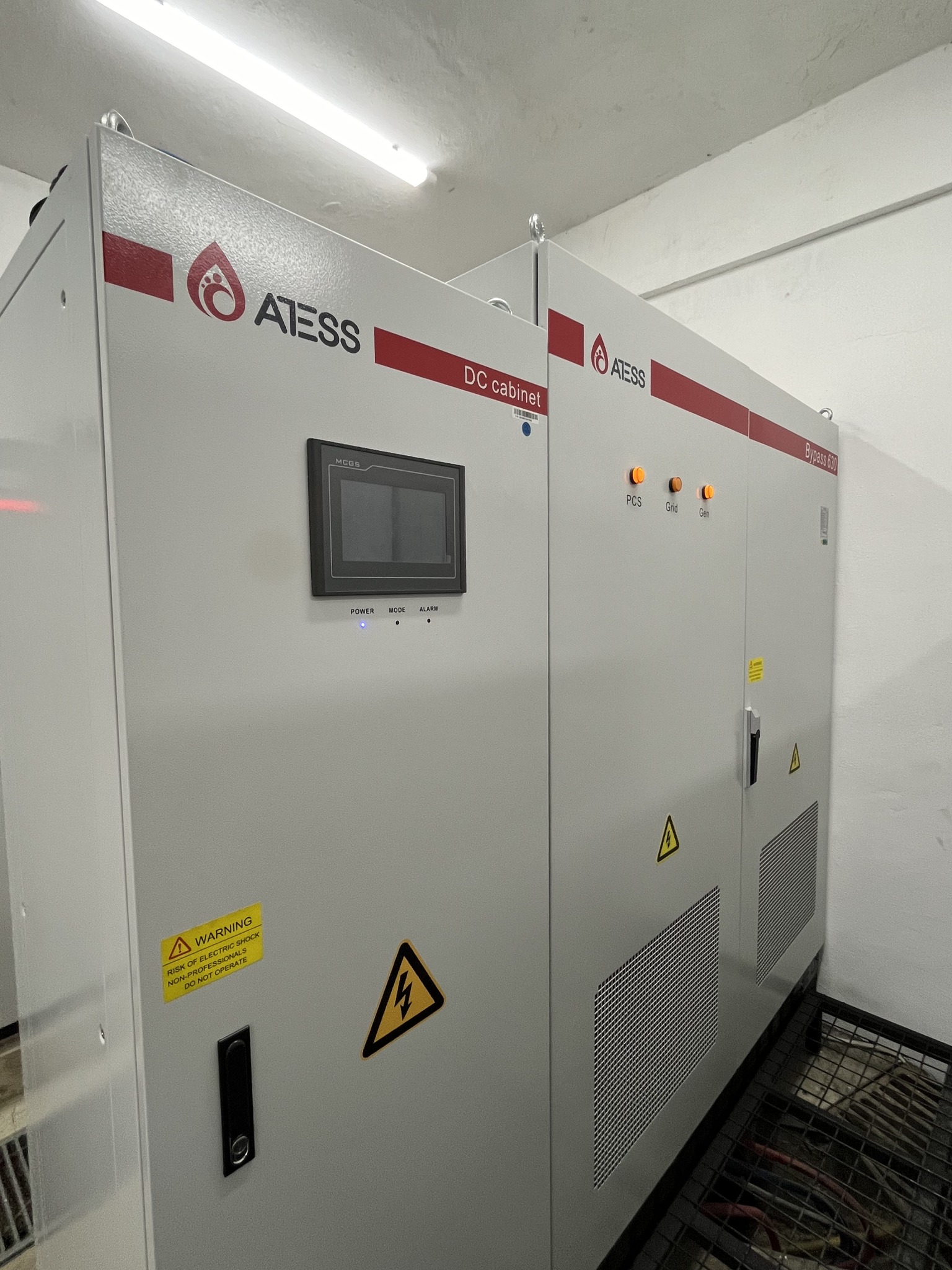

Atess PCS Series PCS100/250/500/630/1000 100-1000kw High Voltage Hybrid Solar Inverter
Atess PCS Series PCS100/250/500/630/1000 100-1000kw High Voltage Hybrid Solar Inverter
Atess PCS Series PCS100/250/500/630/1000 100-1000kw High Voltage Hybrid Solar Inverter
Atess PCS Series PCS100/250/500/630/1000 100-1000kw High Voltage Hybrid Solar Inverter
Atess PCS Series PCS100/250/500/630/1000 100-1000kw High Voltage Hybrid Solar Inverter
1 / 5
Atess PCS Series PCS100/250/500/630/1000 100-1000kw High Voltage Hybrid Solar Inverter
Atess PCS Series PCS100/250/500/630/1000 100-1000kw High Voltage Hybrid Solar Inverter
Atess PCS Series PCS100/250/500/630/1000 100-1000kw High Voltage Hybrid Solar Inverter
Atess PCS Series PCS100/250/500/630/1000 100-1000kw High Voltage Hybrid Solar Inverter
Atess PCS Series PCS100/250/500/630/1000 100-1000kw High Voltage Hybrid Solar Inverter

Atess PCS Series PCS100/250/500/630/1000 100-1000kw High Voltage Hybrid Solar Inverter

Send Inquiry

Product Description

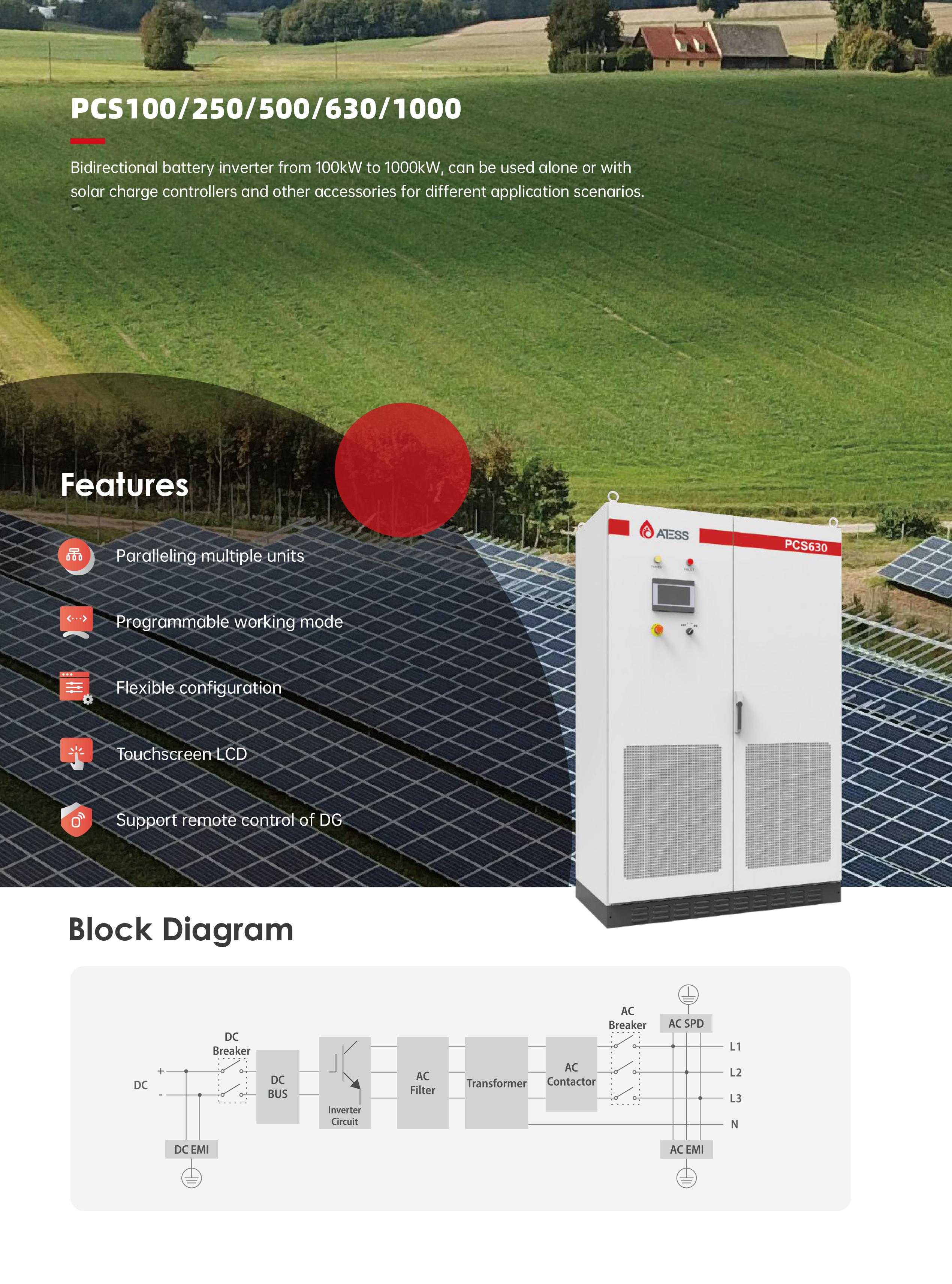

Atess PCS Series PCS100/250/500/630/1000

100-1000kW High Voltage Hybrid Solar Inverter

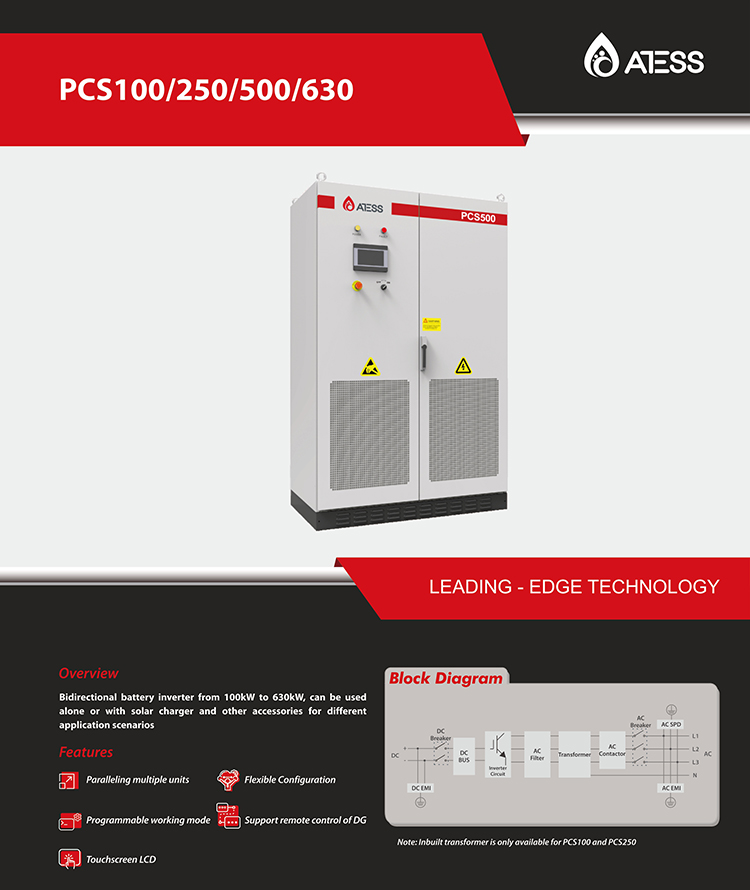

Atess PCS Series Hybrid Inverter
Technical Specifications
Model PCS100 PCS250 PCS500 PCS630 PCS1000
AC (On grid)
Apparent power110kVA275kVA550kVA693kVA1100kVA
Rated power100kW250kW500kW630kW1000kW
Rated voltage400V400V400V400V400V
Rated current144A361A722A909A1443A
Voltage range360V-440V360V-440V360V-440V360V-440V360V-440V
Rated frequency50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz
THDI<3%<3%<3%<3%<3%
AC (Off grid)
Apparent power110kVA275kVA550kVA693kVA1100kVA
Rated power100kW250kW500kW630kW1000kW
Overload capability110%-10 mins110%-10 mins110%-10 mins110%-10 mins110%-10 mins
General Information
Maximum efficiency97.10%97.30%98.50%98.50%99.00%
Protection degreeIP20IP20IP20IP20IP20
Operating temperature-25°C~+55°C-25°C~+55°C-25°C~+55°C-25°C~+55°C-25°C~+55°C
Dimension(W/H/D)1100/1890/850mm1600/2080/850mm1200/1900/800mm1200/1900/800mm1510/1900/850mm
Weight820kg1465kg870kg900kg1500kg
DisplayTouch screenTouch screenTouch screenTouch screenTouch screen
CommunicationRS485/CANRS485/CANRS485/CANRS485/CANRS485/CAN

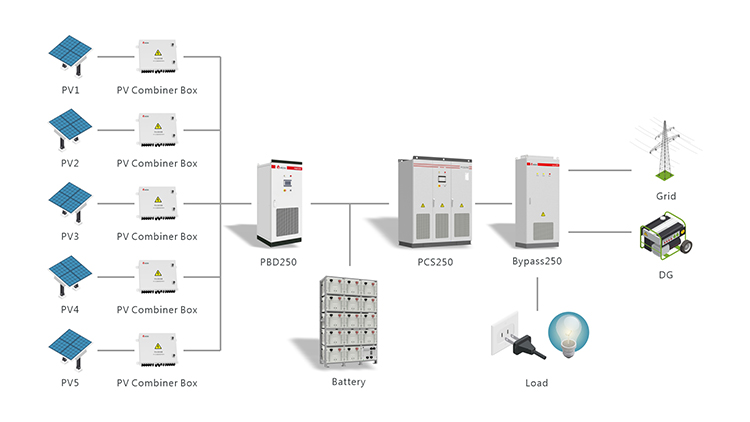

System Architecture
System Architecture

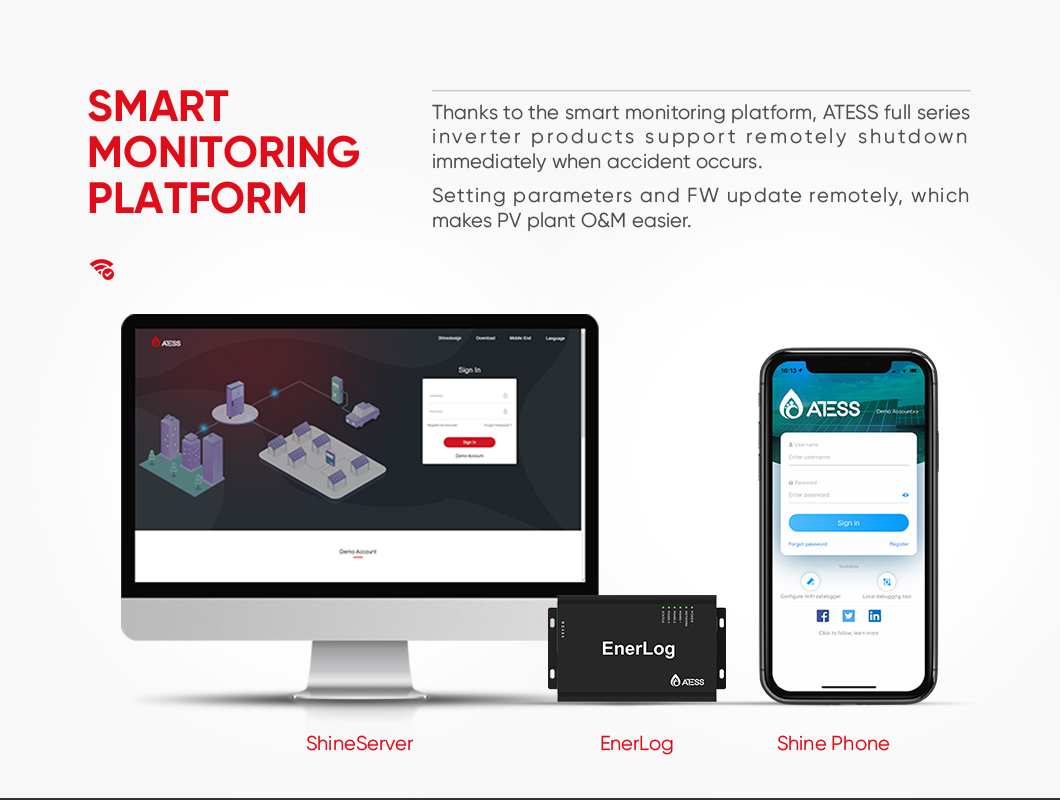

Intelligent Monitoring
Intelligent Monitoring System

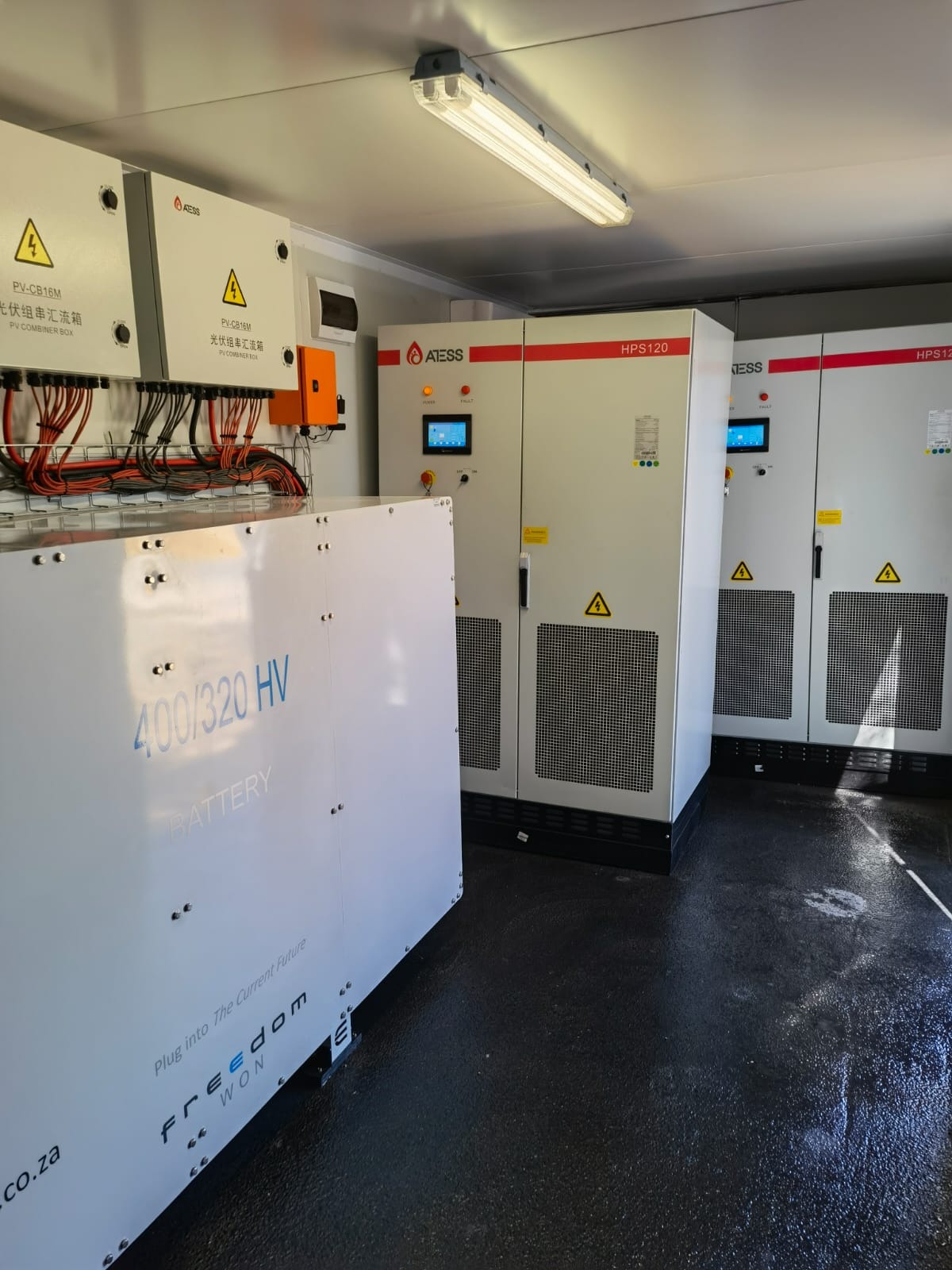

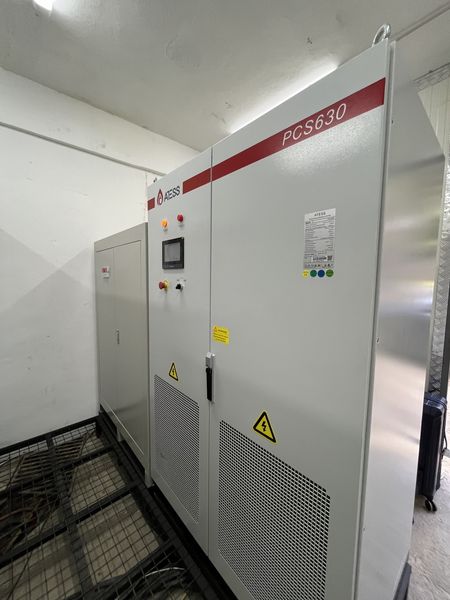

Project Case

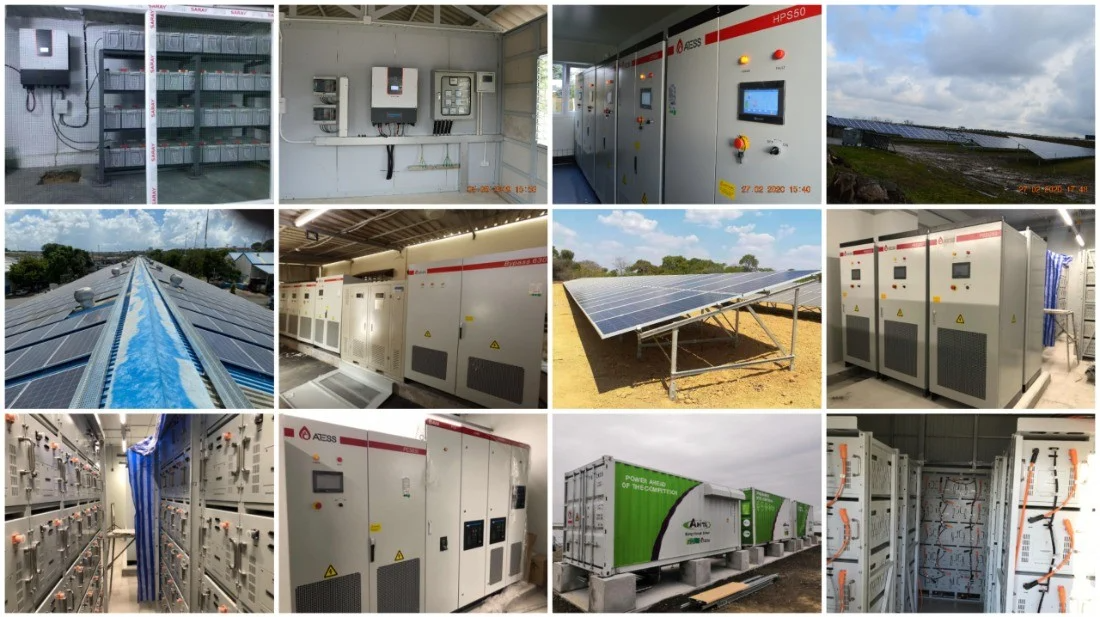

Successful Project Case

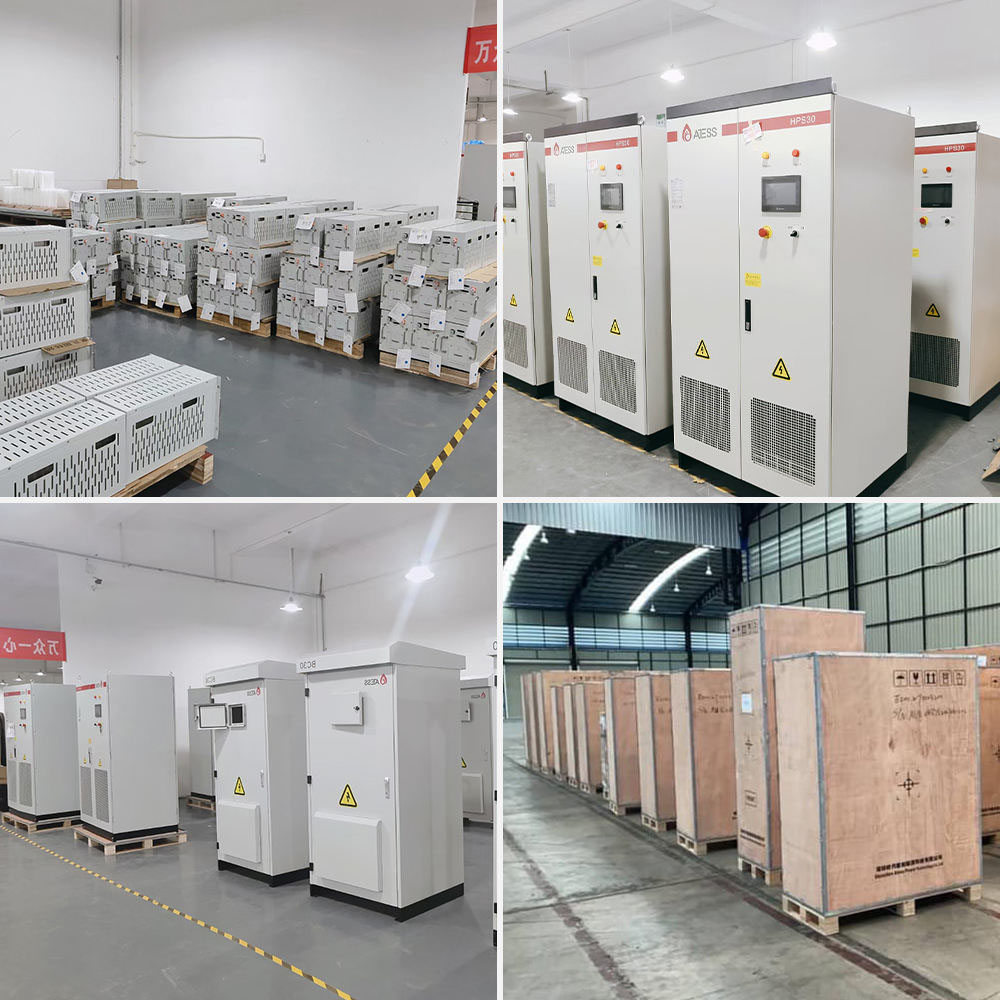

Product Packaging
Product Packaging and Delivery
Frequently Asked Questions
What is the power range of the PCS series inverters?
The PCS series offers a wide power range from 100kW up to 1000kW, suitable for large-scale industrial and commercial applications.
Does this system support both On-grid and Off-grid modes?
Yes, the Atess PCS series is designed for hybrid functionality, supporting both On-grid and Off-grid AC operations with seamless transition capabilities.
What is the maximum efficiency of these inverters?
The efficiency varies by model, with the PCS1000 reaching a maximum efficiency of up to 99.00%.
Is the transformer built-in for all models?
The PCS100 and PCS250 models come with a built-in transformer. For models PCS500, PCS630, and PCS1000, there is no built-in transformer.
What communication protocols are supported?
The units support standard RS485 and CAN communication protocols for integration with monitoring and management systems.
What is the protection rating and operating temperature?
The series features an IP20 protection degree and is designed to operate reliably in temperatures ranging from -25°C to +55°C.
