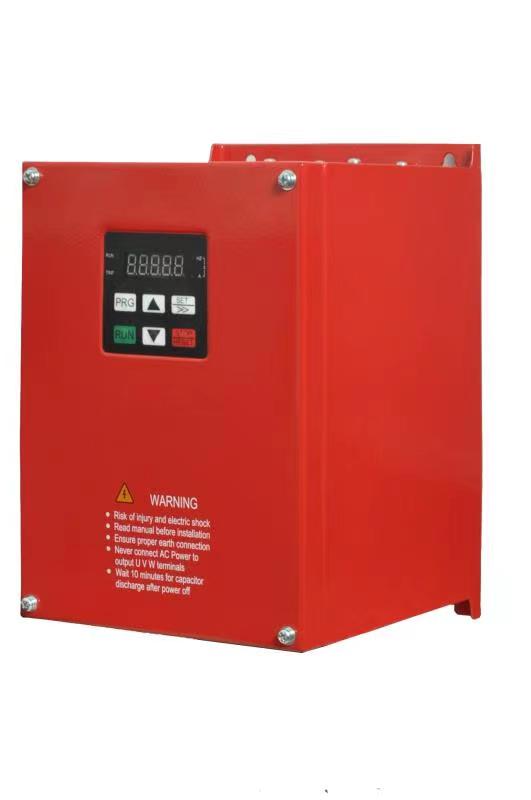

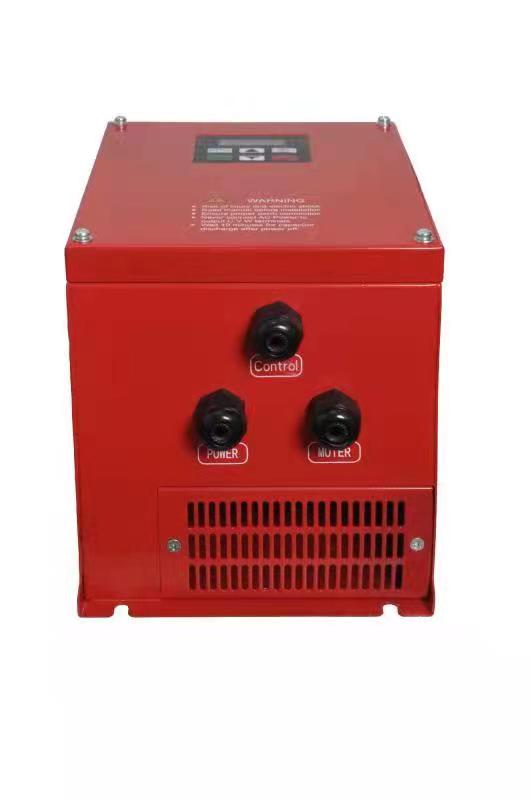

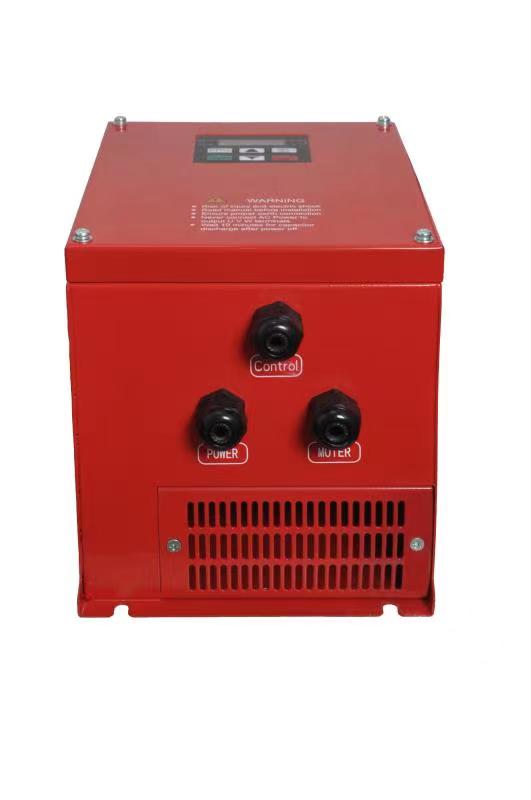

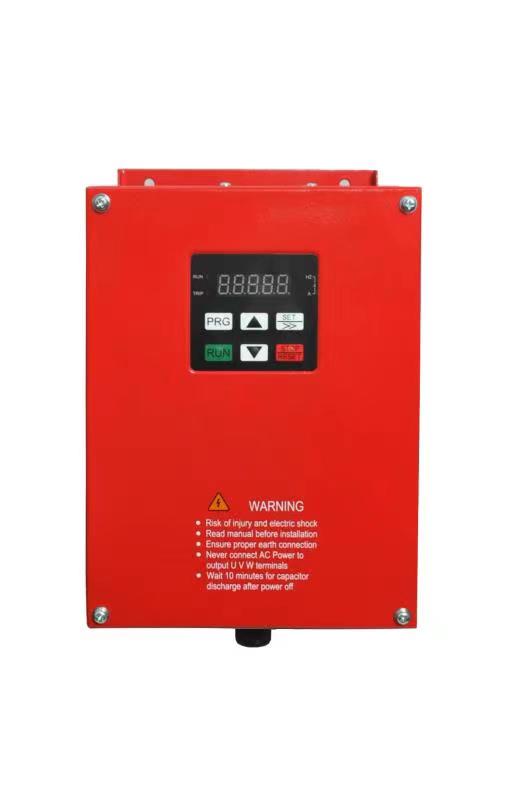

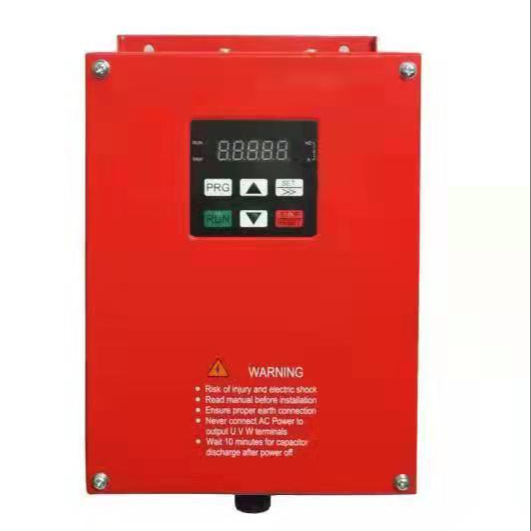

900Vdc Outdoor Waterproof IP65 2.2kw 380V Solar Pump Inverter

Product Description

SG600 Solar Pump Inverter

Fully automatic system using variable speed drive compatible with AC, 1 /3-phase, submersible and surface mount pumps, and high efficiency PMSM Pumps. The system is composed of a PV generator, a pump and a solar pump drive. Based on the design philosophy that it is more efficient to store water rather than electricity, there is no energy storing device such as storage battery in the system.

Solar Water Pumping Solution is a fully automatic system designed to provide water at affordable cost for people with limited or no access to electricity. It uses the most advanced S300/3200 variable speed drive to regulate the speed of a 3-phase AC motor depending upon the solar energy available from the solar panel.

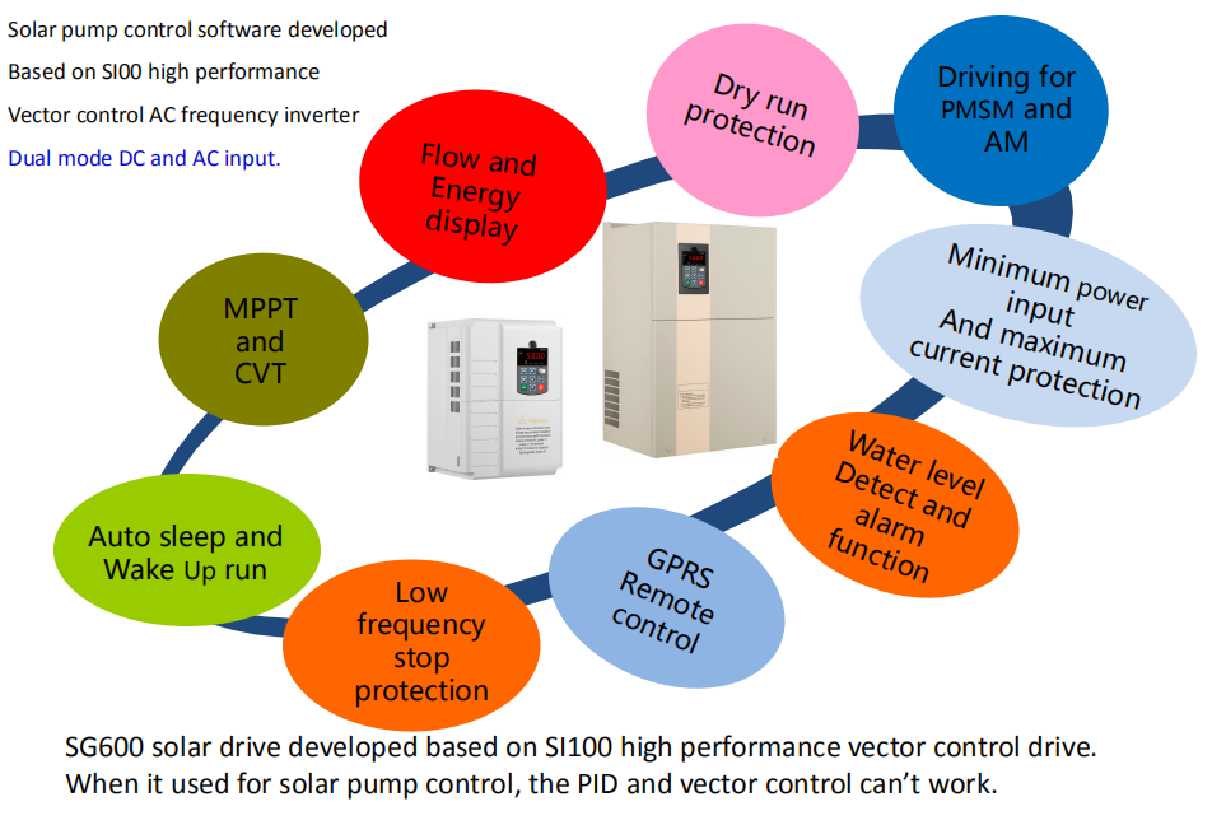

Descriptions and Features

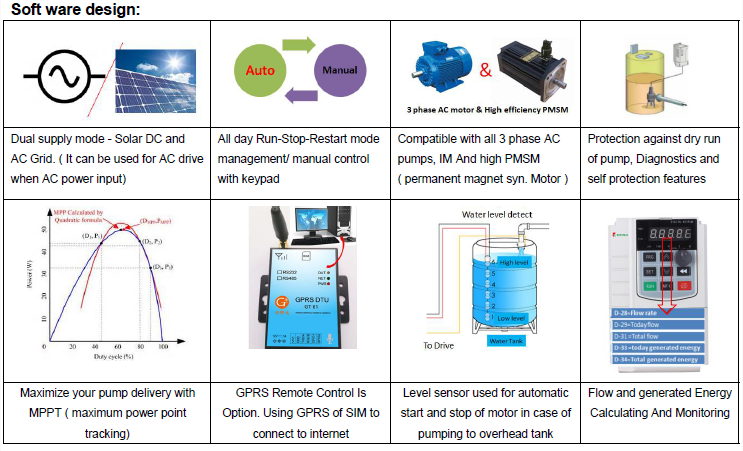

Maximum power point tracking (MPPT) with fast response speed and stable operation efficiency > 99.6%
Suits for most 3 phase AC pumps and AC PMSM high efficiency pumps
The working voltage of solar panel can set by manual or MPPT automatically tracking
Compatible with dual power input, AC grid and DC power supply input
Built in automatic sleep-wake up function
The PQ (power/flow) performance curve enables calculating the flow output from the pump
Digital control for fully automatic operation, data storage and protective functions

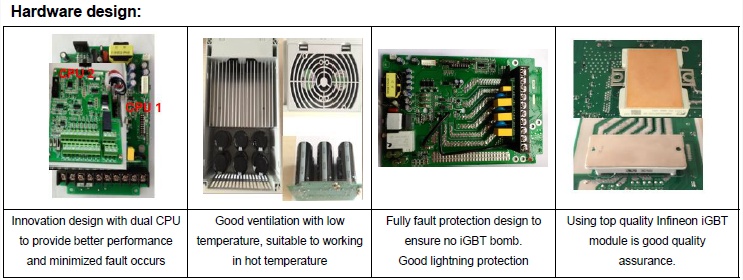

Intelligent power module (IPM) for the main circuit
LED display operating panel and support remote control, LCD display coming soon.
Low water probe sensor, and water level control function

Specification

SG600-2S	150-450Vdc input, for 0.75-4KW 220Vac pumps
SG600-4T	250-800/900Vdc input, for 0.75-132KW 380Vac pumps
Output frequency range	0~60Hz.
MPPT efficiency	Above 99.6%
Ambient temperature range	G-type for submersible pumps, 150% rated current for 60s, 180% rated current for 2s P type for general pumps, 120% rated current for 60s, 150% rated current for 2s
Protection function	1. Phase loss protection 2. Phase short circuit protection 3. Ground to phase circuit protection 4. Input and output short circuit protection 5. Stall protection 6. Dry run (under load) protection 7. Motor maximum current protection 8. Low input power protection 9. Lowest stop frequency protection 10. Strong lightning protection
Running mode	MPPT or CVT (A and Q MPPT maths)

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Overview

Certifications

Customer Photos

Frequently Asked Questions

What is the MPPT efficiency of the SG600 solar pump inverter?

The SG600 solar pump inverter utilizes advanced Maximum Power Point Tracking (MPPT) technology, achieving a stable operation efficiency of above 99.6% with fast response speeds.

Does this system support dual power inputs?

Yes, the system is fully compatible with dual power inputs. It can seamlessly accept both AC grid power and DC power supply from solar panels.

What types of pumps can be used with the SG600 inverter?

The inverter is highly compatible and suits most 3-phase AC pumps, high-efficiency AC PMSM pumps, as well as both submersible and surface-mount configurations.

Does the solar water pumping system require storage batteries?

No, the system is designed on the philosophy that storing water is more efficient than storing electricity. Therefore, no storage batteries or similar energy storing devices are required.

What safety protections are integrated into the drive?

It features 10 core built-in protection functions including phase loss, short circuit (input/output/phase), ground to phase protection, stall protection, dry run (under load) protection, motor maximum current protection, low input power protection, lowest stop frequency protection, and strong lightning protection.

Can the system operate automatically without manual control?

Yes, it features fully digital control for fully automatic operation. It includes an automated sleep-wake up function that responds directly to available solar energy conditions.
