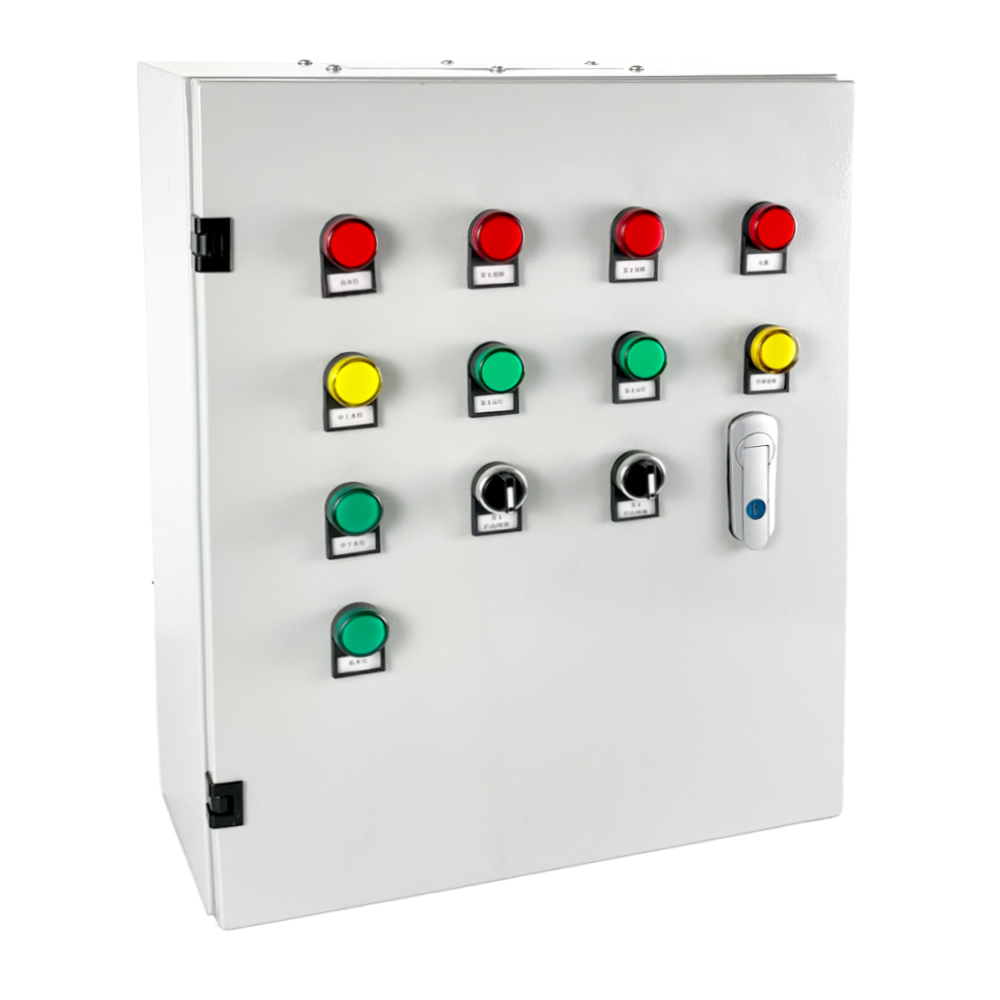

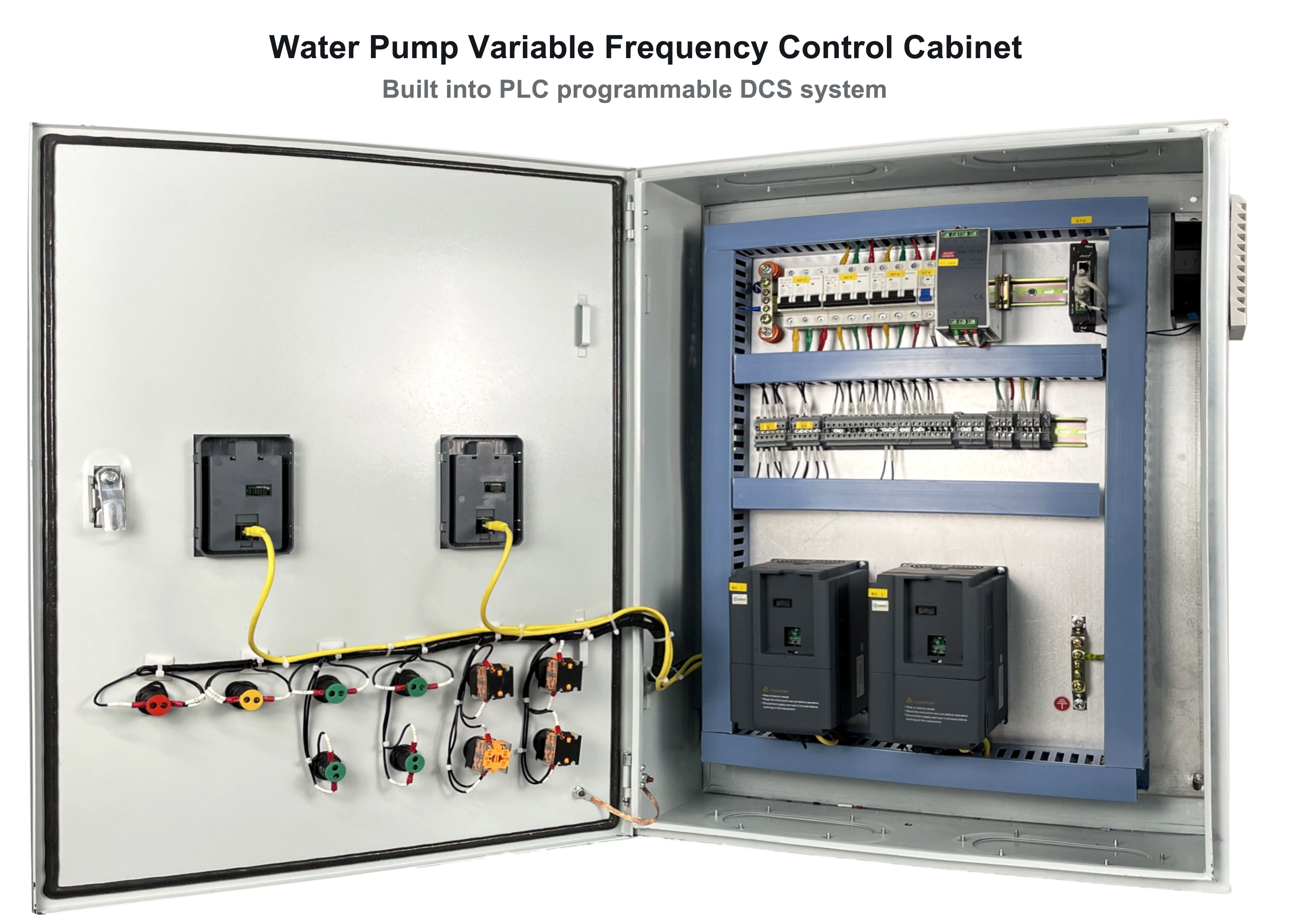

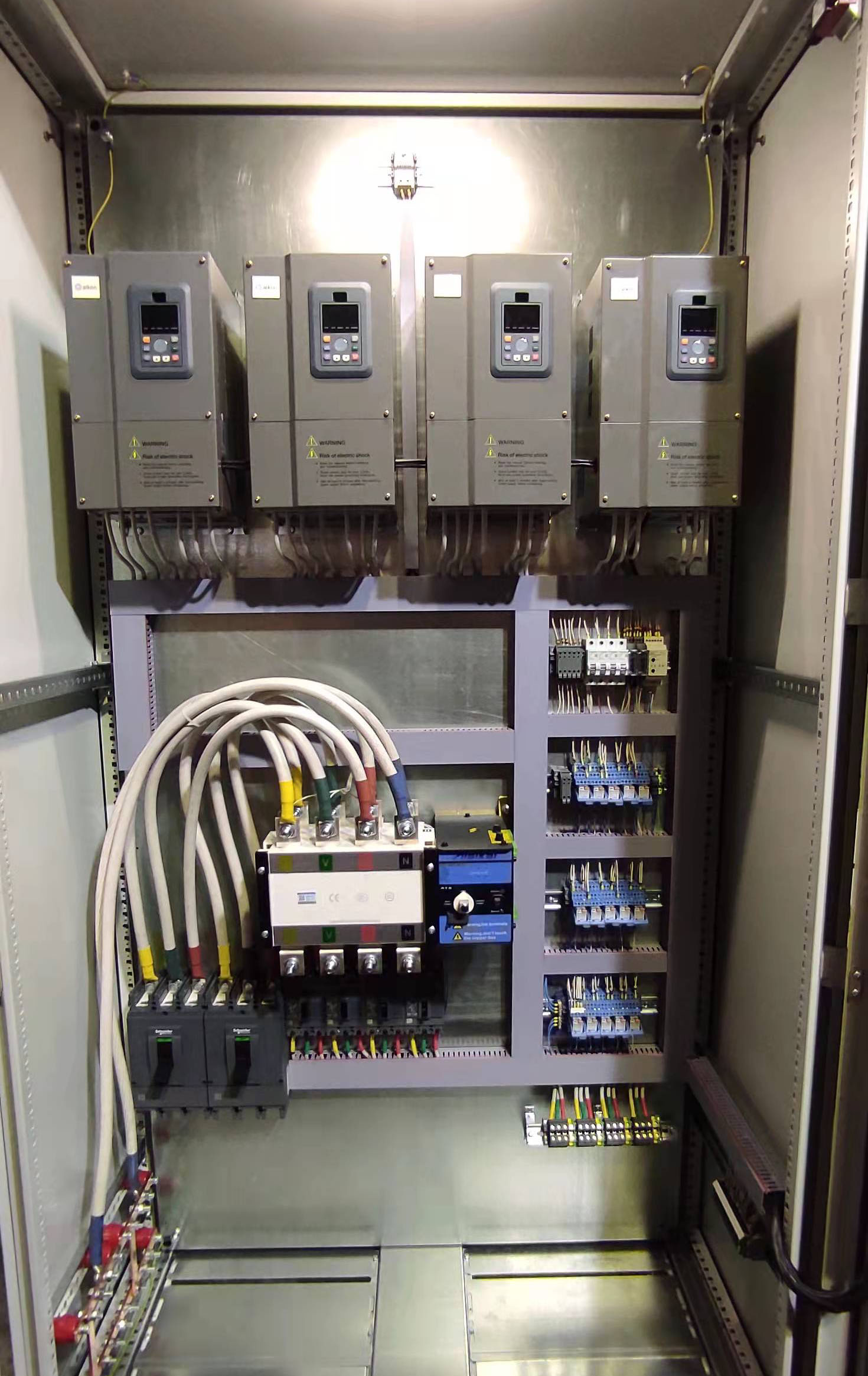

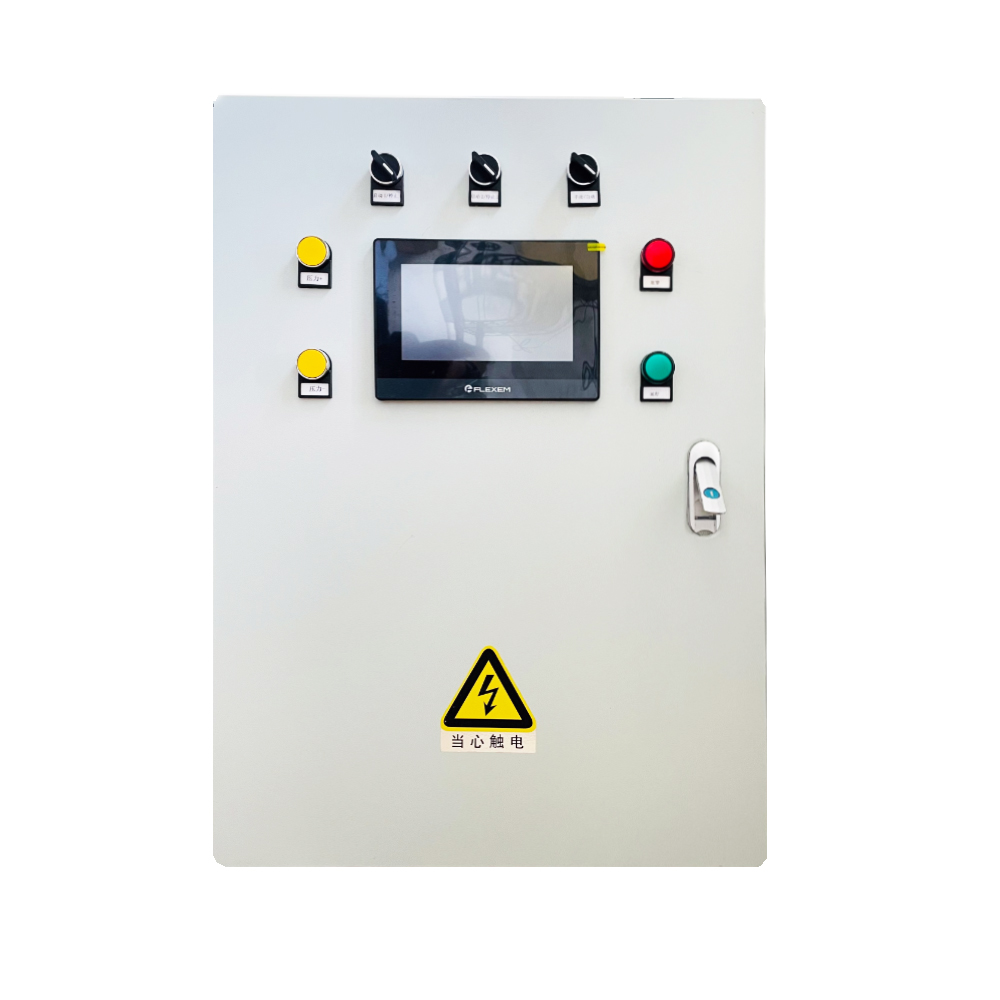

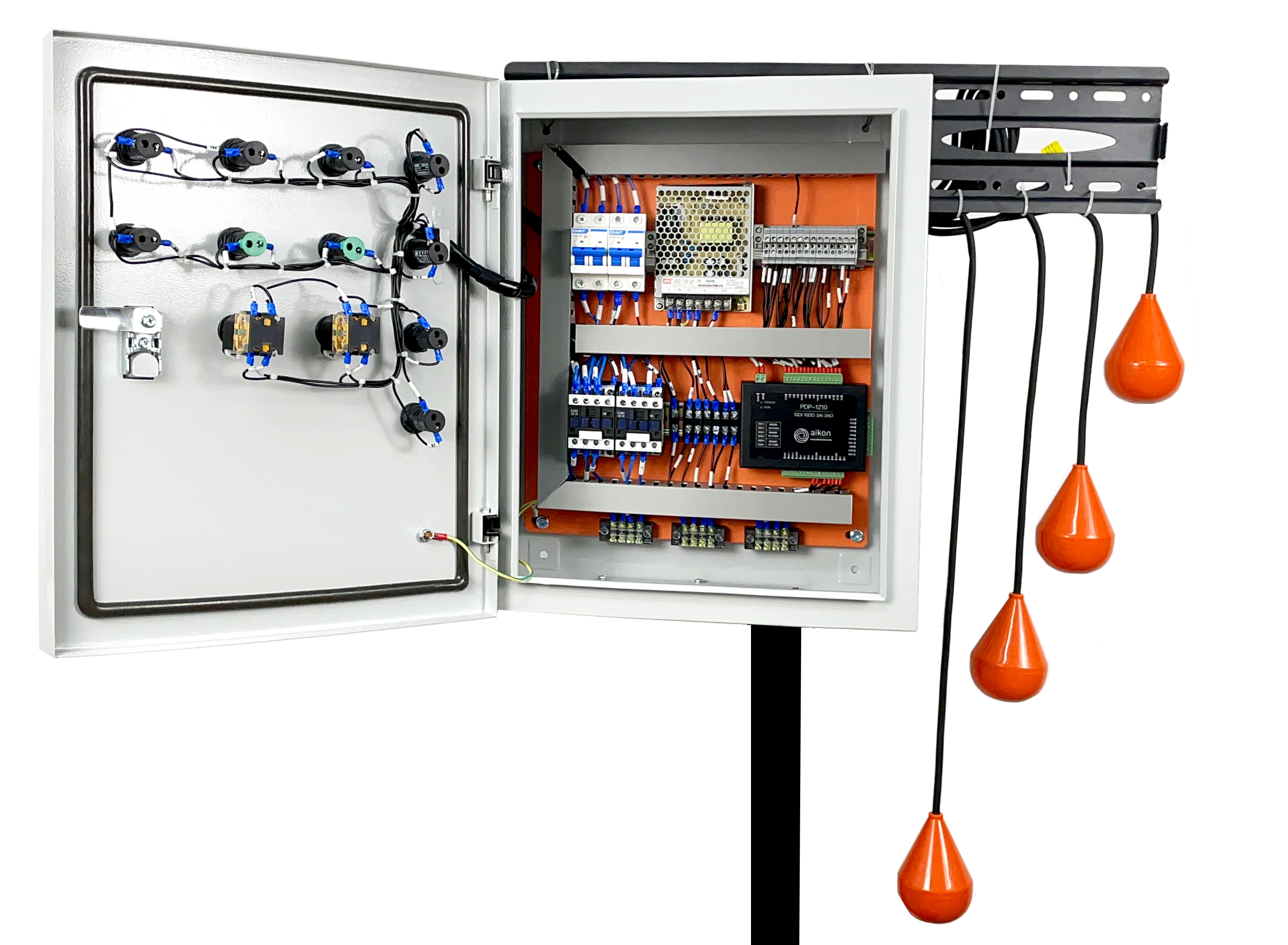

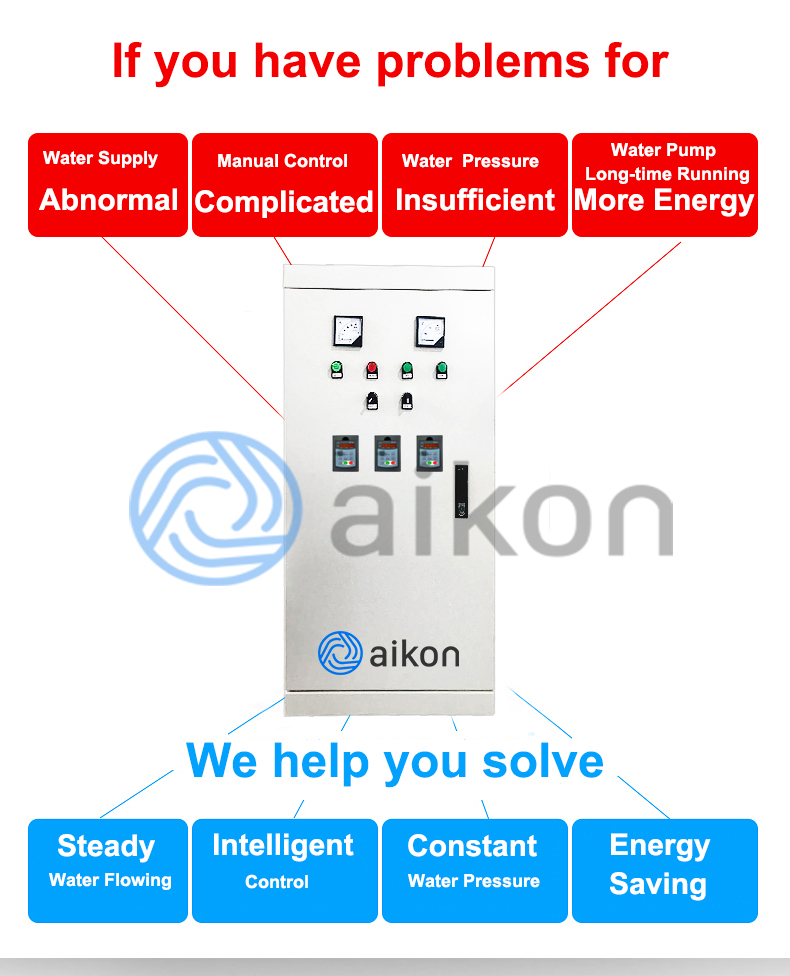

Vfd Control Board Panel Organized Wiring Motor Speed Controller Solar Pump Vfd Control Cabinet with Plc

Professional VFD Solution

Product Overview

Working Condition:

✓

Ambient temperature: -10-50℃
Control mode: Outlet constant pressure
Pressure adjustment precision: <±0.01MPa
Installation mode: Floor type or hanging type
Power Range: 0.75kW ~ 400kW

✓

Phase: 1PH/3PH 220V 50/60Hz; 3PH AC380V 50/60Hz
Voltage Range: 220V (170~220V); 380V (330V-440V)

Application Range

★

Water supply for Urban and rural residential areas, high-rise buildings, hotels, restaurants, and fire fighting systems.

★

Water pumping stations and pipeline systems.

★

Industrial production and industrial boiler water supply systems.

★

Sewage treatment systems.

★

Transformation for old water supply systems (High-level pressure water towers or water tanks).

★

Agricultural irrigation, sprinkler irrigation, and musical fountains.

VFD Technical Parameters

Parameter Item	Specification Details
Power	0.75kW ~ 900kW
Input Rated Voltage & Frequency	1PH/3PH 220V 50/60Hz; 3PH AC380V 50/60Hz
Allowable Voltage Range	220V: 170~220V; 380V: 330V-440V
Output Voltage	220V: 0~220V; 380V: 330V-440V
Analog Input Signal	In: 0~10V; 0~20mA
Analog Output Signal	0/4-20 mA
Output Frequency / Accuracy	0.1~400.0 Hz / 0.1Hz

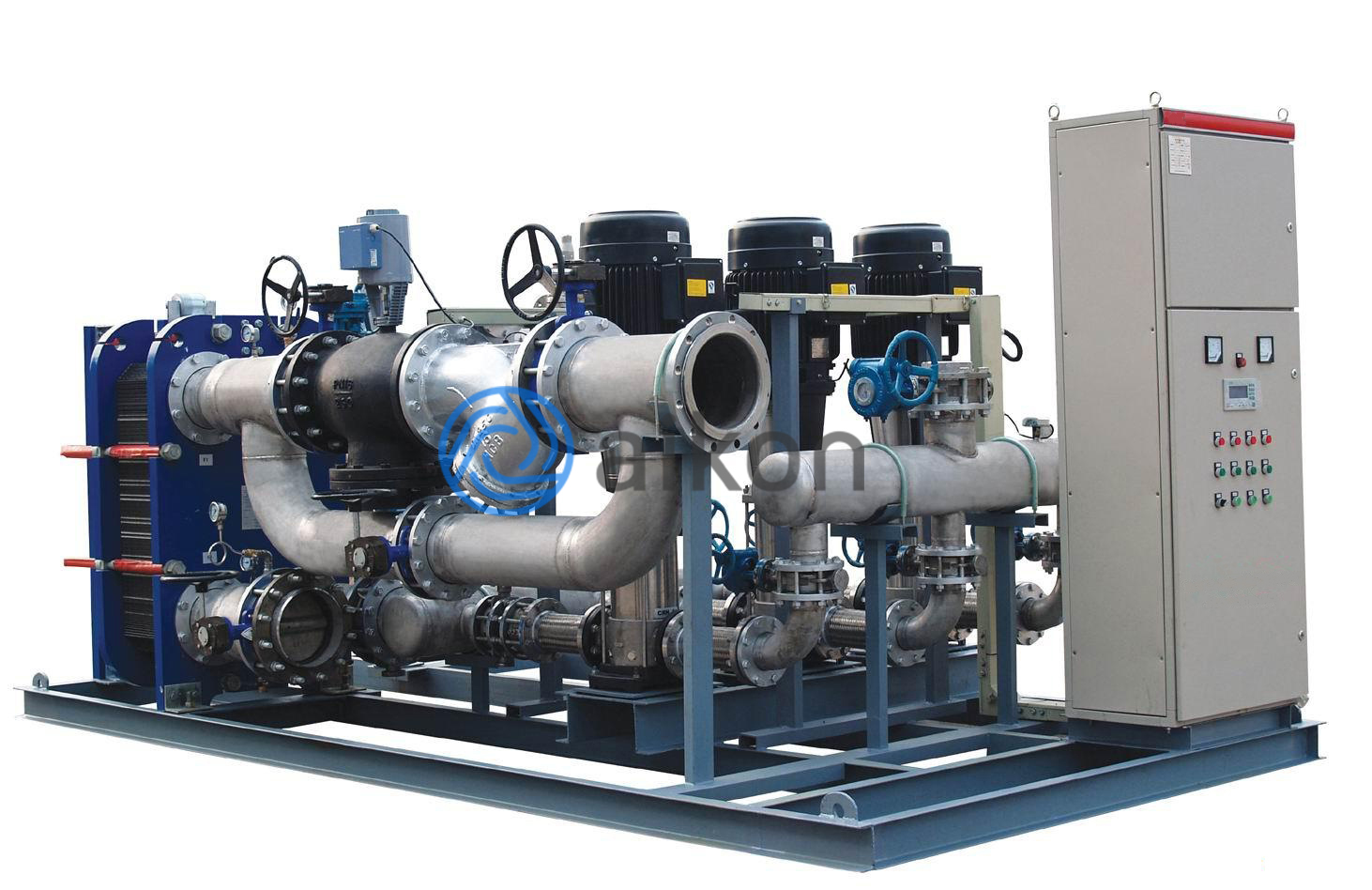

Field Application

More Products

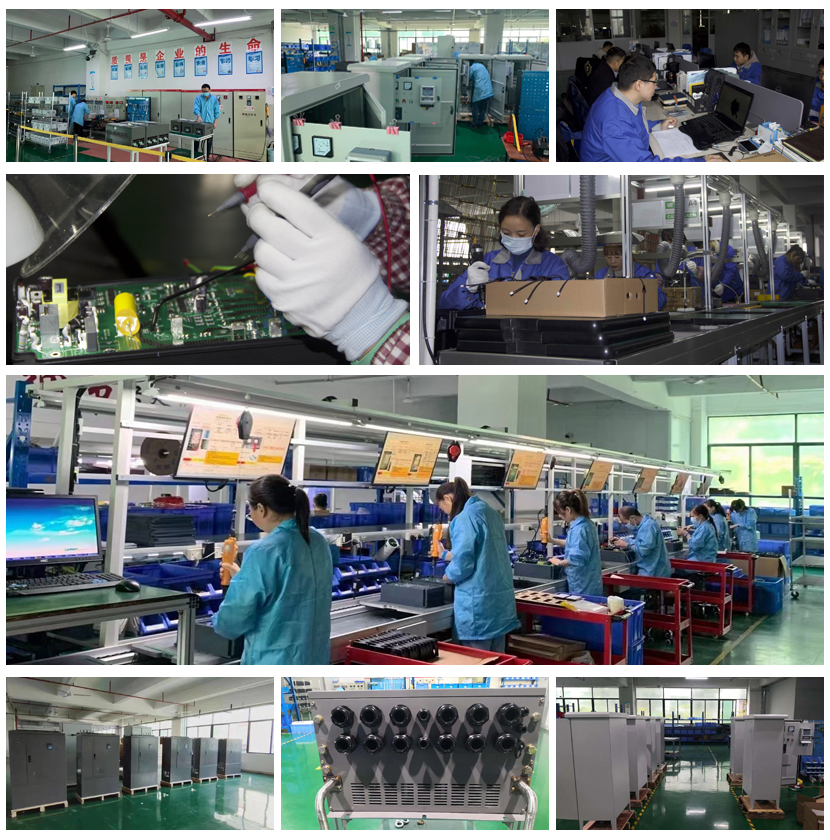

Our Mission & Factory

"With constantly innovating and developing, our solutions simplify complexity and push excellence to the world. We aim to be the leader in industrial control systems."

Certifications & Transport

Frequently Asked Questions

Q: Can you accept customized products?

A: Yes, we provide comprehensive OEM and ODM services for various international requirements.

Q: What are your terms of payment?

A: For OEM orders, we accept a 30% deposit and 70% when goods are ready to ship. For in-stock items, full payment is required before shipping.

Q: What kind of product quality do you offer?

A: We offer the most competitive prices paired with premium industrial-grade quality.

Q: Can you provide a discount for large orders?

A: Yes, as we primarily handle wholesale services, discounts are applied based on your specific order quantity.

Q: What is the lead time for cargo preparation?

A: For orders under 100 pcs, delivery is typically 15 days after payment. For larger quantities, please contact us for a detailed schedule.

Q: Which regions are your primary markets?

A: Our products are widely recognized in Russia, Europe, Africa, the Middle East, Southeast Asia, and South America.
