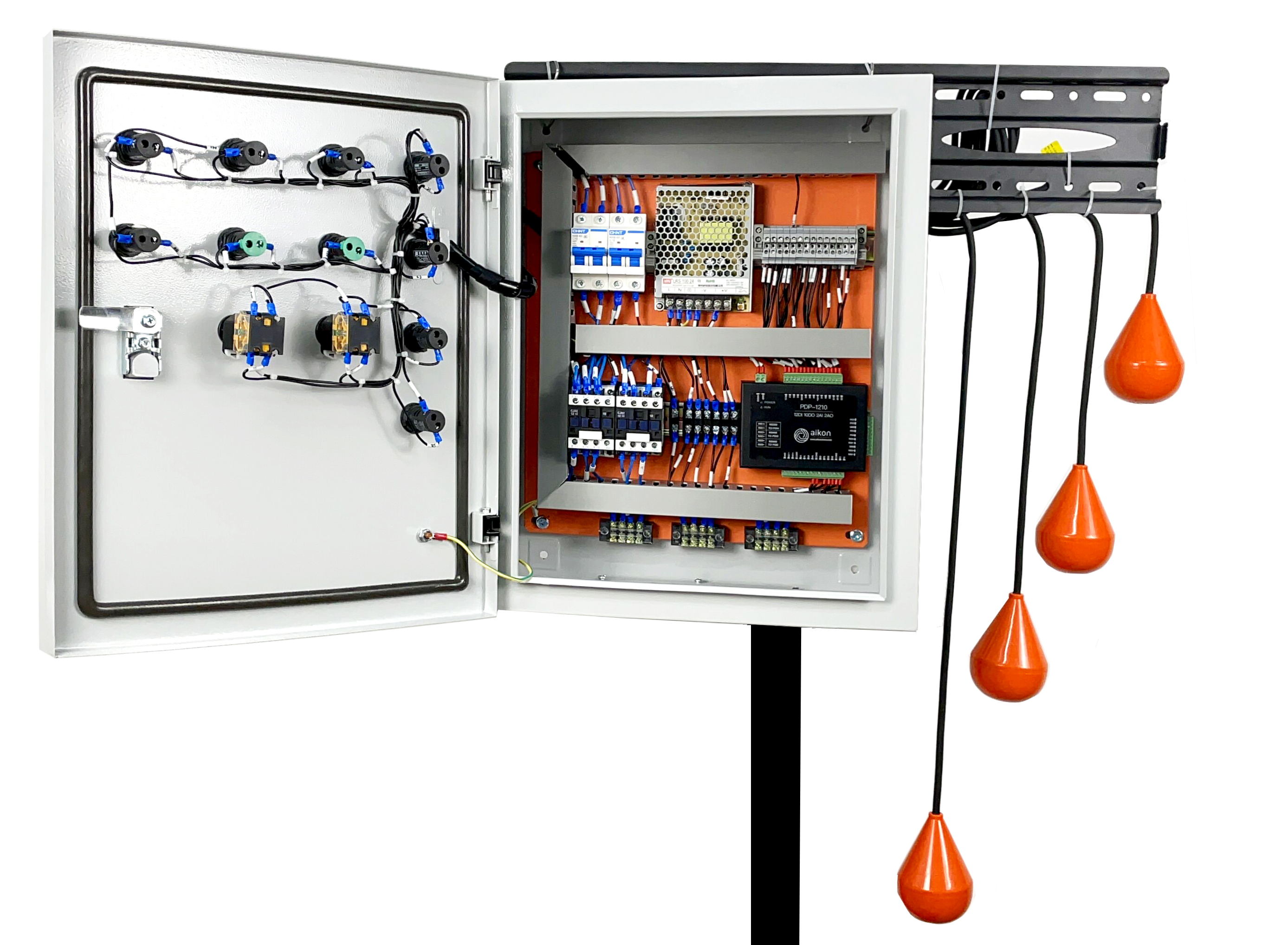

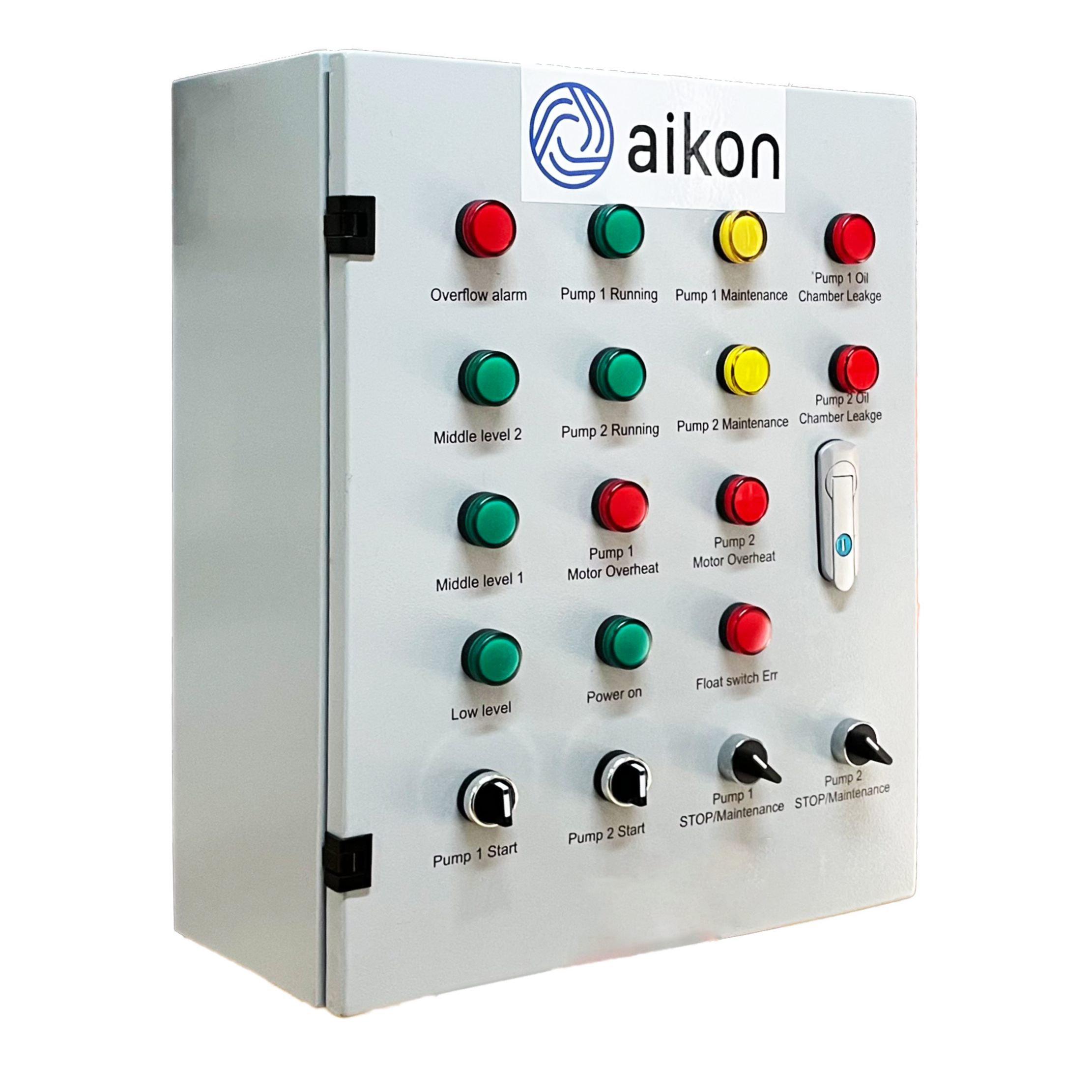

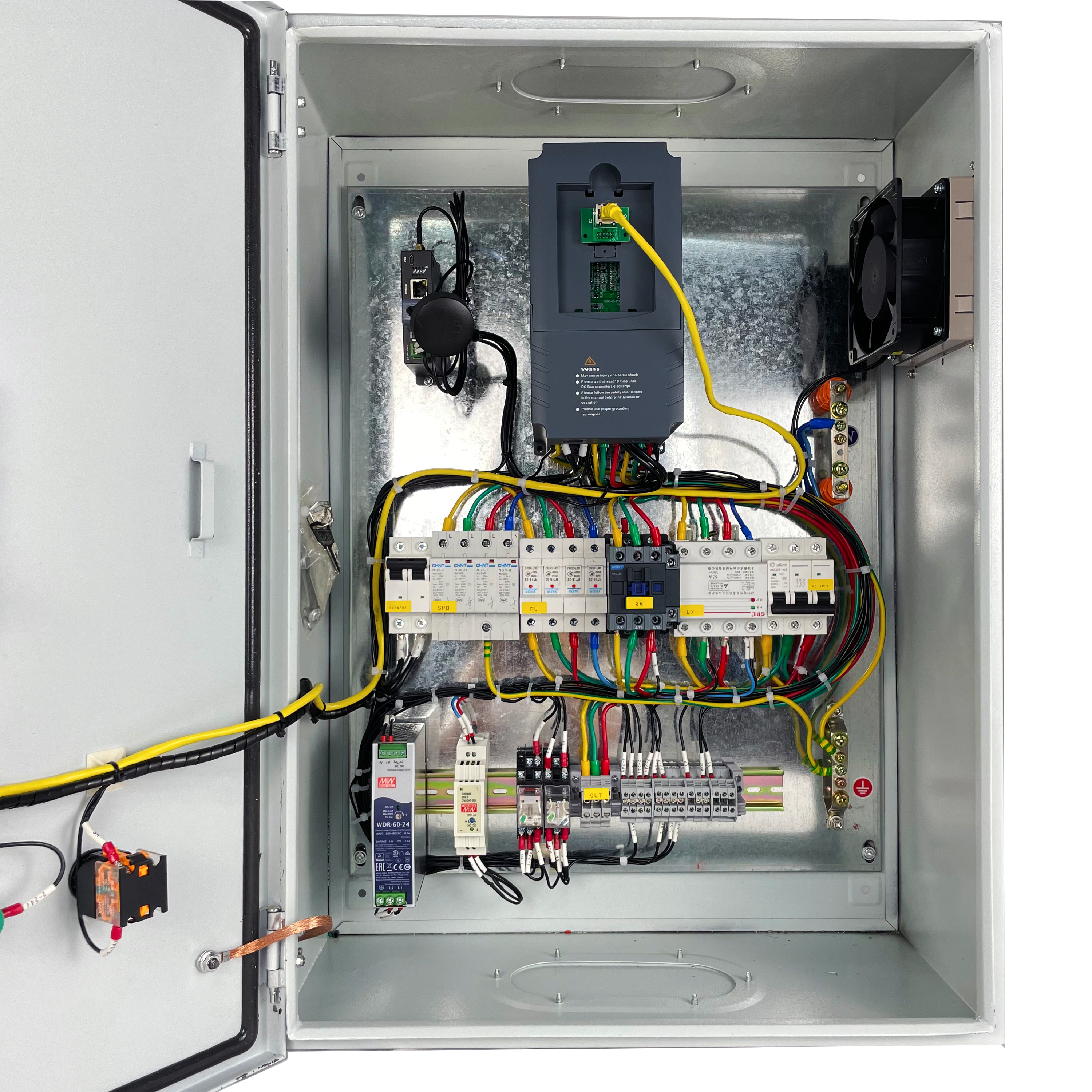

Touch Screen HMI Customized High Efficiency Water Pump Motor Solar Energy System Electrical Control VFD Cabinet

1 / 5

Touch Screen HMI Customized High Efficiency Water Pump Motor Solar Energy System Electrical Control VFD Cabinet

Send Inquiry

Product Description

Product Description

📌 The frequency converter control panel (VFD electric control panel / electrical control panel) can widely use in metallurgy, chemical industry, petroleum, water supply, mine, building material, electrical motor industry, such as pumps, fans, air compressor, rolling mill, injection molding machine, conveyer belt and other machinery and equipments.

Working Condition

🌡️ Ambient temperature: -10 to 50℃
⚙️ Control mode: Outlet constant pressure
🎯 Pressure adjustment precision: < ±0.01MPa
🏗️ Installation mode: Floor type or hanging type
⚡ Power Range: 0.75kW ~ 400Kw
🔌 Phase: 1PH/3PH 220V 50/60Hz; 3PH AC380V 50/60Hz
🔋 Voltage Range: 220V (170-220V); 380V (330V-440V)

Application Range

🏙️ Water supply for Urban and rural residential areas & high-rise buildings
🏨 Hotels, restaurants, and large-sized structures
🔥 Fire fighting water systems
⛲ Water pumping stations and pipeline systems
🏭 Industrial production and industrial boiler water supply
🌊 Sewage treatment systems
🚜 Agricultural irrigation, sprinkler irrigation and music fountains

Technical Specification

VFD Technical Parameter
Power Range	0.75kW ~ 900Kw
Input Rated Voltage & Frequency	1PH/3PH 220V 50/60Hz; 3PH AC380V 50/60Hz
Allowable Voltage Range	220V: 170~220V; 380V: 330V-440V
Output Voltage	220V: 0~220V; 380V: 330V-440V
Analog Input Signal	In: 0~10v; 0~20mA
Analog Output Signal	0/4-20 mA
Output Frequency / Accuracy	0.1~400.0 Hz / 0.1Hz

Frequently Asked Questions

Can you accept customized products?

Yes, of course. We provide OEM and ODM services for internationally recognized brands, tailored to specific technical requirements.

What is the difference between a standard inverter and a solar inverter?

A standard inverter only accepts AC input. A solar inverter accepts both AC and DC input from solar panels, allowing for significant energy savings, though they are not intended to replace batteries.

What should be noticed during installation?

Install the product in a well-ventilated, cool, dry, and waterproof environment. Ensure there is no external stress on the unit and always turn on the inverter before the connected appliances.

Do we need to set parameters before use?

Solar inverters come with AI intelligent presets. For Pump Variable Frequency Drivers, you only need to set target pressure and RS485 communication for multi-pump systems via a few simple steps.

What is the typical lead time for an order?

For quantities under 100 pcs, delivery is typically 15 days after payment. For larger orders, please contact our team for a detailed schedule.

What are the available payment terms?

For OEM orders, we require a 30% deposit with the remaining 70% due when goods are ready for shipment. For in-stock items, full payment is required before shipping.
