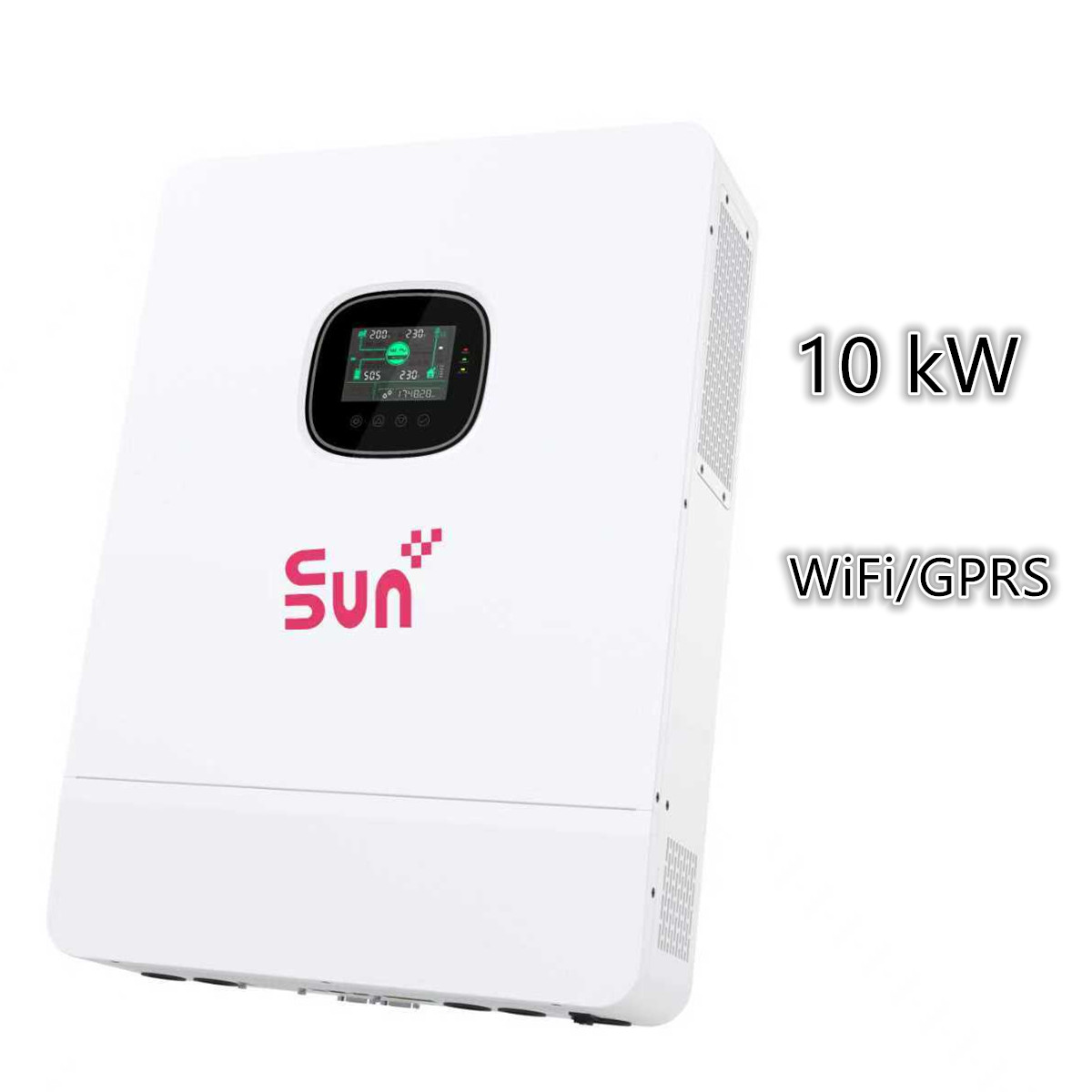

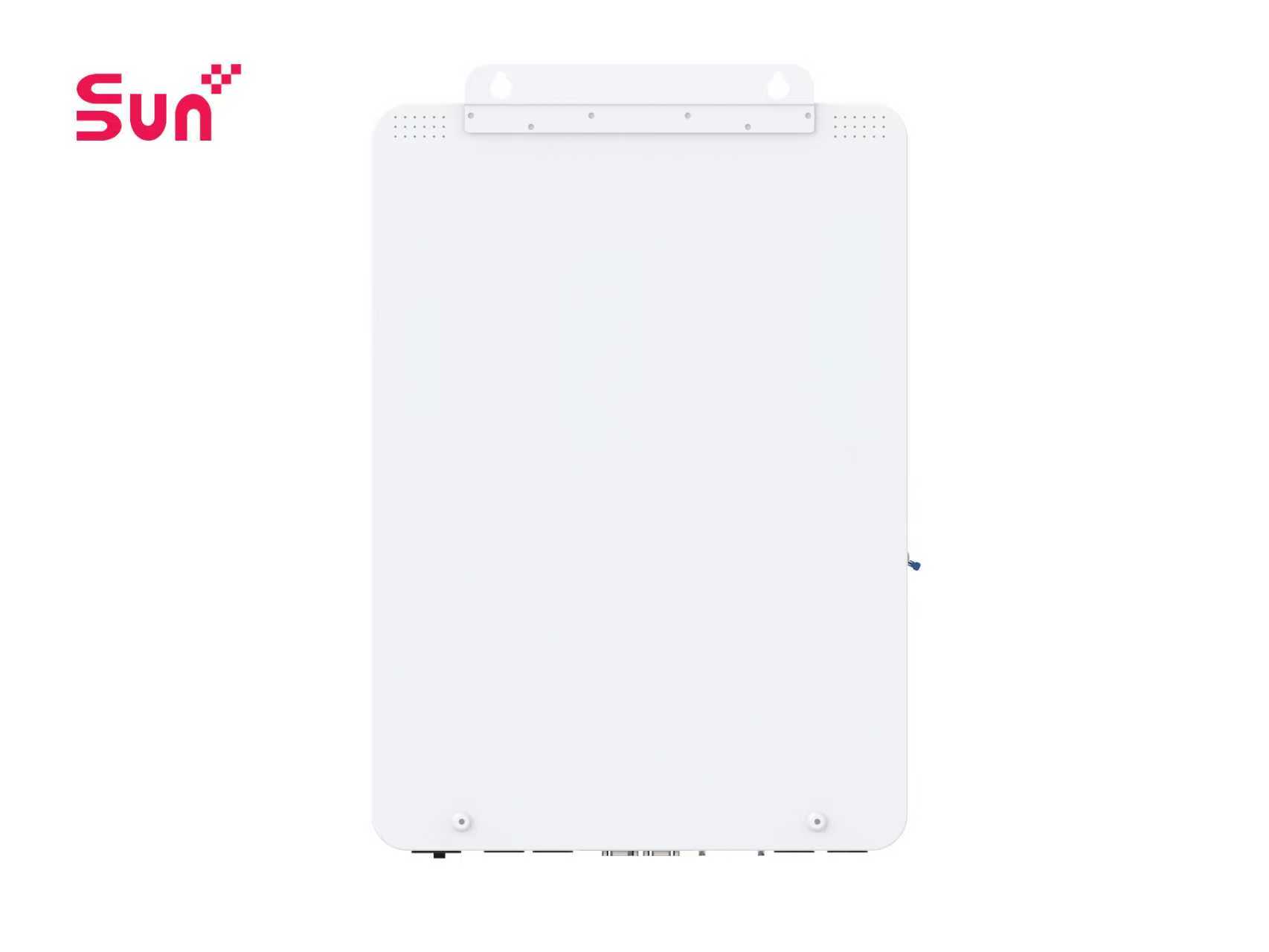

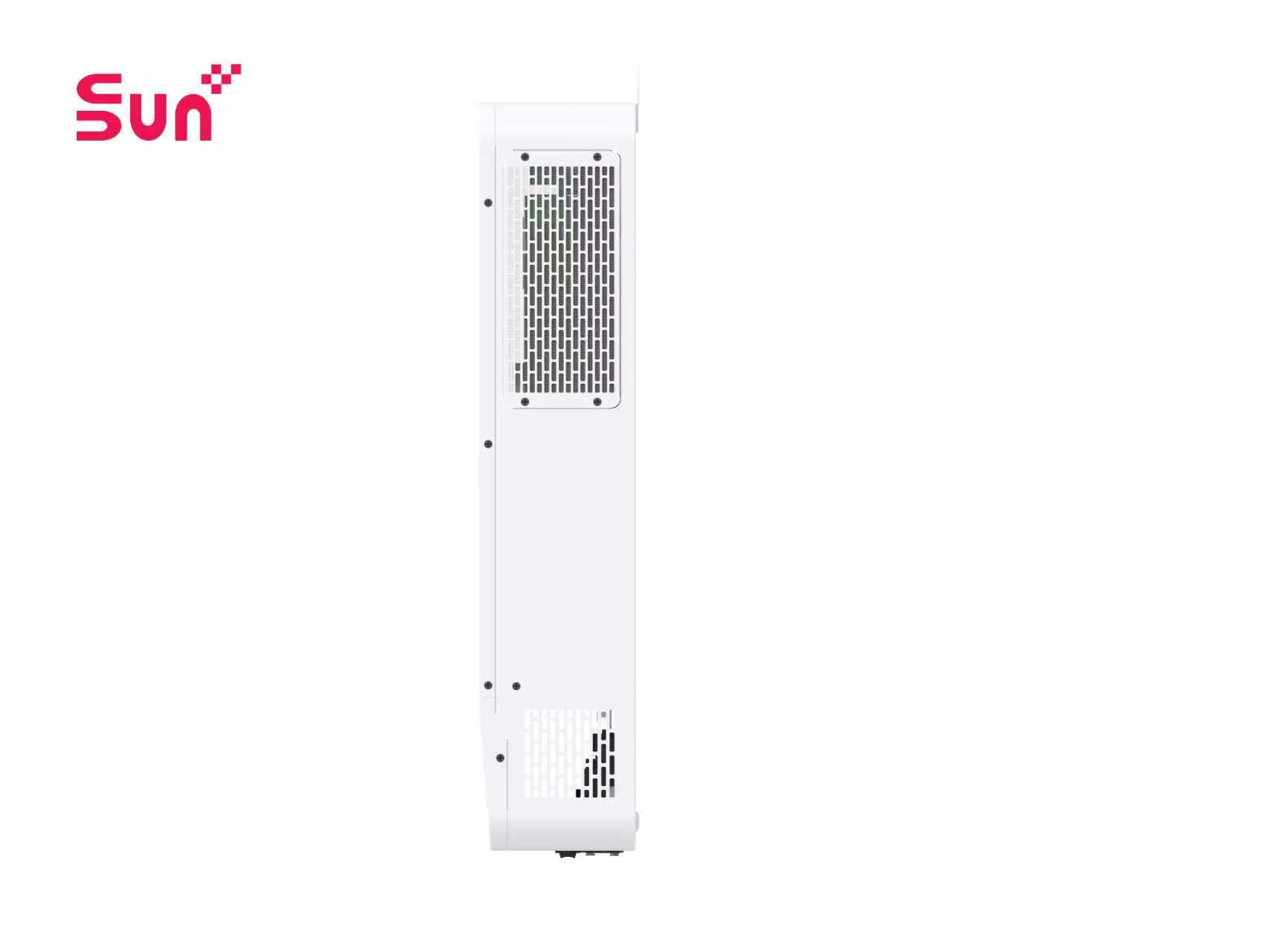

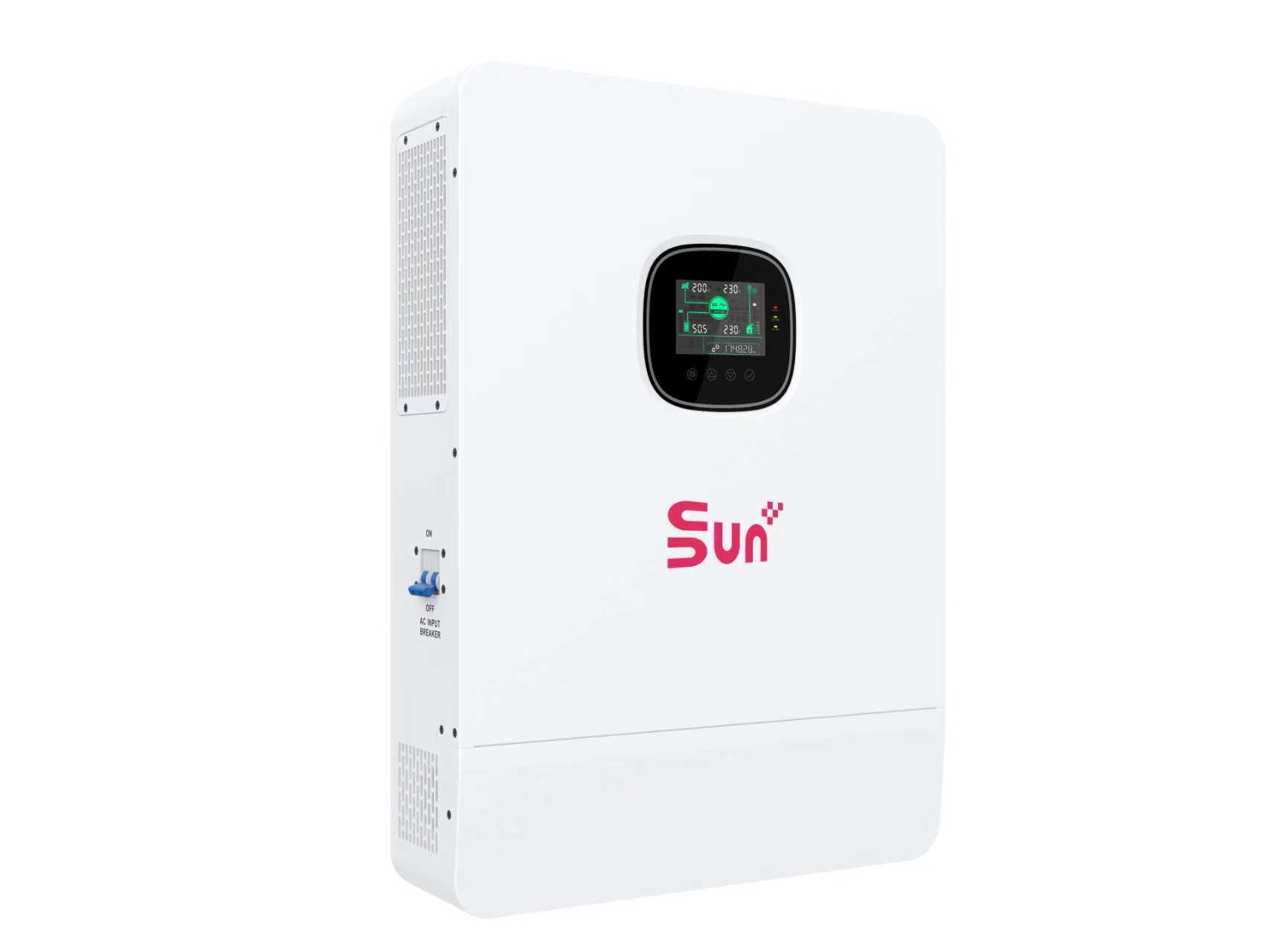

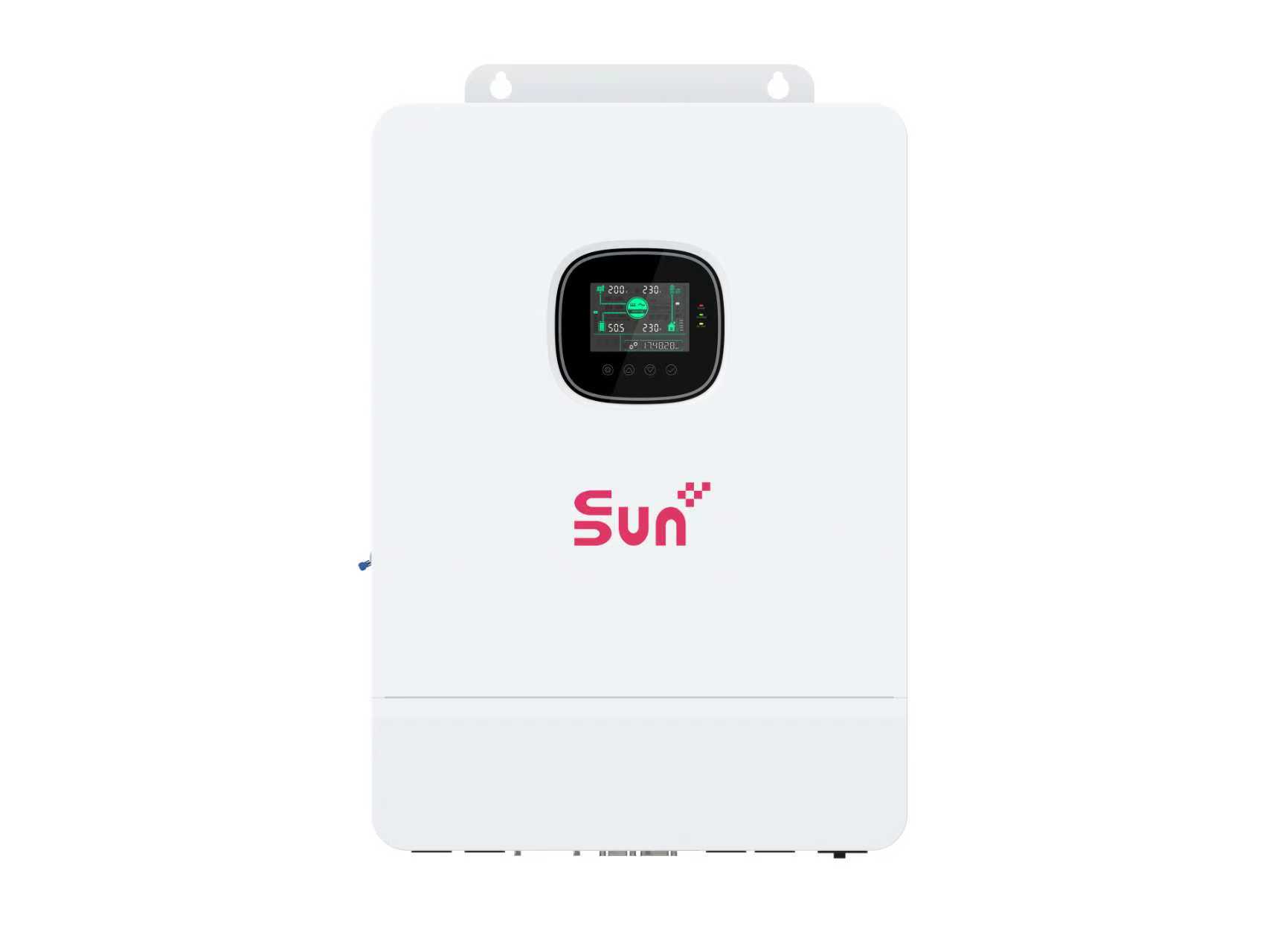

| Model | SPI-10K-UP | Settings |
|---|---|---|
| INVERTER OUTPUT | ||
| Rated Output Power | 10000W | - |
| Max. Peak Power | 20000W | - |
| Rated Output Voltage | 120Vac (Single-phase) / 240Vac (Split-phase) | √ |
| Load Capacity of Motors | 6HP | - |
| Rated AC Frequency | 50/60Hz | √ |
| Waveform | Pure sine wave | - |
| Switch Time | 10ms (typical) | - |
| Parallel Capacity | 1~6 units | - |
| Output Mode | Off-grid (default) / Hybrid | √ |
| BATTERY | ||
| Battery Type | Li-ion / Lead-acid / User-defined | √ |
| Rated Battery Voltage | 48Vdc | - |
| Battery Voltage Range | 40~60Vdc | √ |
| Max. MPPT Charging Current | 200A | √ |
| Max. Hybrid Charging Current | 200A | √ |
| PV INPUT | ||
| Num. of MPPT Trackers | 2 | - |
| Max. PV Array Power | 5,500W + 5,500W | - |
| Max. Input Current | 22A + 22A | - |
| Max. Open Circuit Voltage | 500Vdc + 500Vdc | - |
| MPPT Voltage Range | 125-425Vdc | - |
| UTILITY / GENERATOR INPUT | ||
| Input Voltage Range | 90-140Vdc | √ |
| Bypass Overload Current | 63A | - |
