Available Accessories

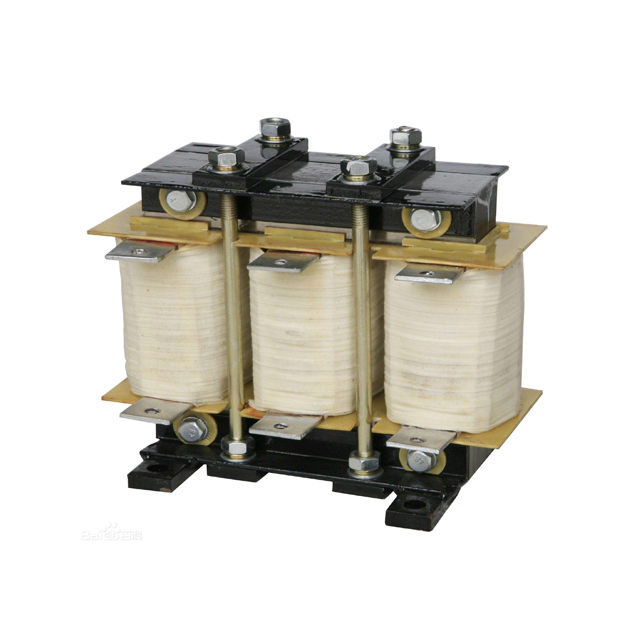

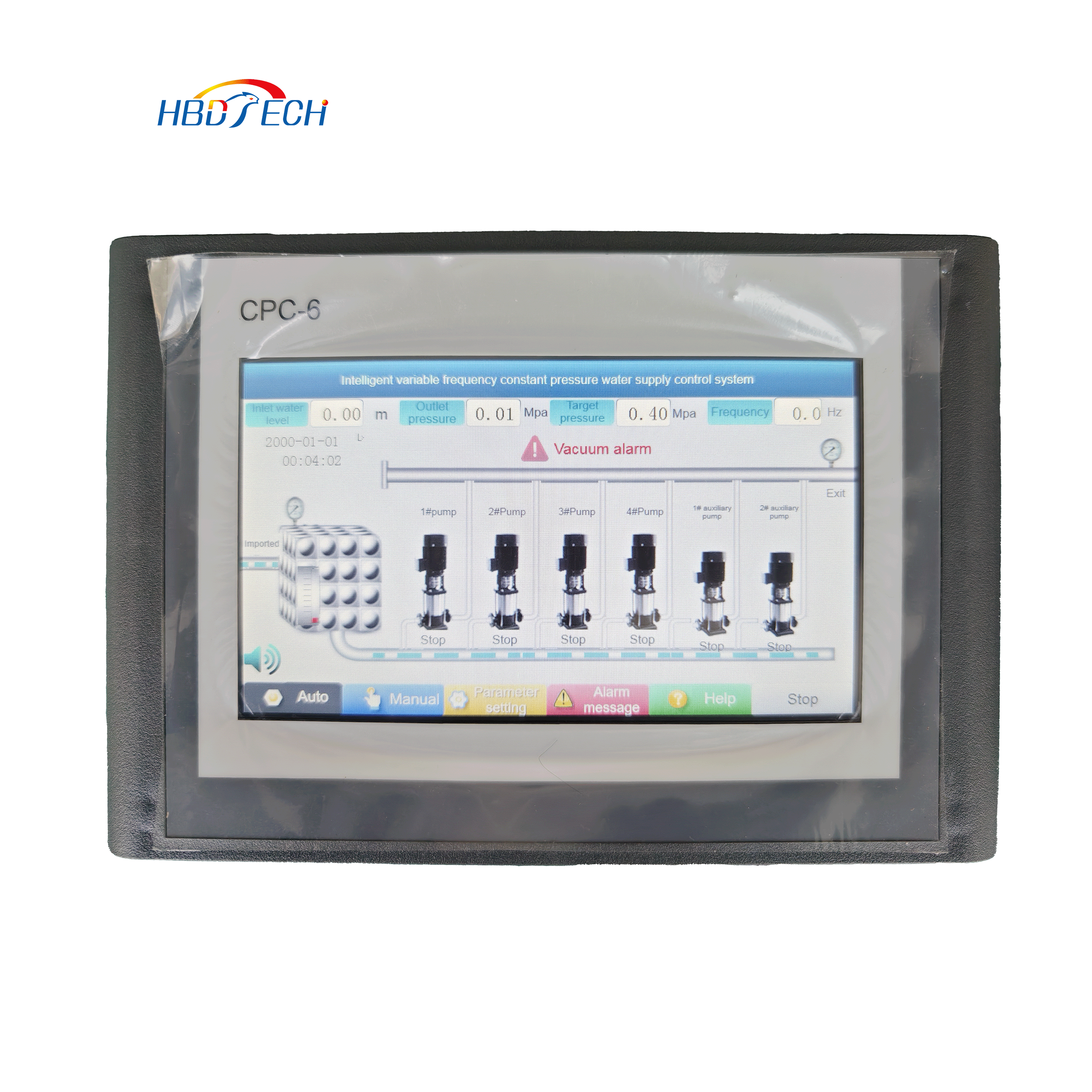

| Constant pressure water supply controller | Reactor |
| Pressure monitoring and control of multiple water pumps | Copper material, protecting the inverter |

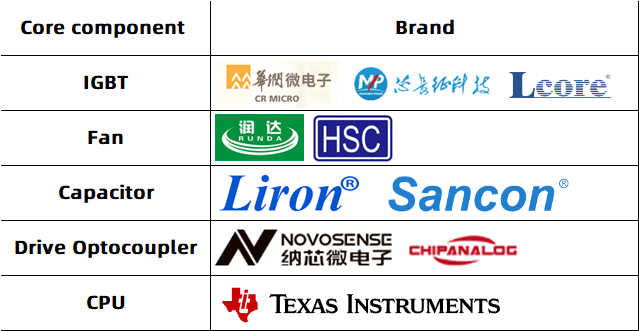

| Component | Brand / Material |
| CPU | TI |
| IC | TI/ON |
| MODULE | INFINEON-Germany |
| Capacitor | TEAPO/JIANGHAI |
| MOS | RENESAS |
| Fans | RUNDA |
| Optocoupler | TOSHIBA/AVAGO |
| Terminals | TML |
| Snubber capacitor | CDE |
Input Frequency: 50Hz-60Hz | Output Frequency: 0Hz-400HZ
| Input Specification | |
| PV Input Max Voltage | 400VDC |
| Recommended MPPT Range | 250V-350VDC |
| Grid/Generator Input | Three phase 220v (-15%~30%) |
| Output Specification | |
| Rated Output Voltage | 3PH 220v |
| Output Frequency | 0~500.00Hz |
| Protection & General | |
| Built-in Protection | Lighting, Over-current, Overvoltage, Phase-lose, Run dry, etc. |
| Altitude | 0~2000 m (Derated above 1000m) |
| Efficiency | Rated Power Run ≥ 93% |
| Protection Grade | IP20 |

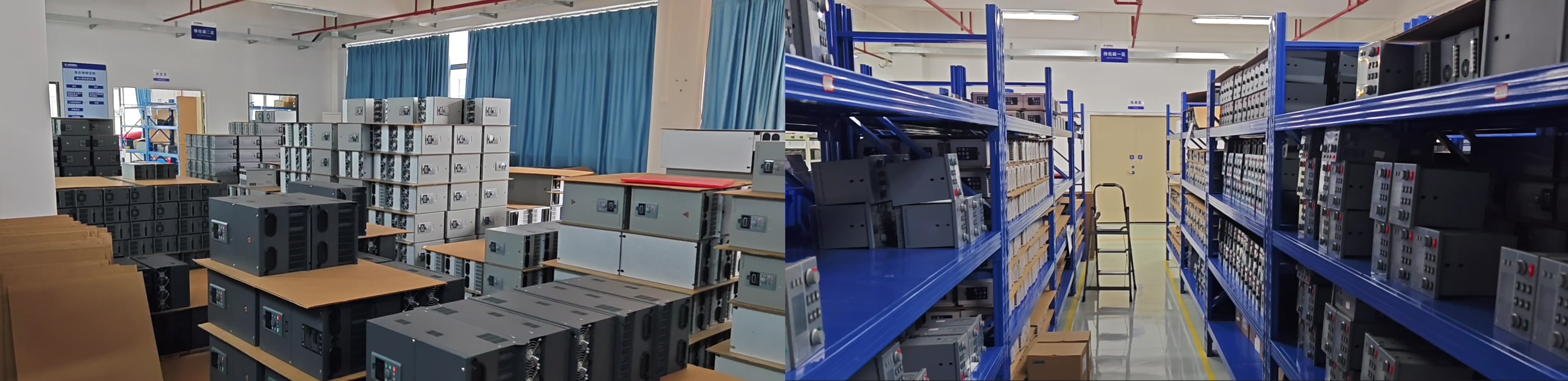

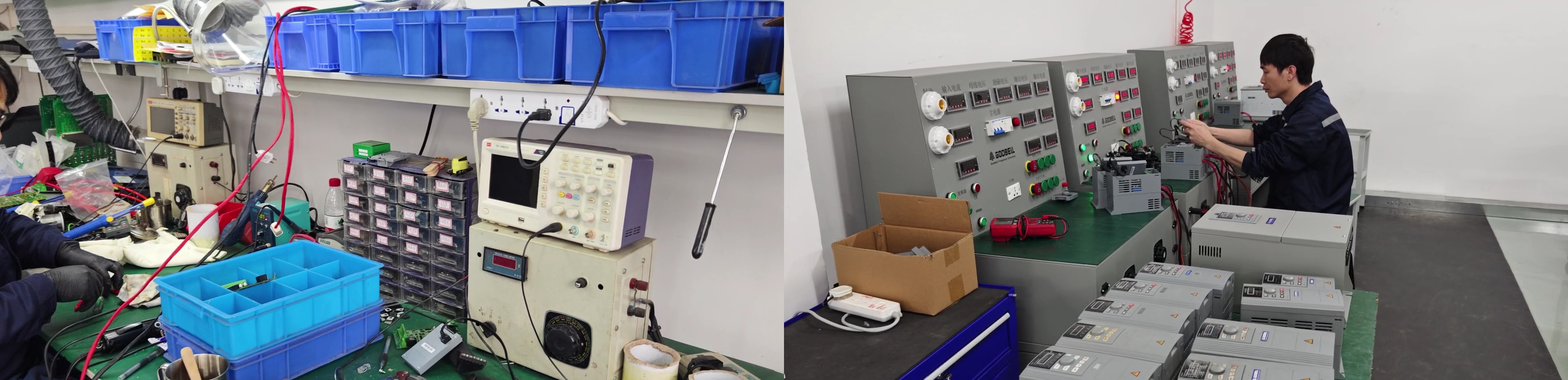

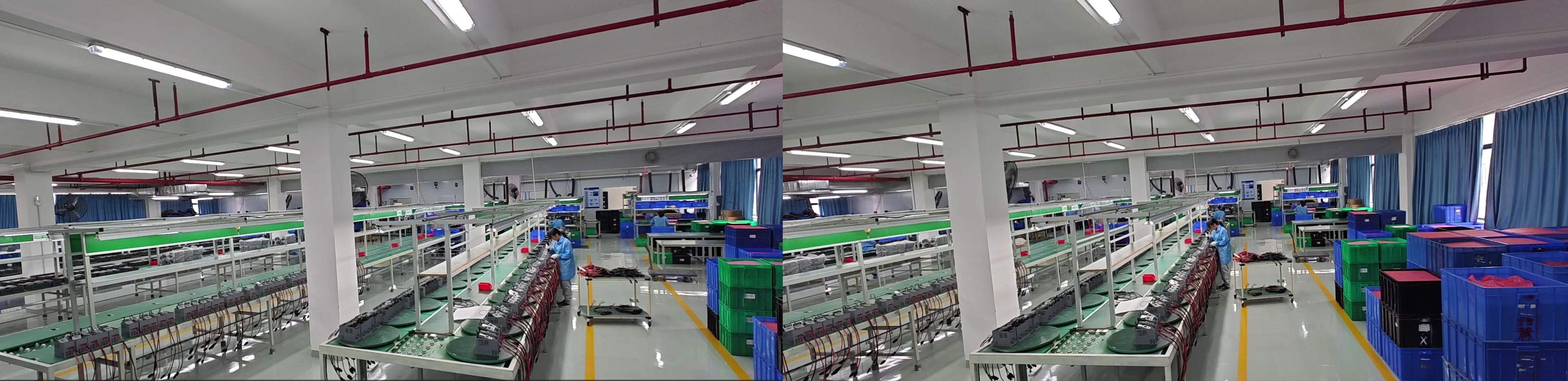

Factory Overview: Our facility covers over 5,000 square meters. With a professional team of over 200 employees, including 20 to 30 R&D engineers.

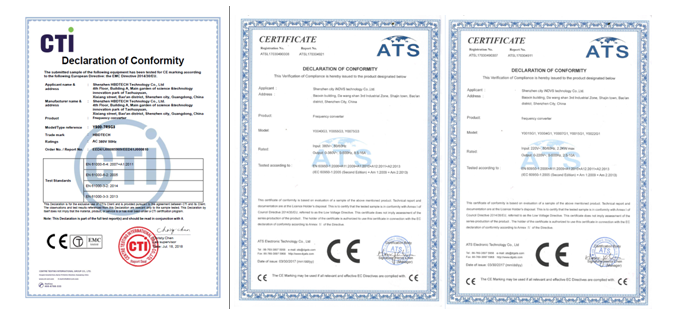

Capacity & Quality: Annual production reaches 200,000 units. Products undergo three strict tests before shipment and meet CE, ISO90001, CCC, and CB standards.
Service: We export 90% of our products globally. We provide comprehensive after-sales service including free part replacement within the 18-month warranty.
