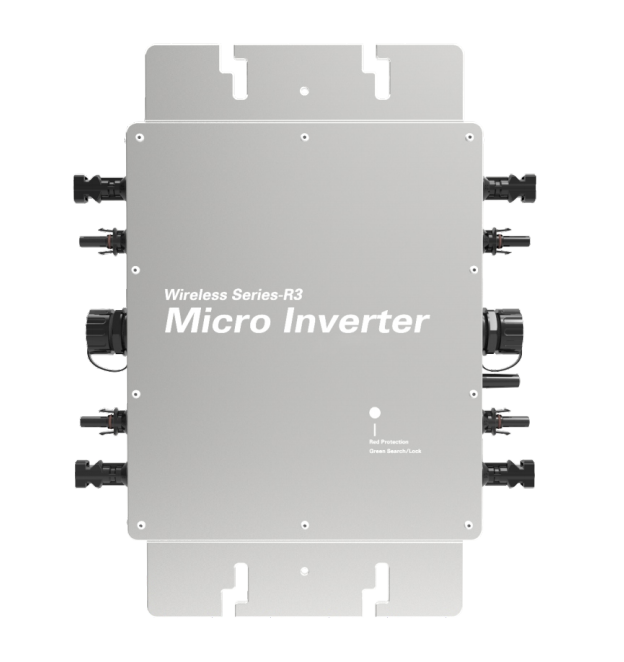

PNG WVC-2400 2400W Micro Inverter with IP65 Protection 99.5% Efficiency for Rooftop and Home Solar Power Systems

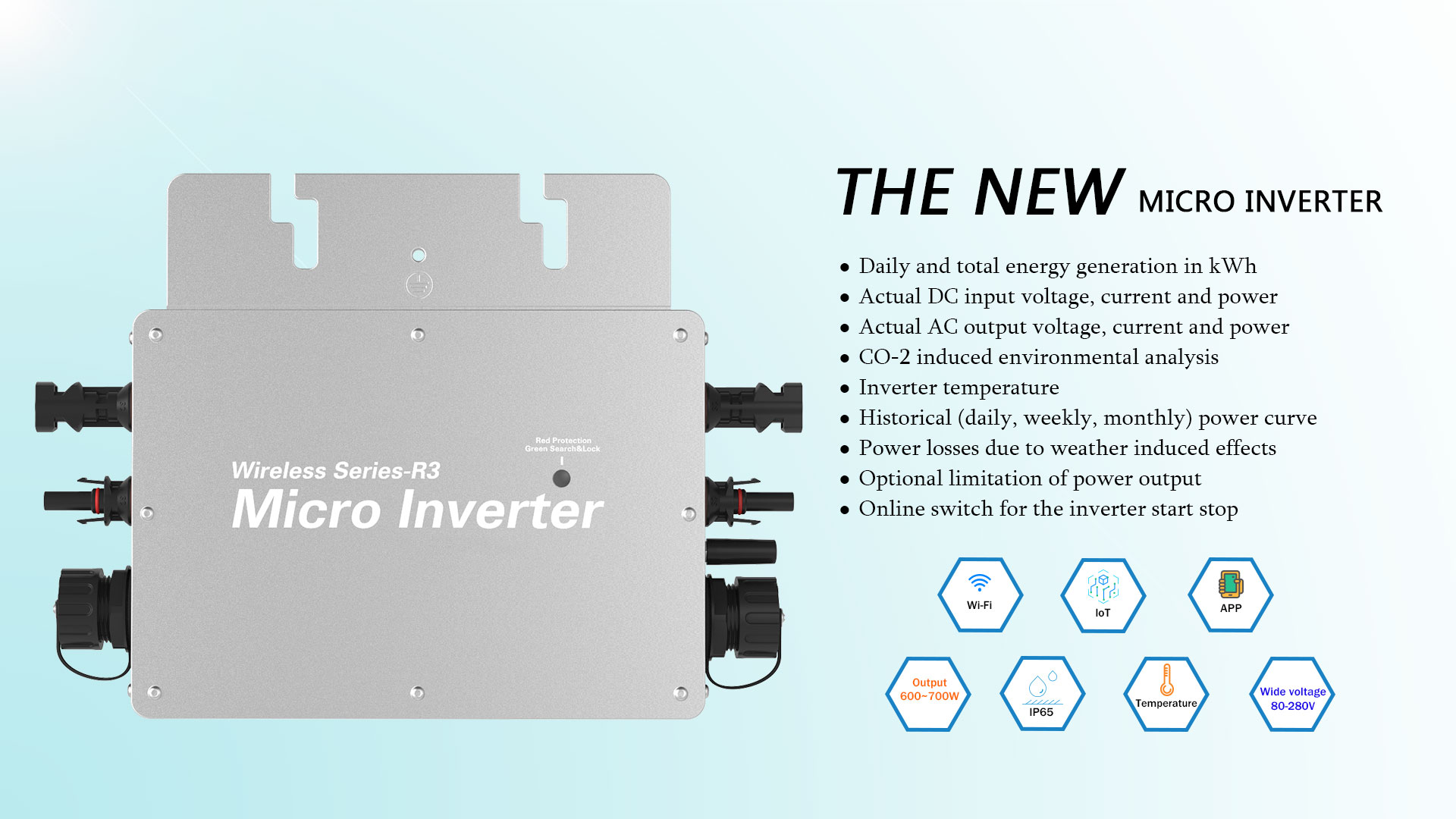

Product Description

Product Description
Product Description
Specification

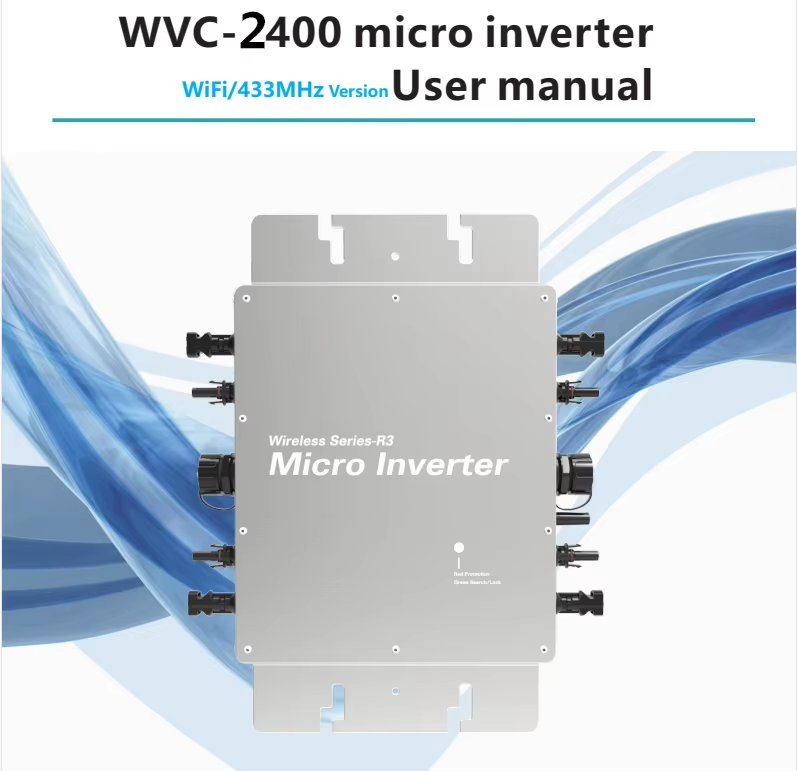

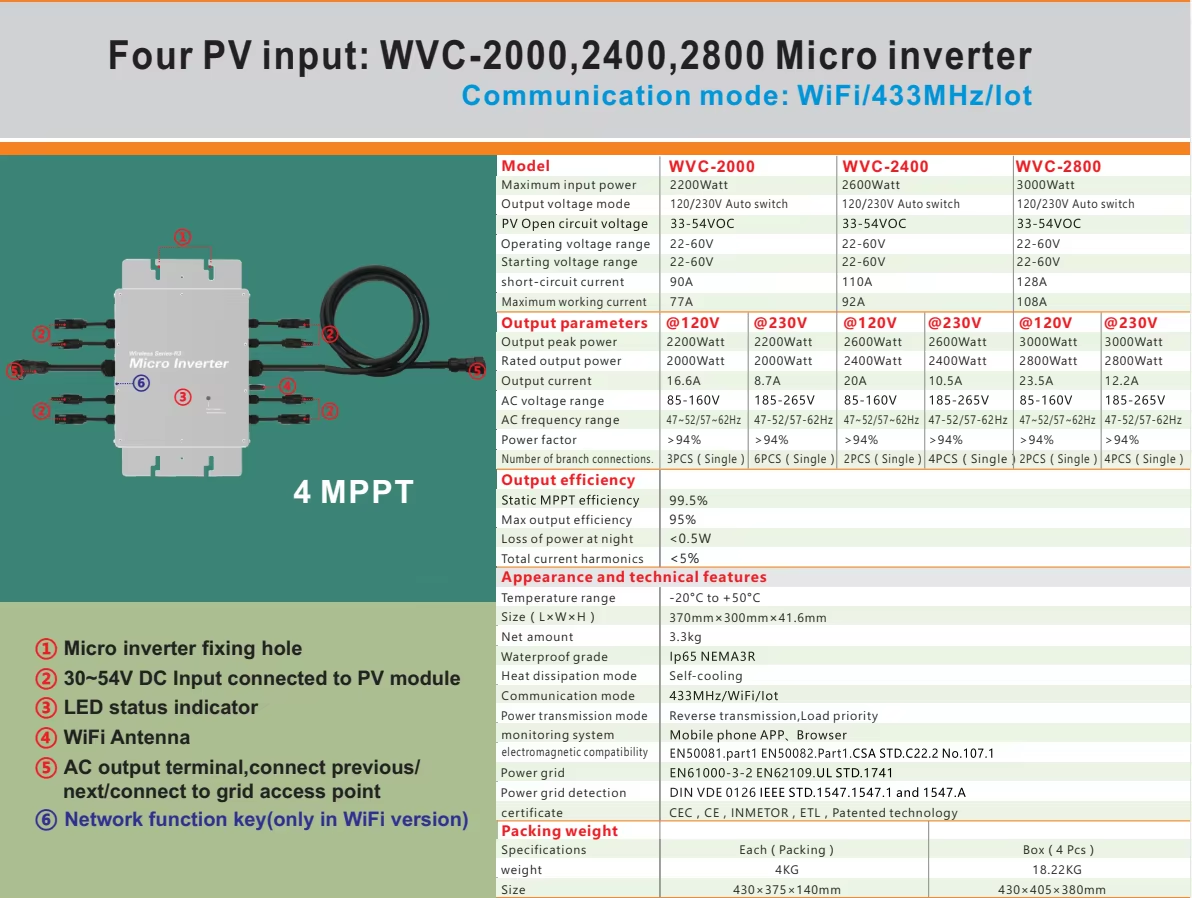

Specification 1 Specification 2
Parameters KD-WVC-2400(Wireless)-120VAC/230VAC
Maximum input power 2400 Watt
Recommended solar panels Power 4×600W, open circuit voltage 22-60VOC
Solar panel open circuit voltage 22-50VOC
Peak power tracking voltage 22-50V
Min / Max start voltage 22-60V
Maximum DC short current 80A
Maximum Input Current 54.4A
AC voltage and output Automatic shift local grid voltage
Output Data @120VAC @230VAC
Peak power output 2600 Watt 2600 Watt
Rated output power 2400 Watt 2400 Watt
Rated output current 20A 10.5 A
Rated voltage range 85-160VAC 185-265VAC
Rated frequency range 47-52.5Hz / 57-62.5Hz 47-52.5Hz / 57-62.5Hz
Power factor >99% >99%
Max units per branch 2 PCS (Single-phase) 4 PCS (Single-phase)
Output Efficiency @120VAC @230VAC
Static MPPT efficiency 99.5% 99.5%
Maximum output efficiency 91.2% 92.5%
Nighttime power consumption <0.5W <0.5W
THD <5% <5%

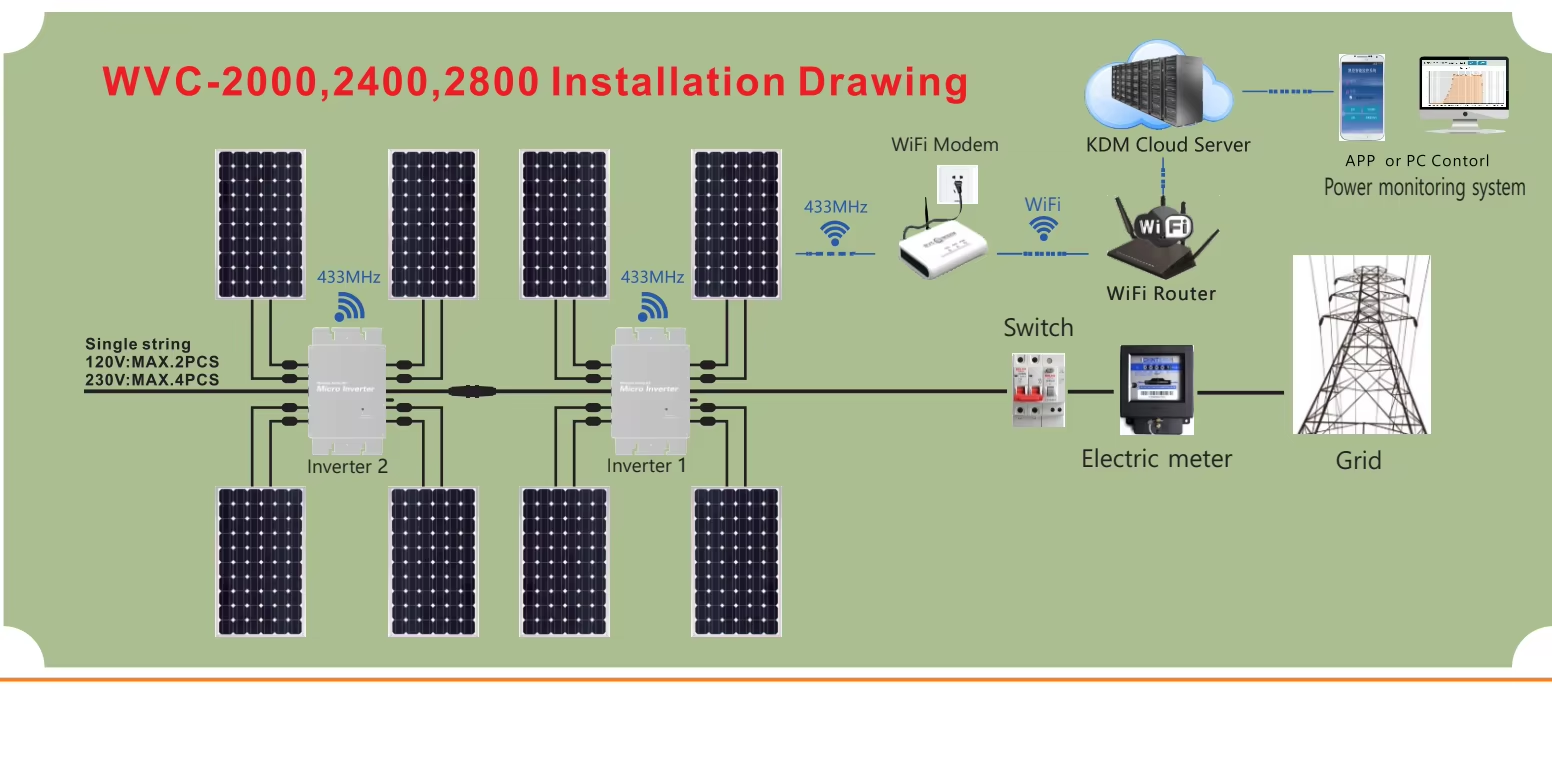

Efficiency Chart
Projects

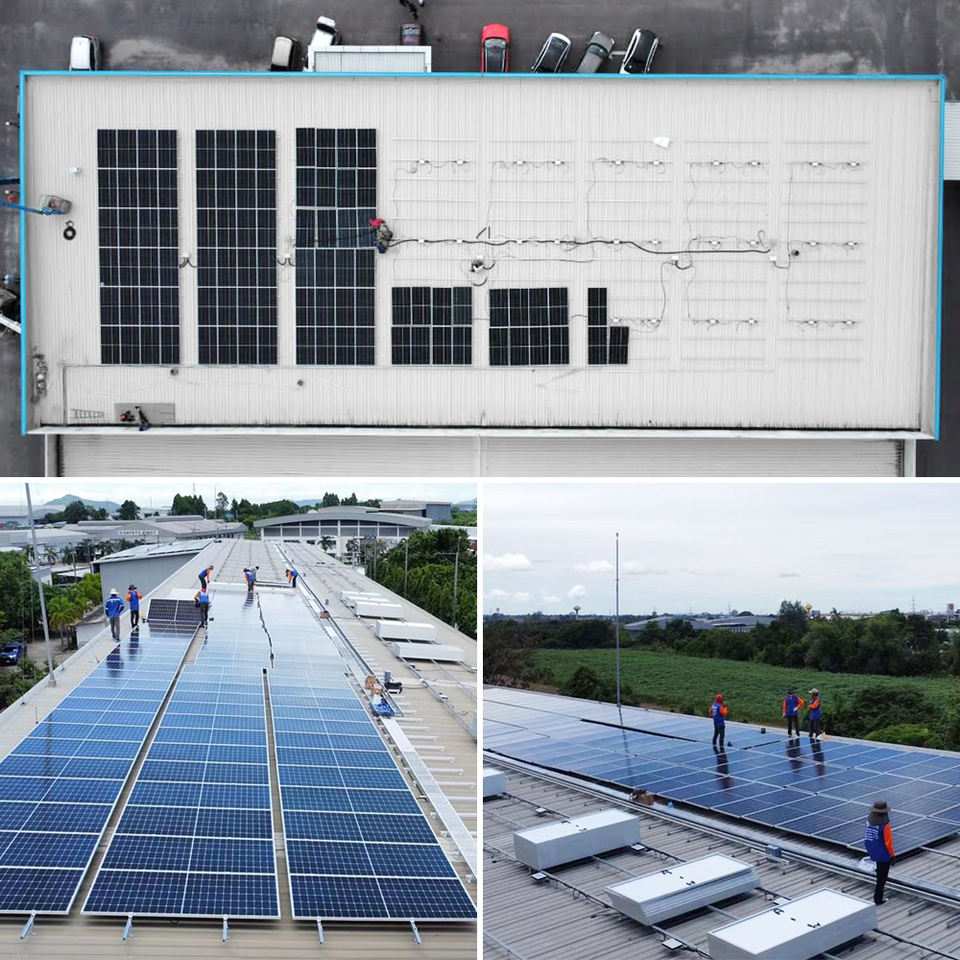

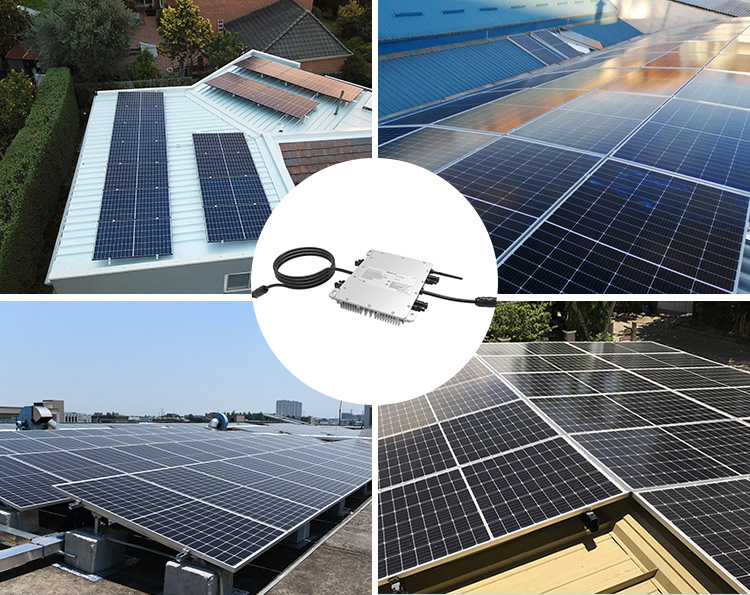

Project 1 Project 2

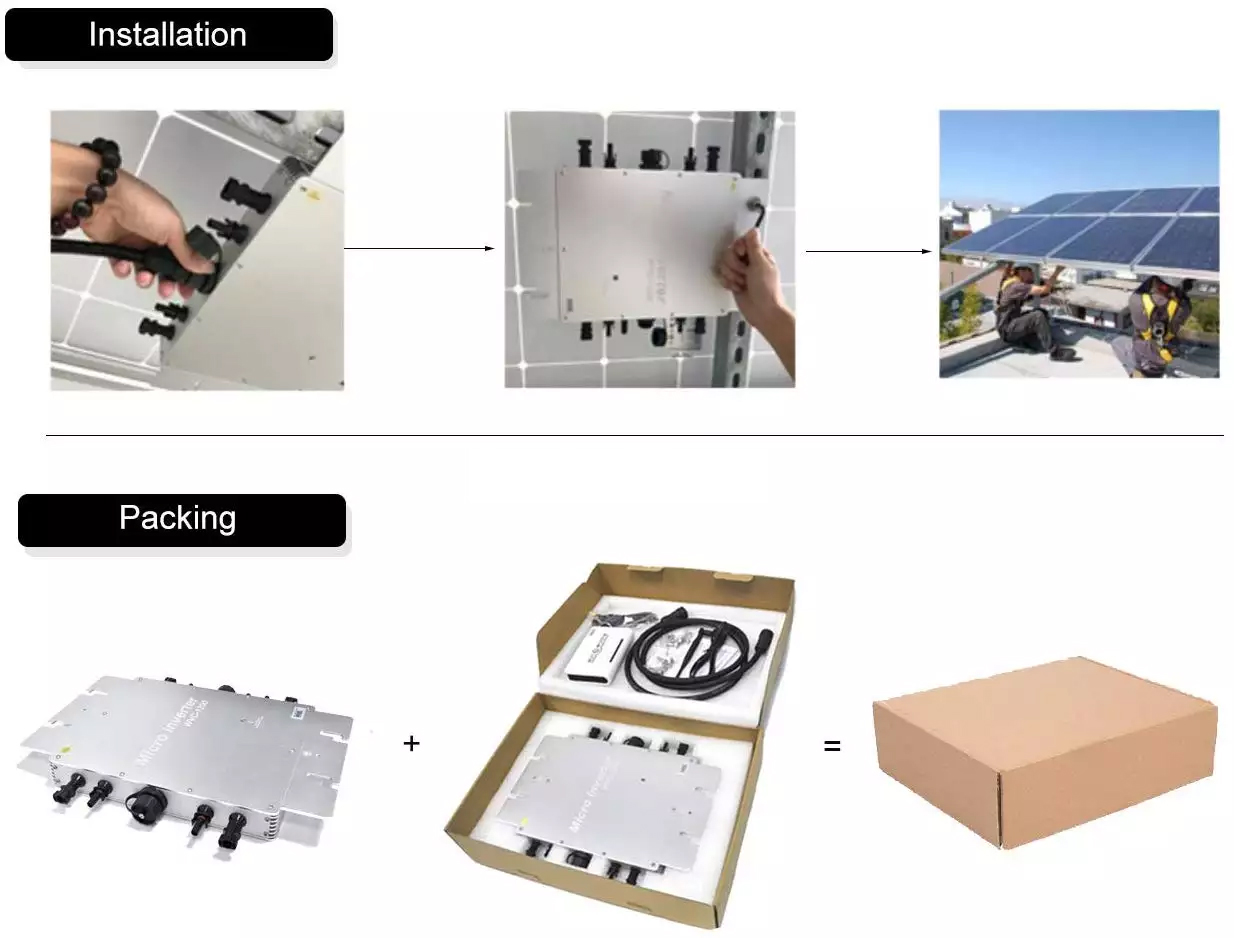

Packing & Delivery
Packing
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

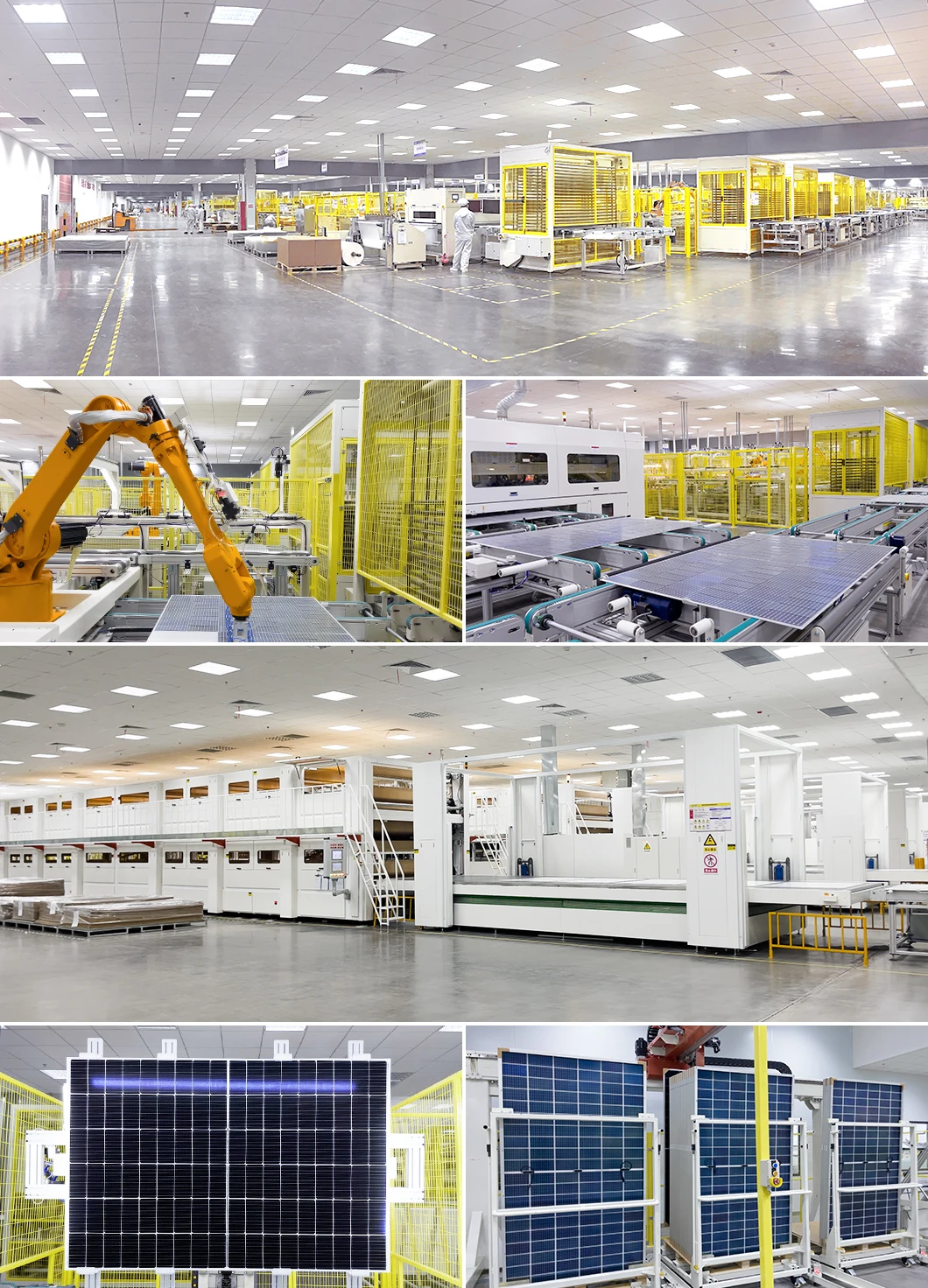

Profile 1 Profile 2

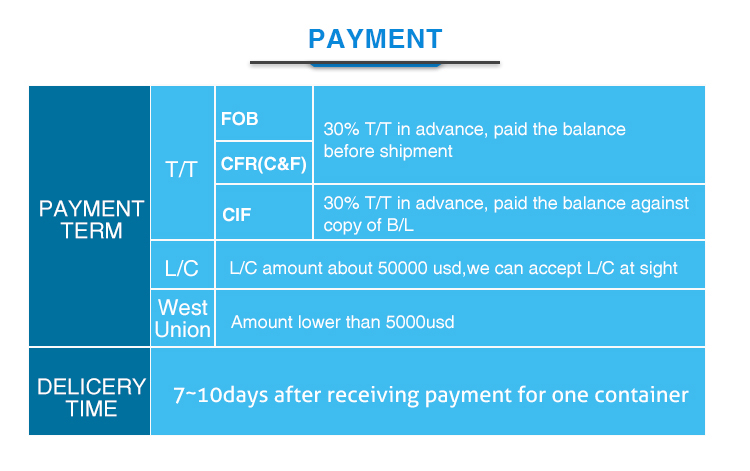

Payment Methods
Payment
Display 1 Display 2
FAQ
Are you a factory or a trading company?
We are a professional Solar Panels Manufacturer.
How can we guarantee the products quality?
Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments.
What products can we supply you?
Solar panels, inverter, controller, cable, support frame and other solar power systems.
Can the products pricing be cheaper?
Of course, you will be offered a very good discount with large quantities.
Can we print our company's logo on the PV panels?
Yes, we accept the OEM & ODM orders to meet your specific branding requirements.
What is your typical delivery time?
Generally, it takes 7-15 days after receiving payment, depending on the order quantity and stock availability.
