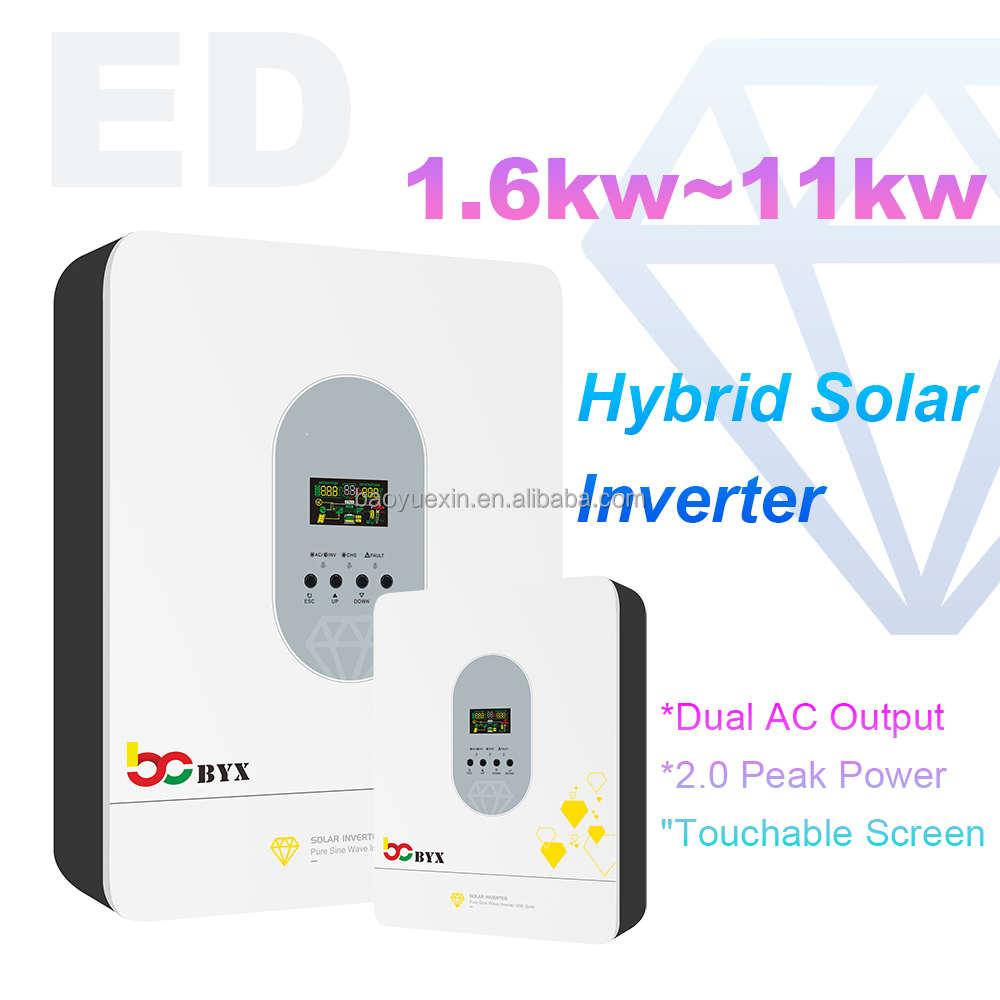

Hybrid Solar Inverter Generator 10Kw 8Kw 5Kw 6kw with MPPT Charge Controller Dual or Single AC Output 48Vdc for off On-Grid Use
Hybrid Solar Inverter Generator 10Kw 8Kw 5Kw 6kw with MPPT Charge Controller Dual or Single AC Output 48Vdc for off On-Grid Use
Hybrid Solar Inverter Generator 10Kw 8Kw 5Kw 6kw with MPPT Charge Controller Dual or Single AC Output 48Vdc for off On-Grid Use
Hybrid Solar Inverter Generator 10Kw 8Kw 5Kw 6kw with MPPT Charge Controller Dual or Single AC Output 48Vdc for off On-Grid Use
Hybrid Solar Inverter Generator 10Kw 8Kw 5Kw 6kw with MPPT Charge Controller Dual or Single AC Output 48Vdc for off On-Grid Use
1 / 5
Hybrid Solar Inverter Generator 10Kw 8Kw 5Kw 6kw with MPPT Charge Controller Dual or Single AC Output 48Vdc for off On-Grid Use
Hybrid Solar Inverter Generator 10Kw 8Kw 5Kw 6kw with MPPT Charge Controller Dual or Single AC Output 48Vdc for off On-Grid Use
Hybrid Solar Inverter Generator 10Kw 8Kw 5Kw 6kw with MPPT Charge Controller Dual or Single AC Output 48Vdc for off On-Grid Use
Hybrid Solar Inverter Generator 10Kw 8Kw 5Kw 6kw with MPPT Charge Controller Dual or Single AC Output 48Vdc for off On-Grid Use
Hybrid Solar Inverter Generator 10Kw 8Kw 5Kw 6kw with MPPT Charge Controller Dual or Single AC Output 48Vdc for off On-Grid Use

Hybrid Solar Inverter Generator 10Kw 8Kw 5Kw 6kw with MPPT Charge Controller Dual or Single AC Output 48Vdc for off On-Grid Use

Send Inquiry

Product Description

⚡ Technical Specifications Overview
ModelAK-3.6KWAK-4.2KWAK-6.2KW
Phase1-phase1-phase1-phase
Maximum PV Input Power3600W4200W8200W
Rated Output Power3600W/3600VA4200W/4200VA8200W/8200VA
Max Solar Charging Current120A120A120A
GRID-TIE OPERATIONIntegrated Support
PV Input(DC)Nominal: 260VDC / Max: 500VDC
Voltage RangeStart-up: 90VDC | MPPT Range: 60VDC-450VDC
MPPT Trackers1 Tracker / Max 27A Input
GRID OUTPUT(AC)220/230/240VAC (Range: 195~253VAC)
Nominal Output Current15.8A15.8A26.2A
Power Factor>0.99
Efficiency (DC/AC)98%
OFF-GRID OPERATIONPure Sine Wave Output
Surge Power7200W8400W12400W
BATTERY & CHARGER24VDC24VDC48VDC
Max AC Charging Current80A80A80A
PHYSICAL430*330*110 mm
Net Weight7.5KG8.5KG9.3KG
Communication PortRS485/RS232/WIFI/Remove LCD/GPRS
EnvironmentOperating Temp: -10~50℃ | CE ICE EMC Certified

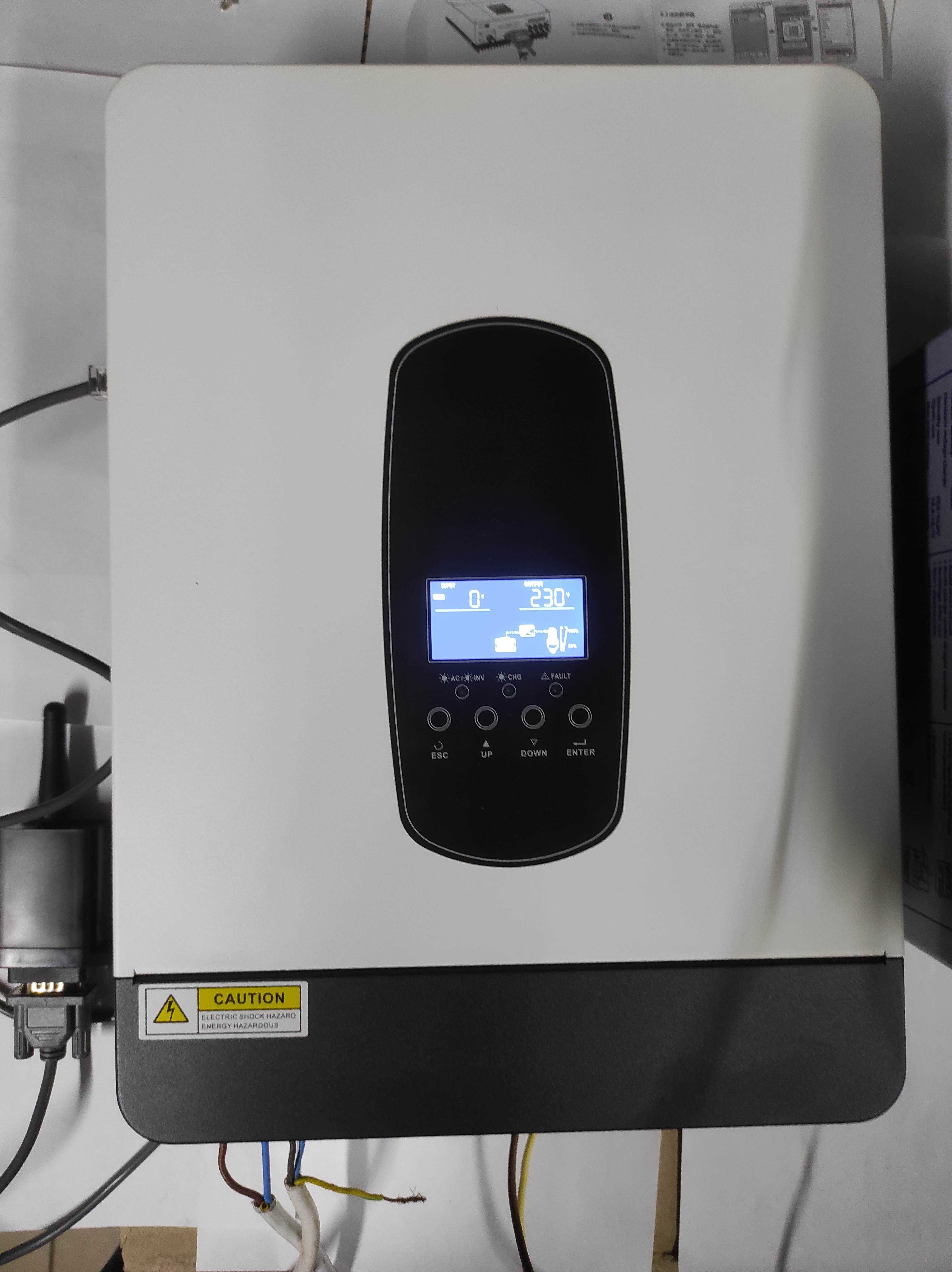

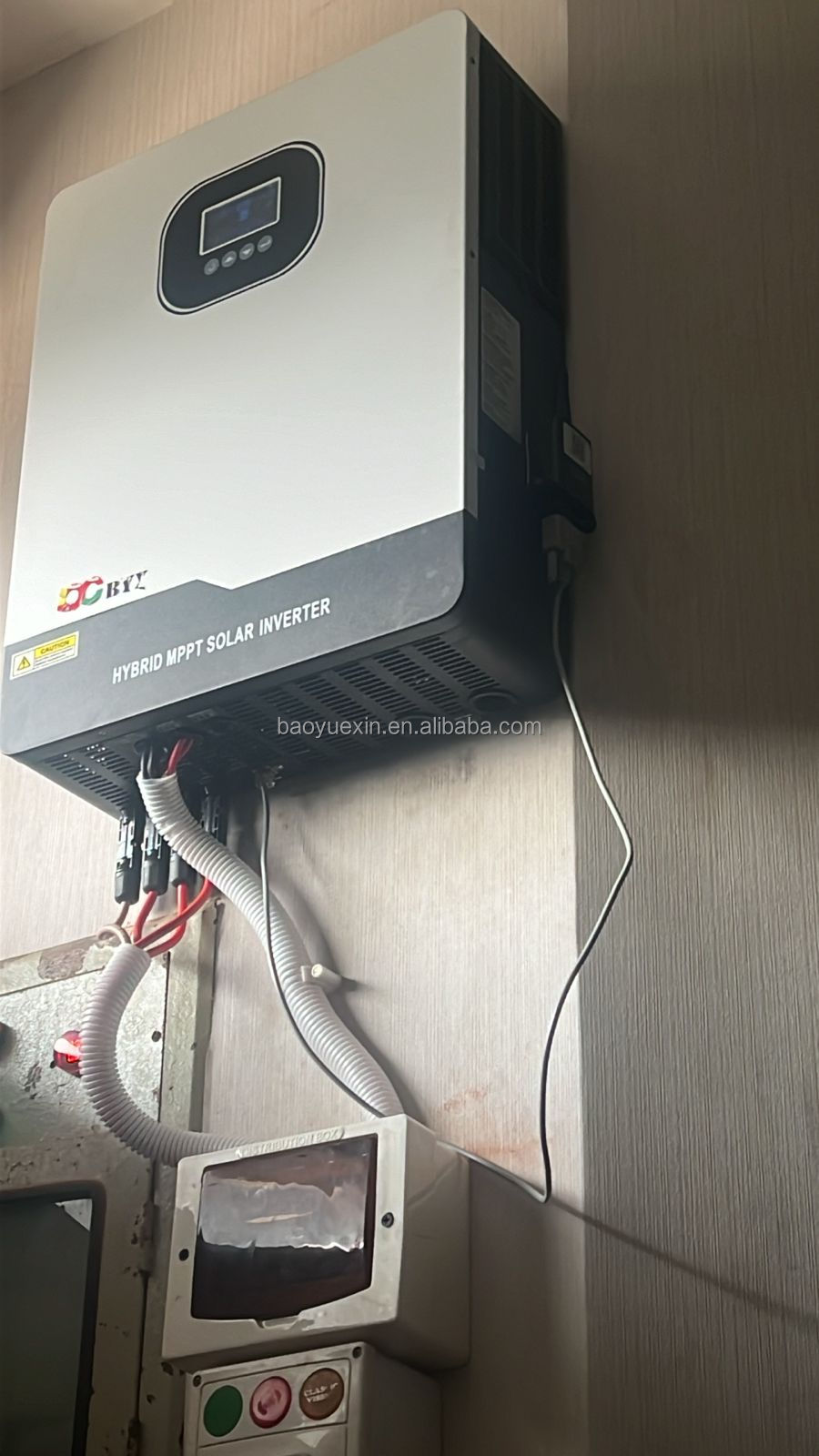

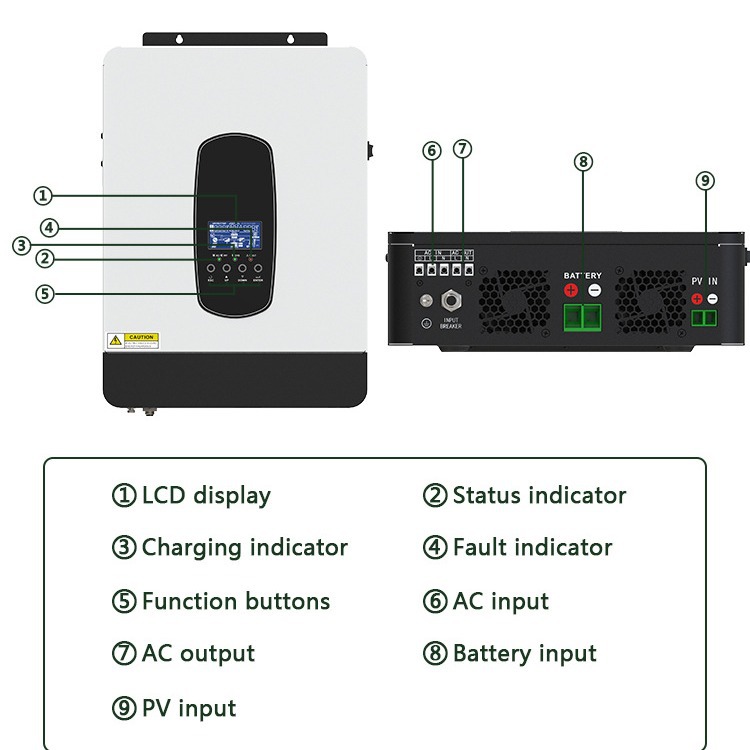

🛠️ Product Interface & Installation Details
❓ Frequently Asked Questions
What is the difference between the 3.6KW, 4.2KW, and 6.2KW models?
The primary difference lies in the rated output power and battery voltage requirements. The 3.6KW and 4.2KW models operate on a 24VDC battery system, while the 6.2KW model requires a 48VDC system and supports a higher PV input up to 8200W.
Does this inverter support pure sine wave output?
Yes, all models in the AK series provide a pure sine wave output, ensuring the safety and stable operation of sensitive electronic appliances.
What is the maximum efficiency of these solar inverters?
These inverters boast a high maximum conversion efficiency of up to 98% for both DC to AC and grid-tie operations.

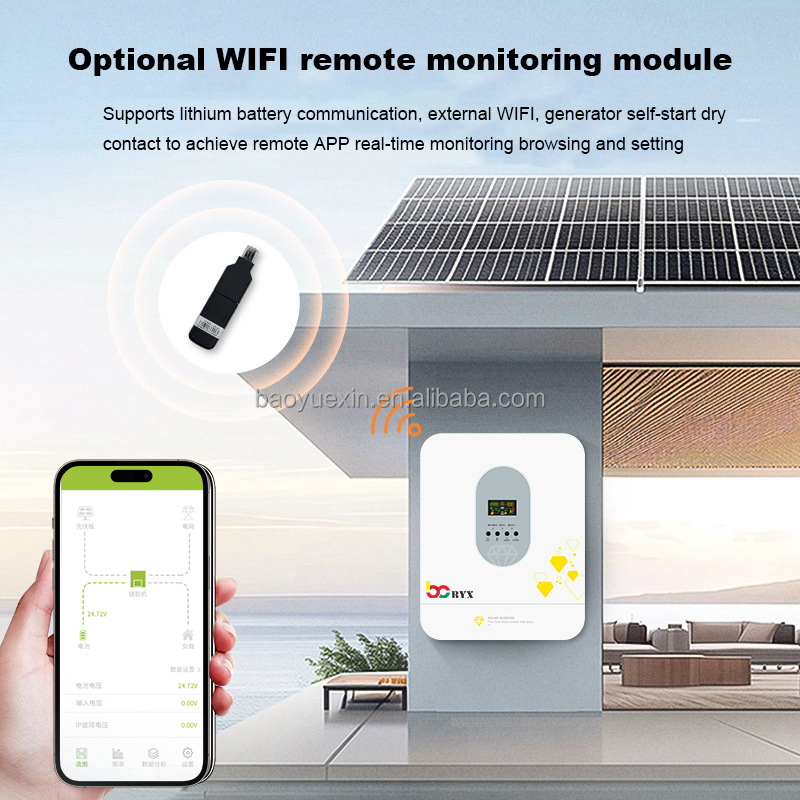

Can I monitor the system remotely?
Yes, the units are equipped with multiple communication ports including RS485, RS232, and support for WIFI or GPRS modules for remote monitoring and management.
What is the operating temperature range?
The AK series inverters are designed to operate reliably in environments ranging from -10°C to 50°C.
Is the PV input voltage range flexible?
Absolutely. The MPPT voltage range is between 60VDC and 450VDC, with a maximum DC input voltage of 500VDC, allowing for versatile solar panel configurations.
