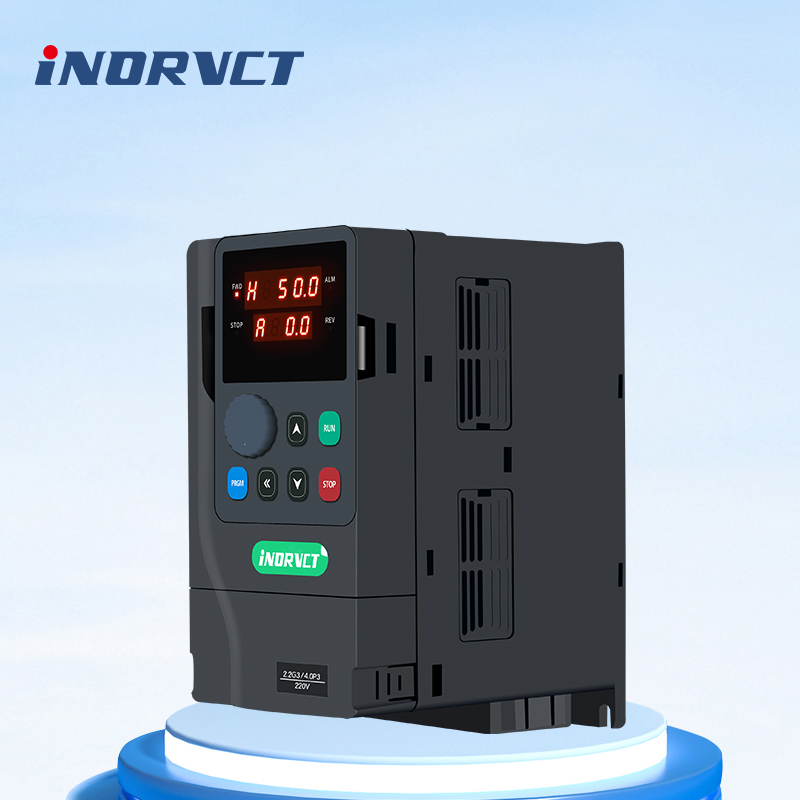

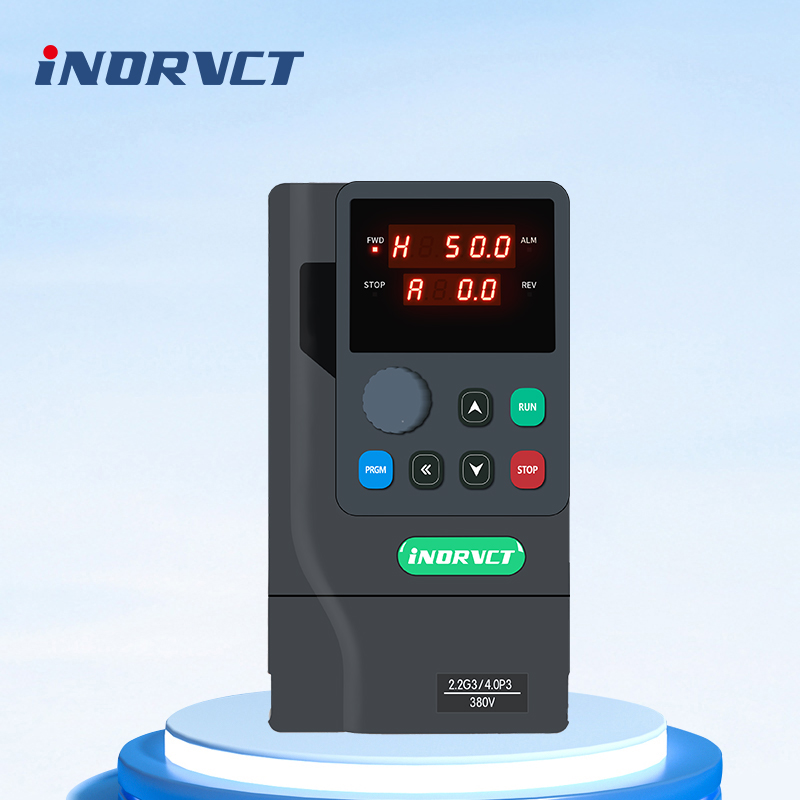

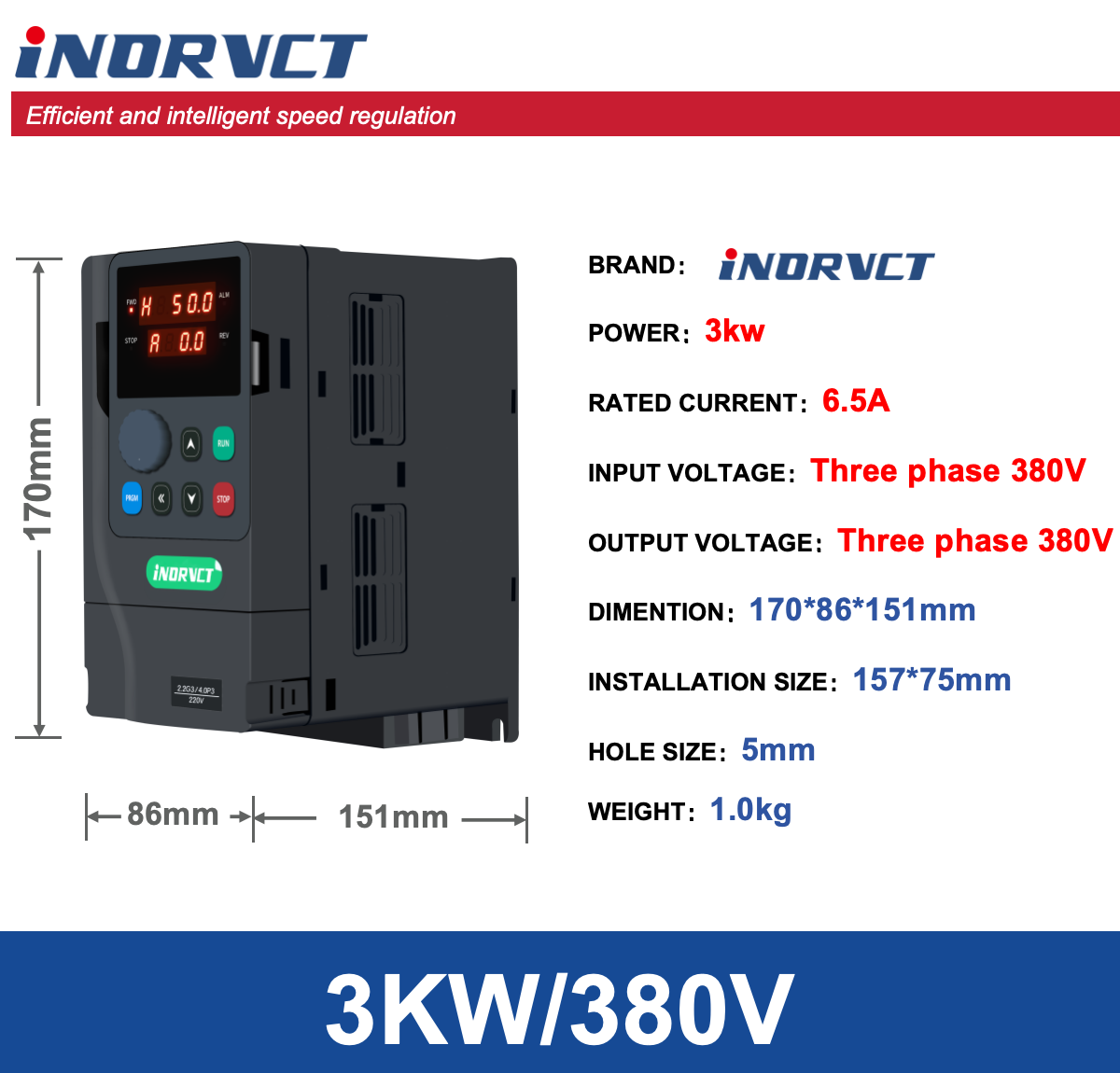

| Model | PV500-0030G3 |
| Power range | 3 phase AC 380V (-15%~+30%) 3.0KW |
| Output Frequency Range | 0~500Hz |
| Control Mode | V/F Control, Sensorless Vector Control |
| Starting Torque | 0.5Hz/150%(SVC), 1Hz/150%(V/F) |

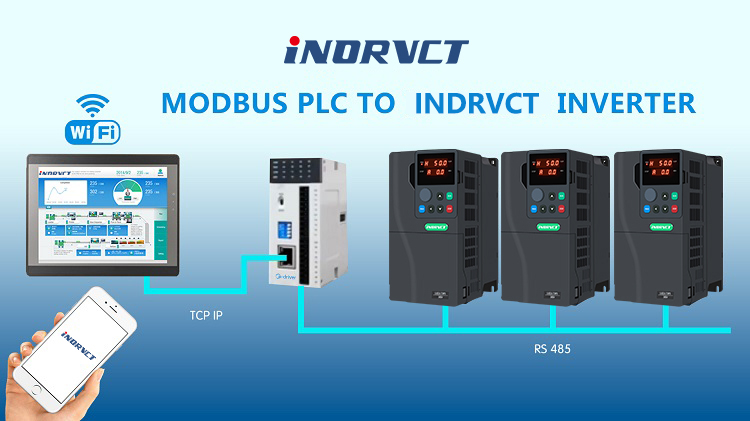

| Communication port | RS-485, which support MODBUS protocol |
| Vibration | Less than 5.9m/s |
| Fault Protection | Over current, over voltage, under voltage, over temperature, phase failure, over load etc. |
| Category | Item | Specifications |
|---|---|---|
| Basic Functions | Overload Capability | G type:150% rated current 60s; 180% rated current 3s P type:120% rated current 60s; 150% rated current 3s |
| Torque Boost | Auto torque boost function; Manual torque boost 0.1%~30.0% | |
| V/F Curve | Linear, multi-point and square V/F curve (power of 1.2, 1.4, 1.6, 1.8, 2) | |
| Acc./Dec Curve | Straight line or S curve; Four kinds of time ranging from 0.0s to 6500.0s | |
| DC Braking | Frequency: 0.00Hz to max; Time: 0.0s to 36.0s; Current: 0%-100% | |
| Simple PLC | Realize maximum of 16 segments speed | |
| Personalized Functions | Instantaneous Stop | Maintains operation through load feedback energy during brief power loss |
| Rapid Current Limit | Avoids frequent over-current faults | |
| Timing Control | Range: 0Min ~ 6500.0Min | |
| Environment | Using Place | Indoor, free from direct sunlight, dust, corrosive or combustible gas |
| Temperature | -10 ℃ to +40 ℃ (Derating up to 50 ℃) | |
| Altitude | Below 1000m |
