High Quality Home Use 10KW Hybrid Solar PV System Deye Inverter Dyness Battery JinKo Solar Panel Solar Energy Storage System

1 / 5

High Quality Home Use 10KW Hybrid Solar PV System Deye Inverter Dyness Battery JinKo Solar Panel Solar Energy Storage System

Send Inquiry

Product Description

🛡️

Premium Quality: Complete solar system solutions supplied by international brand manufacturers. Reliable, fast delivery, and 24H after-sales service.

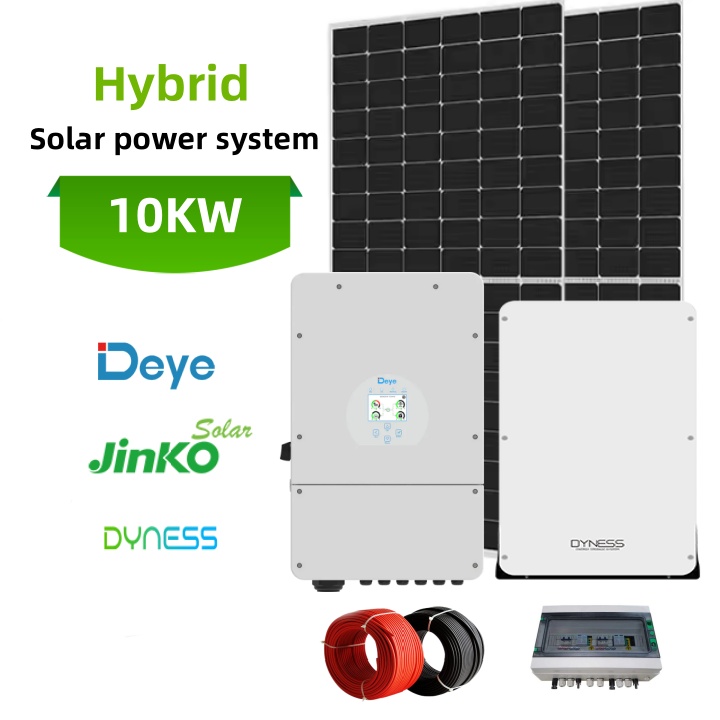

10kW Hybrid Solar System Configuration List

Item	Model	Description	Quantity
1	Solar Panel	Jinko Tiger Neo N-type 72HL4-BDV 600Watt	17 PCS
2	Solar Inverter	Deye hybrid 10KW inverter	1 PCS
3	Solar Battery	Dyness 51.2V 200AH battery	1 PCS
4	PV Cable	4mm²	200 M
5	PV Combiner Box	Switches, Breaker, SPD	1 PCS
6	MC4 Connector	Rate Current 1000V 30A	8 PCS
7	Mounting System	Aluminium Alloy	1 SET

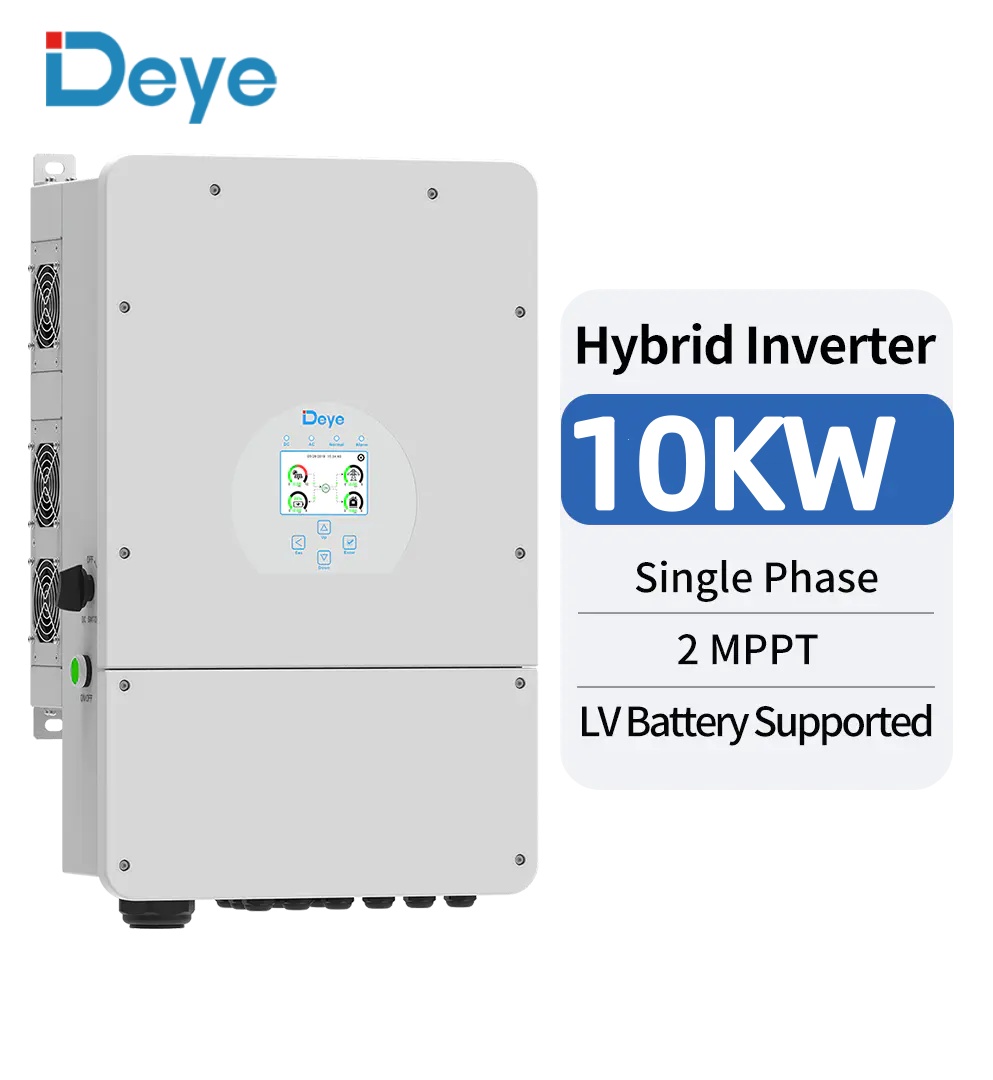

Solar Inverter

SUN-10K-SG02LP1-EU-AM3

Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported

Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation
Support multiple batteries parallel
Max. charging/discharging current of 250A
6 time periods for battery charging/discharging
Support storing energy from diesel generator

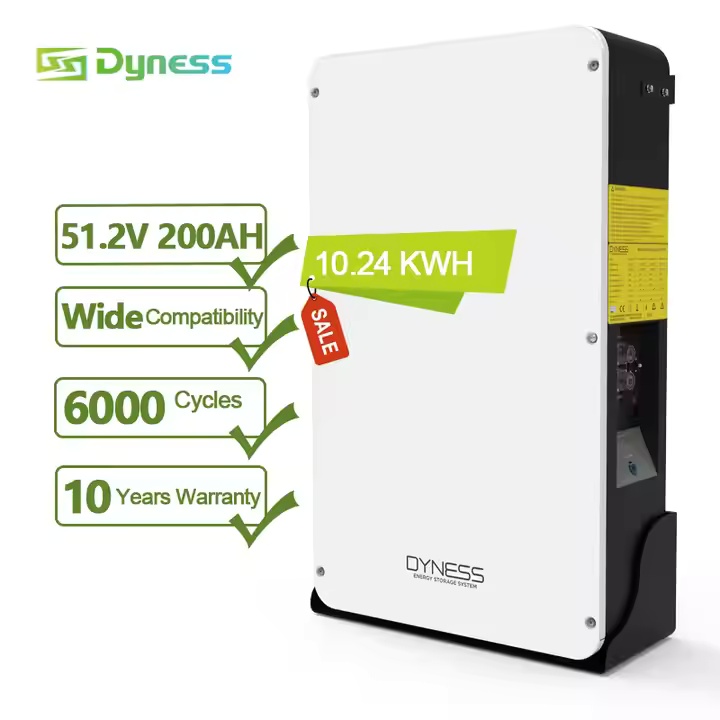

Solar Battery

Powerbox Pro

Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 200AH
Cycle life: ≥6000 times
Warranty: 10 Years
Dimension: 555*210*928 mm
Protection Level: IP65
Expansion: Up to 50 units in parallel

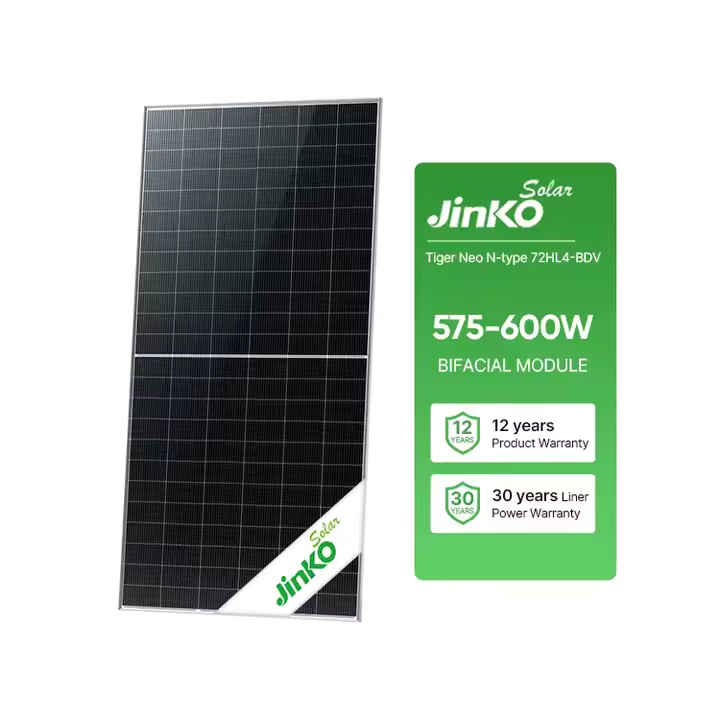

Solar Panels

Jinko Tiger Neo N-type 72HL4-BDV

Peak Power: 600W
Solar Cells: N-type i-TOPCon Monocrystalline
No. of cells: 144（72×2）
Module Dimensions: 2278×1134×30 mm
Weight: 31.0 kg

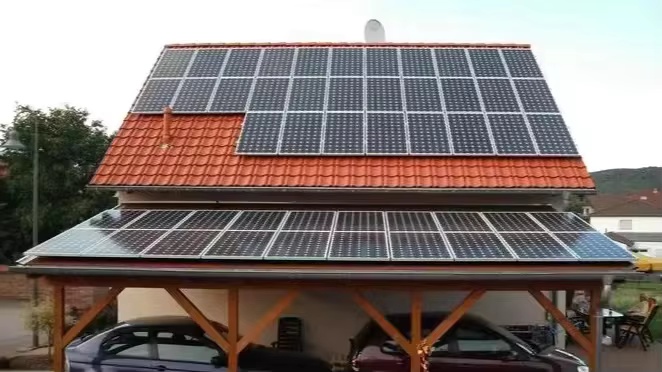

Mounting & Accessories

Installation Mode: Roof/Ground/Carport Mounting
Support Material: Aluminium Alloy
MC4 Connector: 30A, 1000VDC

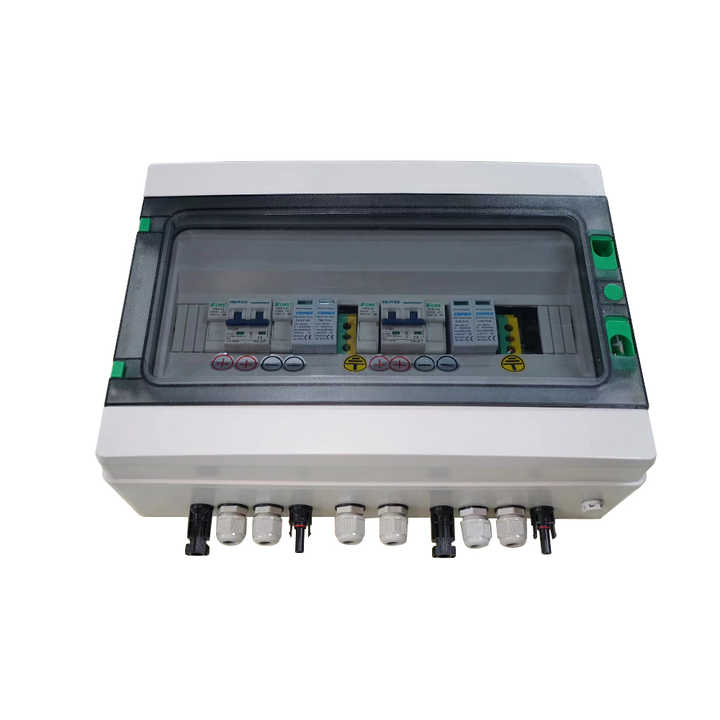

PV Combiner Box: 2 Inputs, 2 Outputs
PV Cable: 4mm²
Breakers Switches: Selectable

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

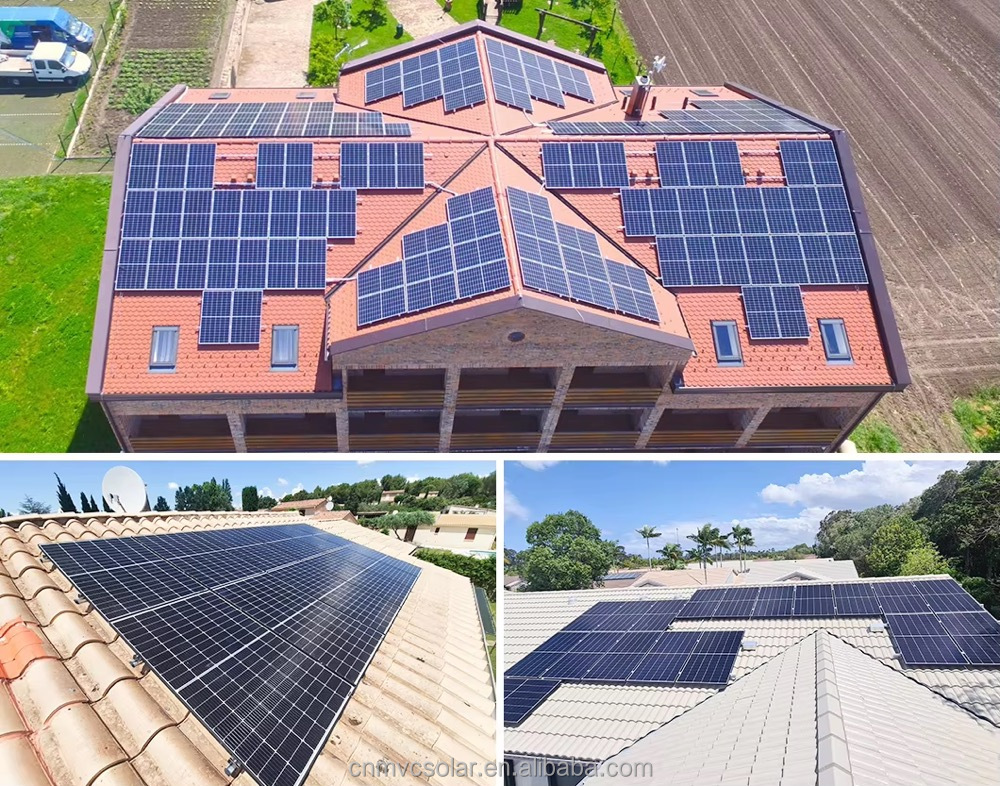

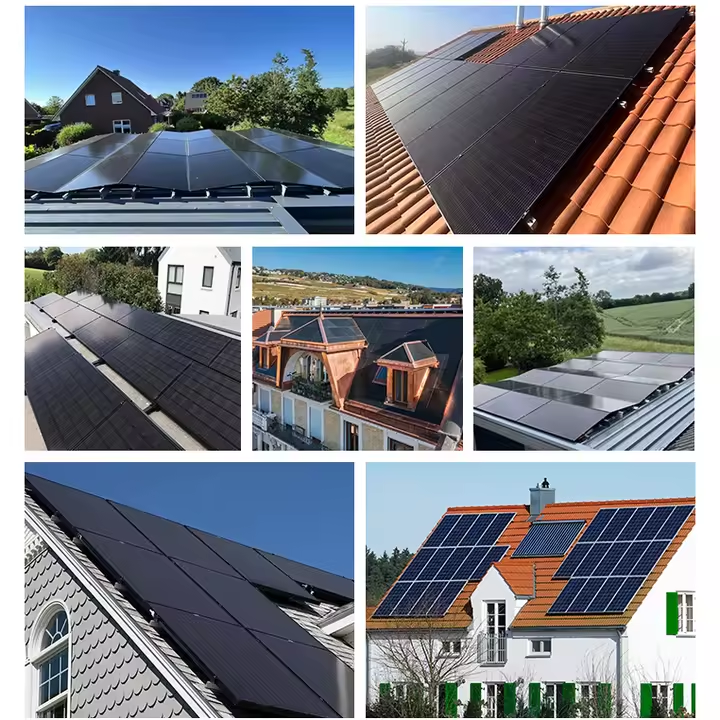

Project Cases

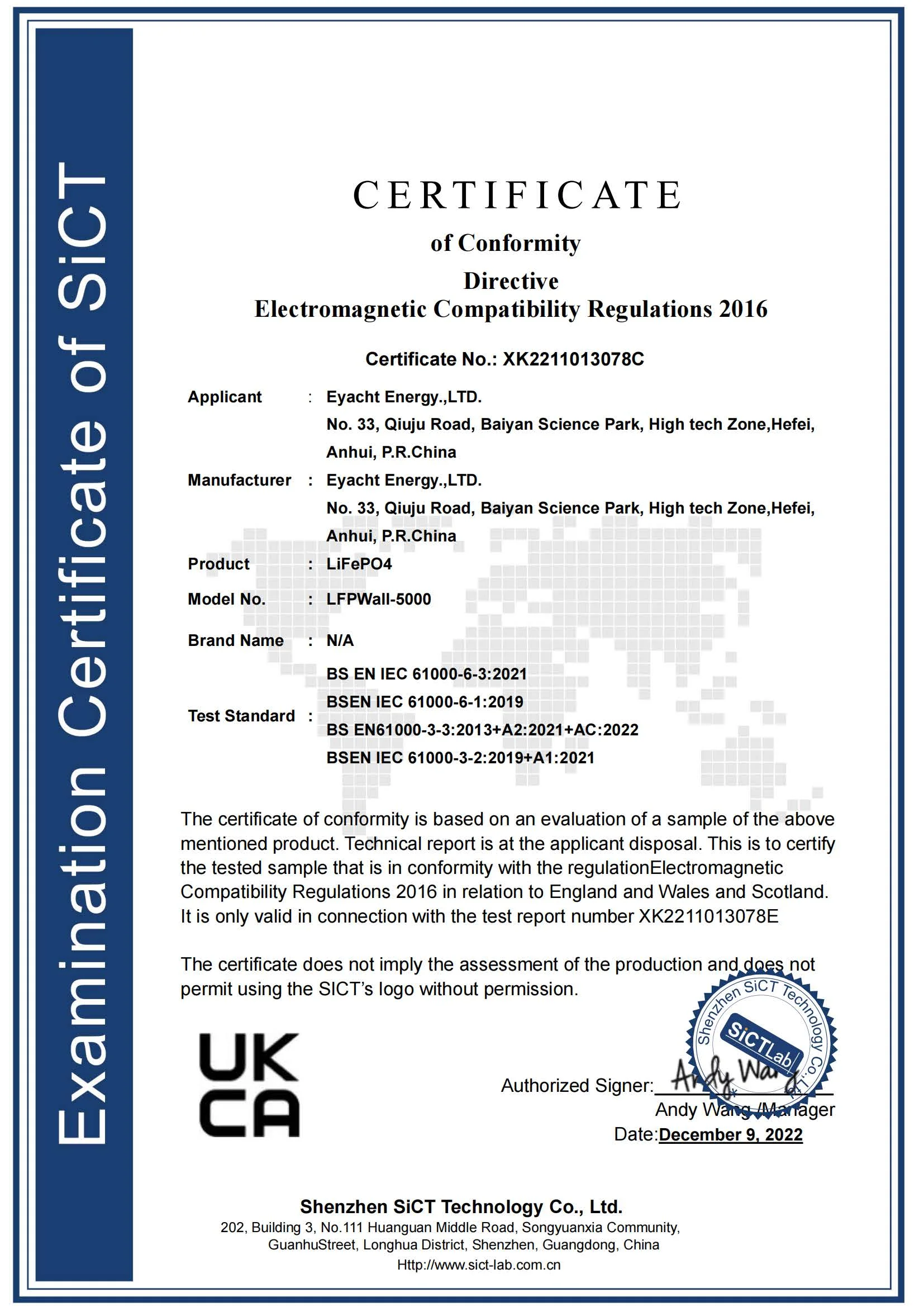

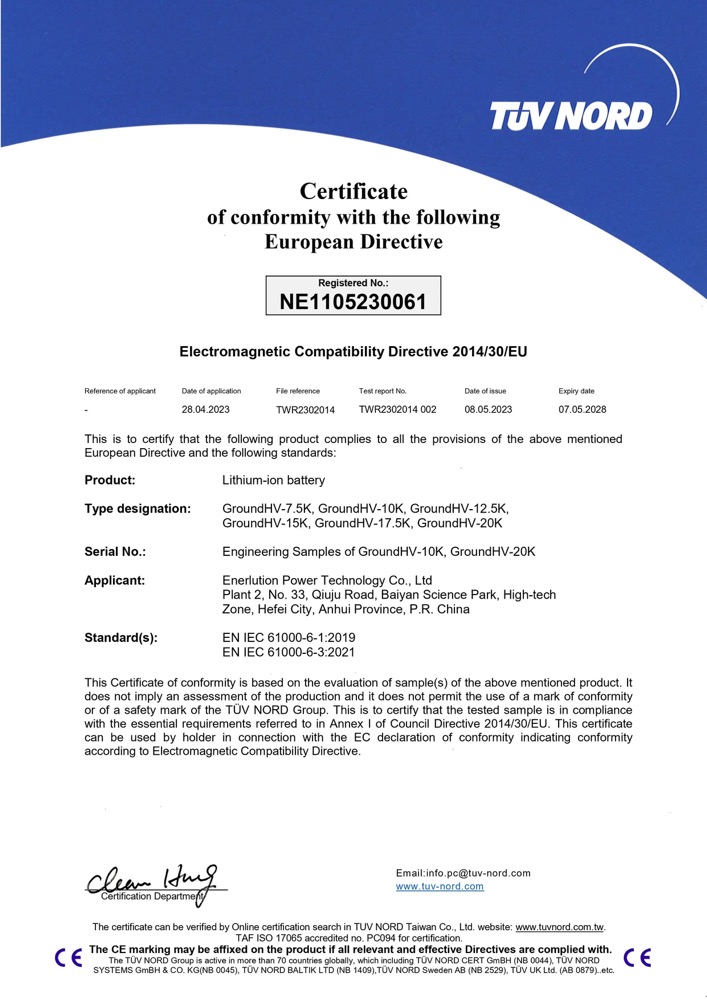

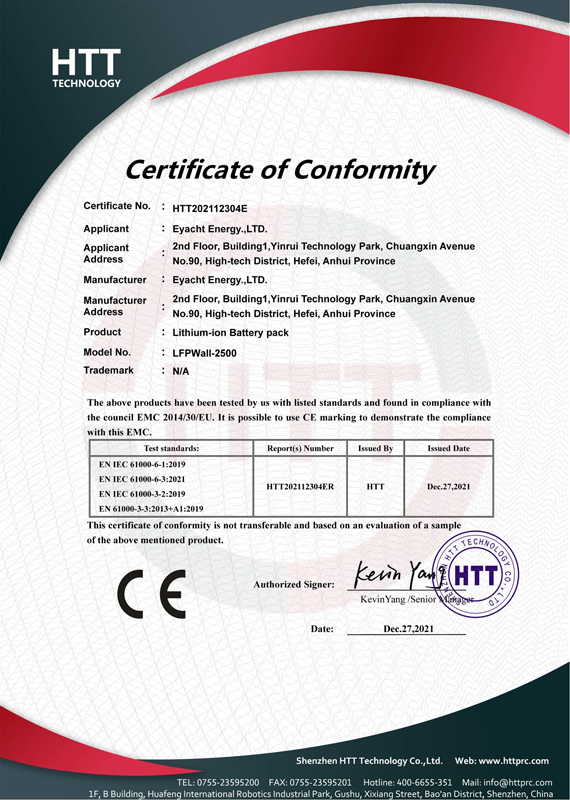

Certificate

Frequently Asked Questions

1. What products can we provide?

We offer complete solar solutions including top-brand solar panels, on-grid/off-grid and hybrid inverters, and energy storage systems (LiFePO4 batteries and BMS platforms).

2. How is the product quality guaranteed?

We have a professional technical team for product testing and training. Sample orders are available for quality verification before mass production.

3. Can the battery system be expanded?

Yes, our Powerbox Pro system is highly scalable and supports up to 50 units in parallel to meet larger energy demands.

4. What are the delivery and payment terms?

We support various terms including EXW, FOB, and CIF. Payments can be made via T/T, L/C, Western Union, and other standard methods.

5. Is the system suitable for outdoor installation?

Yes, both our hybrid inverters and solar batteries feature IP65 protection, making them suitable for reliable outdoor operation.

6. Do you offer OEM services?

Yes, with our own factory and a complete supply chain, we can provide professional OEM services tailored to customer requirements.
